TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-79

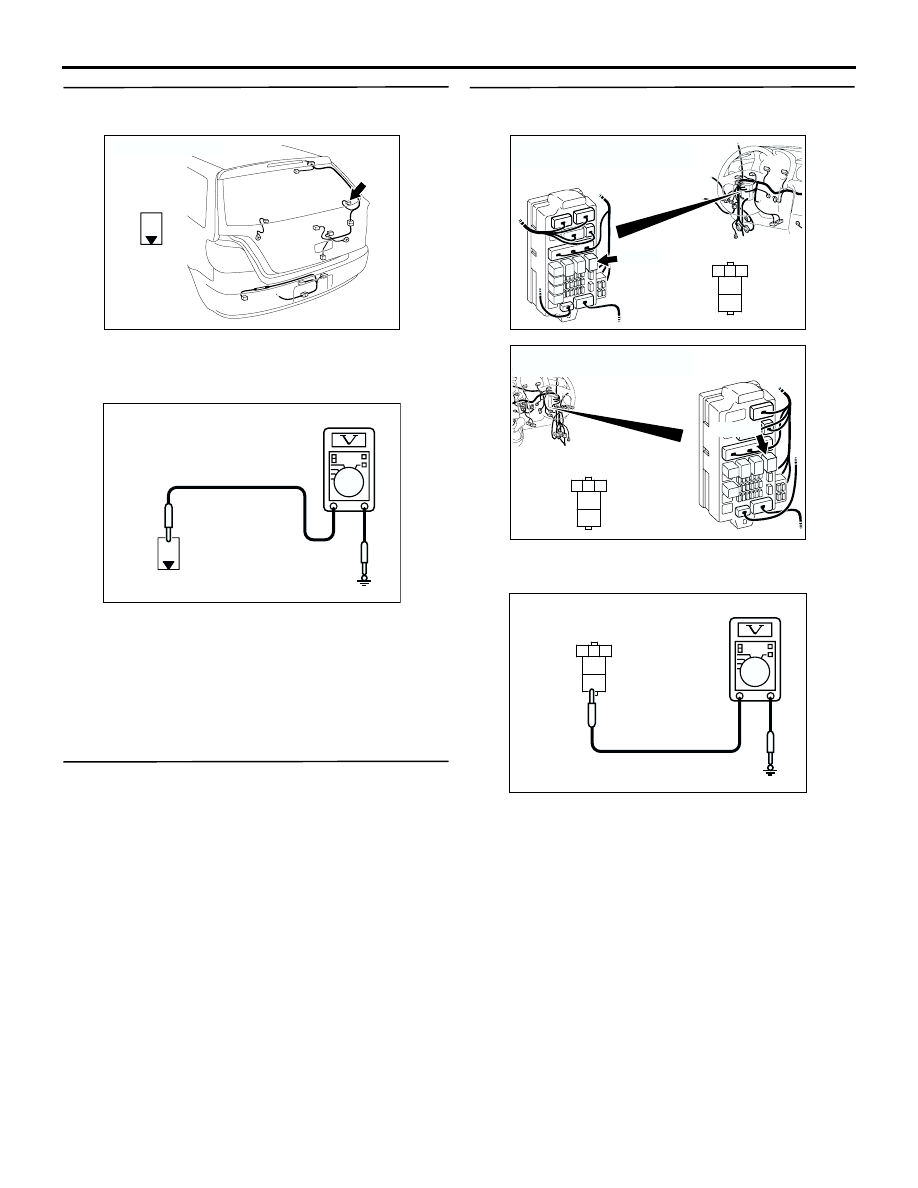

STEP 2. Measure the voltage at F-04 defogger
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the defogger switch to the "ON" position.

(3) Measure the voltage between terminal 1 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 14.

NO :

 Go to Step 3.

STEP 3. Check the defogger relay continuity.

 Refer to

P.55A-57

.

Q: Is the defogger relay in good condition?

YES :

Go to Step 4.

NO :

Replace the defogger relay.

STEP 4. Measure the voltage at C-206 defogger
relay connector.

(1) Remove the relay, and measure at the junction

block side.

(2) Measure the voltage between terminal 5 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 7.

NO :

 Go to Step 5.

AC301658

Harness side

Connector: F-04

AB

F-04(B)

1

AC301541CE

Connector F-04
(Harness side)

1

AC308720 AO

C-206

Relay side

Junction block (Front view)

3

4

5

1

2

Connector: C-206 <LHD>

AC308772AN

C-206

Connector: C-206

<RHD>

Relay side

Junction block (Front view)

3

4

5

1

2

AC301541CF

Connector C-206
(Junction block side)

3

4

5

1

2

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-80

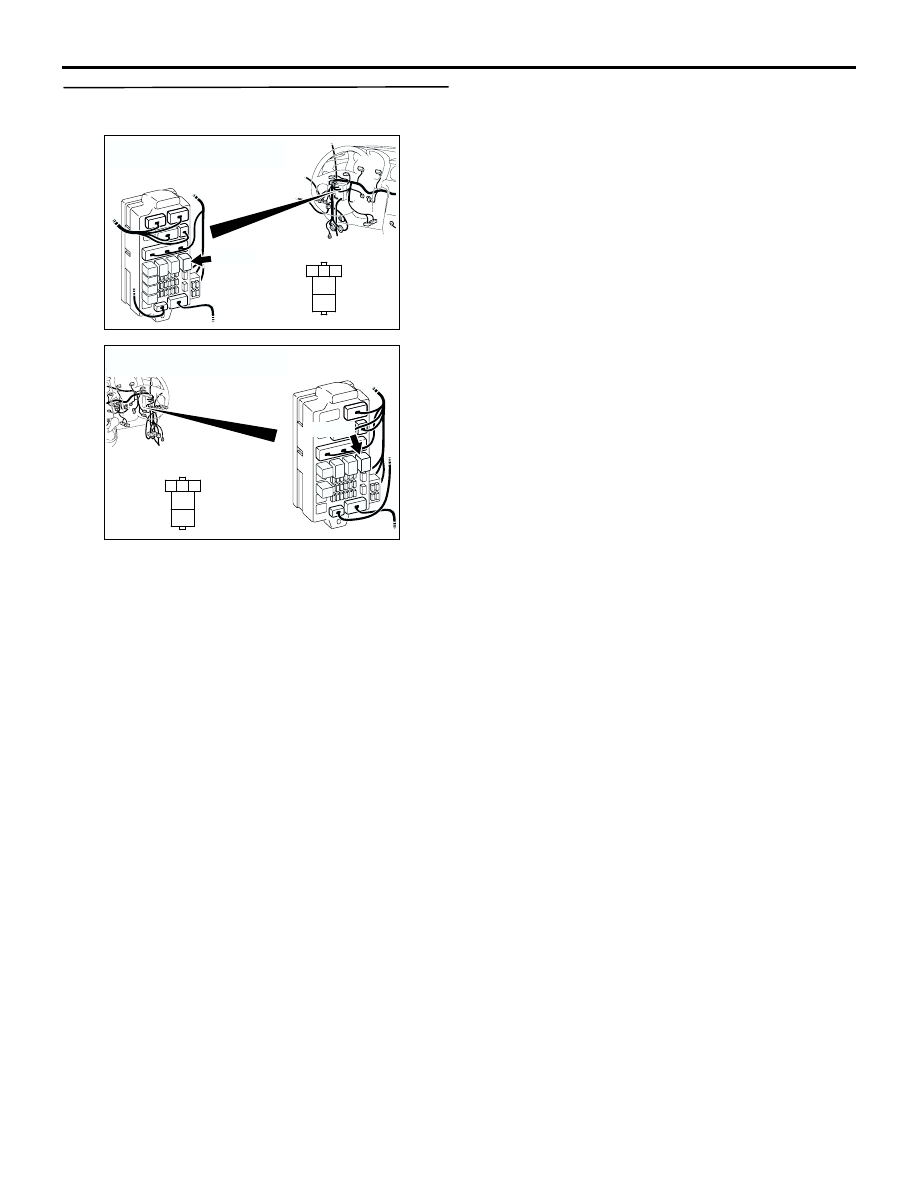

STEP 5. Connector check: C-206 defogger relay
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector.

AC308720 AO

C-206

Relay side

Junction block (Front view)

3

4

5

1

2

Connector: C-206 <LHD>

AC308772AN

C-206

Connector: C-206

<RHD>

Relay side

Junction block (Front view)

3

4

5

1

2

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-81

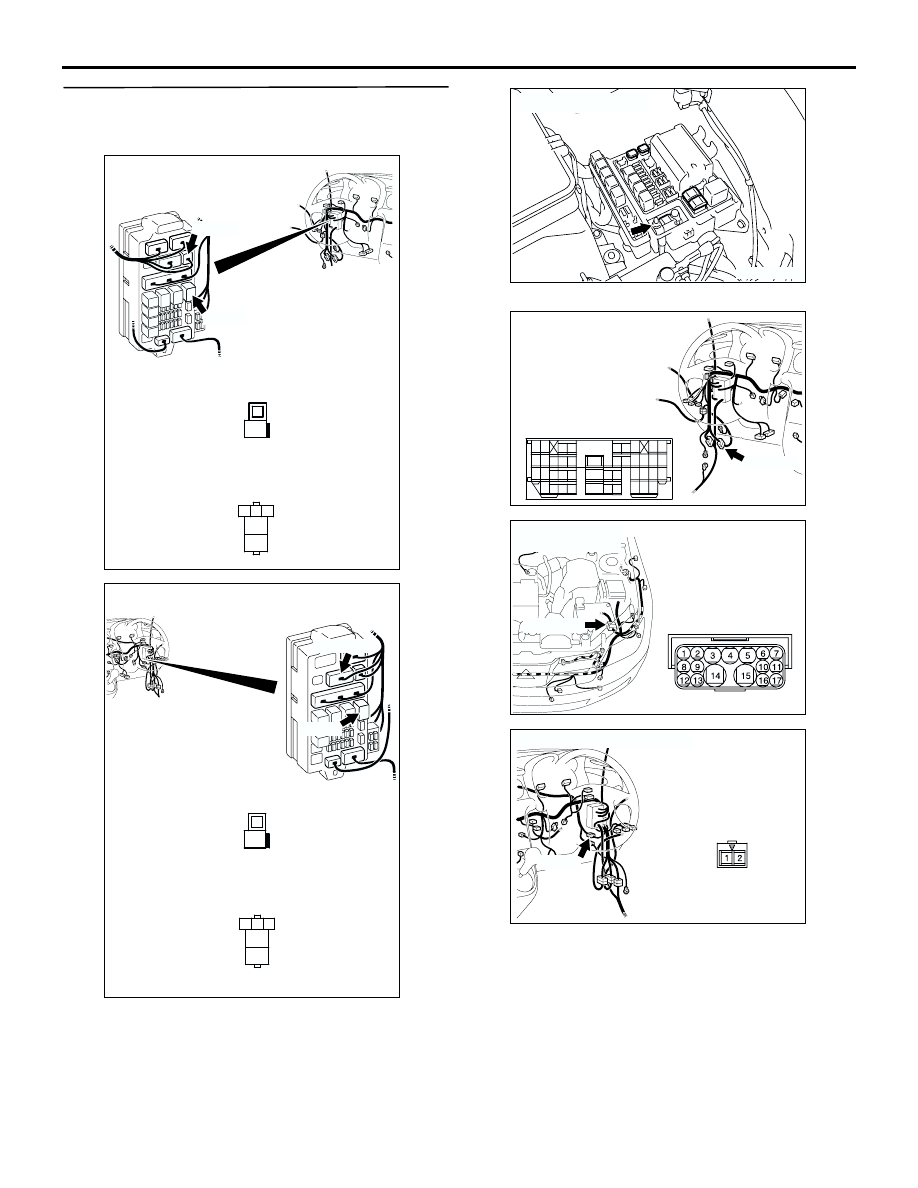

STEP 6. Check the wiring harness between C-206
defogger relay connector terminal No.5 and the
fusible link (1).

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-116 <LHD>, A-14
<RHD>, C-122 <RHD> and junction block connector
C-204, and repair if necessary.

•

Check the defogger relay power supply line for
open or short circuit.

Q: Is the check result normal?

AC308721

Connectors: C-204, C-206

AS

Junction block (Front view)

C-206

Harness side

Relay side

C-206

C-204

C-204(B)

<LHD>

3

4

5

1

2

1

AC308773

Connectors: C-203, C-206

AT

Junction block (Front view)

C-206

Harness side

C-206

C-204

C-204(B)

Relay side

<RHD>

3

4

5

1

2

1

AC301515 AB

Fusible link: No.1

AC308716

Connector: C-116

AY

C-116

<LHD>

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

AC308686AH

A-14(GR)

Connector: A-14
<RHD>

AC308769

BD

C-122

Connector: C-122

<RHD>

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-82

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

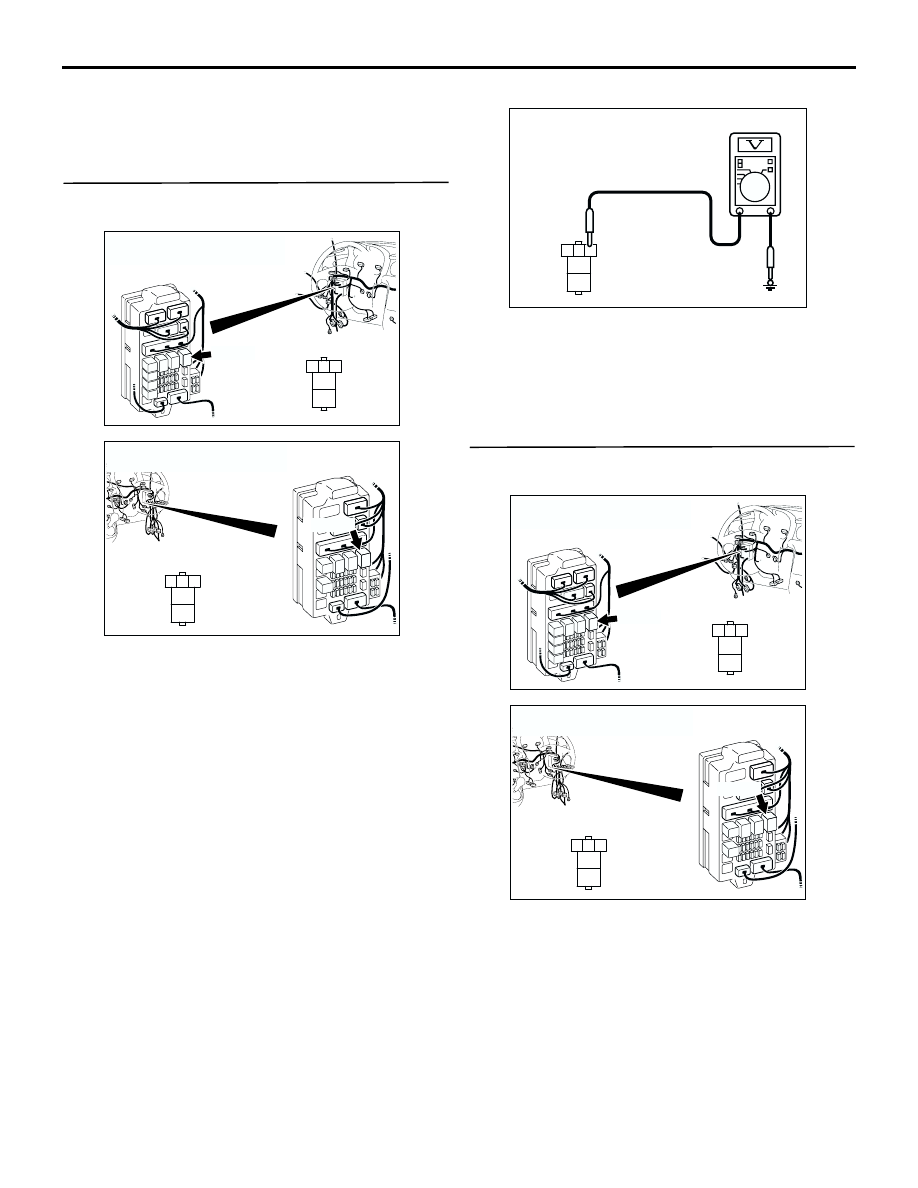

STEP 7. Measure the voltage at C-206 defogger
relay connector.

(1) Remove the relay, and measure at the junction

block side.

(2) Turn the ignition switch to the "ON" position.

(3) Voltage between terminal 1 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 10.

NO :

 Go to Step 8.

STEP 8. Connector check: C-206 defogger relay
connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector.

AC308720 AO

C-206

Relay side

Junction block (Front view)

3

4

5

1

2

Connector: C-206 <LHD>

AC308772AN

C-206

Connector: C-206

<RHD>

Relay side

Junction block (Front view)

3

4

5

1

2

AC301541CG

Connector C-206
(Junction block side)

3

4

5

1

2

AC308720 AO

C-206

Relay side

Junction block (Front view)

3

4

5

1

2

Connector: C-206 <LHD>

AC308772AN

C-206

Connector: C-206

<RHD>

Relay side

Junction block (Front view)

3

4

5

1

2
