TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-7

Diagnosis code 13, 14: Outside thermo sensor system

COMMENTS ON TROUBLE SYMPTOM
This code is set when the outside thermo sensor
circuit is open (Code No.13) or is short (Code
No.14).

Possible causes

•

Malfunction of the outside thermo sensor

•

Damaged the wiring harness and connectors

•

Malfunction of the automatic air conditioner
control panel (A/C-ECU)

DIAGNOSIS

Step 1. Check the outside thermo sensor.

Refer to

P.55B-105

.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the outside thermo sensor.

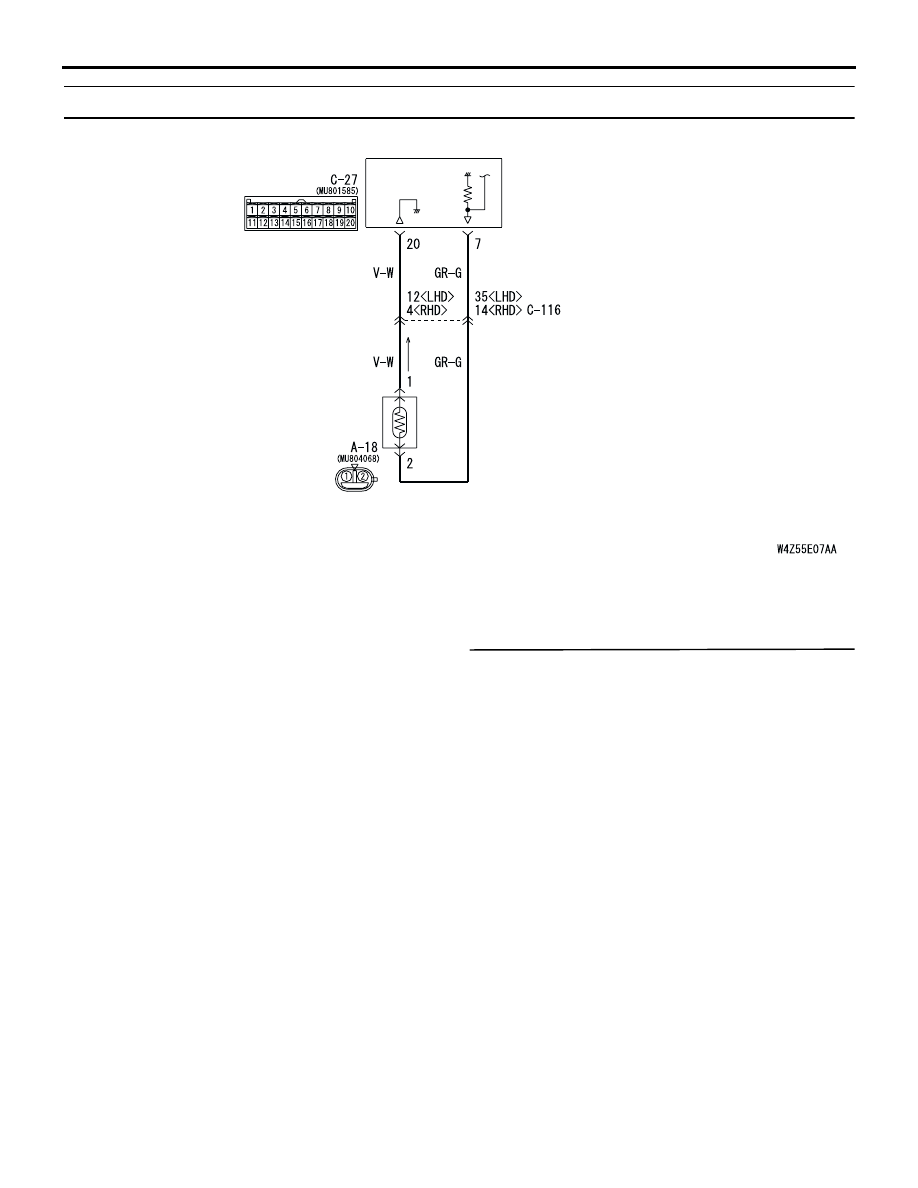

A/C-ECU

OUTSIDE
THERMO
SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-8

Step 2. Connector check: A-18 outside thermo
sensor connector and C-27 A/C-ECU connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

Step 3. Check the wiring harness between A-18
outside thermo sensor connector (terminals 1
and 2) and C-27 A/C-ECU connector (terminals 20
and 7).

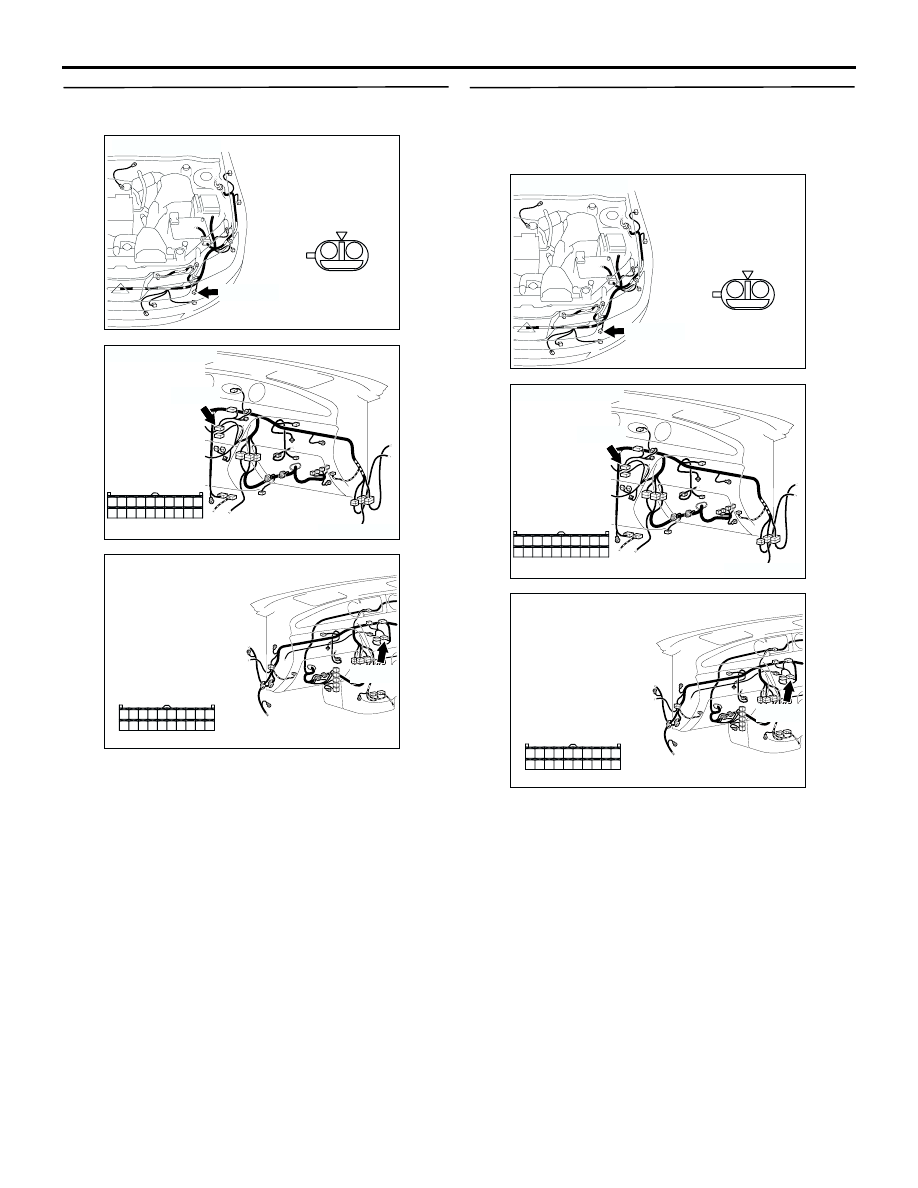

AC301653

Connector: A-18

A-18(BR)

AC

2

1

Harness side

AC301397

Connector: C-27
<LHD>

AX

C-27(B)

Harness side

8

2

10 9

1

5

3

4

6

7

20191817161514131211

AC308735

Connector: C-27 <RHD>

AY

C-27(B)

Harness side

8

2

10 9

1

5

3

4

6

7

20191817161514131211

AC301653

Connector: A-18

A-18(BR)

AC

2

1

Harness side

AC301397

Connector: C-27
<LHD>

AX

C-27(B)

Harness side

8

2

10 9

1

5

3

4

6

7

20191817161514131211

AC308735

Connector: C-27 <RHD>

AY

C-27(B)

Harness side

8

2

10 9

1

5

3

4

6

7

20191817161514131211

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-9

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-116, and repair if
necessary.

•

Check the sensor signal line and earth line for
open or short circuit.

Q: Is the check result normal?

YES :

Replace the automatic air conditioner

control panel (A/C-ECU)

NO :

Repair the wiring harness.

AC301395AU

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

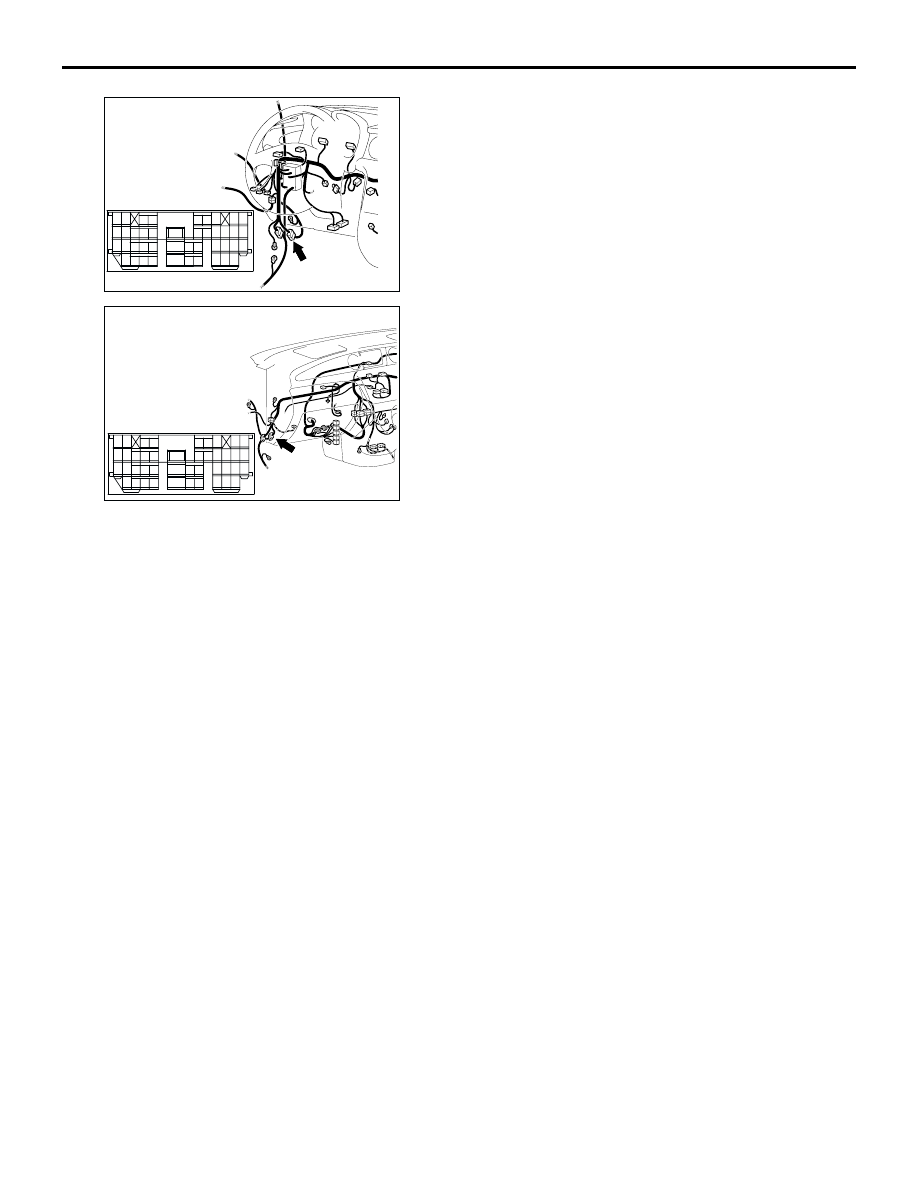

Connector: C-116 <LHD>

AC308735

AP

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

Connector: C-116
<RHD>

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-10

Diagnosis code 15, 16: Heater water temperature sensor system

COMMENTS ON TROUBLE SYMPTOM
This code is set when the heater water temperature
sensor circuit is open (Code No.15) or is short (Code
No.16).

Possible causes

•

Malfunction of the heater water temperature
sensor

•

Damaged the wiring harness or connectors

•

Malfunction of the automatic air conditioner
control panel (A/C-ECU)

DIAGNOSIS

Step 1. Check the heater water temperature
sensor.

Refer to

P.55B-104

.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the heater water temperature
sensor.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

HEATER WATER
TEMPERATURE
SENSOR

A/C-ECU

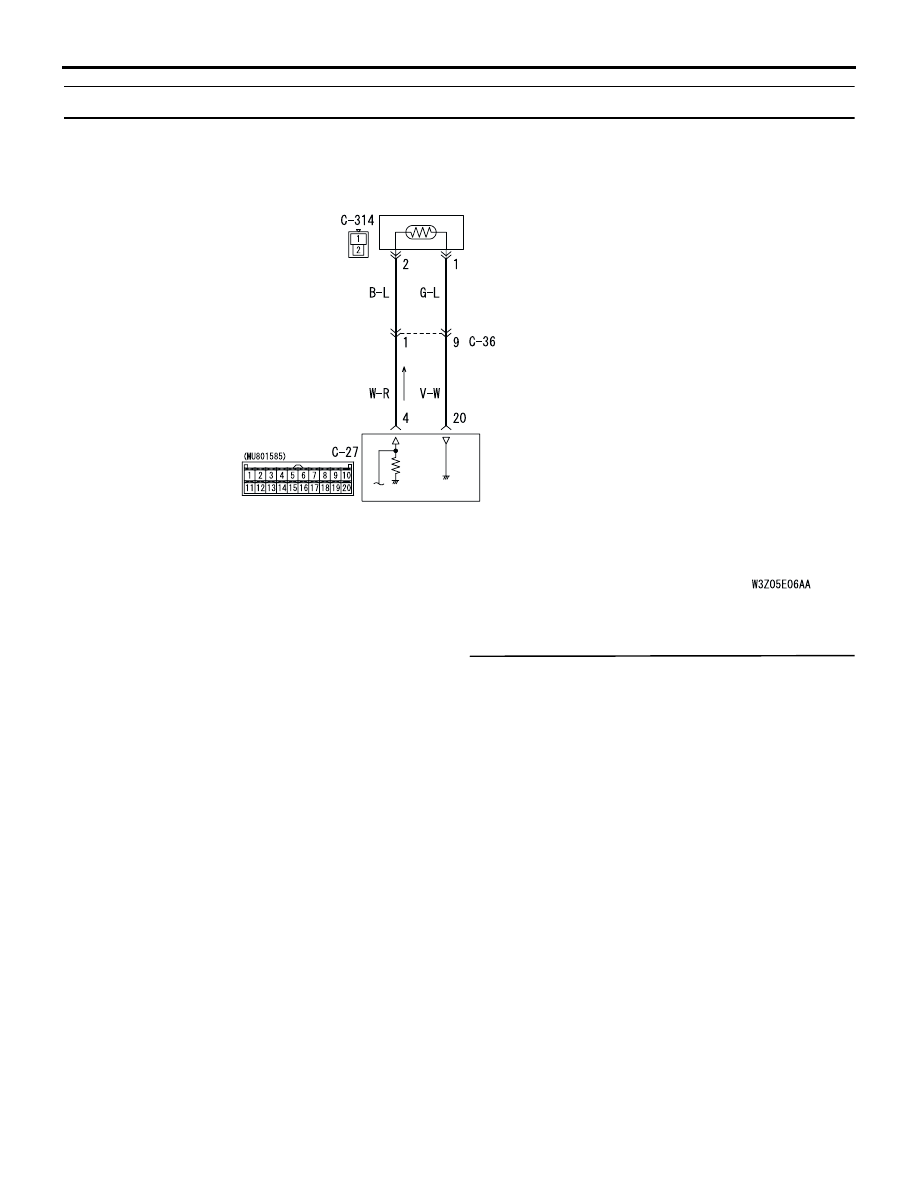

Heater Water Temperature Sensor Circuit
