INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-337

Step 6. Check the wiring harness between C-304
key reminder switch connector terminal No.6 and
C-220 ETACS-ECU connector terminal No.30.

•

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.

Check that the key reminder switch signal is received
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

AC308722

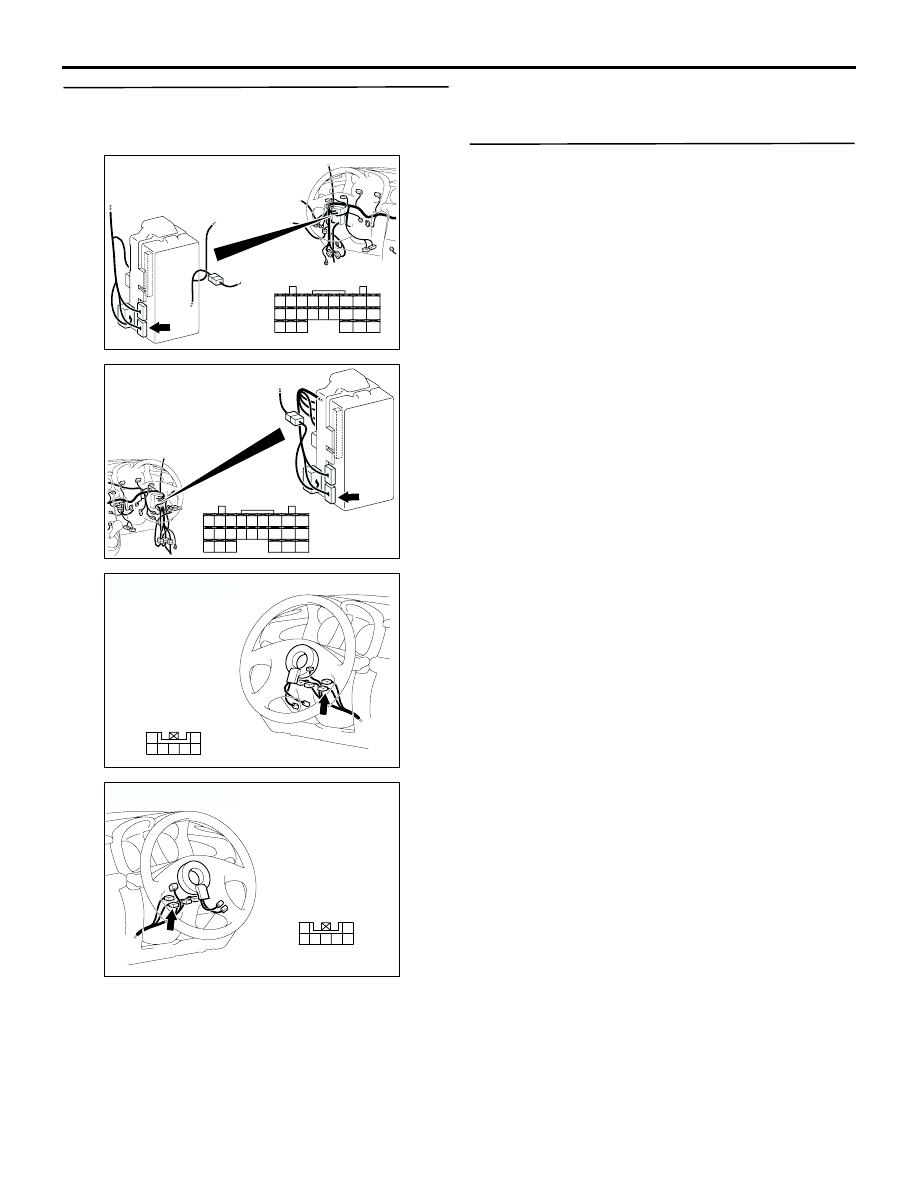

Connector: C-220

Junction block (Rear view)

AF

Harness side

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

3635

33

21

22

30

39

40

31

<LHD>

AC308776

Connector: C-220

Junction block (Rear view)

AD

Harness side

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

3635

33

21

22

30

39

40

31

<RHD>

AC308724

2
7 6

1
3

5 4

Connector: C-304
<LHD>

AD

Harness side

AC308778

2
7 6

1
3

5 4

Connector: C-304 <RHD>

AD

Harness side

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-338

INSPECTION PROCEDURE N-10: The hazard warning lamp switch signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the hazard warning lamp switch is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

•

Keyless entry system (encrypted code
registration)

•

Hazard warning lamp

POSSIBLE CAUSES

•

Malfunction of the hazard warning lamp switch

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

ETACS-
ECU

HAZARD
WARNING
LAMP SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

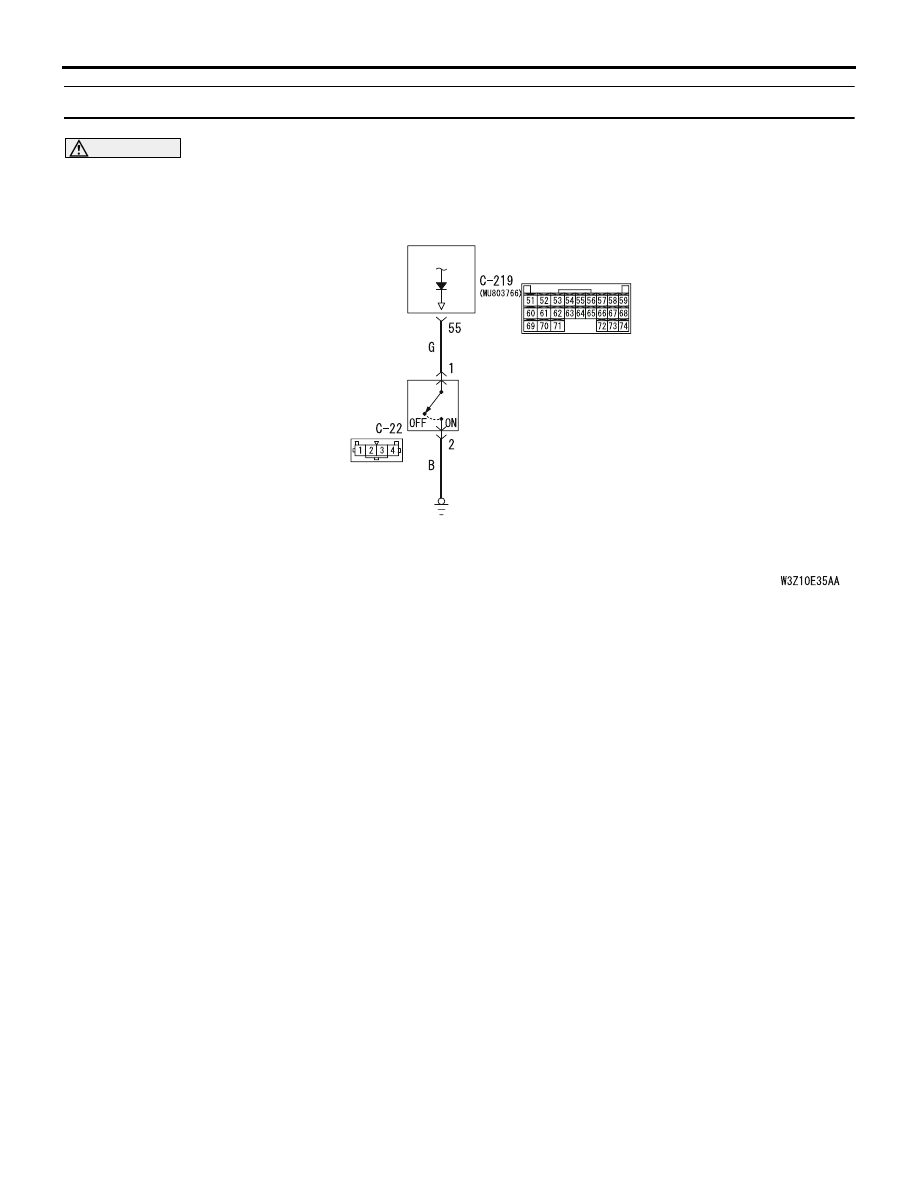

Hazard Warning Lamp Switch Input Circuit

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-339

DIAGNOSTIC PROCEDURE

Step 1. Connector check: C-22 hazard warning
lamp switch connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the hazard warning lamp switch.
Refer to GROUP 54A

−

 Hazard warning lamp switch

P.54A-93

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the hazard warning lamp switch.

Step 3. Measure the resistance at the C-22 hazard
warning lamp switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between C-22 hazard warning lamp

switch connector terminal No.2 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

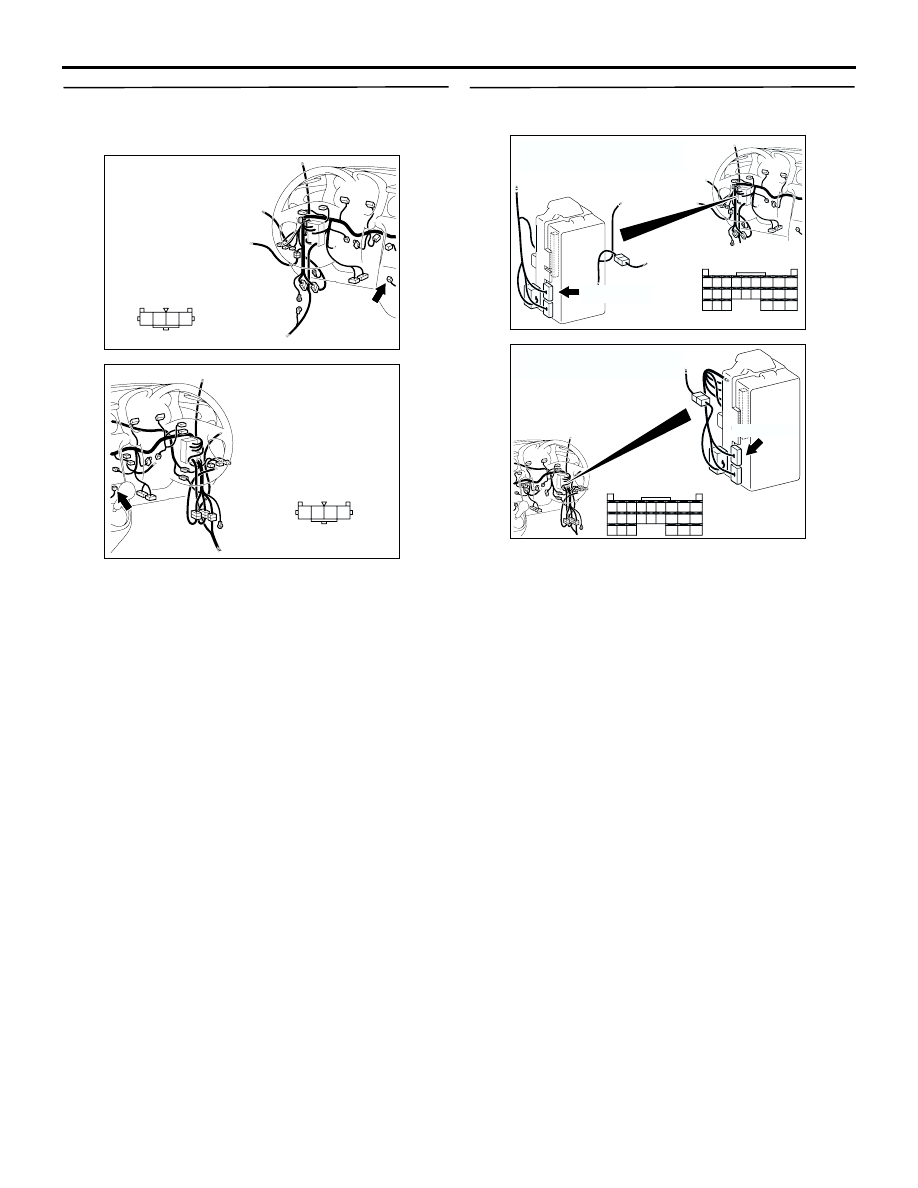

AC308716

AK

3

4

2 1

Connector: C-22
<LHD>

Harness side

AC308769

AL

3

4

2 1

Connector: C-22 <RHD>

Harness side

AC308716

AK

3

4

2 1

Connector: C-22
<LHD>

Harness side

AC308769

AL

3

4

2 1

Connector: C-22 <RHD>

Harness side

AC301541

3

4

2 1

AZ

Connector C-22
(Harness side)

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-340

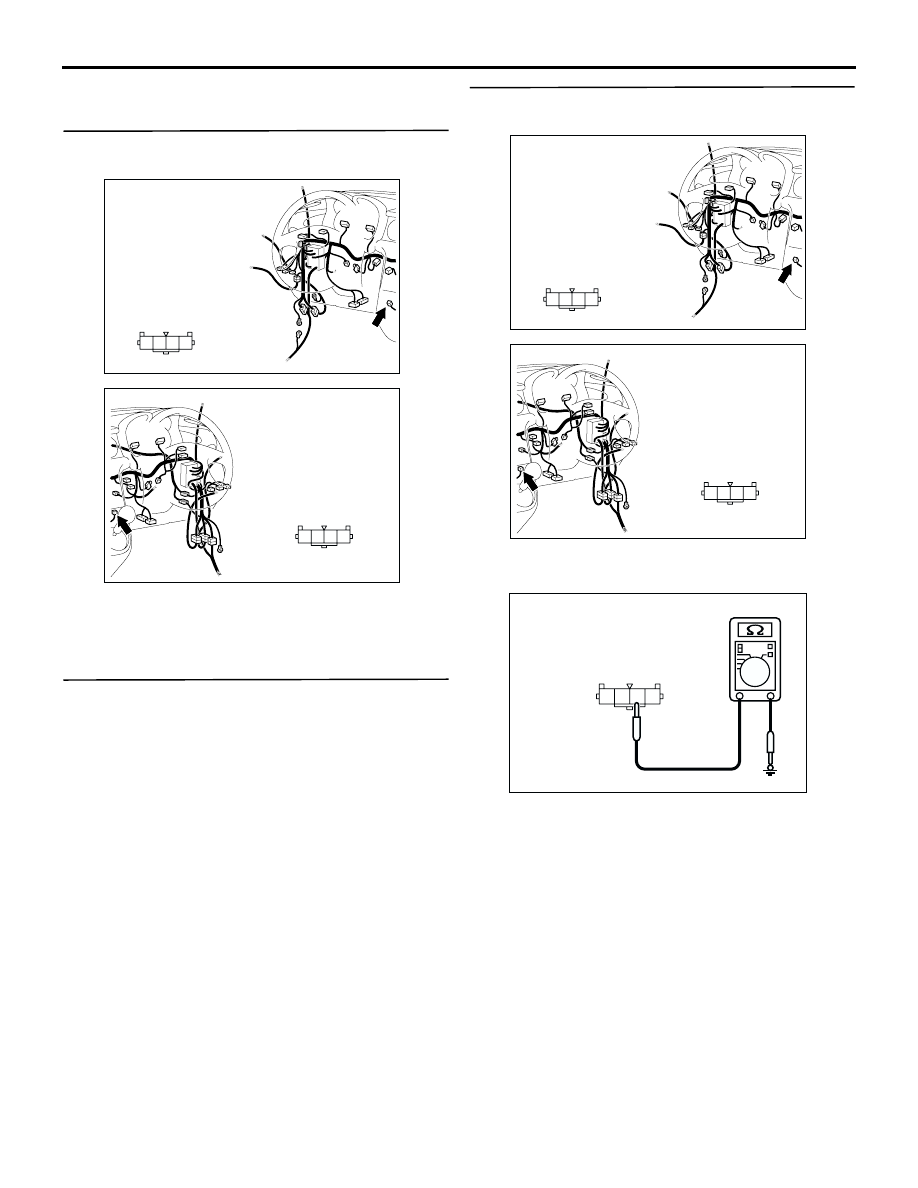

Step 4. Check the wiring harness between C-22
hazard warning lamp switch connector terminal
No.2 and the body earth.

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC308716

AK

3

4

2 1

Connector: C-22
<LHD>

Harness side

AC308769

AL

3

4

2 1

Connector: C-22 <RHD>

Harness side

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)
