Mitsubishi Outlander (2003+). Manual - part 513





INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-341

Step 6. Check the wiring harness between C-219
ETACS-ECU connector terminal No.55 and C-22
hazard warning lamp switch connector terminal
No.1.

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.

Check that the hazard warning lamp switch signal is
received normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

AC308716

AK

3

4

2 1

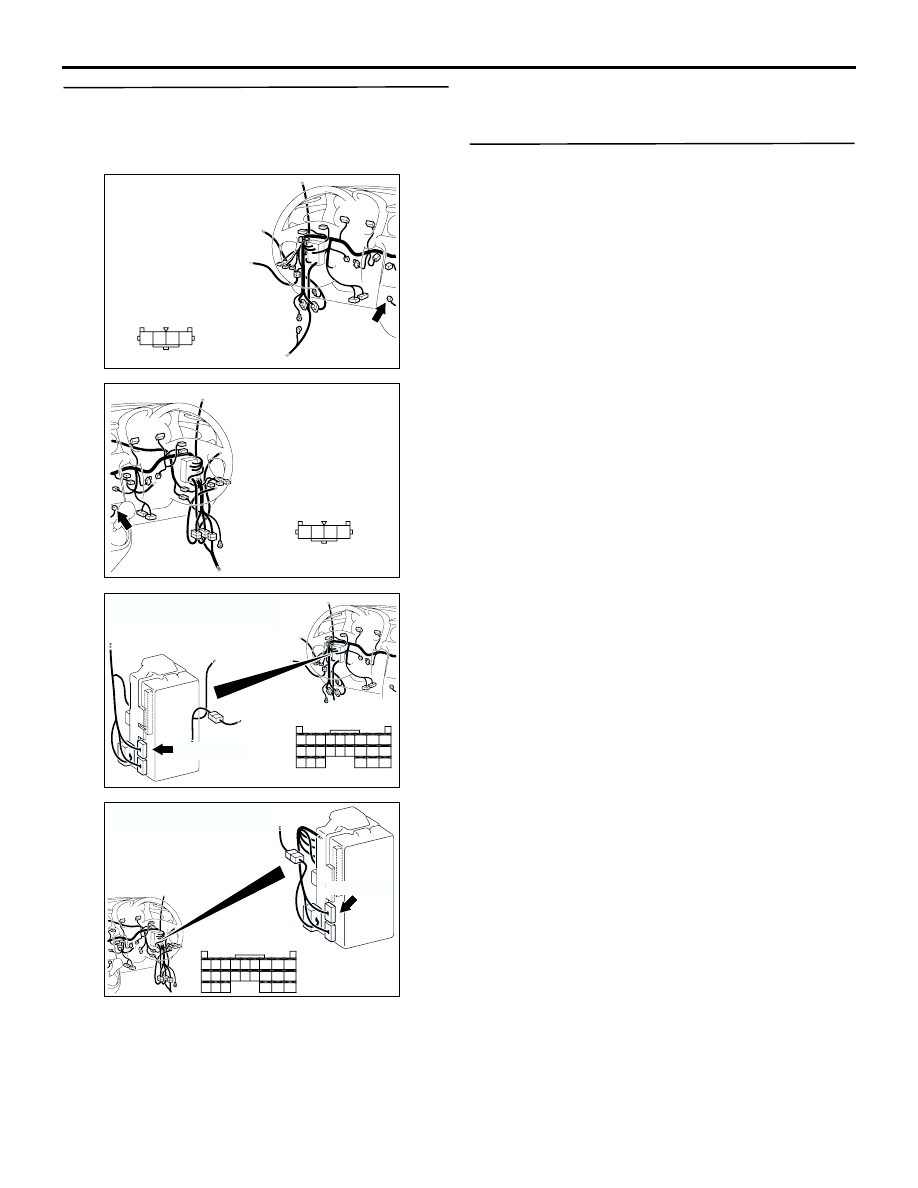

Connector: C-22
<LHD>

Harness side

AC308769

AL

3

4

2 1

Connector: C-22 <RHD>

Harness side

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-342

INSPECTION PROCEDURE N-11: All the door switch signals are not received. <L.H. drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signals from all the door switches are used to
operate the functions below. If the signal(s) are
abnormal, these functions will not work normally.

Keyless entry system

Room lamps

POSSIBLE CAUSES

Malfunction of the door switches

Malfunction of the ETACS-ECU

Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Pulse check

Check the input signal from the driver's door switch.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

FRONT DOOR
SWITCH
(RH)

REAR DOOR
SWITCH
(RH)

FRONT DOOR
SWITCH
(LH)

REAR DOOR
SWITCH
(LH)

TAILGATE
SWITCH

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

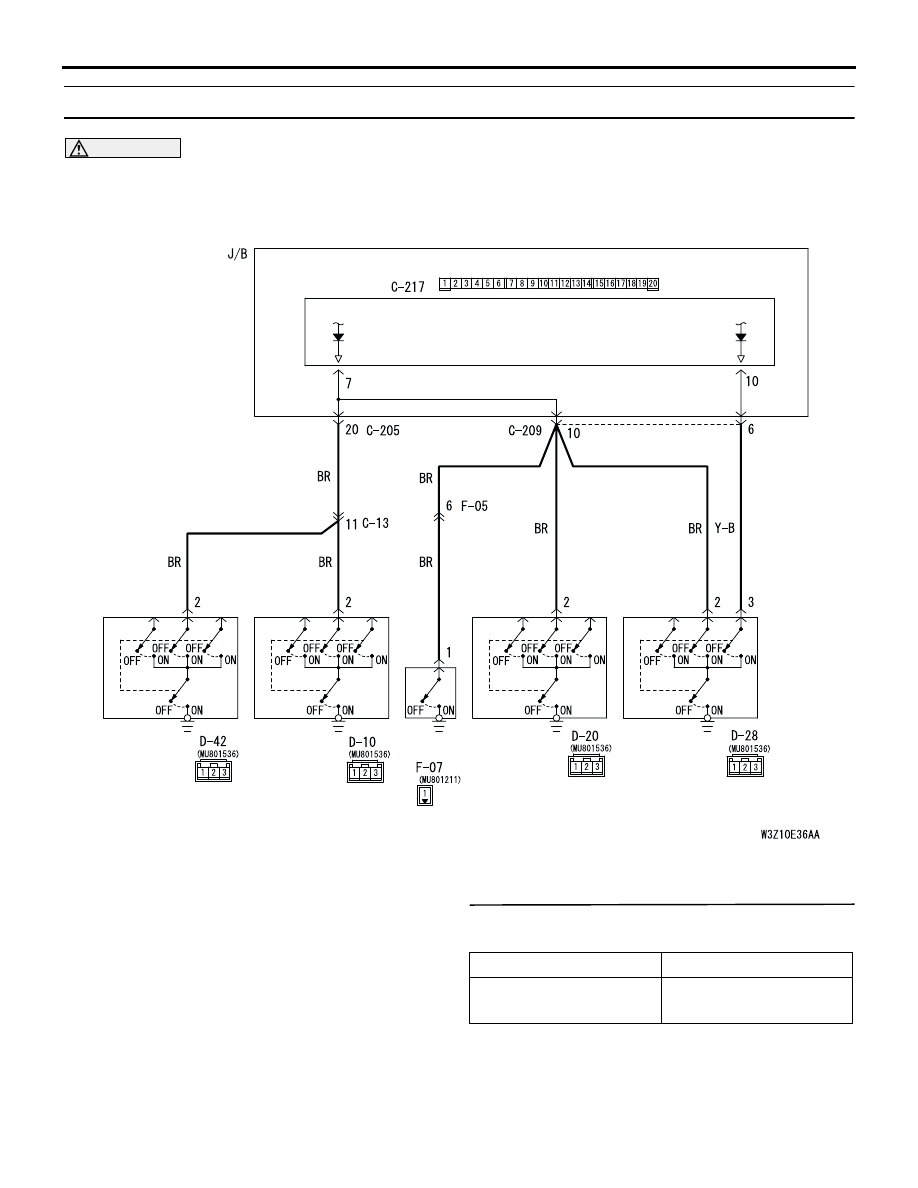

All Door Switches Input Circuit

System switch

Check condition

Driver's door switch

When the driver's door is
opened

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-343

YES :

Go to Step 2.

NO :

Refer to inspection procedure N-4 "The front
door switch signal is not received <L.H.
drive vehicles>

P.54B-315

."

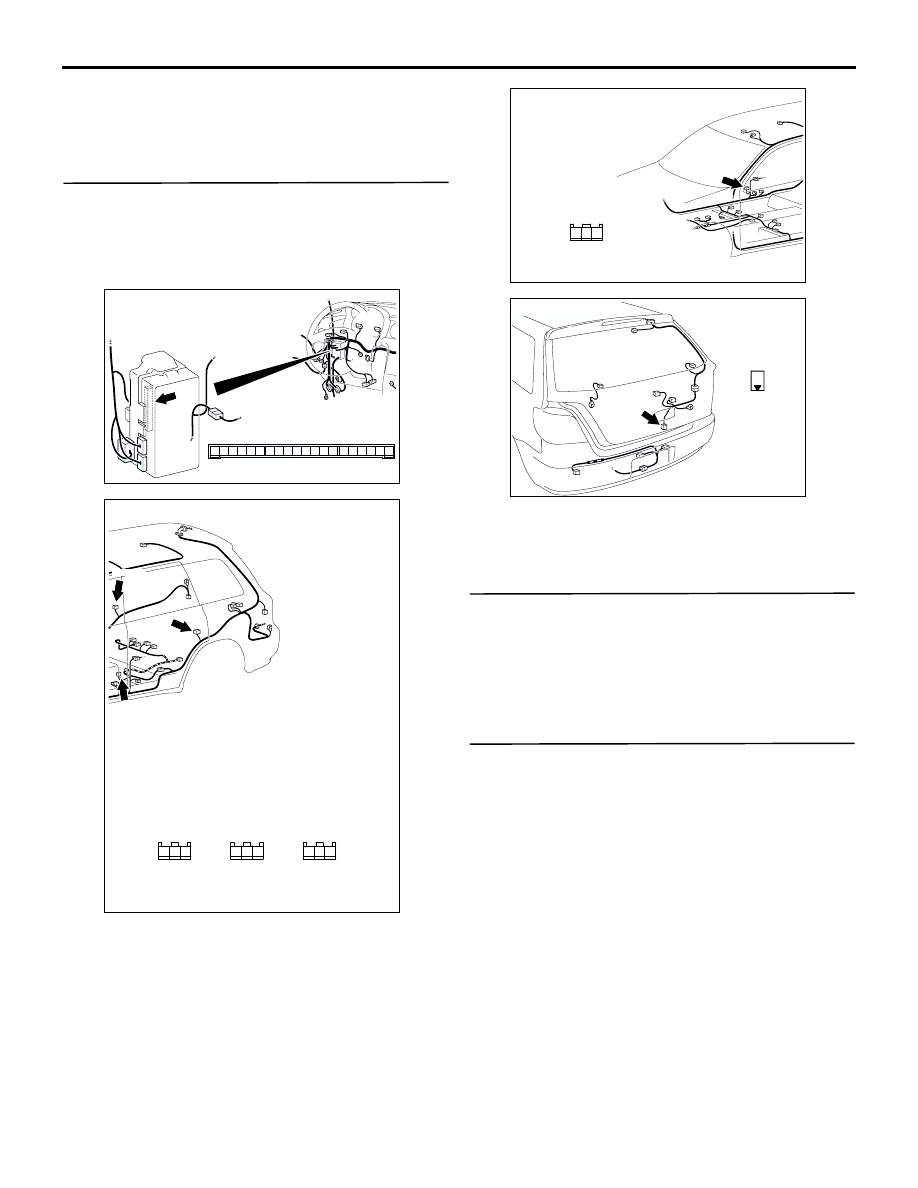

Step 2. Connector check: D-28 <front: LH> D-42
<front: RH>, D-10 <rear: RH> or D-20 <rear: LH>
door switch connectors or F-07 <tailgate>
tailgate switch connector, and C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the installation condition.

Check that the door switch is installed on the body
correctly.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Correct the installation condition.

Step 4. Check the door switch.

Refer to GROUP 42

 Door

P.42-30

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the door switch.

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308784

Connectors: D-10, D-20, D-28 <LHD>

AC

D-28

D-20

Harness side

3 2 1

D-10

3 2 1

D-20

3 2 1

D-28

D-10

AC308781

Connector: D-42 <LHD>

Harness side

AG

3 2 1

AC301665

Connector: F-07

AC

Harness side

F-07(B)

1

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-344

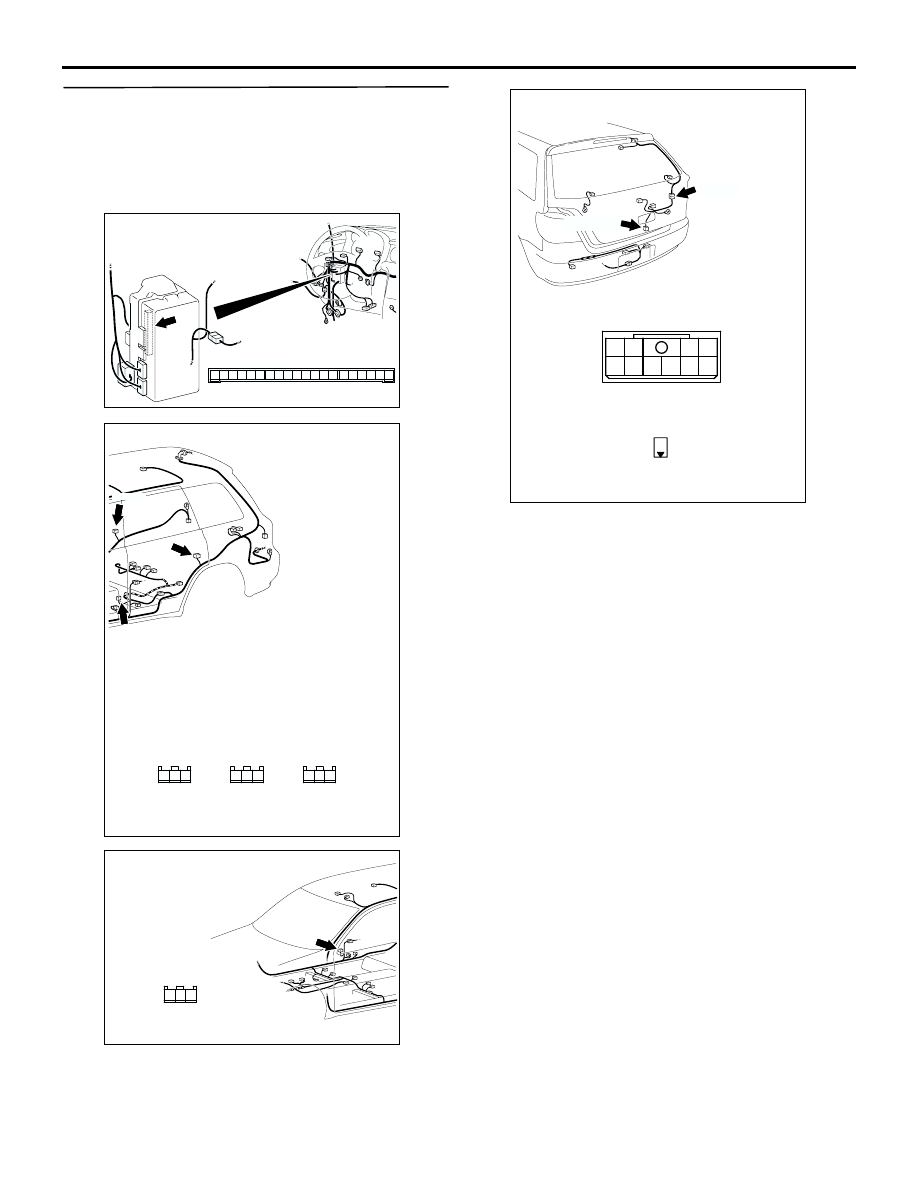

Step 5. Check the wiring harness from terminal
No.2 of the D-28 <front: LH>, D-42 <front: RH>,
D-10 <rear: RH> or D-20 <rear LH> door switch
connector or terminal No.1 of the F-07 <tailgate>
tailgate switch connector to terminal No.7 of the
C-217 ETACS-ECU connector.

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308784

Connectors: D-10, D-20, D-28 <LHD>

AC

D-28

D-20

Harness side

3 2 1

D-10

3 2 1

D-20

3 2 1

D-28

D-10

AC308781

Connector: D-42 <LHD>

Harness side

AG

3 2 1

AC308809

Connectors: F-05, F-07

F-05

AH

F-05

5

1

8

7

6

2

9 10

3 4

F-07

Harness side

1

F-07(B)
