Mitsubishi Outlander (2003+). Manual - part 508





INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-321

DIAGNOSTIC PROCEDURE

Step 1. Use the MUT-II/III to confirm a diagnosis
code.

Check that the ETACS-ECU sets a diagnosis code.

Q: Is the diagnosis code set?

YES :

Refer to diagnosis code char

P.00-6

.

NO :

Go to Step 2.

Step 2. Retest the system.

Replace the column switch, and check if the column
switch (windshield wiper washer and rear wiper
washer switch) sends signal.
(1) Replace the column switch.
(2) Check if the column switch (windshield

wiper/washer and rear wiper washer switch)
sends signal.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE N-7: The windshield intermittent wiper volume signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
The intermittent wiper interval is calculated in
accordance with the input signal from the windshield
intermittent wiper volume. If this signal is abnormal,
the wiper interval can not be adjusted.

POSSIBLE CAUSES

Malfunction of the column switch

Malfunction of the ETACS-ECU

Damaged harness wires and connectors

COLUMN
SWITCH

WINDSHIELD
INTERMITTENT
WIPER INTERVAL
ADJUSTING KNOB

UPPER
SIDE

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

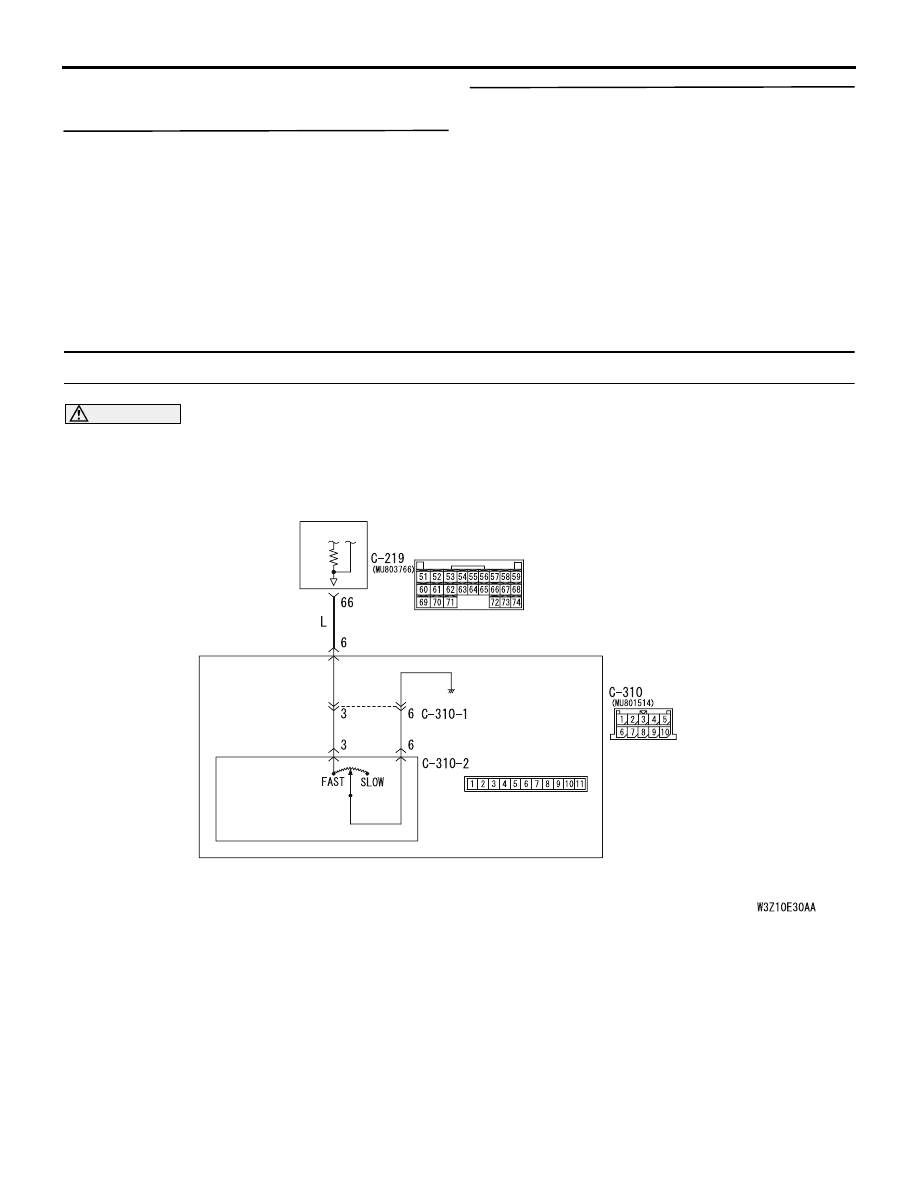

Windshield Intermittent Wiper Interval Adjusting Knob Input Circuit

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-322

DIAGNOSTIC PROCEDURE

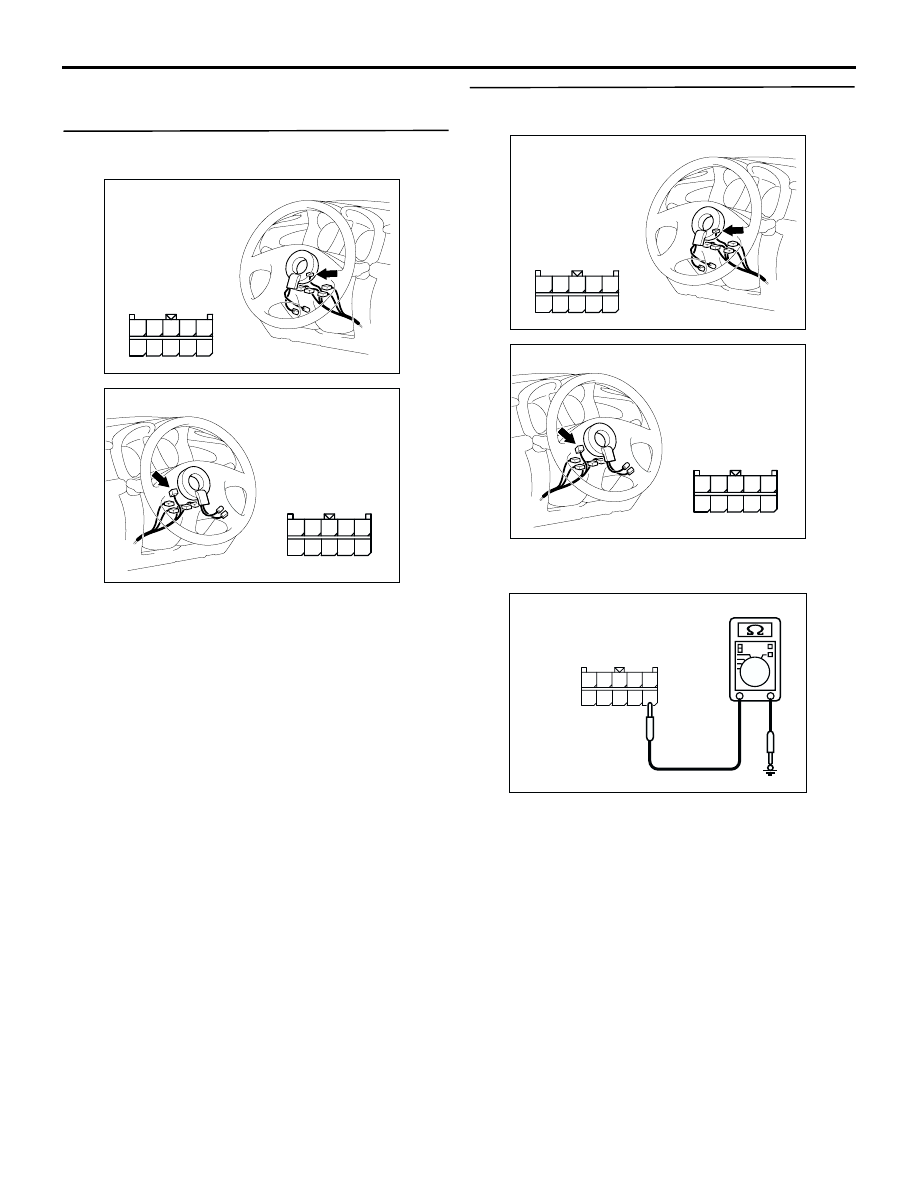

Step 1. Connector check: C-310 column switch
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Measure the resistance at the C-310
column switch connector.

(1) Disconnect the connector, and measure at the

column switch side.

(2) Resistance between C-310 column switch

connector terminal No.6 and body earth

OK: The resistance should rise from 0 to
1 k

 when the windshield intermittent

wiper volume is rotated from "Fast" to
"Slow".

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the column switch.

AC308724

Connector: C-310

AB

Harness side

10

5

6

7

9 8

3

4

2 1

<LHD>

AC308778

Connector: C-310

AB

Harness side

10

5

6

7

9 8

3

4

2 1

<RHD>

AC308724

Connector: C-310

AB

Harness side

10

5

6

7

9 8

3

4

2 1

<LHD>

AC308778

Connector: C-310

AB

Harness side

10

5

6

7

9 8

3

4

2 1

<RHD>

AC301541BC

Connector C-310
(Harness side)

10

5

6

7

9 8

3

4

2 1

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-323

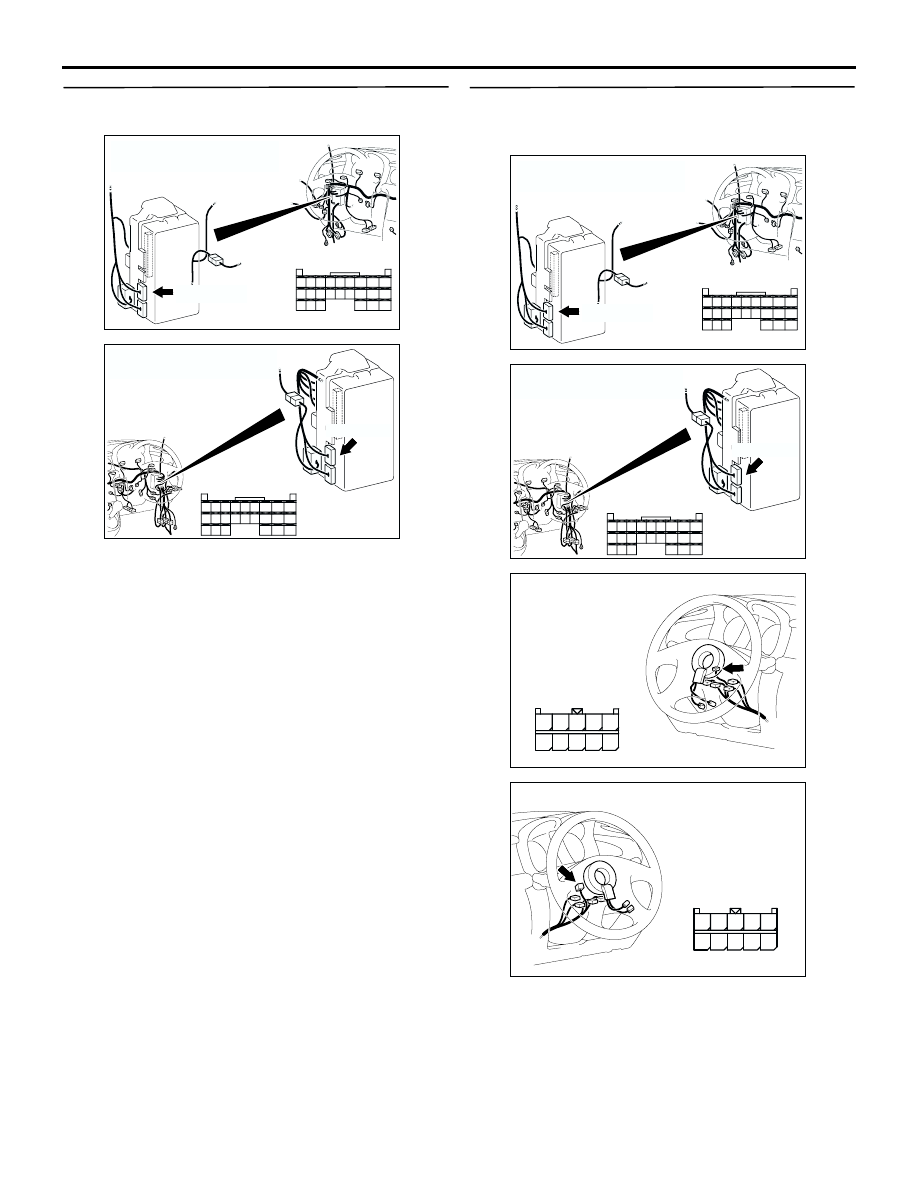

Step 3. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the wiring harness between C-310
column switch connector terminal No.6 and
C-219 ETACS-ECU connector terminal No.66.

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness.

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

AC308724

Connector: C-310

AB

Harness side

10

5

6

7

9 8

3

4

2 1

<LHD>

AC308778

Connector: C-310

AB

Harness side

10

5

6

7

9 8

3

4

2 1

<RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-324

Step 5. Retest the system.

Check that the windshield intermittent wiper volume
is sending a correct signal.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.
