SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-293

Step 2. Check the power supply circuit.

When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit

P.54B-52

."

Step 3. Pulse check

Check the input signals below, which are related to
the front and rear dome lamps.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

4.

The ignition switch (ACC) signal is not received. :

Refer to inspection procedure N-1 "The
ignition switch (ACC) signal is not received

P.54B-298

."

The ignition switch (IG1) signal is not received. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54B-301

."

The driver's door switch signal is not received. :

Refer to inspection procedure N-4 "The front
door switch signal is not received <L.H.
drive vehicles>

P.54B-315

  or <R.H. drive

vehicles>

P.54B-317

 ."

All the door switch signals are not received. :

Refer to inspection procedure N-11 "All the
door switch signals are not received <L.H.
drive vehicles>

P.54B-342

  or <R.H. drive

vehicles>

P.54B-346

 ."

Interior lamp loaded signal is not detected :

Refer

to inspection procedure N-17 "Interior lamp
loaded signal is not detected

P.54B-375

."

Step 4. Retest the system.

Check that the interior lamp automatic-shutdown
function works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

System switch

Check condition

Ignition switch (ACC)

When turned from the
LOCK (OFF) position to
the ACC position

Ignition switch (IG1)

When turned from ACC
to ON

Driver's door switch

Driver's door is opened
while all the other doors
are closed.

All of the door switches

A door is opened when
all the doors are closed

Interior lamp loaded
signal

When a load is applied
through multi-purpose
fuse No.22

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-294

INSPECTION PROCEDURE M-4: The door-ajar warning lamp does not illuminate/extinguish normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
If the door-ajar warning lamp does not work normally,
the input signal circuits from all the door switches or
the ETACS-ECU may be defective.

POSSIBLE CAUSES

All the door switches are defective.

Malfunction of the ETACS-ECU

Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

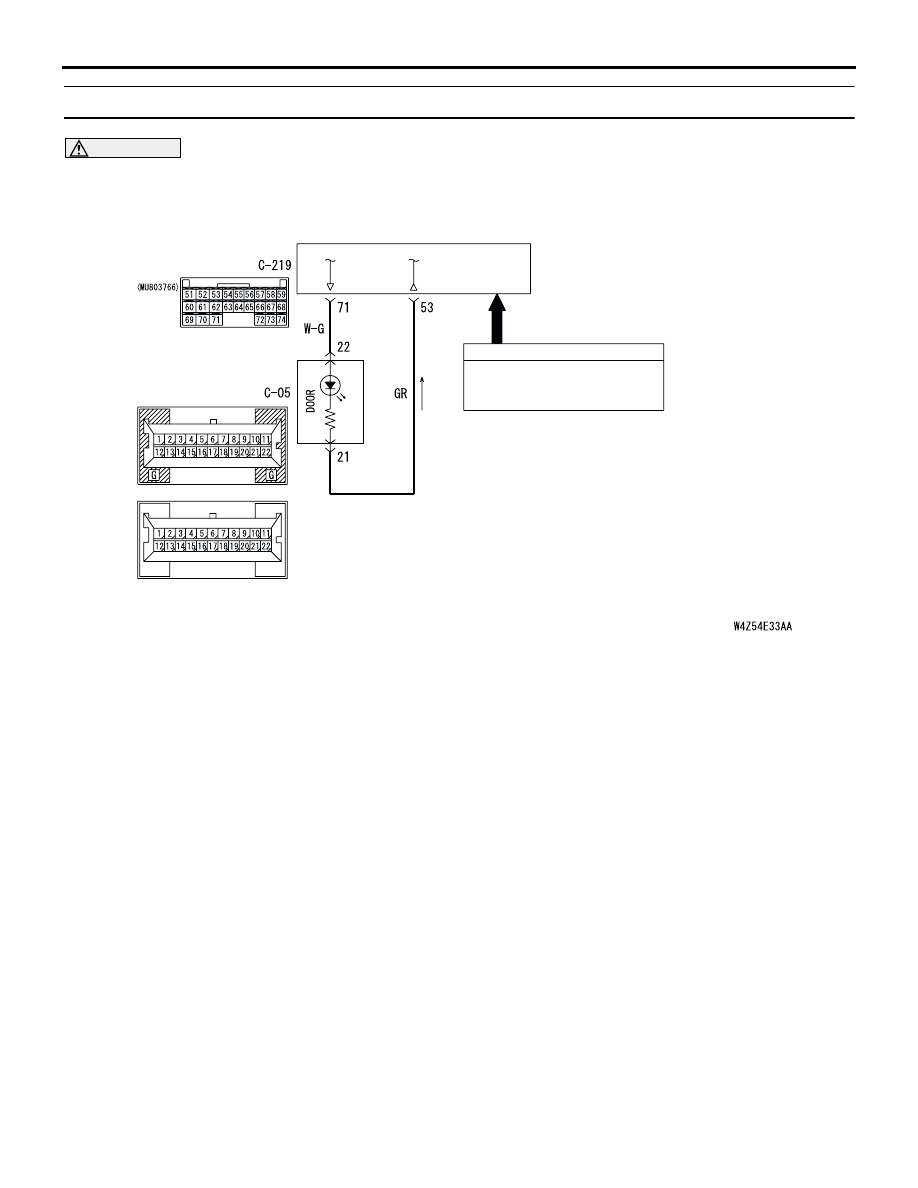

ETACS-ECU

· ALL DOOR SWITCH

COMBINATION
METER

· FRONT DOOR SWITCH

INPUT SIGNAL

<LHD>

<RHD>

Door Ajar Indicator Lamp Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-295

DIAGNOSTIC PROCEDURE

Step 1. Check the operation of the room lamp.

Q: Does the room lamp illuminate/extinguish?

YES :

Go to Step 2.

NO :

Refer to inspection procedure M-1 "The
front or rear room lamp does not
illuminate/extinguish <vehicles without
keyless entry system>

P.54B-282

 ." Or refer

to inspection procedure M-2 "The front or
rear room lamp does not
illuminate/extinguish <vehicles with keyless
entry system>

P.54B-287

 ."

Step 2. Pulse check

Check the input signals below, which are related to
the door-ajar warning lamp.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

3.

The driver's door switch signal is not received. :

Refer to inspection procedure N-4 "The front
door switch signal is not received <L.H.
drive vehicles>

P.54B-315

  or <R.H. drive

vehicles>

P.54B-317

 ."

All the door switch signals are not received. :

Refer to inspection procedure N-11 "All the
door switch signals are not received <L.H.
drive vehicles>

P.54B-342

  or <R.H. drive

vehicles>

P.54B-346

 ."

Step 3. Connector check: C-05 combination
meter connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the door-ajar warning lamp bulb.

Check the door-ajar warning lamp bulb.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the door-ajar warning lamp bulb.

System switch

Check condition

Driver's door switch

Driver's door is opened
while all the other doors
are closed.

All of the door switches

A door is opened when
all the doors are closed

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

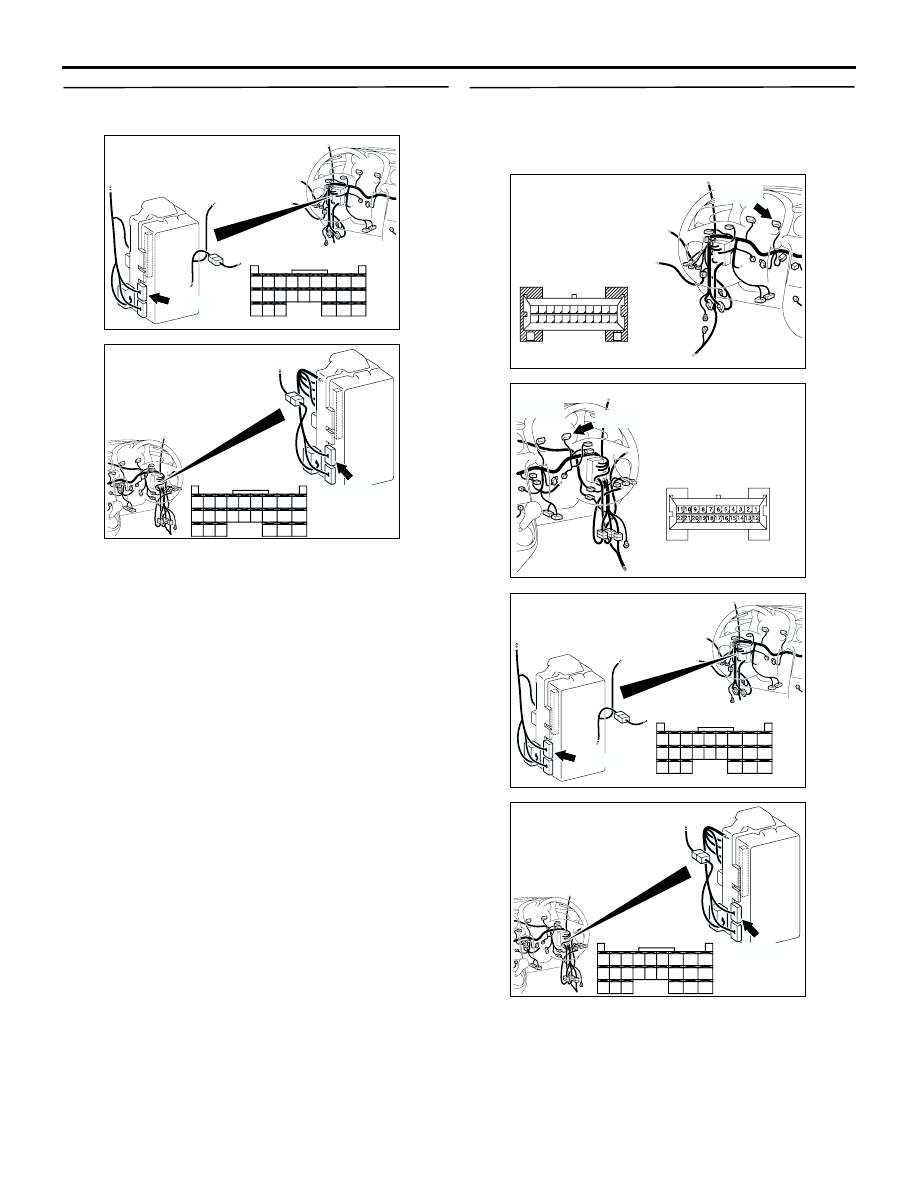

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-296

Step 5. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from C-219
ETACS-ECU connector terminal Nos. 53 and 71 to
C-05 combination meter connector terminal Nos.
21 and 22.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC308722

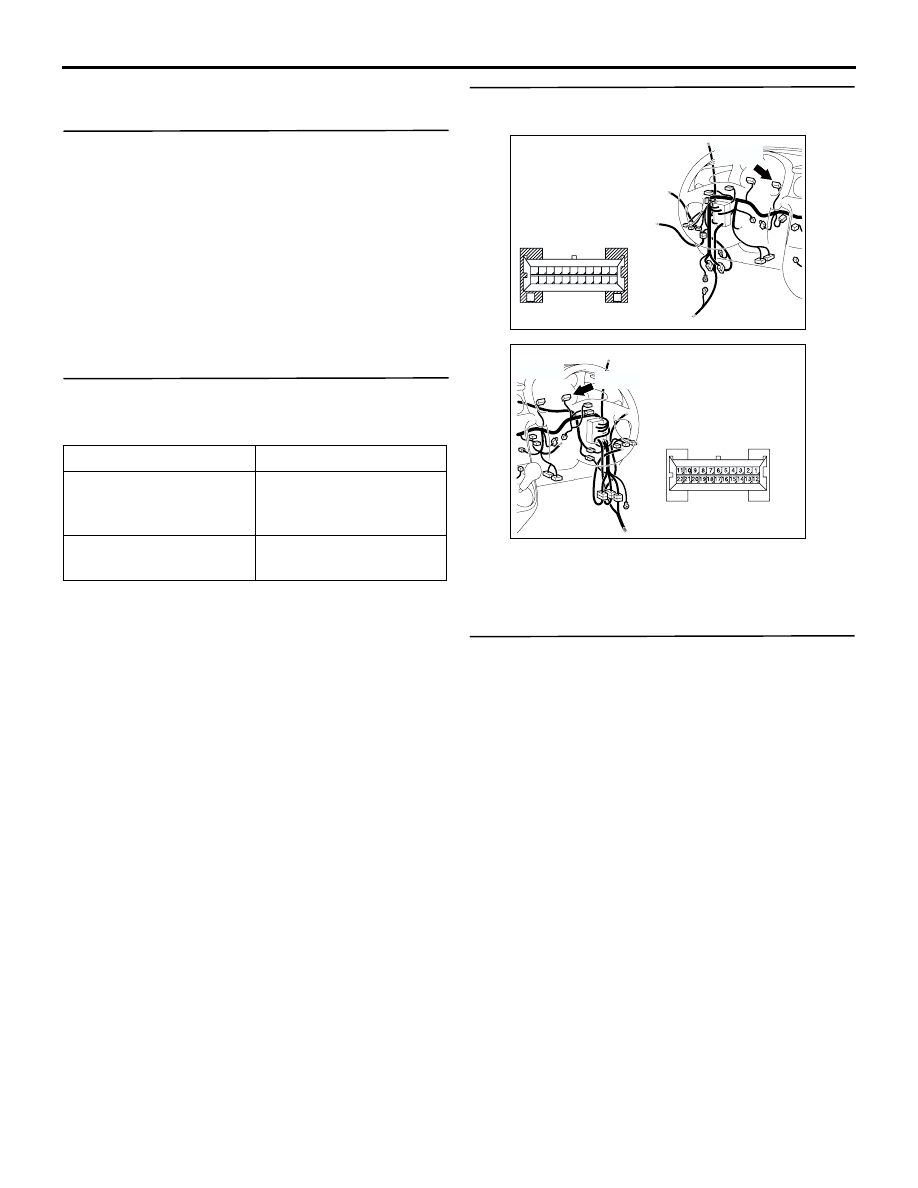

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<LHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)

AC308776

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<RHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

AC308722

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<LHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)

AC308776

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<RHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)
