SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-249

AC308687

A-16(B)

AB

2 1

A-16

5

6

3 2

4

1

A-04

A-04(GR)

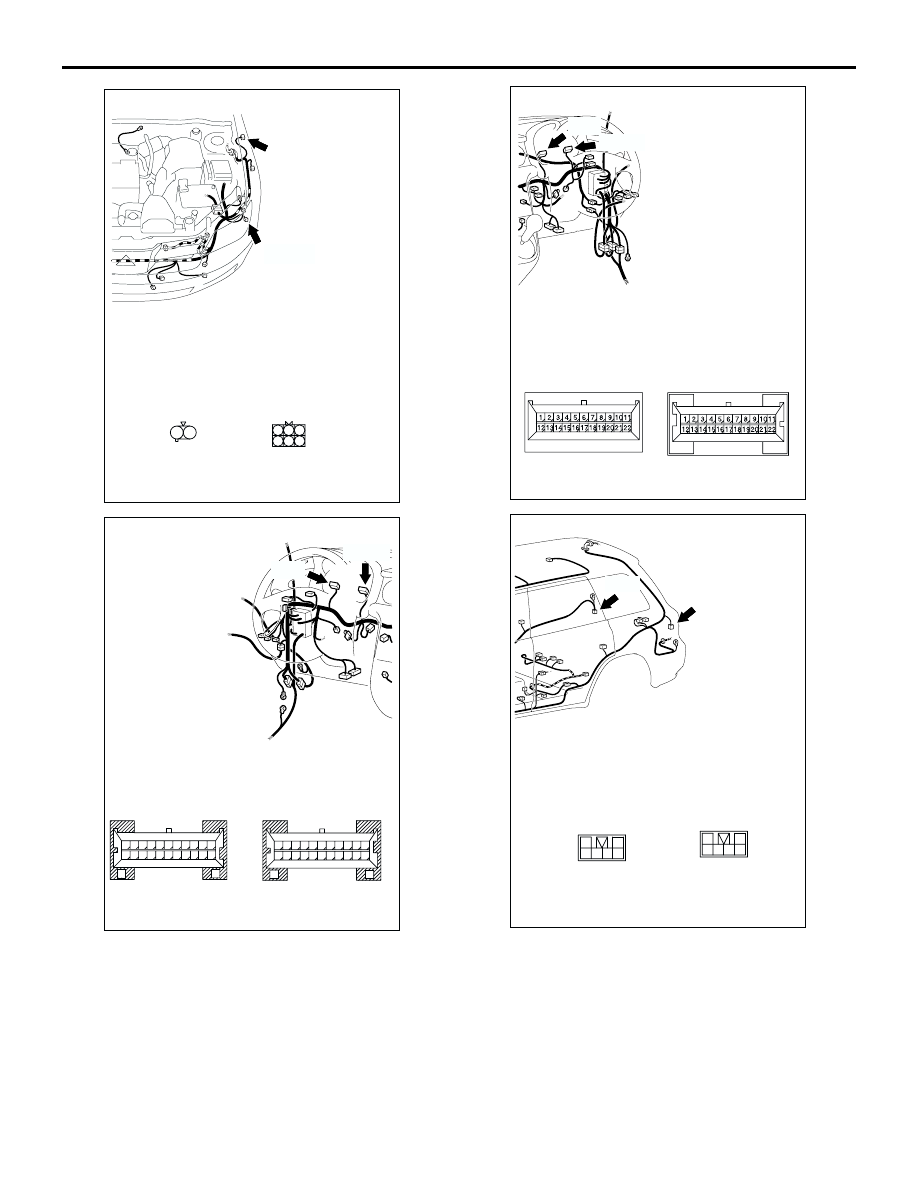

Connectors: A-04, A-16

Harness side

<RHD>

AC308717

Connectors: C-04, C-05

AE

C-04

C-05

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-04

G

G

52

41

35
46

49

50

51

47

48

38

4039

3736

43

4544

42

32

3433

31

C-05(L)

Harness side

<LHD>

AC308770

Connectors: C-04, C-05

AC

C-04

C-05

C-04

C-05(L)

Harness side

<RHD>

AC308784

Connectors: D-14, D-19

1
3

4

5

2
6

AD

D-14

1
3

4

5

2
6

D-19

Harness side

D-19

D-14

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-250

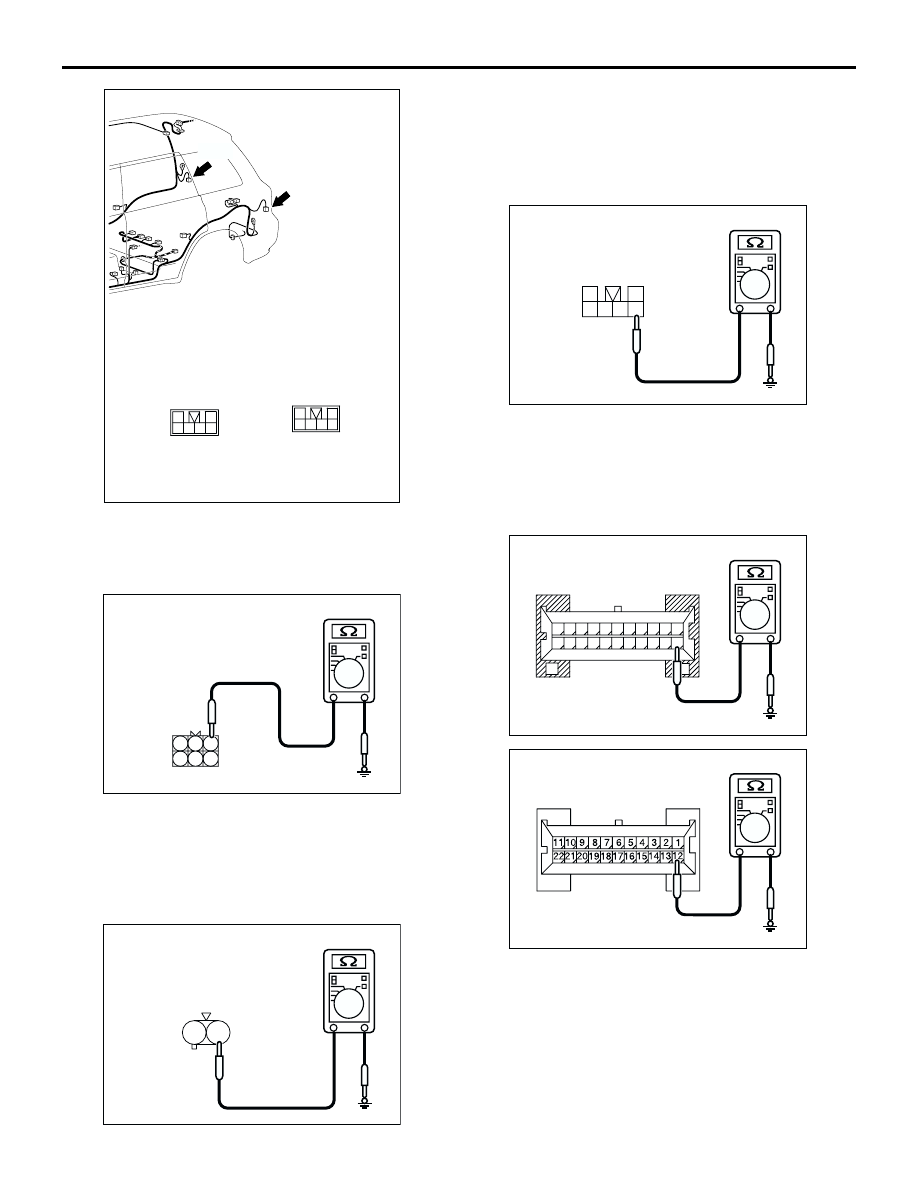

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the defective

lamp connector terminal and body earth.

•

Resistance between A-29 <front RH> headlamp

assembly connector terminal No.1 and body
earth

•

Resistance between A-16 <front LH>
headlamp assembly connector terminal No.1
and body earth

•

Resistance between A-01 <side RH> side

turn-signal lamp connector terminal No.1 and
body earth

•

Resistance between A-04 <side LH> side
turn-signal lamp connector terminal No.1 and
body earth

•

Resistance between D-14 <rear RH> rear

combination lamp connector terminal No.3
and body earth

•

Resistance between D-19 <rear LH> rear
combination lamp connector terminal No.3
and body earth

•

Resistance between C-05 <turn-signal indicator

lamp> combination meter terminal No.12 and
body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES : .

Go to Step 5.

NO : .

Go to Step 4.

AC308788

Connectors: D-14, D-19

1
3

4

5

2
6

AD

D-14

1
3

4

5

2
6

D-19

Harness side

D-19

D-14

<RHD>

AC301541AI

Connector A-16, A-29
(Harness side)

5

6

3 2

4

1

AC301541AB

2 1

Connector A-01, A-04
(Harness side)

AC301541BG

Connector D-14, D-19
(Harness side)

2
6 5

1
3

4

AC301541 FX

Connector C-05 <LHD>
(Harness side)

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

AC301541 FY

Connector C-05 <RHD>
(Harness side)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-251

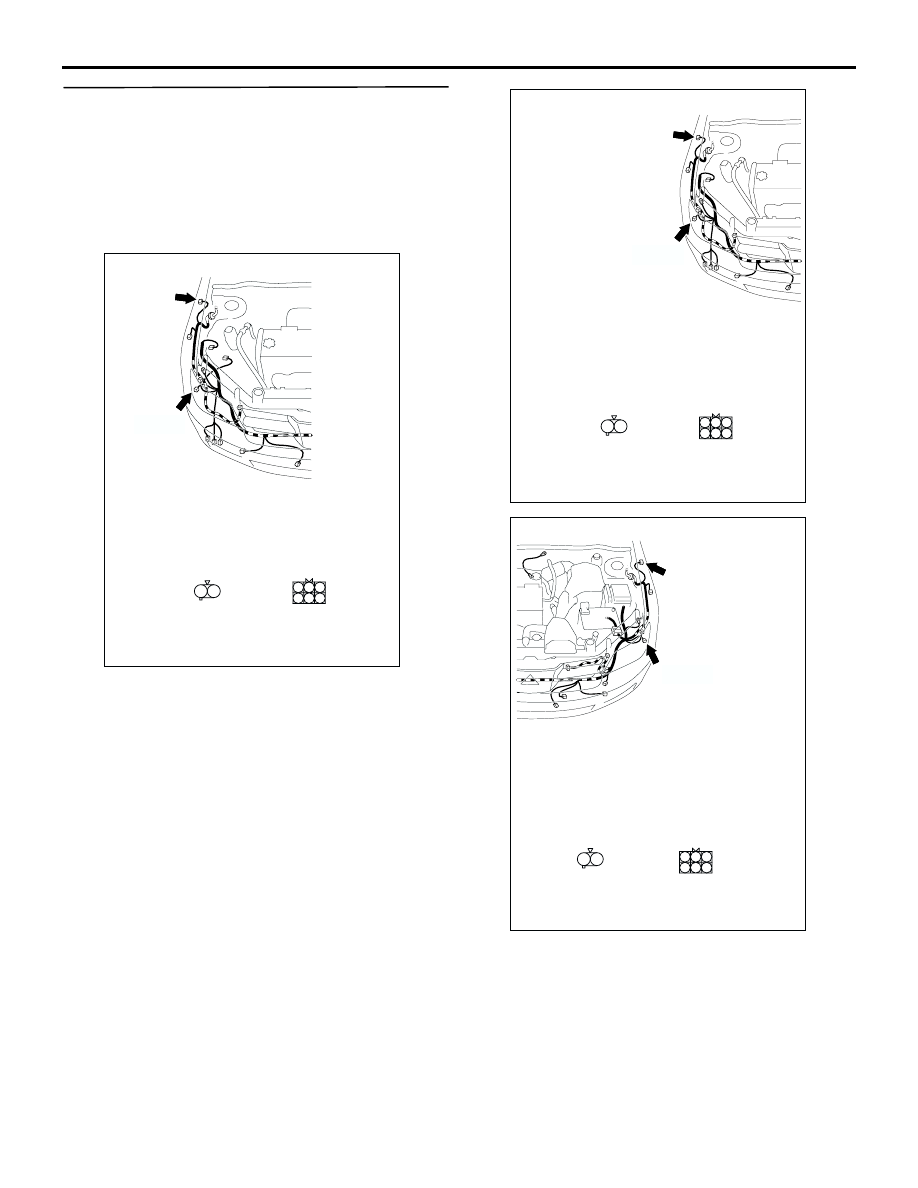

Step 4. Check the wiring harness from A-29
<front RH> or A-16 <front LH> front turn-signal
lamp connector terminal No.1, A-01 <side RH> or
A-04 <side LH> side turn-signal lamp connector
terminal No.1, D-14 <rear RH> or D-19 <rear LH>
rear combination lamp connector terminal No.3,
or C-05 <turn-signal indicator lamp> combination
meter connector terminal No.12 to body earth.

AC308678

A-29(B)

2 1

A-29

5

6

3 2

4

1

A-01

A-01(GR)

AB

Connectors: A-01, A-29

Harness side

<LHD>

AC308685

A-29(B)

2 1

A-29

5

6

3 2

4

1

A-01

A-01(GR)

AB

Connectors: A-01, A-29

Harness side

<RHD>

AC308680

A-16(B)

AB

2 1

A-16

5

6

3 2

4

1

A-04

A-04(GR)

Connectors: A-04, A-16

Harness side

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-252

AC308687

A-16(B)

AB

2 1

A-16

5

6

3 2

4

1

A-04

A-04(GR)

Connectors: A-04, A-16

Harness side

<RHD>

AC308717

Connectors: C-04, C-05

AE

C-04

C-05

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-04

G

G

52

41

35
46

49

50

51

47

48

38

4039

3736

43

4544

42

32

3433

31

C-05(L)

Harness side

<LHD>

AC308770

Connectors: C-04, C-05

AC

C-04

C-05

C-04

C-05(L)

Harness side

<RHD>

AC308784

Connectors: D-14, D-19

1
3

4

5

2
6

AD

D-14

1
3

4

5

2
6

D-19

Harness side

D-19

D-14

<LHD>
