Mitsubishi Outlander (2003+). Manual - part 485





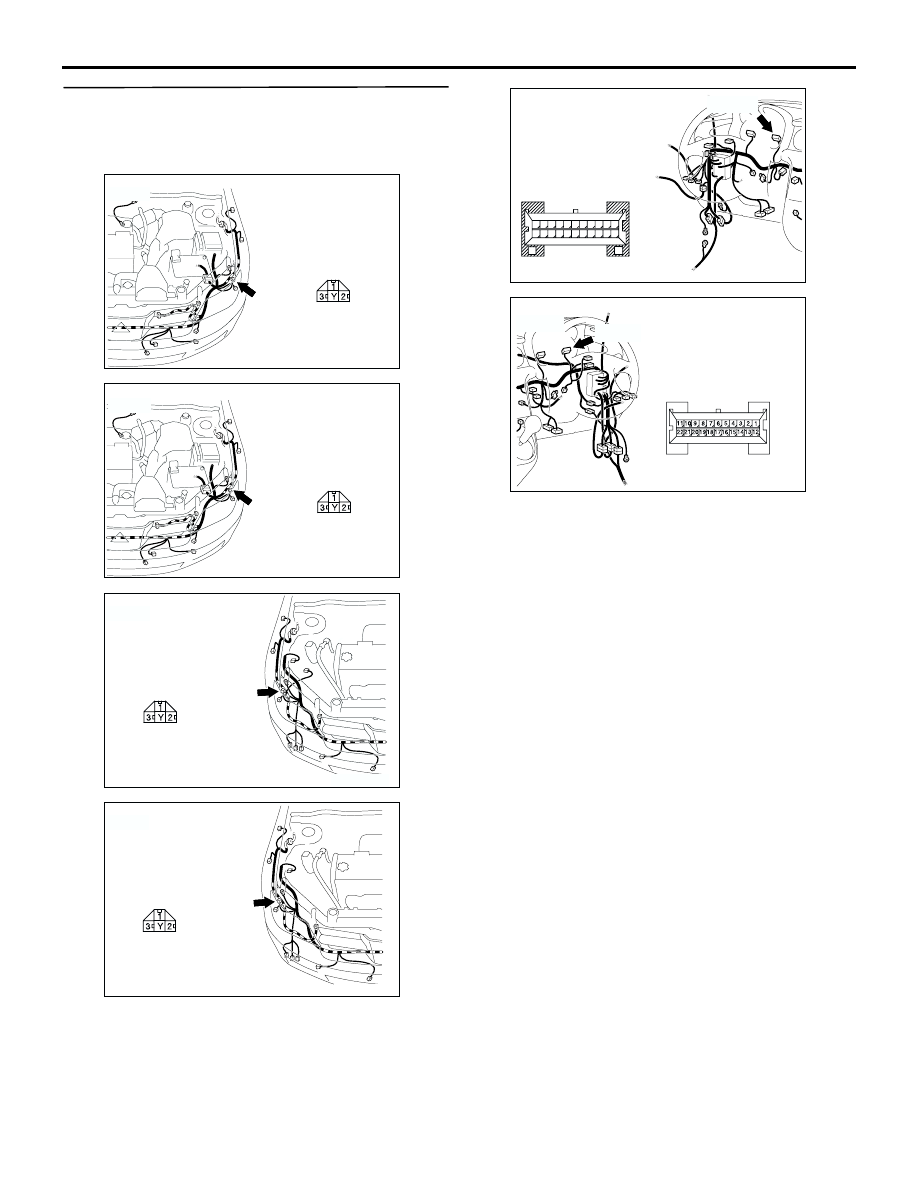

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-229

COMMENTS ON TROUBLE SYMPTOM
If any of the headlamps or the high-beam indicator
does not illuminate, the wiring harness connector(s),
the bulb or the fuse may be defective or burned out.

POSSIBLE CAUSES

Malfunction of the headlamp bulbs

Malfunction of the high-beam indicator bulb

Damaged harness wires and connectors

HEADLAMP
RELAY: HI

COMBINATION
METER

HEADLAMP
RELAY: LO

RELAY BOX

HEADLAMP

(LH)

(RH)

FRONT-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

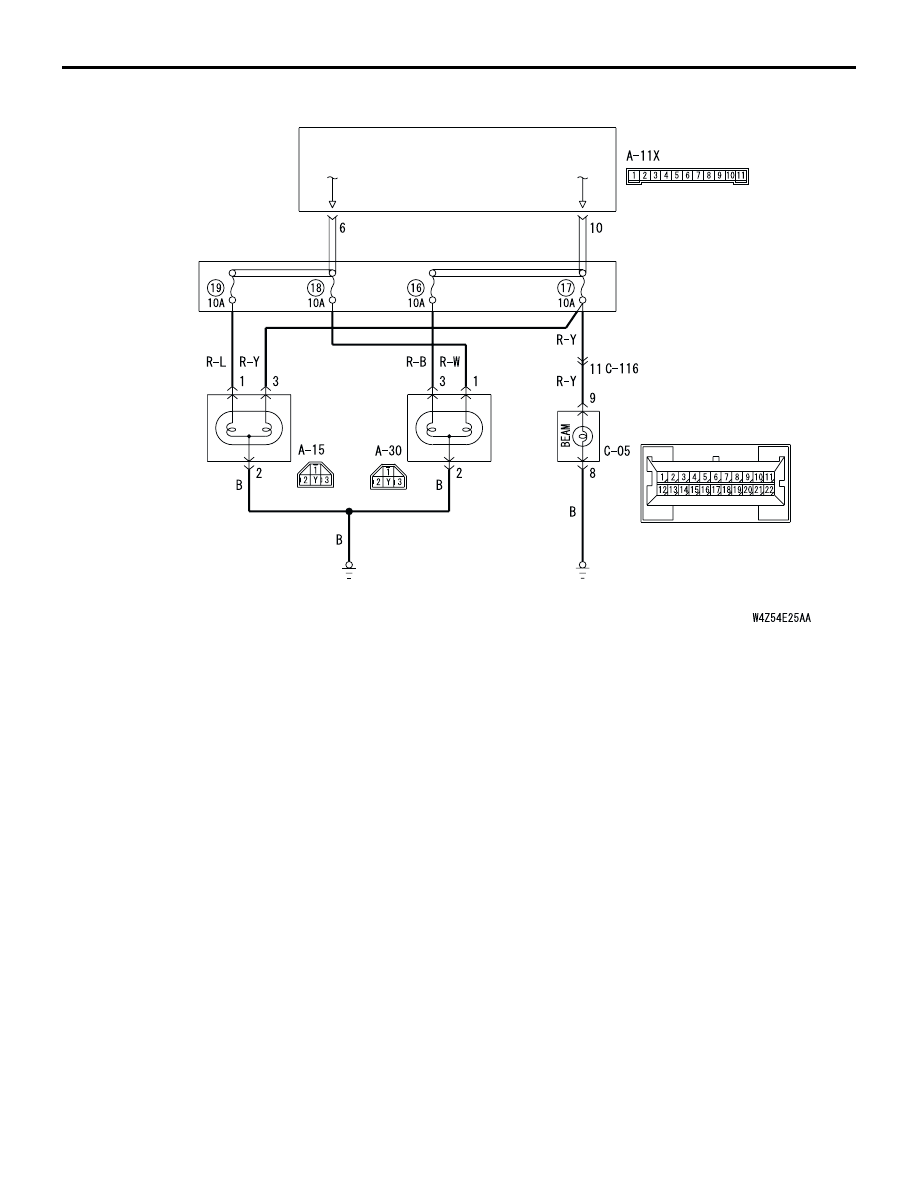

Headlamps Circuit <RHD>

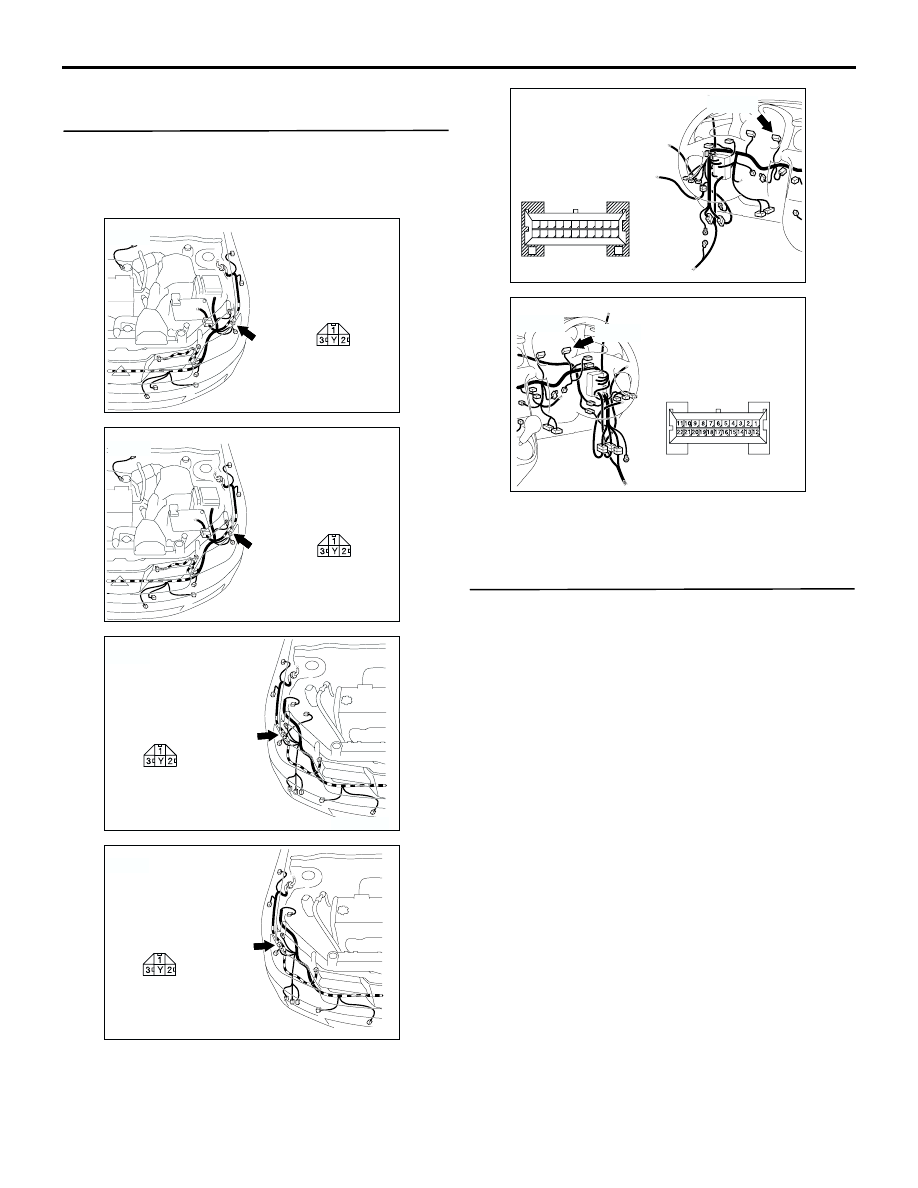

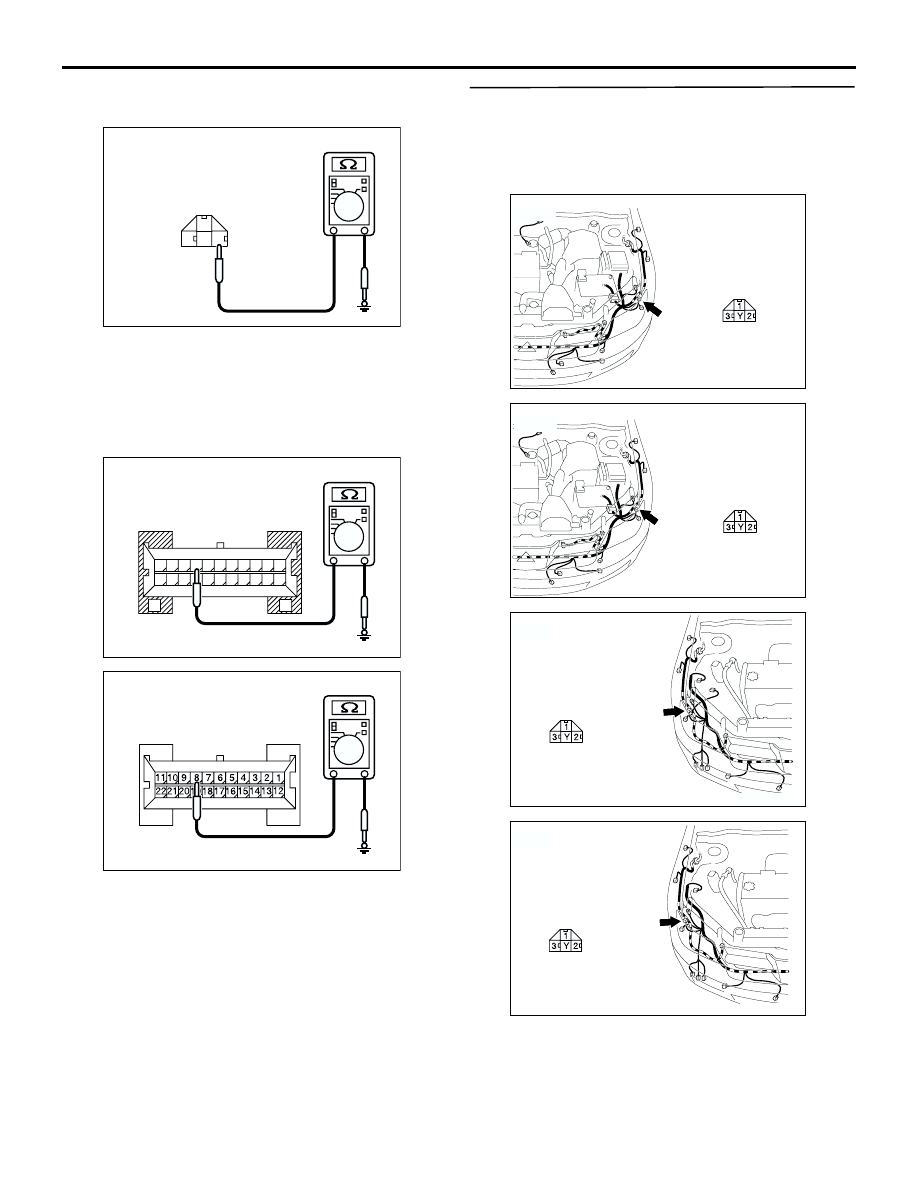

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-230

DIAGNOSTIC PROCEDURE

Step 1. Connector check: A-30 <headlamp RH>,
A-15 <headlamp LH> headlamp assembly
connector or C-05 <high-beam indicator>
combination meter connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the bulb(s) of the headlamps or the
high-beam indicator lamp.

Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb(s) of the defective lamp.

AC308679 AE

Connector: A-15

Harness side

<LHD>

AC308686 AD

Connector: A-15

Harness side

<RHD>

AC308677 AD

Connector: A-30

Harness side

<LHD>

AC308684

AF

Connector: A-30

Harness side

<RHD>

AC308716

AJ

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-231

Step 3. Measure the resistance at A-30
<headlamp RH>, A-15 <headlamp LH> headlamp
assembly connector or C-05 <high-beam
indicator> combination meter connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

AC308679 AE

Connector: A-15

Harness side

<LHD>

AC308686 AD

Connector: A-15

Harness side

<RHD>

AC308677 AD

Connector: A-30

Harness side

<LHD>

AC308684

AF

Connector: A-30

Harness side

<RHD>

AC308716

AJ

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-232

(2) Check the resistance between the lamp

connector and body earth.

Resistance between A-30 <right headlamp>

headlamp assembly connector terminal No.2
and body earth

Resistance between A-15 <left headlamp>
headlamp assembly connector terminal No.2
and body earth

Resistance between C-05 <high-beam indicator

lamp> combination meter connector terminal
No.8 and body earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness from A-30
<right headlamp> or A-15 <left headlamp>
headlamp connector terminal No.2, or C-05
<high-beam indicator lamp> combination meter
connector terminal No.8 to body earth.

AC301541

Y

1

3

2

AH

Connector A-15, A-30
(Harness side)

AC301541 FV

Connector C-05 <LHD>
(Harness side)

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

AC301541 FW

Connector C-05 <RHD>
(Harness side)

AC308679 AE

Connector: A-15

Harness side

<LHD>

AC308686 AD

Connector: A-15

Harness side

<RHD>

AC308677 AD

Connector: A-30

Harness side

<LHD>

AC308684

AF

Connector: A-30

Harness side

<RHD>
