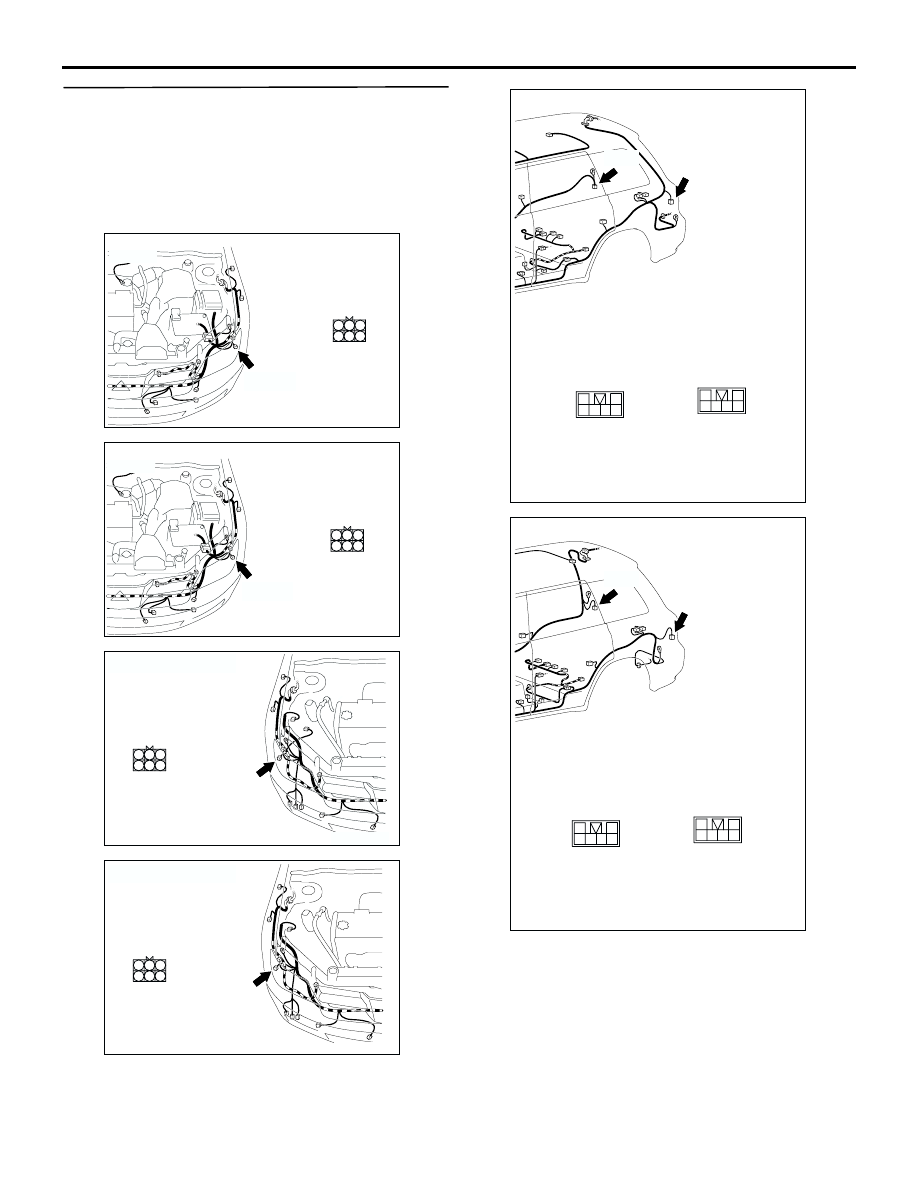

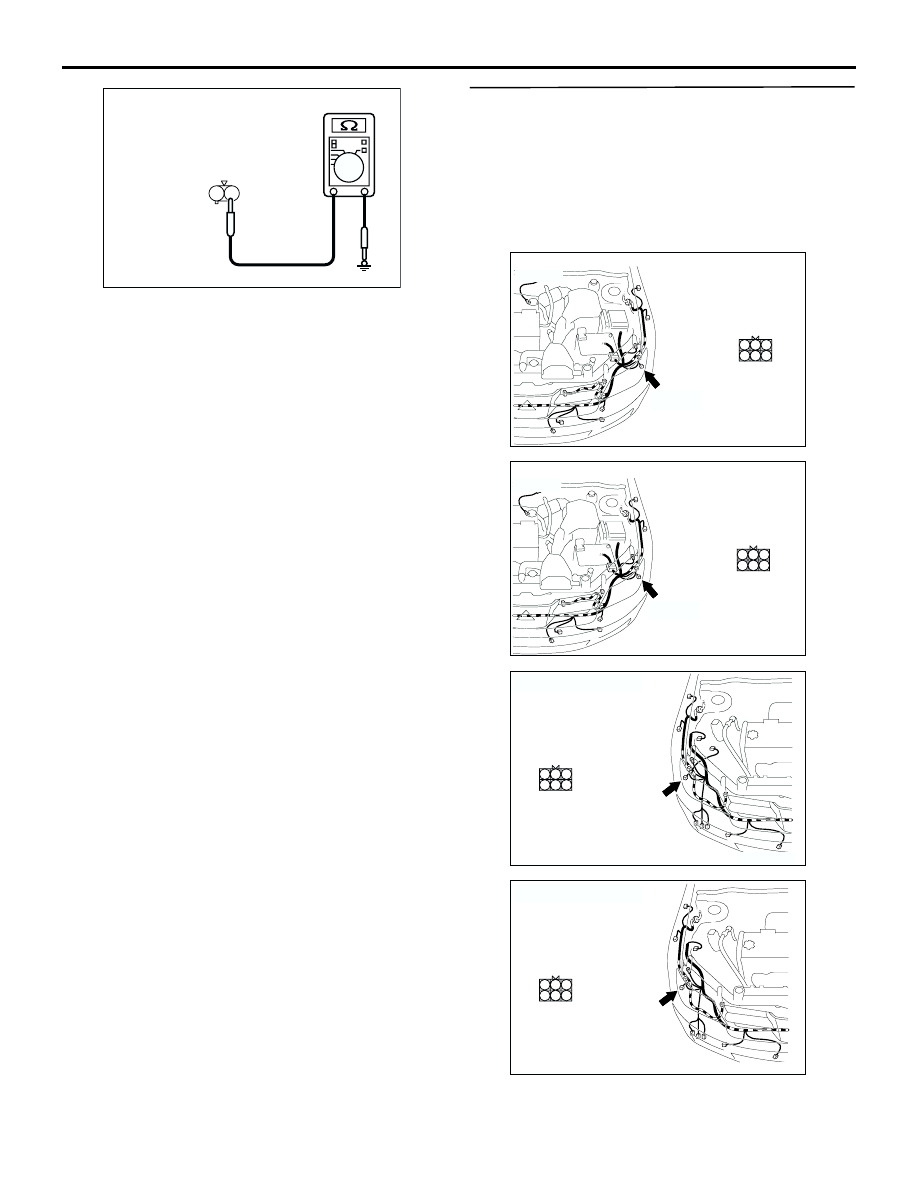

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-221

Step 3. Measure the resistance at the D-14 <right
tail lamp> or D-19 <left tail lamp> rear
combination lamp connector, the A-29 <right
position lamp> or A-16 <left position lamp>
headlamp assembly connector, the F-08 <right
licence plate lamp> or F-10 <left licence plate
lamp> licence plate lamp connector.

AC308679

5

6

3 2

4

1

A-16(B)

AC

Connector: A-16

Harness side

<LHD>

AC308686

5

6

3 2

4

1

A-16(B)

AC

Connector: A-16

Harness side

<RHD>

AC308677AC

A-29(B)

5

6

3 2

4

1

Connector: A-29

Harness side

<LHD>

AC308684

AC

A-29(B)

5

6

3 2

4

1

Connector: A-29

Harness side

<RHD>

AC308784

Connectors: D-14, D-19

1
3

4

5

2
6

AB

D-14

1
3

4

5

2
6

D-19

Harness side

D-19

D-14

<LHD>

AC308788

Connectors: D-14, D-19

1
3

4

5

2
6

AC

D-14

1
3

4

5

2
6

D-19

Harness side

D-19

D-14

<RHD>

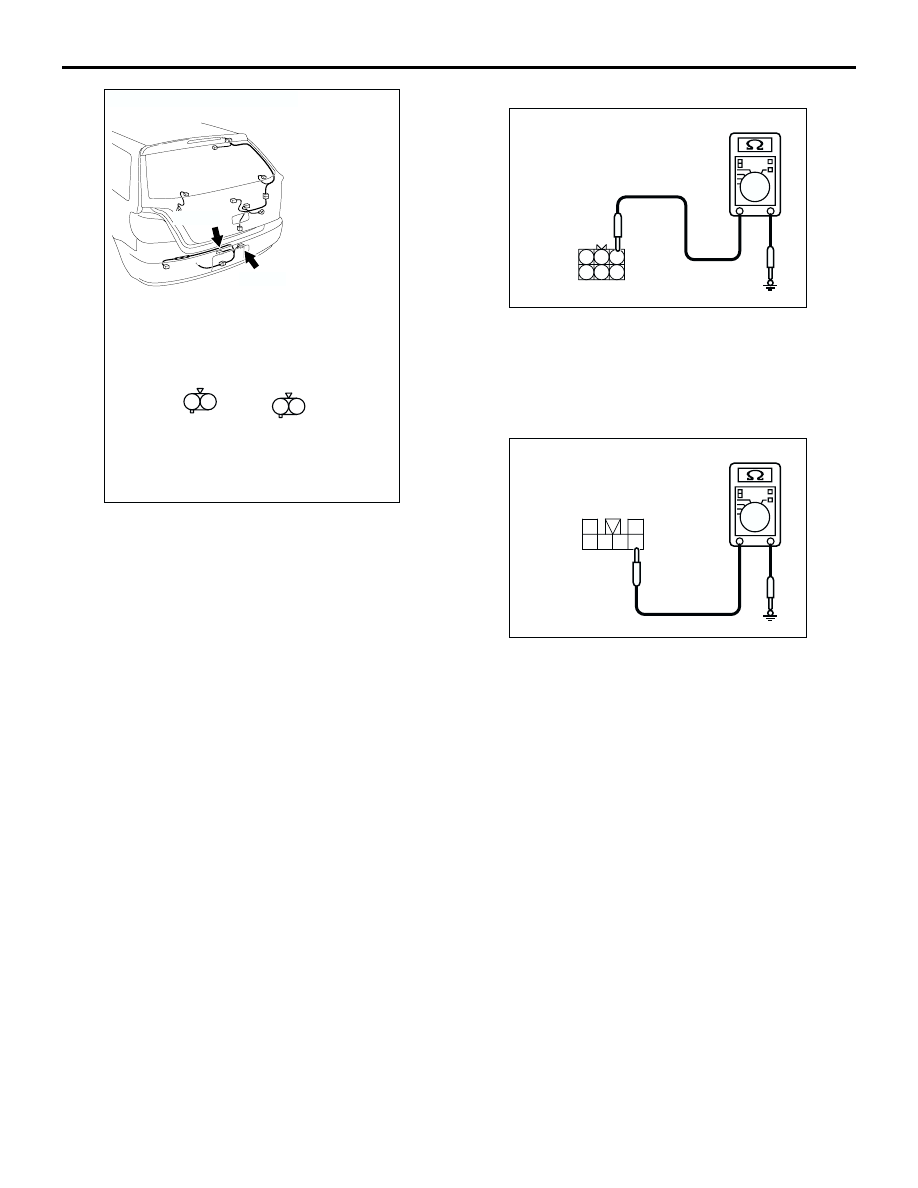

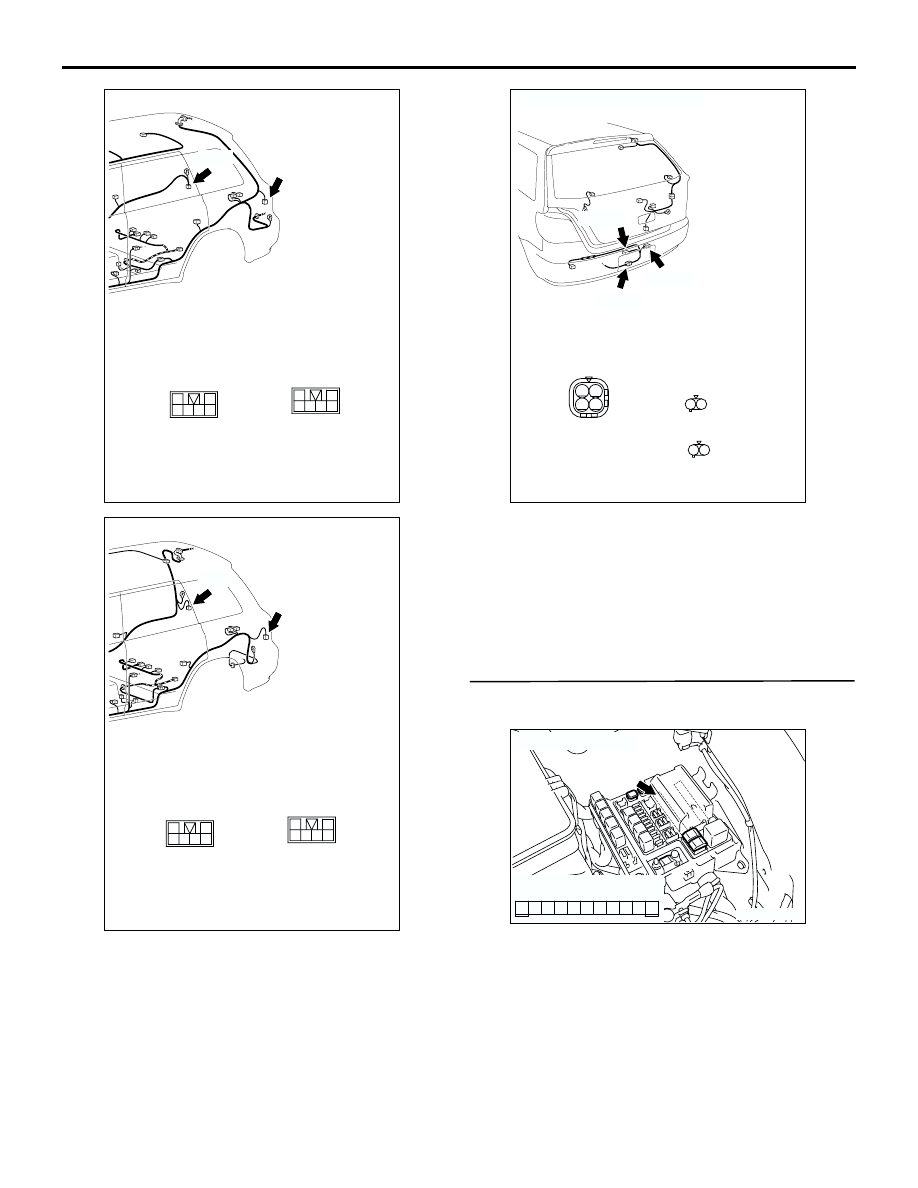

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-222

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between A-16 <position LH>

headlamp assembly connector terminal No.1
and body earth

•

Resistance between A-29 <position RH>
headlamp assembly connector terminal No.1
and body earth

•

Resistance between D-14 <right tail lamp> rear

combination lamp connector terminal No.3
and body earth

•

Resistance between D-19 <left tail lamp> rear
combination lamp connector terminal No.3
and body earth

AC308809

Connectors: F-08, F-10

AD

F-08

F-08(GR)

Harness side

F-10(GR)

2 1

F-10

2 1

AC301541AI

Connector A-16, A-29
(Harness side)

5

6

3 2

4

1

AC301541BG

Connector D-14, D-19
(Harness side)

2
6 5

1
3

4

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-223

•

Resistance between F-08 <licence plate lamp,

RH> licence plate lamp connector terminal
No.1 and body earth

•

Resistance between F-10 <licence plate
lamp, LH> licence plate lamp connector
terminal No.1 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness from D-14
<right tail lamp> or D-19 <left tail lamp> rear
combination lamp connector terminal No.3, A-29
<right position lamp> or A-16 <left position
lamp> headlamp connector terminal No.1 or F-08
<right licence plate lamp> or F-10 <right licence
plate lamp> licence plate lamp connector
terminal No.1 to body earth.

AC301541BM

Connector F-08, F-10
(Harness side)

2 1

AC308679

5

6

3 2

4

1

A-16(B)

AC

Connector: A-16

Harness side

<LHD>

AC308686

5

6

3 2

4

1

A-16(B)

AC

Connector: A-16

Harness side

<RHD>

AC308677AC

A-29(B)

5

6

3 2

4

1

Connector: A-29

Harness side

<LHD>

AC308684

AC

A-29(B)

5

6

3 2

4

1

Connector: A-29

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-224

NOTE: Prior to the wiring harness inspection, check
intermediate connector F-09 <licence plate lamp>,
and repair if necessary.

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 5. Connector check: A-11X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC308784

Connectors: D-14, D-19

1
3

4

5

2
6

AB

D-14

1
3

4

5

2
6

D-19

Harness side

D-19

D-14

<LHD>

AC308788

Connectors: D-14, D-19

1
3

4

5

2
6

AC

D-14

1
3

4

5

2
6

D-19

Harness side

D-19

D-14

<RHD>

AC308809

Connectors: F-08, F-09, F-10

AE

F-09

F-08

F-08(GR)

Harness side

F-09(GR)

F-10(GR)

2 1

F-10

2 1

1

3

2

4

AC301515 AD

Connector: A-11X

5

11

9

10

8 7 6

2

4 3

1

Relay box side
