SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-77

Step 7. Check the door lock actuator (front: LH).

Check that the door lock actuator (front: LH) works
normally. Refer to GROUP 42

 Door

P.42-35

.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Replace the door lock actuator (front: LH).

Step 8. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

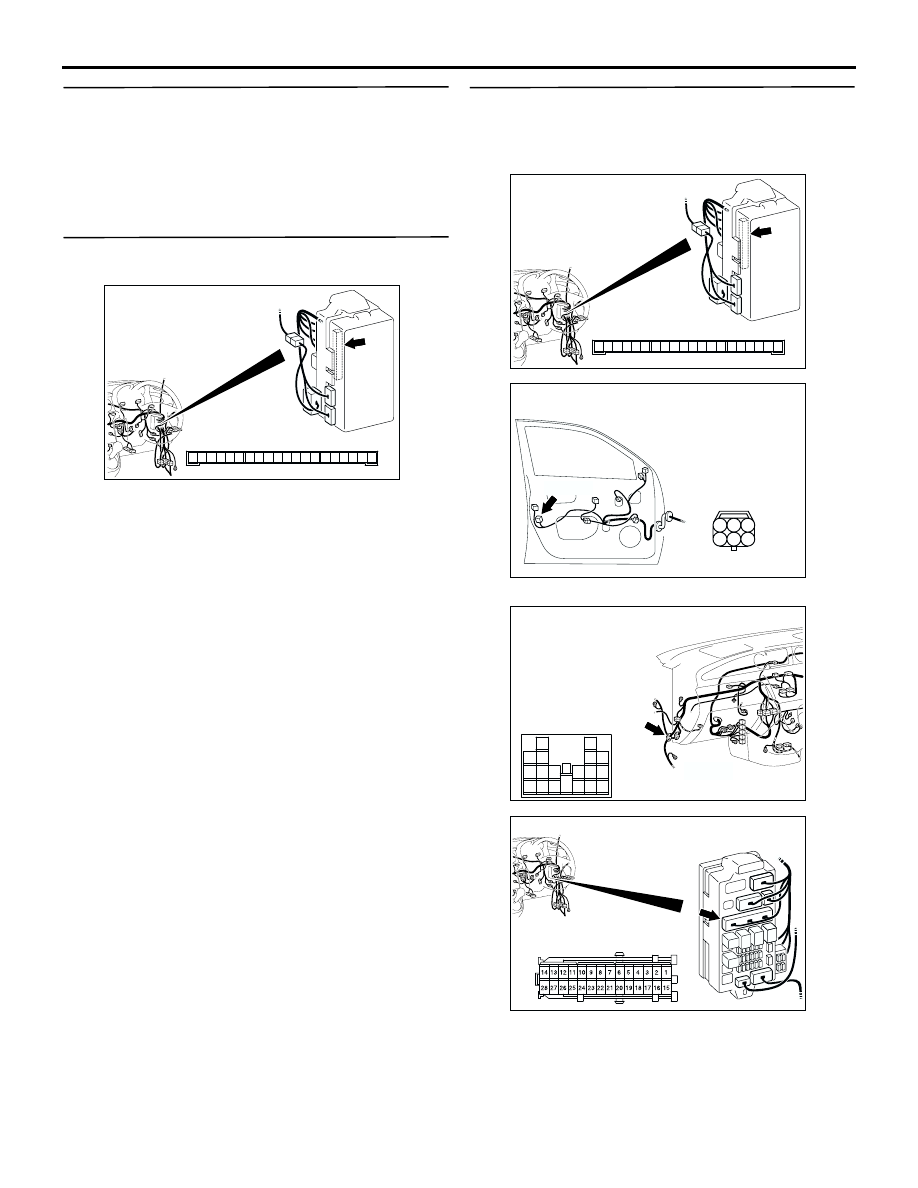

Step 9. Check the wiring harness from C-217
ETACS-ECU connector terminal Nos. 12 and 13 to
E-11 door lock actuator (front: LH) connector
terminal Nos. 6 and 4.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-34 and junction block
connector C-205, and repair if necessary.

Check the input and output lines for open circuit.

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308805AD

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<RHD>

AC308735

Connector: C-34
<RHD>

AI

C-34(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

AC308772

Connector: C-205

Harness side

AC

Junction block (Front view)

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-78

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 10. Connector check: E-28 door lock
actuator (rear: RH) connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

Step 11. Check the door lock actuator (rear: RH).

Check that the door lock actuator (rear: RH) is in
good condition. Refer to GROUP 42

 Door

P.42-35

.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Replace the door lock actuator (rear: RH).

Step 12. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

Step 13. Check the wiring harness from C-217
ETACS-ECU connector terminal Nos. 12 and 13 to
E-28 door lock actuator (rear: RH) connector
terminal Nos. 2 and 3.

NOTE:

Prior to the wiring harness inspection, check D-02
intermediate connector and C-221 junction block
connector, and repair if necessary.

Check the input and output lines for open circuit.

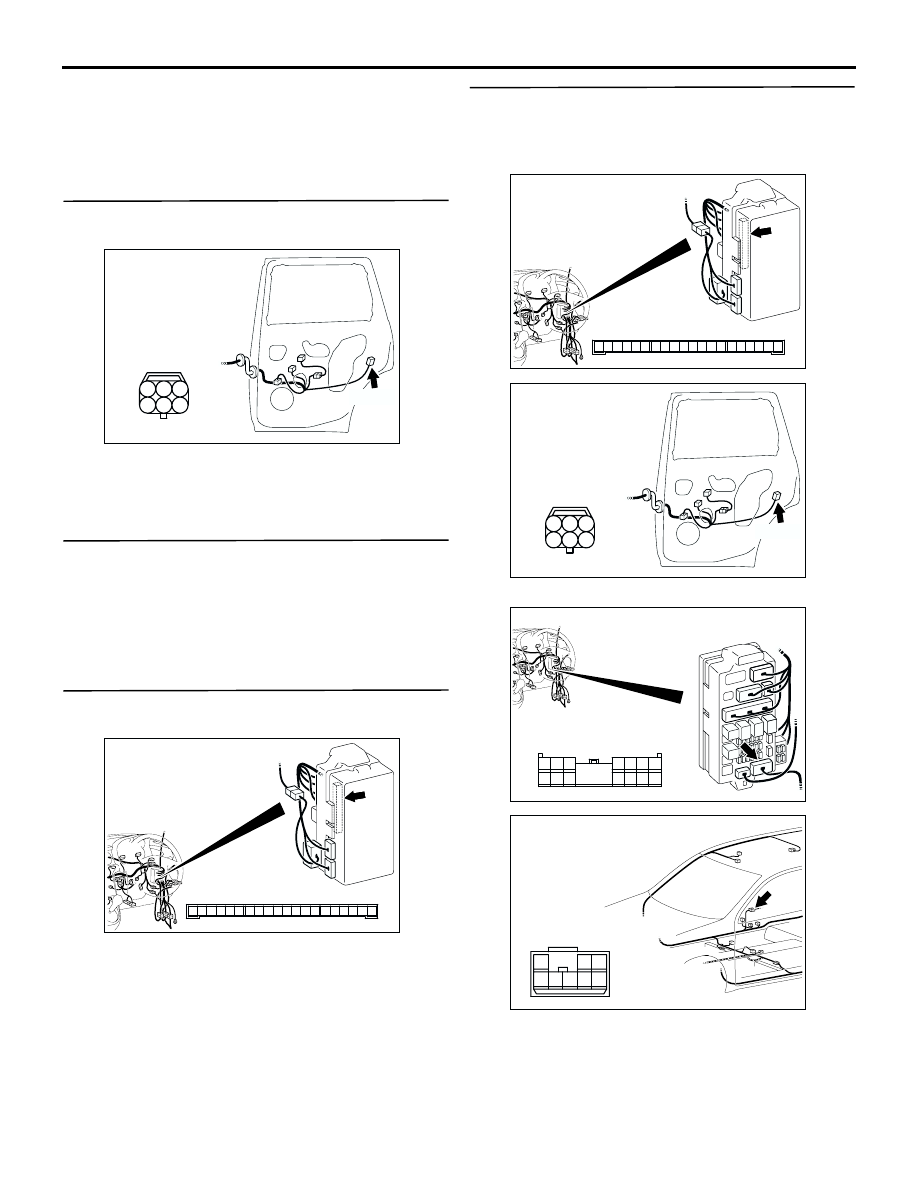

AC308801

5

6

4

2

3

1

Connector: E-28

AB

Harness side

E-28(B)

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308801

5

6

4

2

3

1

Connector: E-28

AB

Harness side

E-28(B)

AC308772

Connector: C-221 <RHD>

Harness side

AG

7

15

5

6

1413

2

9

12

4 3

10

11

1

8

Junction block (Front view)

AC308785

Connector: D-02
<RHD>

AD

8

3

1

4 5 6

2

7

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-79

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 14. Connector check: E-08 door lock
actuator (rear: LH) connector

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the defective connector.

Step 15. Check the door lock actuator (rear: LH).

Check that the door lock actuator (rear: LH) is in
good condition. Refer to GROUP 42

 Door

P.42-35

.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Replace the door lock actuator (rear: LH).

Step 16. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

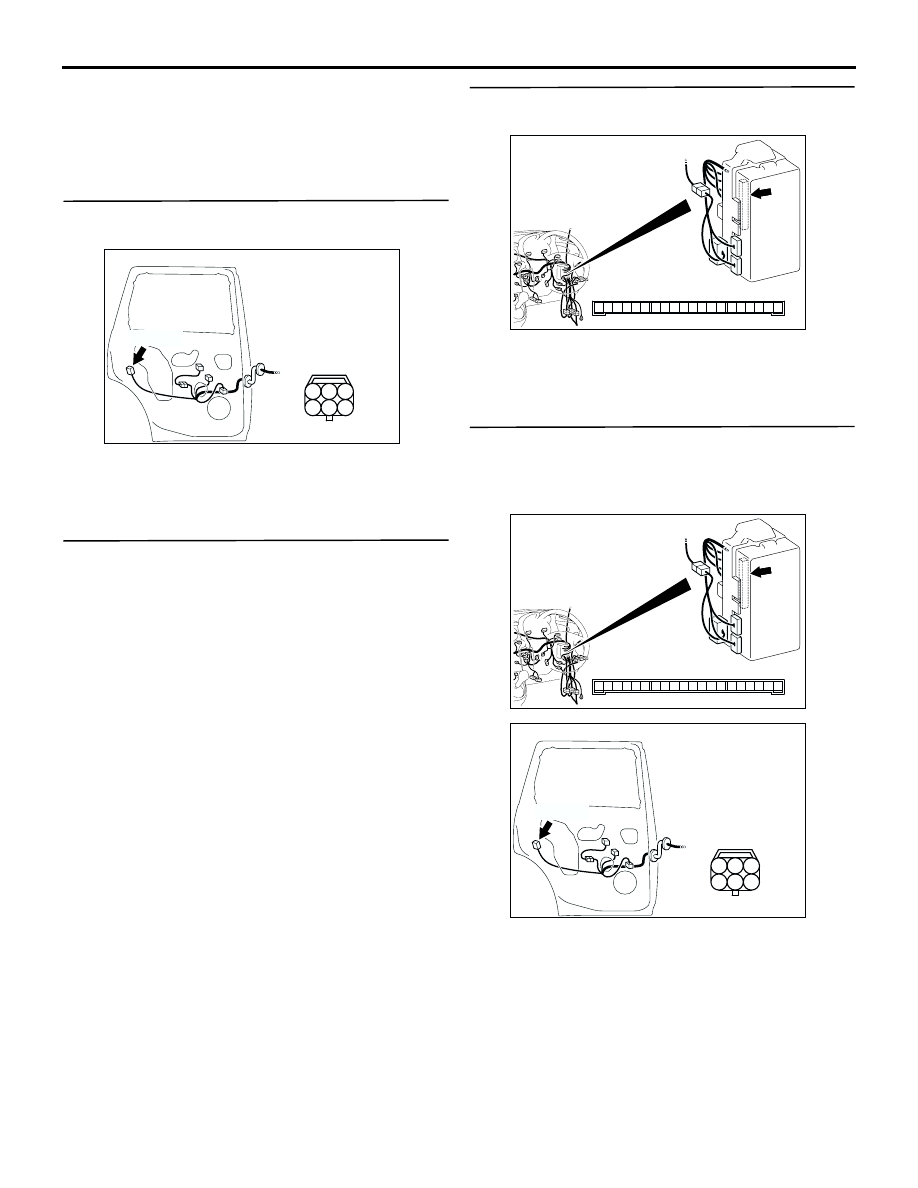

Step 17. Check the wiring harness from C-217
ETACS-ECU connector terminal Nos. 12 and 13 to
E-08 door lock actuator (rear: LH) connector
terminal Nos. 3 and 2.

AC308803

5

6

4

2

3

1

Connector: E-08

AB

Harness side

E-08(B)

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308803

5

6

4

2

3

1

Connector: E-08

AB

Harness side

E-08(B)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-80

NOTE:

Prior to the wiring harness inspection, check C-117,
D-26 intermediate connectors and C-205 junction
block connector, and repair if necessary.

Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

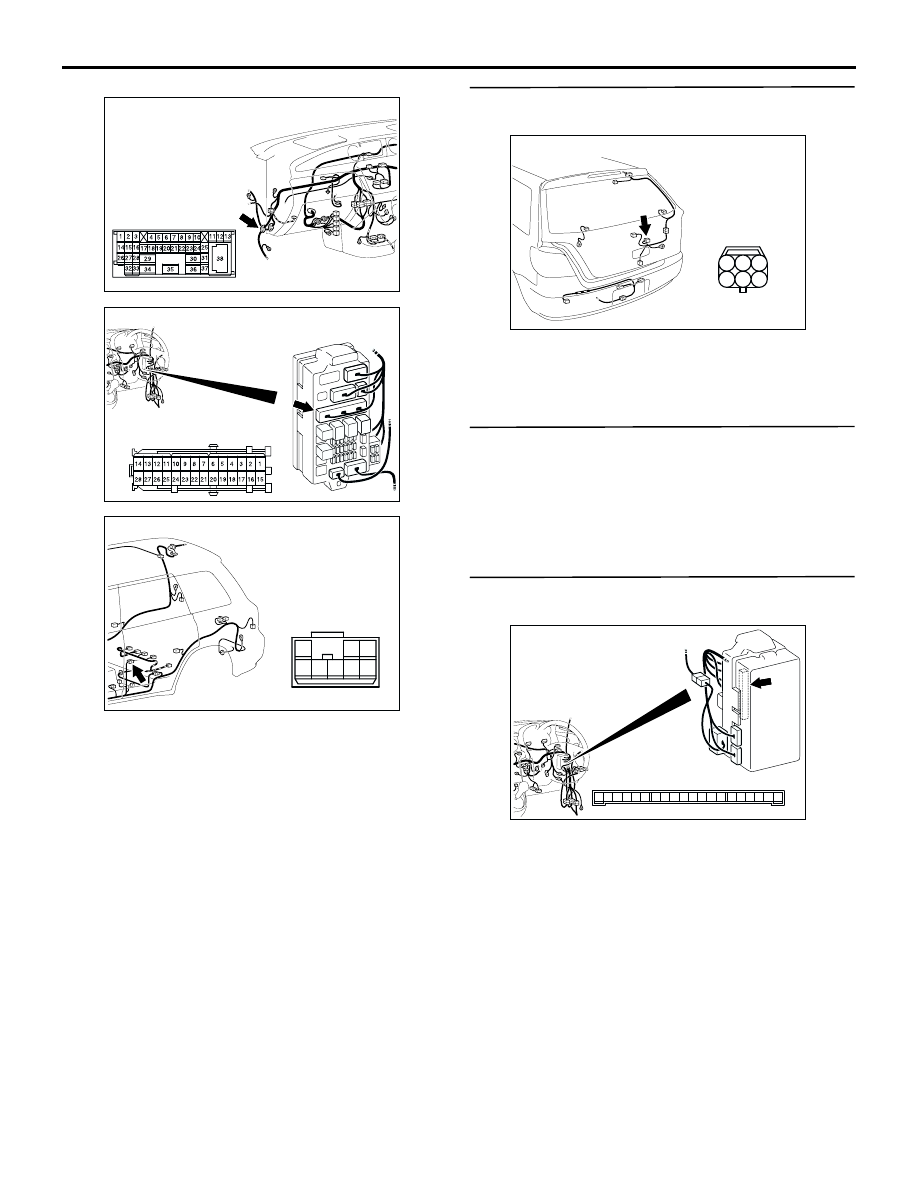

Step 18. Connector check: F-06 tailgate lock
actuator connector

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the defective connector.

Step 19. Check the tailgate lock actuator.

Check that the tailgate lock actuator is in good
condition. Refer to GROUP 42

 Tailgat

P.42-48

.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Replace the tailgate lock actuator.

Step 20. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 21.

NO :

Repair the defective connector.

AC308735

Connector: C-117
<RHD>

Harness side

AJ

AC308772

Connector: C-205

Harness side

AC

Junction block (Front view)

<RHD>

AC308787

Connector: D-26 <RHD>

AB

8

3

1

4 5 6

2

7

AC308808

Connector: F-06

AC

F-06(B)

5

6

4

2

3

1

Harness side

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>
