COLUMN SWITCH

CHASSIS ELECTRICAL

54A-95

INSPECTION

M1542011201020

WINDSHIELD WIPER AND WASHER
SWITCH CHECK <L.H.drive vehicles>

NOTE:

.

•

Measure intermittent volume switch resistance
value between terminals 3 and 6. The measured
resistance should change smoothly from
approximately 0 ohm ("FAST" position) to 1
kiloohm ("SLOW" position)

•

On L.H.drive vehicles, integrated column ECU
does not allow turn-signal and lighting switch
continuity test. For inspection and diagnosis,
refer to the respective Group below.

•

Not using SWS monitor: GROUP 54B, SWS
Troubleshooting

P.54B-41

.

•

Using SWS monitor: GROUP 54C, SWS
Troubleshooting

P.54C-25

.

TURN-SIGNAL AND LIGHTING SWITCH
CHECK <R.H.drive vehicles>

NOTE: On R.H.drive vehicles, integrated column
ECU does not allow windshield wiper switch
continuity test. For inspection and diagnosis, refer to
the respective Group below.

.

•

Not using SWS monitor: GROUP 54B, SWS
Troubleshooting

P.54B-41

.

•

Using SWS monitor: GROUP 54C, SWS
Troubleshooting

P.54C-25

.

Switch position

Tester condition

Specified
condition

OFF

4

−

 6, 5

−

 6, 6

−

 7,

6

−

 8, 6

−

 9, 6

−

 10,

6

−

 11

Open
circuit

Windshield mist
wiper switch

6

−

 11

Less than
2 ohms

Windshield
intermittent wiper
switch

6

−

 10

Less than
2 ohms

Windshield
low-speed wiper
switch

6

−

 9

Less than
2 ohms

Windshield
high-speed wiper
switch

6

−

 8

Less than
2 ohms

Windshield washer
switch

6

−

 7

Less than
2 ohms

Rear wiper switch

4

−

 6

Less than
2 ohms

Rear washer switch 5

−

 6

Less than
2 ohms

AC103138 AD

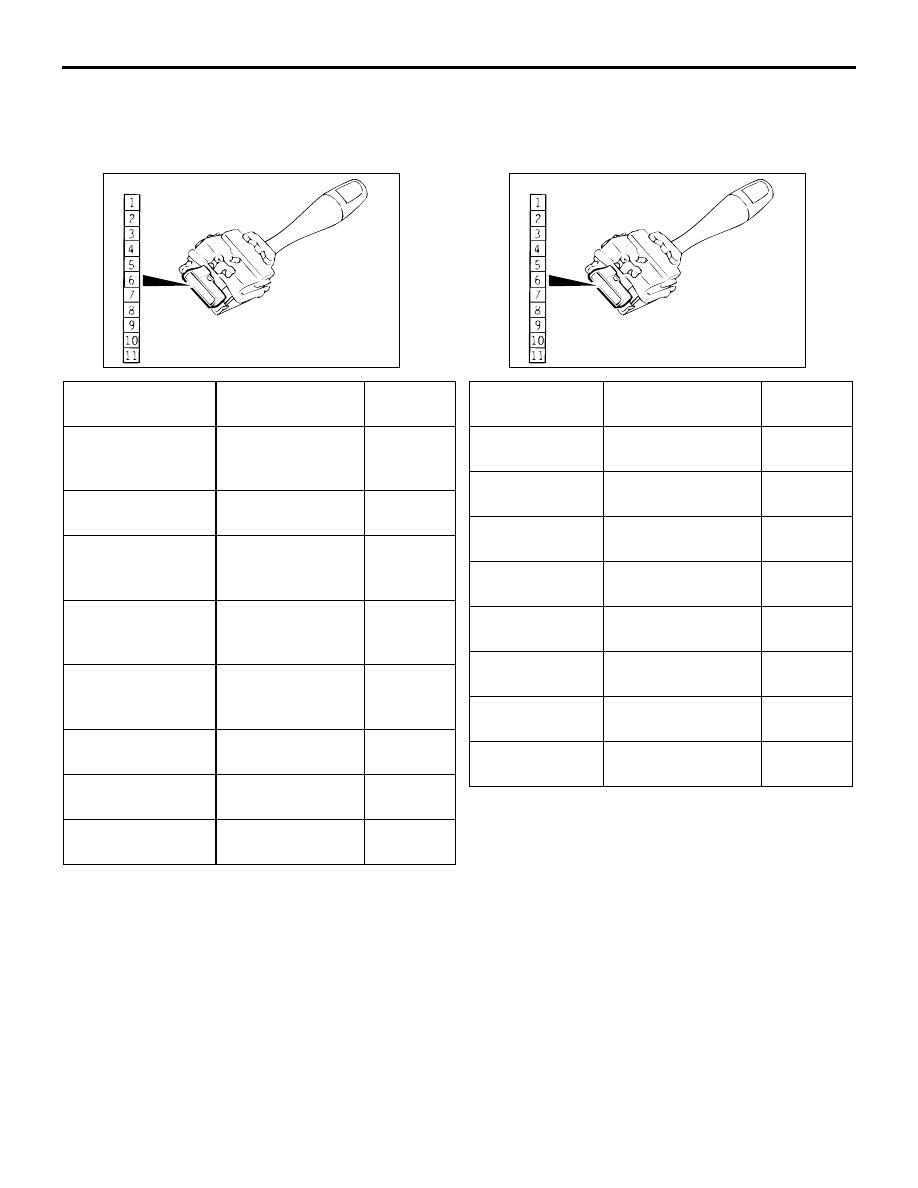

Windshield wiper and washer switch

Switch position Tester condition

Specified
condition

OFF

3

−

 4, 3 - 6, 3 - 7, 3 -

8, 3 - 9, 3 - 10, 3 - 11

Open
circuit

Headlamp
washer switch

3

−

 4

Less than
2 ohms

Headlamp
switch

3

−

 6

Less than
2 ohms

Tail lamp switch 3

−

 7

Less than
2 ohms

Passing switch

3

−

 8

Less than
2 ohms

Dimmer switch

3

−

 9

Less than
2 ohms

Turn-signal lamp
switch (RH)

3

−

 10

Less than
2 ohms

Turn-signal lamp
switch (LH)

3

−

 11

Less than
2 ohms

AC103138 AC

Turn-signal and lighting switch

HORN

CHASSIS ELECTRICAL

54A-96

HORN

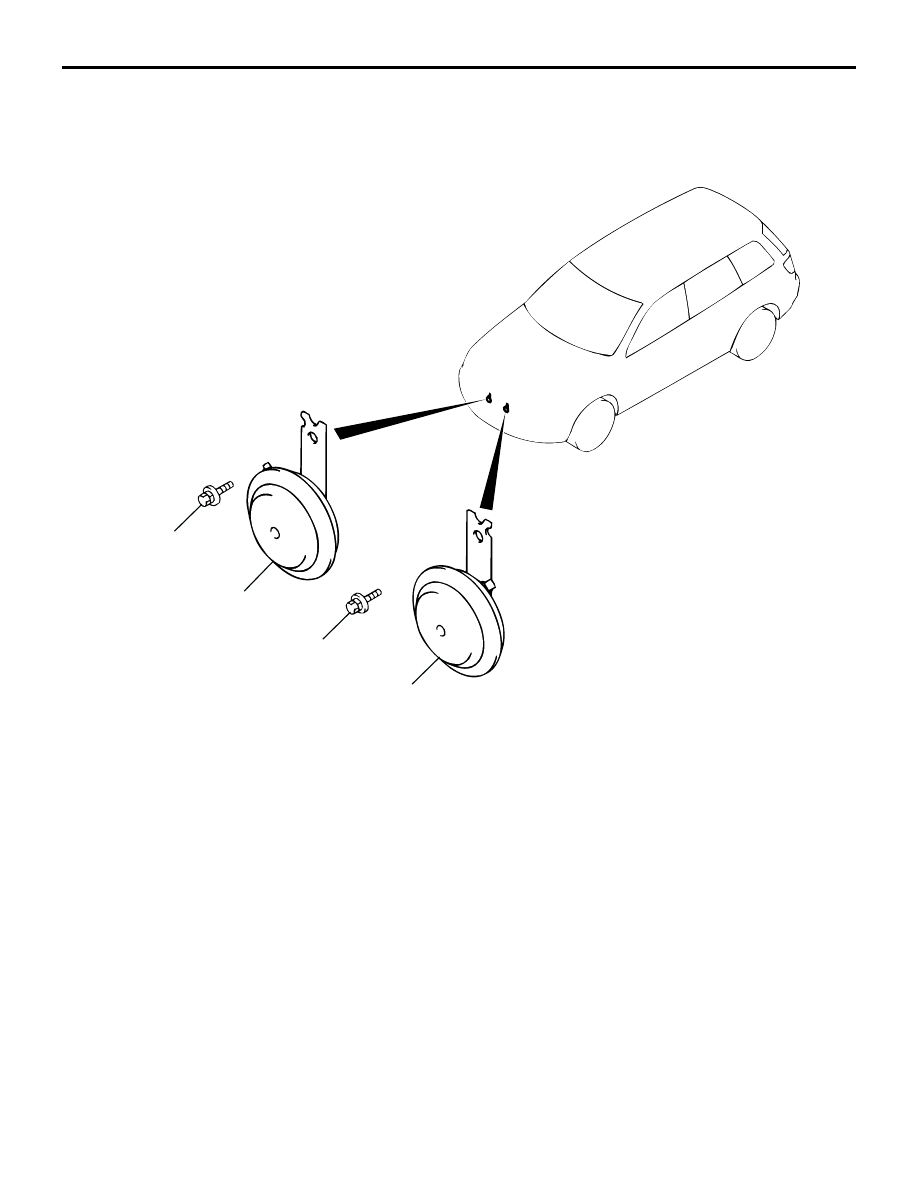

REMOVAL AND INSTALLATION

M1543007900457

AC203808 AC

1

2

21 ± 4 N·m

21 ± 4 N·m

Removal Steps

1. Horn <LO>
2. Horn <HI>

HORN

CHASSIS ELECTRICAL

54A-97

INSPECTION

M1543006500069

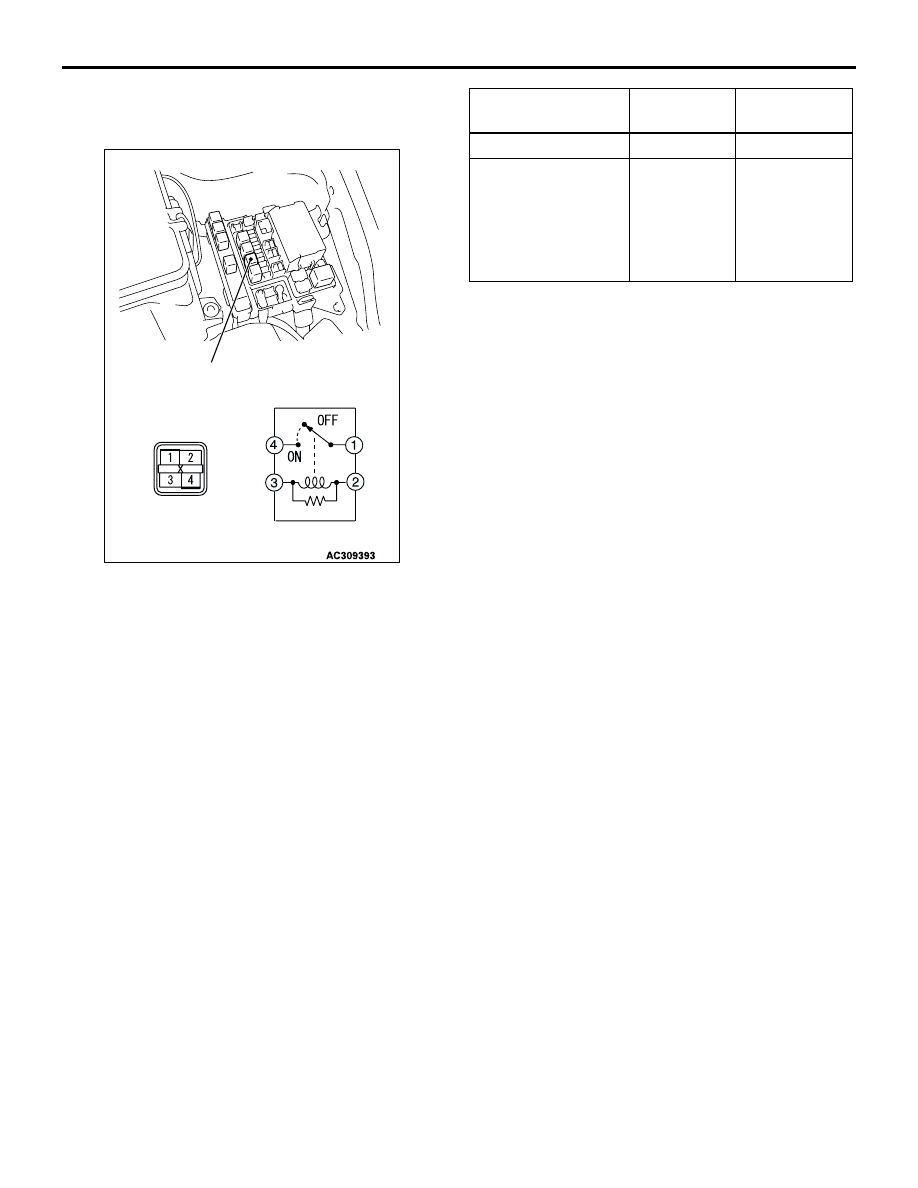

HORN RELAY CONTINUITY CHECK

AB

Horn relay

Battery voltage

Tester
connection

Specified
condition

Not applied

1

−

 4

Open circuit

•

Connect terminal
2 to the positive
battery terminal

•

Connect terminal
3 to the negative
battery terminal

1

−

 4

Less than 2
ohms

CLOCK

CHASSIS ELECTRICAL

54A-98

CLOCK

SPECIAL TOOL

M1543000601919

CLOCK

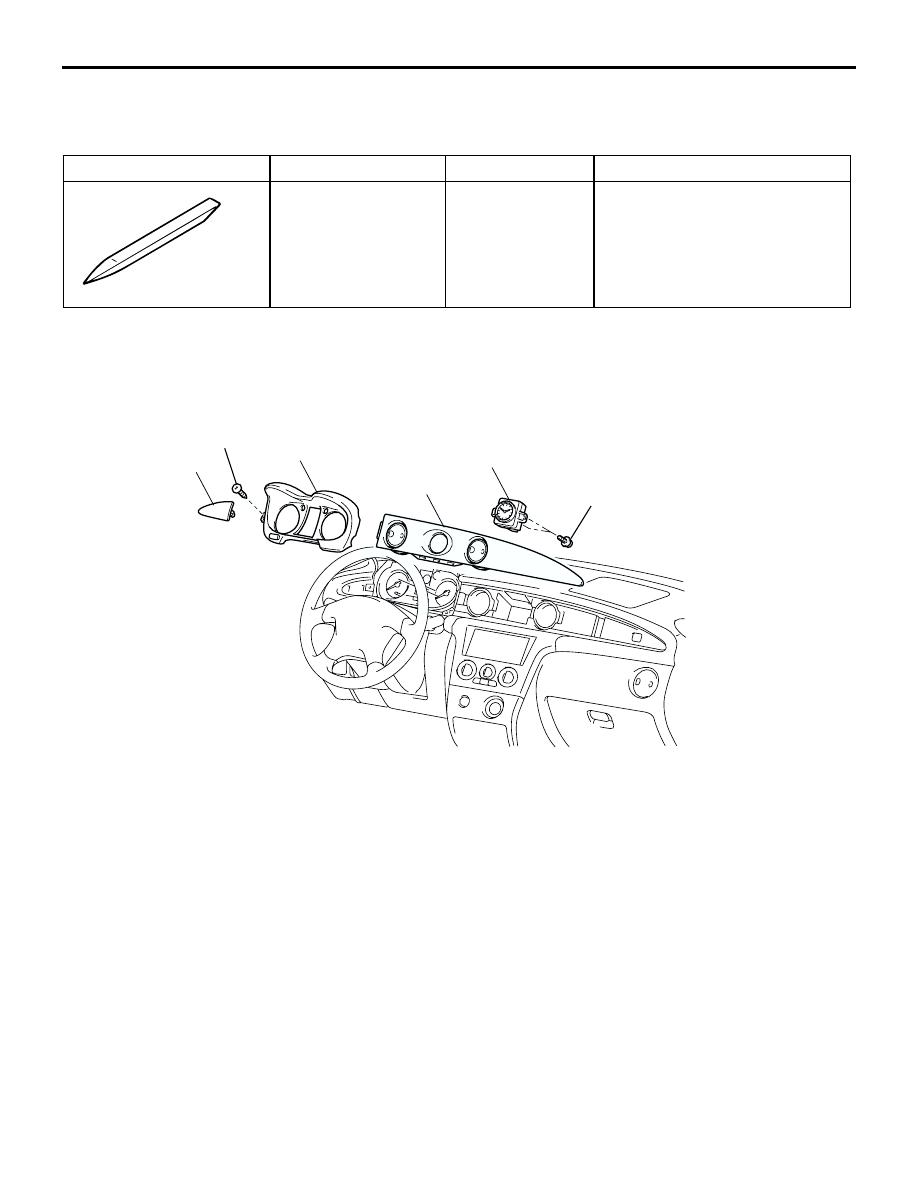

REMOVAL AND INSTALLATION

M1543005900257

Tool

Number

Name

Use

MB990784

Ornament remover Removal of instrument panel

garnish, meter bezel and
instrumental panel centre clock
panel

MB990784

AC100537

1

2

3

4

1.5± 0.5 N·m

1.5± 0.5 N·m

AC

Removal steps

1. Instrument panel driver’s side garnish (Refer

to GROUP 52A, Instrument panel

P.52A-2

<LHD> or

P.52A-8

<RHD>.)

2. Meter bezel (Refer to GROUP 52A,

Instrument panel

P.52A-2

<LHD> or

P.52A-8

<RHD>.)

3. Instrument panel clock garnish (Refer to

GROUP 52A, Instrument panel

P.52A-2

<LHD> or

P.52A-8

<RHD>.)

4. Clock

Removal steps (Continued)
