ROOM LAMP

CHASSIS ELECTRICAL

54A-87

REMOVAL SERVICE POINT

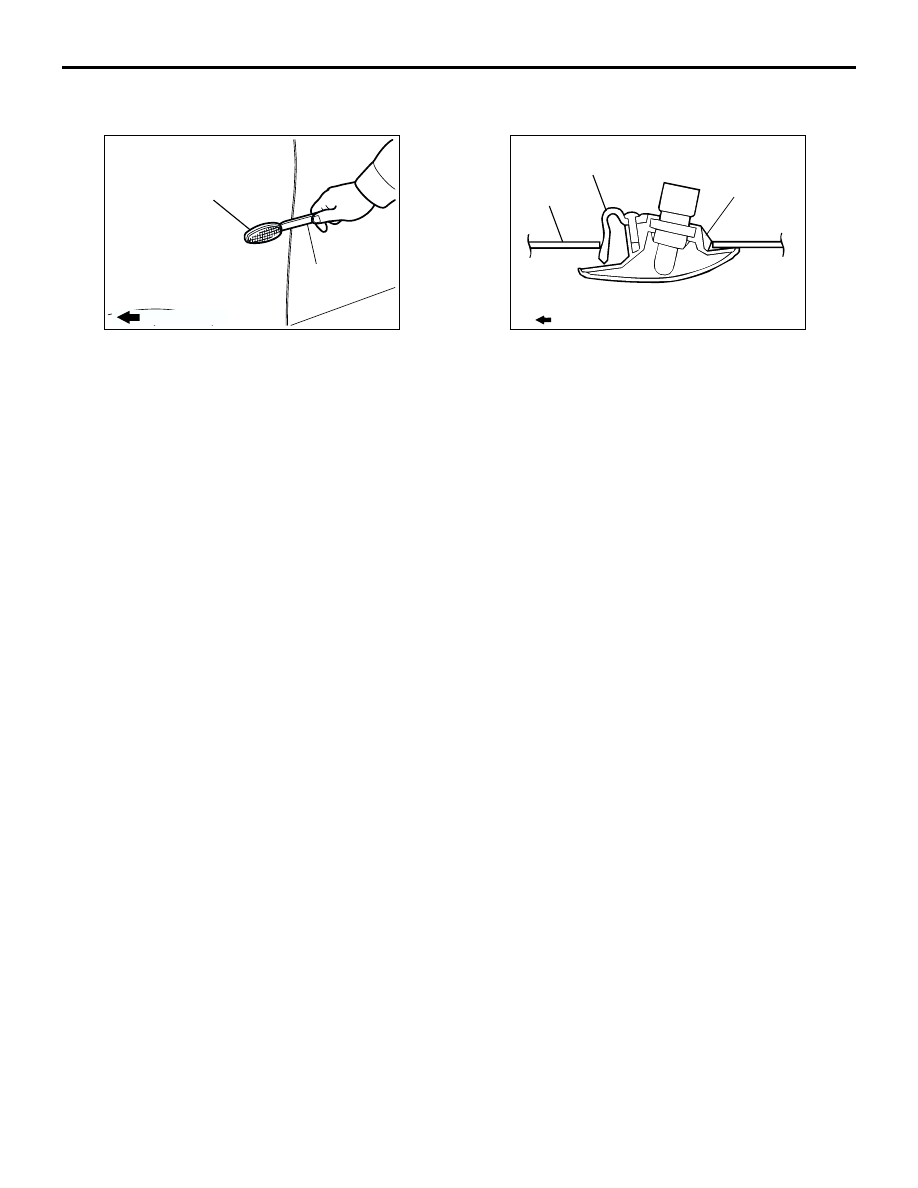

<<A>> SIDE TURN-SIGNAL LAMP REMOVAL

Use a special tool ornament remover (MB990784),
etc. to remove the side turning-signal lamp by
pushing the fender forward, bending the hook, and
then unclamping the thumb.

INSTALLATION SERVICE POINT

>>A<< SIDE TURN-SIGNAL LAMP INSTALLATION

Clamp the thumb on the fender panel the assemble
the side turn signal lamp.

ROOM LAMP

TROUBLESHOOTING

M1542000701463

Room lamp delay shutdown function
The room lamp off is delayed by ETACS-ECU. The
lamps off delay time vary according to the conditions.
The control details are as follows. The lamp delay off
Yes/NO and delay time can be set with the settings
(adjustment function). for adjustment methods and
adjustment details (post-adjustment operations).

•

ADJUSTMENT PROCEDURE

•

Not using SWS monitor: GROUP 54B,
Troubleshooting

P.54B-393

.

•

Using SWS monitor: GROUP 54C,
Troubleshooting

P.54C-5

.

•

The room lamp lights up if the ignition switch is at
the "LOCK" (OFF) position and either of the
doors are opened (either of the door switches:
ON). At this time, if all doors are closed (all door
switches: OFF) then the lamp will gradually dim
down to lamps off in about 15 seconds.

NOTE: When the lamps are dimmed and the ignition

switch is turned ON or if the door is locked, then
the dimming operations stop and the lamps are
turned OFF.

•

When the ignition switch is at the ON position and
one of the doors are opened (one of the door
switches: ON) then the room lamp will light up. At
this time, if all doors are closed (all door switches:
OFF) then the lamps will dim out.

•

When the ignition key is pulled out the room lamp
lights up and then will dim out in 15 seconds. The
lamp will dim out if the ignition key is inserted
again and the door is locked while the timer is
activated.

The room lamp is controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to
respective Groups below.

•

Not using SWS monitor: GROUP 54B, SWS
Troubleshooting

P.54B-41

.

•

Using SWS monitor: GROUP 54C, SWS
Troubleshooting

P.54C-25

.

AC200034 AC

Side turn-signal lamp

Vehicle front

MB990784

AC200035AC

Hook

Vehicle front

Claw

Fender
panel

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-88

Interior lamp automatic cut function <vehicles
with keyless entry system>
The interior lamp automatic cut function, dims out the
room lamp and other interior lamps by activating the
keep relay built-in the ETACS-ECU when the ignition
switch is OFF and the multi-purpose fuse loaded
signals built-in the ETACS-ECU is ON and 30
minutes passes. The lamps lights back up if the
ignition switch is turned to the ON position or either
of the doors is opened (either of the door switches:
ON). The function Yes/No feature can be changed
with the settings (adjustment function). for
adjustment methods and adjustment details
(post-adjustment operations).

•

ADJUSTMENT PROCEDURE

•

Not using SWS monitor: GROUP 54B,
Troubleshooting

P.54B-393

.

•

Using SWS monitor: GROUP 54C,
Troubleshooting

P.54C-5

.

The head lamp are controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to
respective Groups below.

•

Not using SWS monitor: GROUP 54B, SWS
Troubleshooting

P.54B-41

.

•

Using SWS monitor: GROUP 54C, SWS
Troubleshooting

P.54C-25

.

REAR COMBINATION LAMP

REAR COMBINATION LAMP DIAGNOSIS

M1542000701474

The lamps setup on the rear combination lamp is
controlled in the same manner as the lamps of the
headlamp assembly. For details go to the reference.
For troubleshooting, refer to respective Groups
below.

•

Not using SWS monitor: GROUP 54B, SWS
Troubleshooting

P.54B-41

.

•

Using SWS monitor: GROUP 54C, SWS
Troubleshooting

P.54C-25

.

SPECIAL TOOL

M1542000601068

Tool

Number

Name

Use

MB990784

Ornament remover Removal of ventilation cap and

rear combination lamp assembly

MB990784

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-89

REAR COMBINATION LAMP

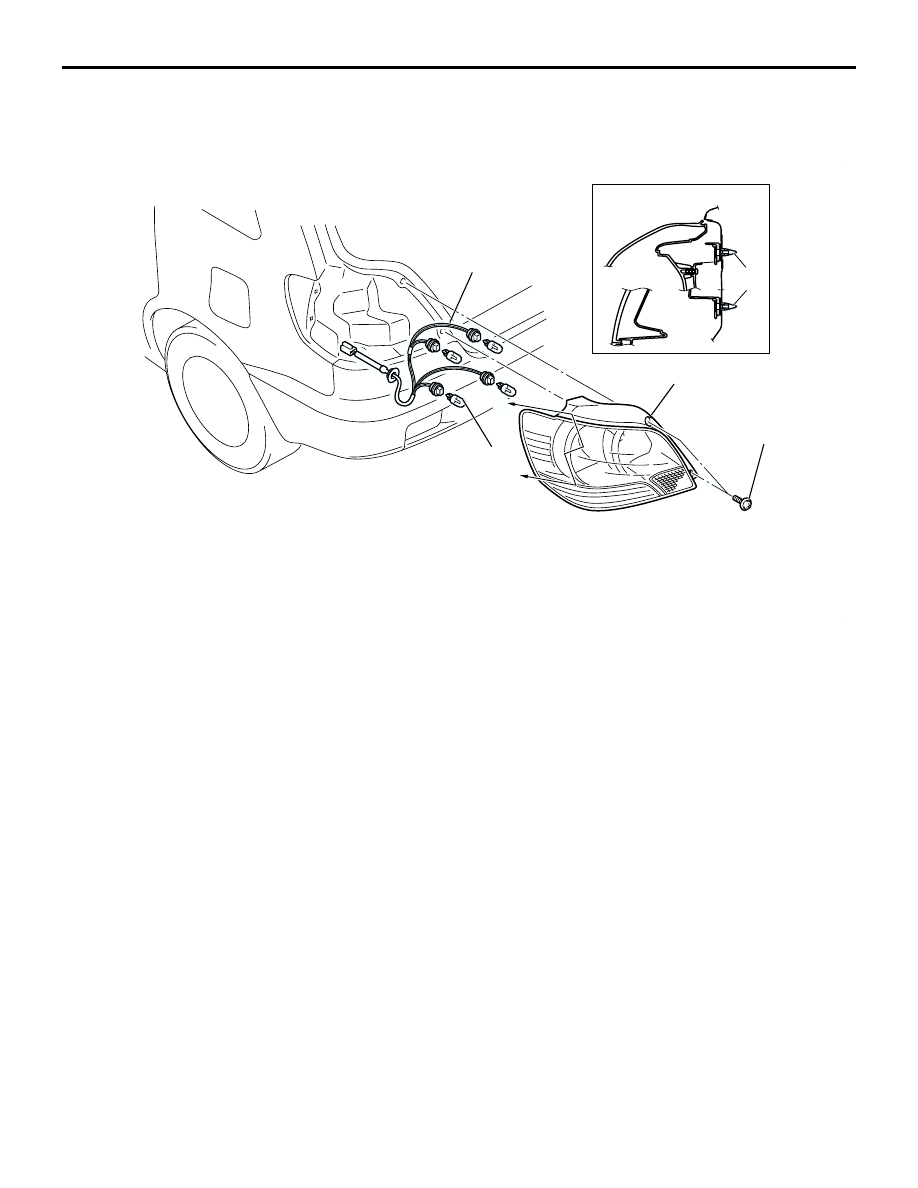

REMOVAL AND INSTALLATION

M1542003900496

AC210600

4.9 ± 0.7 N·m

Section A - A

Clip

1

2

3

A

A

AE

Removal steps

•

Ventilation cap (Refer to GROUP
52A, Trims

P.52A-18

.)

•

Rear combination lamp connector
connection

1. Rear combination lamp
2. Harness assembly
3. Bulb

Removal steps (Continued)

HIGH MOUNTED STOP LAMP

CHASSIS ELECTRICAL

54A-90

HIGH MOUNTED STOP LAMP

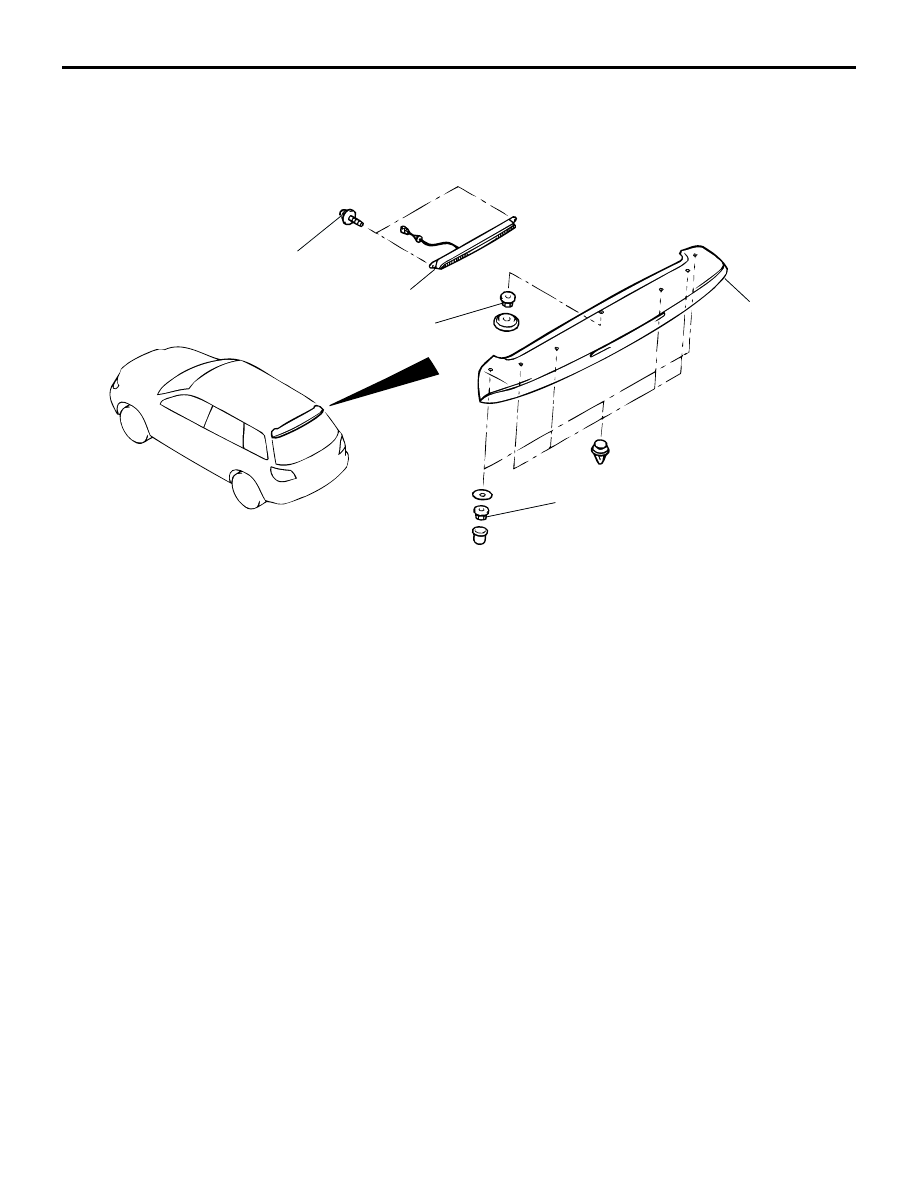

REMOVAL AND INSTALLATION

M1542005100496

AC100674

1

2

AF

2.5± 0.3 N·m

5.1 ± 0.2 N·m

5.1 ± 0.2 N·m

Removal steps

•

Tailgate upper trim (Refer to
GROUP 52A, Tailgate trim

P.52A-25

.)

•

High-mounted stop lamp connector
connection

1.

Spoiler

2.

High-mounted stop lamp

Removal steps (Continued)
