CIGARETTE LIGHTER

CHASSIS ELECTRICAL

54A-99

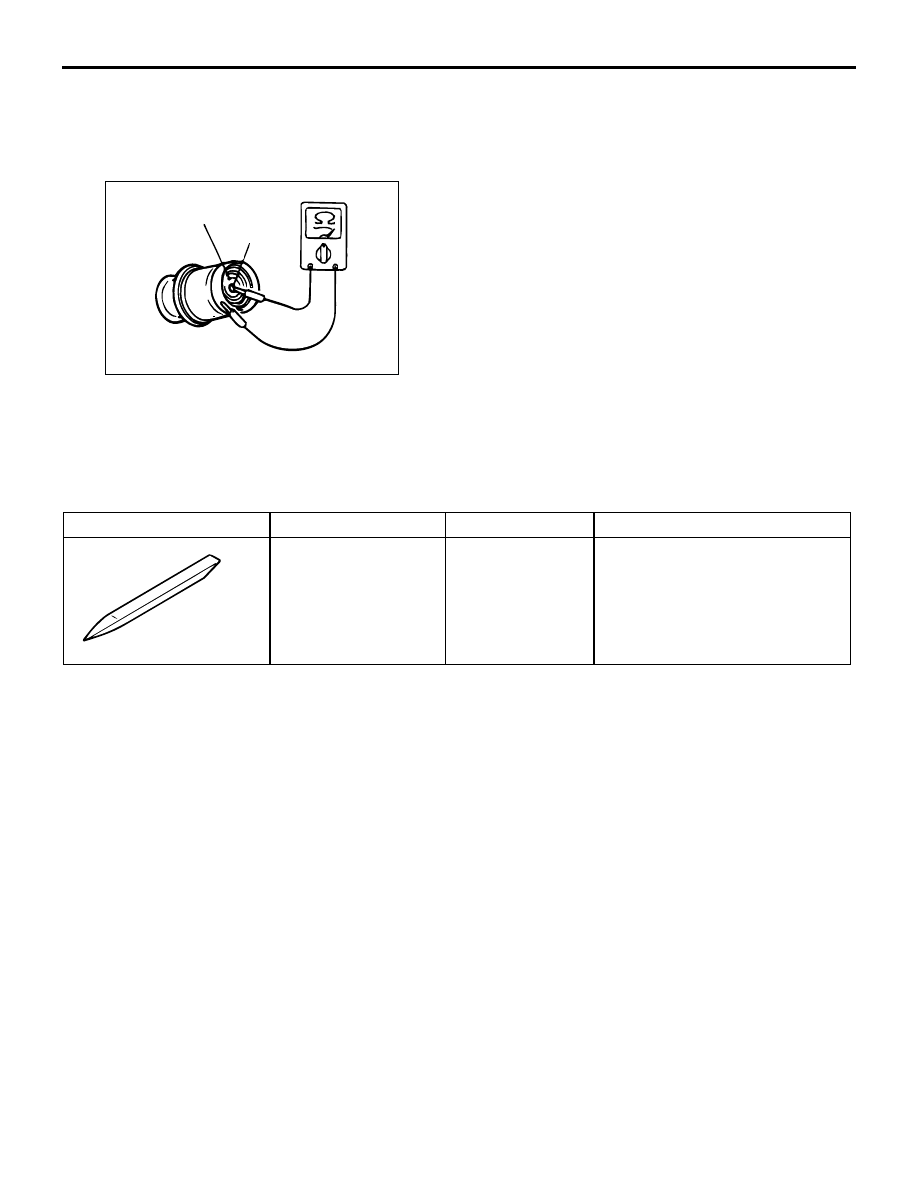

CIGARETTE LIGHTER

INSPECTION

M1543005700253

CIGARETTE LAMPER CHECK

•

Take out the plug, and check for a worn edge on
the element spot connection, and for shreds of
tobacco or other material on the element.

•

Using an ohmmeter, check that the element
resistance value is 1.7 ohms.

ACCESSORY SOCKET

SPECIAL TOOL

M1543000601920

ACX01832 AD

Element

Spot

Tool

Number

Name

Use

MB990784

Ornament remover Removal of center lower panel or

quarter trim lower

MB990784

ACCESSORY SOCKET

CHASSIS ELECTRICAL

54A-100

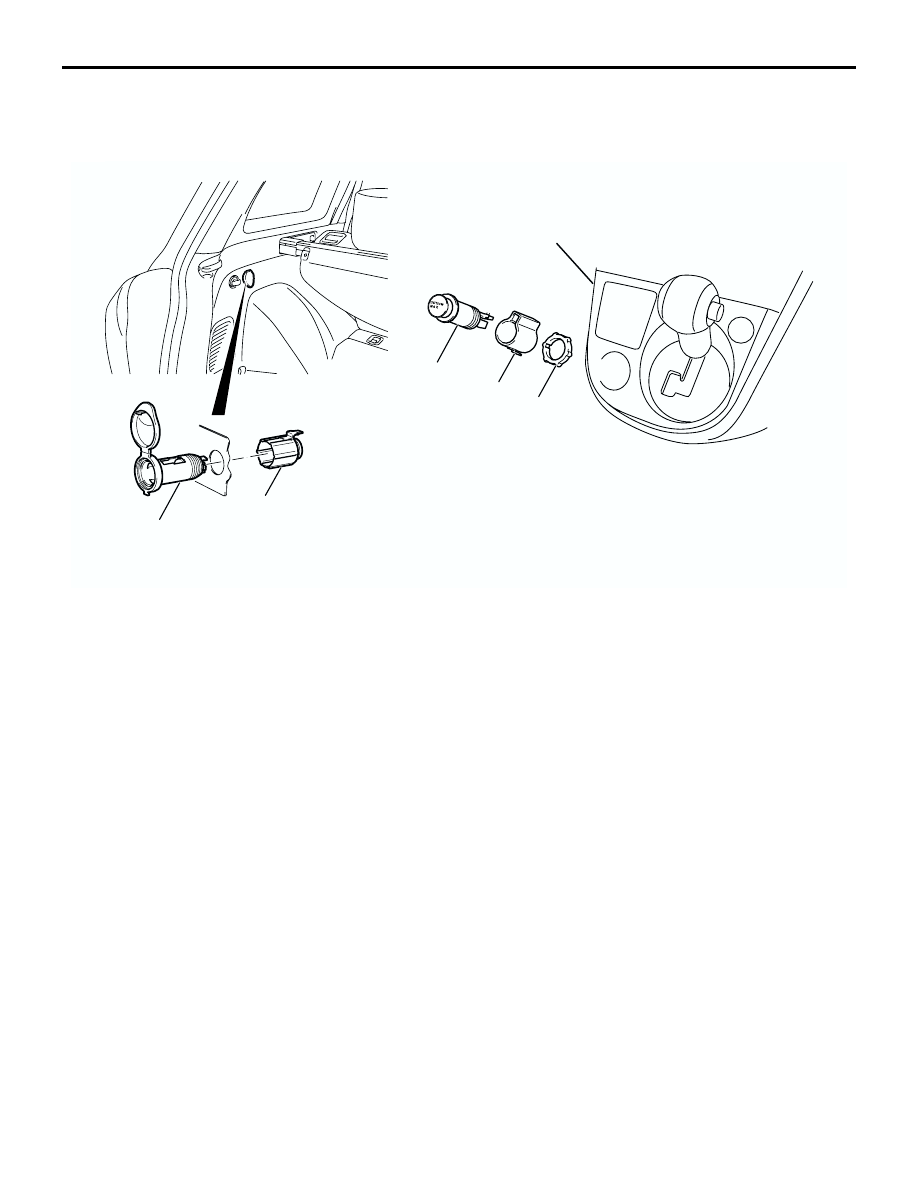

ACCESSORY SOCKET

REMOVAL AND INSTALLATION

M1543008900289

AC309773AC

3

6

5

4

2

1

< Quarter trim >

< Gear shift lever panel (R.H.drive vehicles) >

 Removal Steps <Quarter trim >

•

Quarter trim lower  (LH) (Refer to GROUP
52A, Trim

P.52A-18

).

1. Socket case
2. Accessory socket

Removal Steps <Gear shift lever panel
(R.H.drive vehicles) >

3. Gear shift lever panel (Refer to GROUP

52A, Instrument panel

P.52A-8

).

4. Fixing ring
5. Socket case
6. Accessory socket

ACCESSORY SOCKET

CHASSIS ELECTRICAL

54A-101

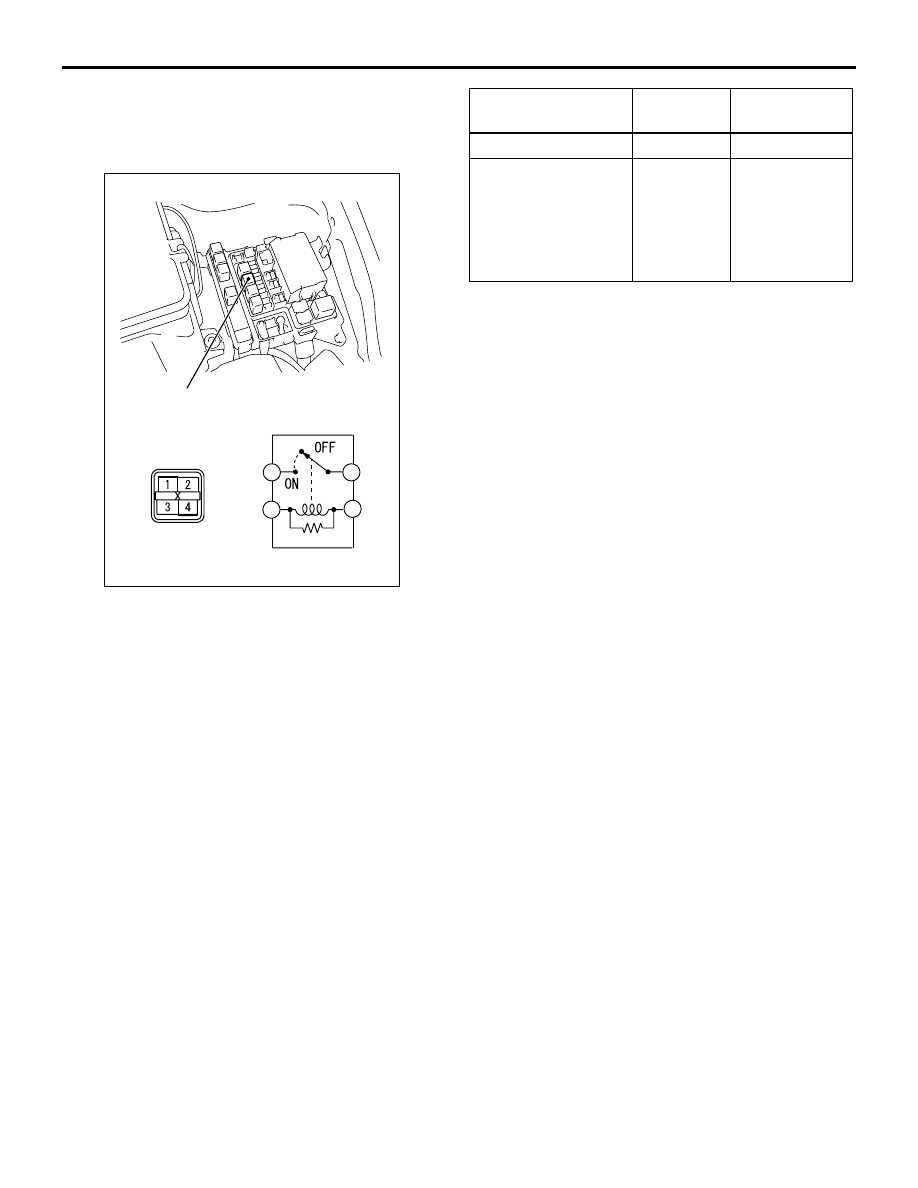

INSPECTION

M1543009000212

ACCESSORY SOCKET RELAY
CONTINUITY CHECK

AC309392

3

1

4

2

AB

Accessory socket relay

Battery voltage

Tester
connection

Specified
condition

Not applied

1

−

 4

Open circuit

•

Connect terminal
2 to the positive
battery terminal

•

Connect terminal
3 to the negative
battery terminal

1

−

 4

Less than 2
ohms

RHEOSTAT

CHASSIS ELECTRICAL

54A-102

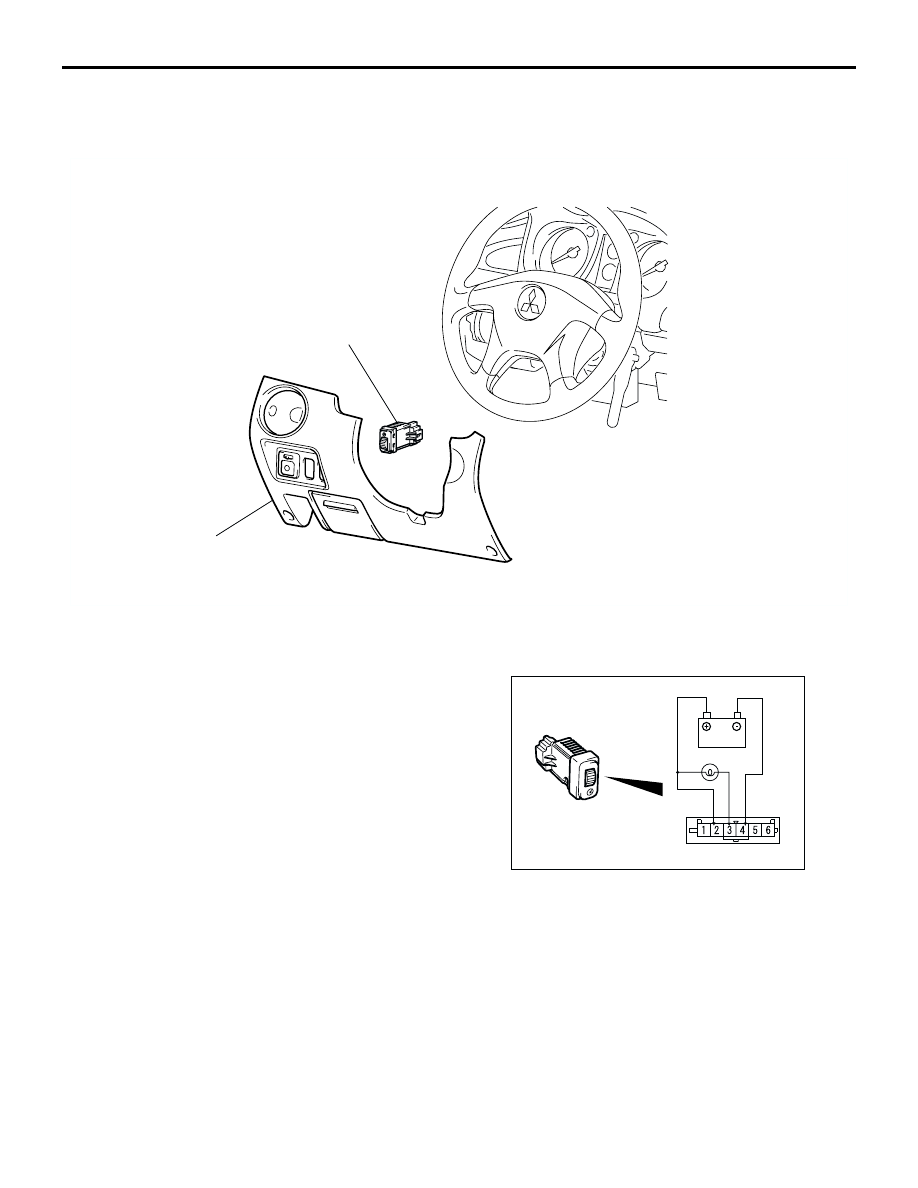

RHEOSTAT

REMOVAL AND INSTALLATION

M1542006000339

 INSPECTION

M1542006100239

 RHEOSTAT RESISTANCE CHECK

1. Connect the battery and the test bulb (40 W) as

shown in the illumination.

2. Operate the rheostat, and if brightness changes

smoothly without switching off, rheostat function is
normal.

AC210844AB

1

2

Removal steps

1. Instrument lower panel (Refer to GROUP

52A,Instrument panel assembly

P.52A-2

<LHD> or

P.52A-8

<RHD>.)

2. Rheostat

AC212513AB

40W
