Mitsubishi Outlander (2003+). Manual - part 419





COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-71

2. If all checks are correct, go to fuel gauge unit float

height check. If any check is not correct, replace
the fuel gauge unit.

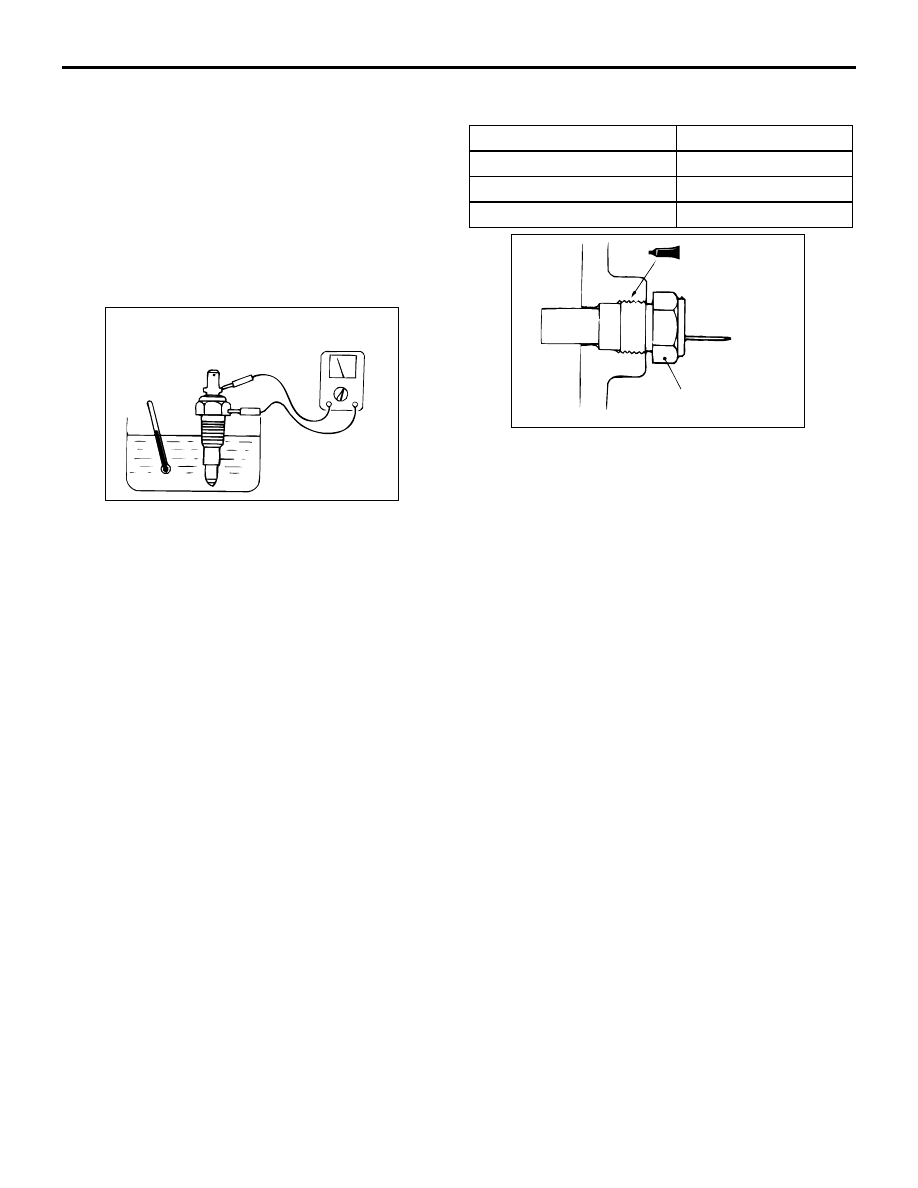

ENGINE COOLANT TEMPERATURE
GAUGE UNIT CHECK

M1543001500439

1. Drain the engine coolant. (Refer to GROUP 14-

On-vehicle Service

P.14-17

.)

2. Remove the engine coolant temperature gauge

unit.

3. Put engine coolant temperature gauge unit into

the hot water in specified temperature, and
ensure that basic resistance is within standard
value.

Standard value: 104

±

 13.5

 (at 70C

°

)

Reference value

4. After inspection, apply specified sealant at

threads of engine coolant temperature gauge unit,
and tighten to the specified torque.

Semi-drying sealant: 3M 1215 or equivalent

5. Add engine coolant. (Refer to GROUP 14 -

On-vehicle Service

P.14-17

.)

ACX00779 AI

Circuit tester

Thermometer

Temperature (

°

C)

Resistance

50 230
60 155
80 73

ACX00780AH

11 ± 1 N·m

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-72

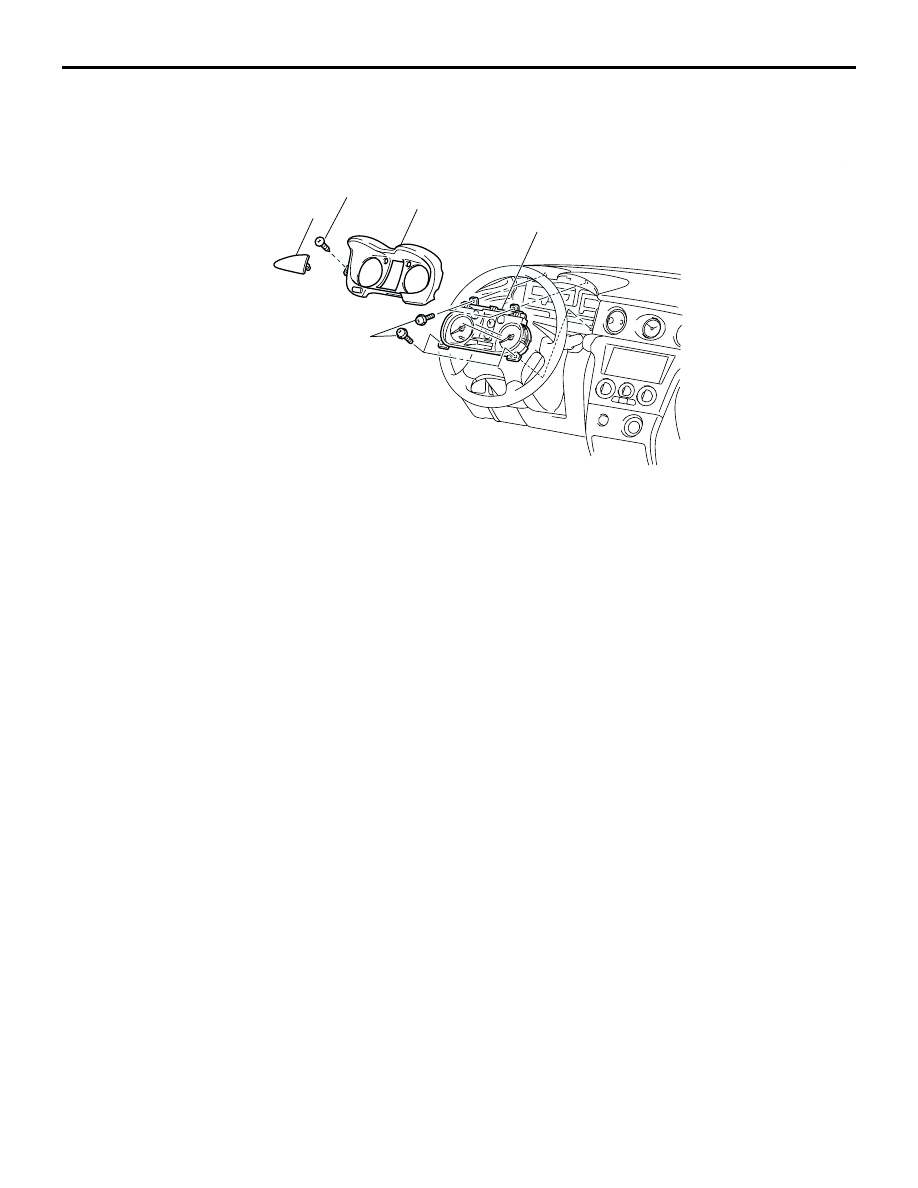

COMBINATION METER ASSEMBLY

REMOVAL AND INSTALLATION

M1543021300040

AC211662AB

1

2

3

1.5 ± 0.5 N·m

1.5 ± 0.5 N·m

Removal steps

1. Instrument panel driver’s side garnish (Refer

to GROUP 52A, Instrument panel

P.52A-2



<LHD> or

P.52A-8

 <RHD>.)

2. Meter bezel (Refer to GROUP 52A,

Instrument panel

P.52A-2

 <LHD> or

P.52A-8



<RHD>.)

3. Combination meter assembly

Removal steps (Continued)

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-73

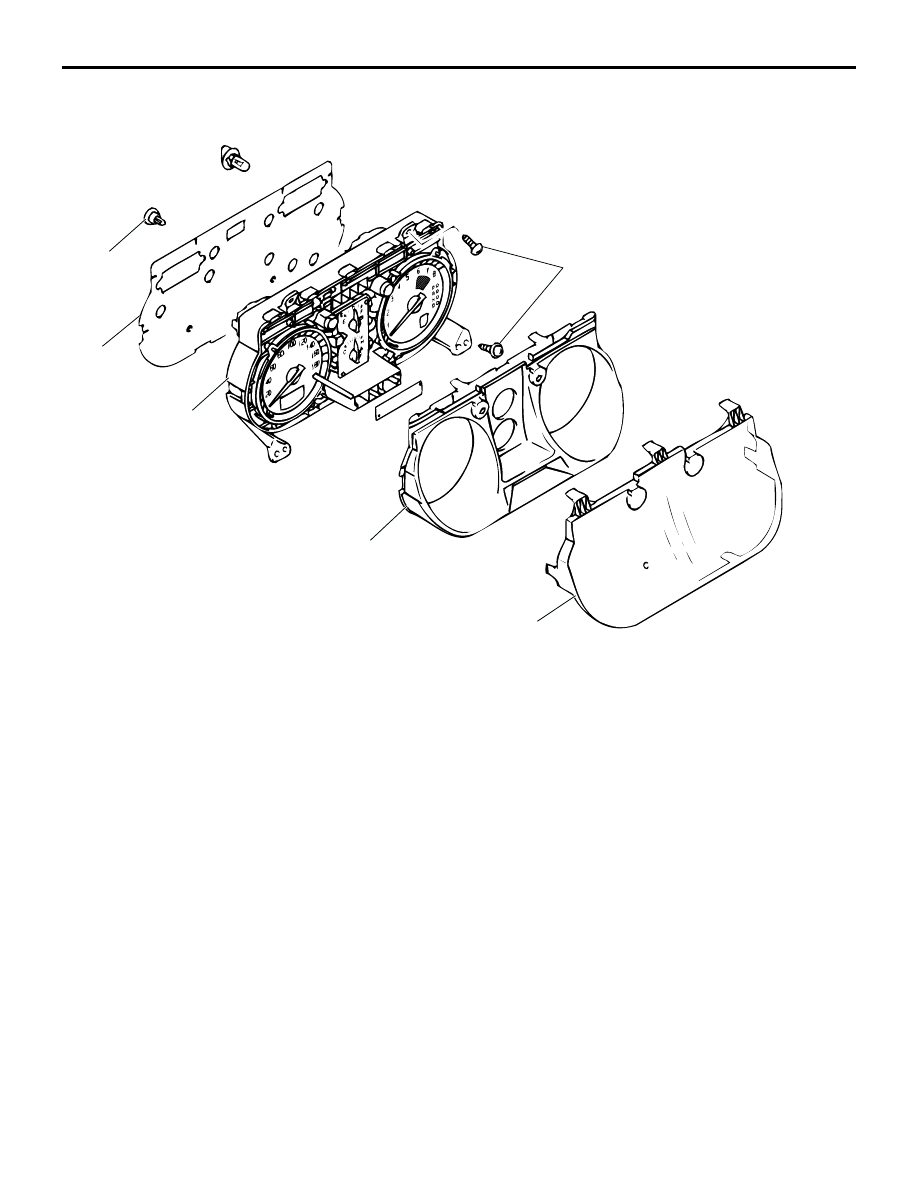

DISASSEMBLY AND REASSEMBLY

M1543003100374

AC211663

1

2

3

4

5

AB

1.5 ± 0.5 N·m

Disassembly steps

1. Meter glass
2. Meter panel
3. Circuit board cover

4. Bulb
5. Combination meter assembly

Disassembly steps (Continued)

HEADLAMP

CHASSIS ELECTRICAL

54A-74

HEADLAMP

SERVICE SPECIFICATIONS

M1542000300428

TROUBLESHOOTING

M1542000701430

Features the headlamp automatic shutdown function
to avoid battery drain when the headlamps are left
on. The main features are as follows:

Extinguishes automatically in three minutes if the
ignition switch is turned off with the lighting switch
on.

Extinguishes in one second if the driver's door is
opened within that 3-minute period.

If the headlamps are turned on with the ignition
switch off, the headlamps and tail lamps will
extinguish in three minutes after the driver's door
is opened or closed.

The headlamps are controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to
respective Groups below.

Not using SWS monitor: GROUP 54B, SWS
Diagnosis

P.54B-41

.

Using SWS monitor: GROUP 54C, SWS
Diagnosis

P.54C-25

.

ON-VEHICLE SERVICE

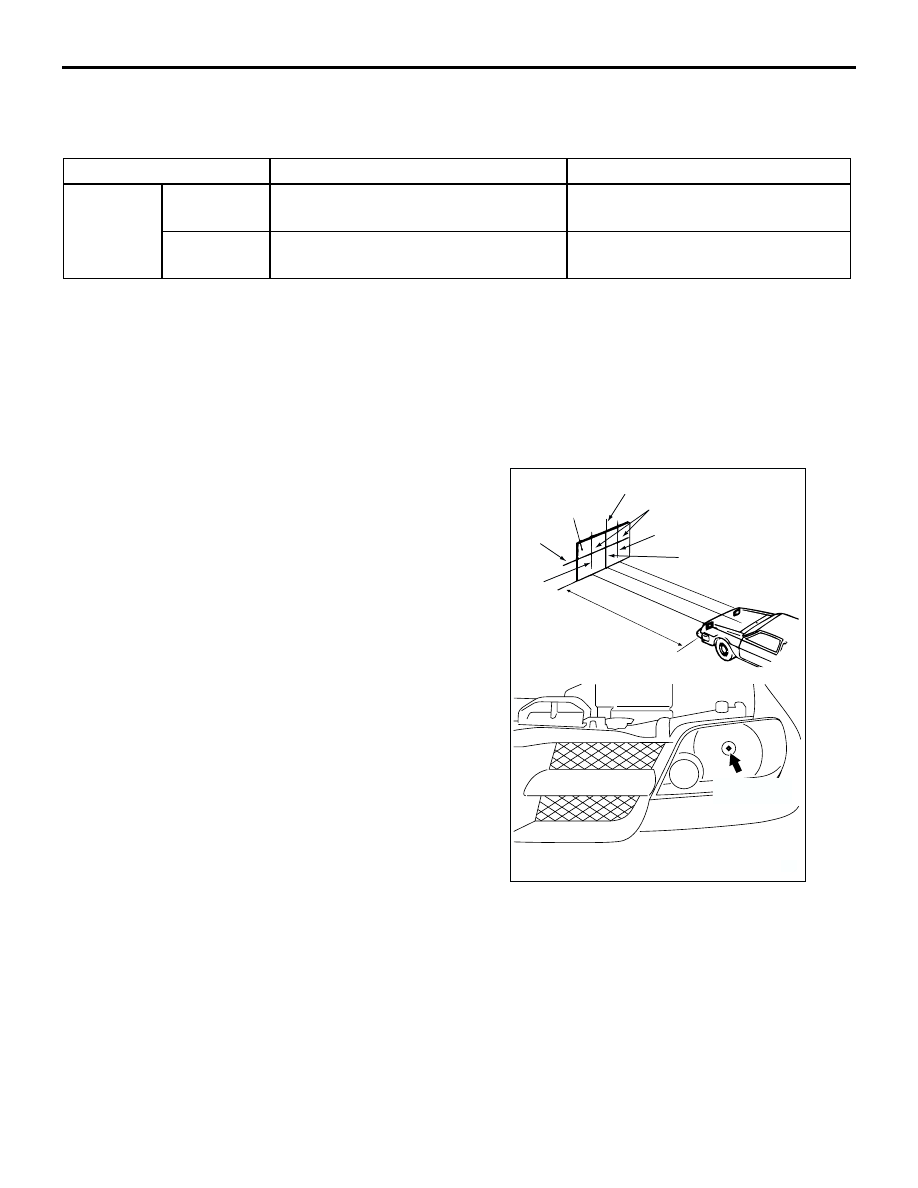

HEADLAMP AIMING

M1542000900572

PRE-AIMING INSTRUCTIONS

1. Inspect for badly rusted or faulty headlamp

assemblies.

2. These conditions must be corrected before a

satisfactory adjustment can be made.

3. Inspect tyre inflation, and adjust if it is necessary.
4. If the fuel tank is not full, place a weight in luggage

room of the vehicle to simulate weight of a full
tank (0.8 kg per litre).

5. There should be no other load in the vehicle other

than driver or substituted weight of approximately
75 kg placed in driver's position.

6. Thoroughly clean the headlamp lenses.

7. Place the vehicle on a level floor, perpendicular to

a flat screen 10 m away from the bulb
centre-marks on the headlamp lens.

8. Rock vehicle sideways to allow vehicle to assume

its normal position.

9. Bounce the front suspension through three (3)

oscillations by applying the body weight to hood
or bumper.

10.Four lines of adhesive tape (or equivalent

markings) are required on screen or wall:
(1) Position a vertical tape or mark so that it is

aligned with the vehicle centre line.

(2) Measure the distance from the centre-marks

on the headlamp lens to the floor. Transfer the
measurement to the screen. Horizontal tape or
mark on the screen is for reference of vertical
adjustment.

NOTE: Height from the floor to the centre of
the headlamps (Reference value): 840 mm

Item

Standard value

Limit

Headlamp
aiming

Vertical
direction

42 mm (0.24

°

) below horizontal (H)

±

 51 mm (

±

 0.29

°

) from the standard

value

Horizontal
direction

Position at which the stat up point of
15

°

 is crossed with vertical line (V)

±

 87 mm (

±

 0.5

°

) from the standard

value

AC300909

AB

Headlamp
centre

(1)

(2)

(3)

Headlamp centre

Vehicle centre line

Screen

(3)

10 m
