HEADLAMP

CHASSIS ELECTRICAL

54A-75

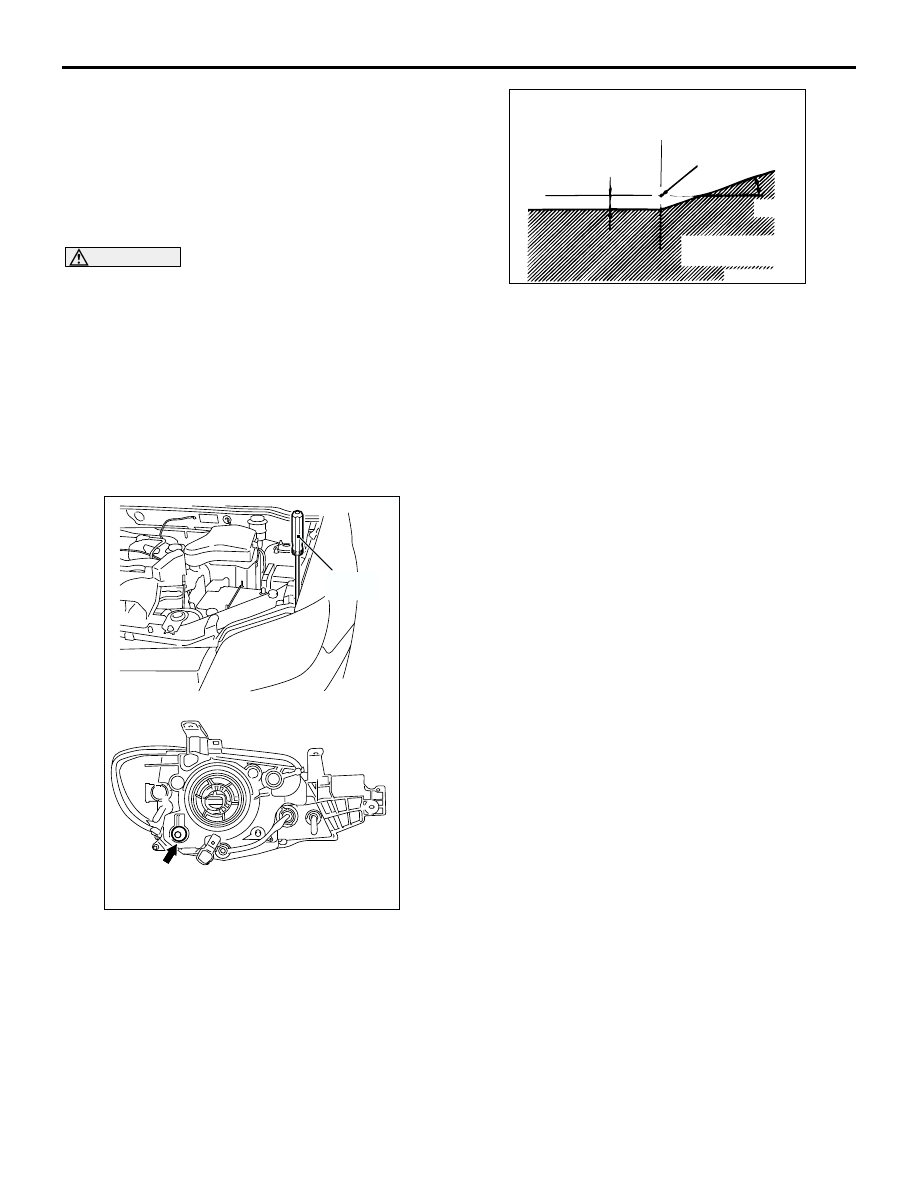

(3) Measure the distance from the centre line of

the vehicle to the centre of each headlamp.
Transfer the measurement to the screen.
Vertical tape or mark on the screen with
reference to the centre line of each headlamp
bulb.

HEADLAMP ADJUSTMENT

CAUTION

Do not cover a headlamp for more than three
minutes to prevent the plastic headlamp lens
deformation.

When adjusting one headlamp beam, make
sure that another headlamp is off by
disconnecting the connector from it. When
reconnecting the connector, make sure that
the headlamp beam is not disturbed
accidentally.

1. The low-beam headlamp should project on the

screen upper edge of the beam (cut-off).

2. If not the case, turn the adjusting screws to

achieve the specified low-beam cut-off location on
the aiming screen.

Standard value:
(Vertical direction) 42 mm (0.24

°

) below

horizontal (H)
(Horizontal direction) Position at which the
stat up point of 15

°

 is crossed with vertical

line (V)
Limit:
Vertical direction;

±

 51 mm (

±

 0.29

°

) from the

standard value
Horizontal direction;

±

 87 mm (

±

 0.5

°

) from

the standard value

LUMINOUS INTENSITY MEASUREMENT

M1542001000505

1. Set the headlamps to high-beam
2. Using a photometer, and following its

manufacturer's instruction manual, measure the
headlamp centre intensity and check to be sure
that the limit value is satisfied.

Limit: 30,000 cd or more {When a screen is
set 25m ahead of the vehicle}

NOTE: When measuring the intensity, maintain an
engine speed of 2,000 r/min., with the battery fully
charged.
There may be special local regulations pertaining to
headlamp intensity. Be sure to make any
adjustments necessary to satisfy such regulations.
If an illuminometer is used to make the
measurements, convert its values to photometer
values by using the following formula.

I =E x r

2

:

I = intensity (cd)

E = illumination (lux)

r = distance (m) from headlamps to illuminometer

AC300115

Vertical
direction

AB

Vertical direction

ACX01800AD

Distance of
vertical direction
[42 mm (0.24˚)]

Headlamp centre

High intensity

zone

15˚

(H)

(V)

HEADLAMP

CHASSIS ELECTRICAL

54A-76

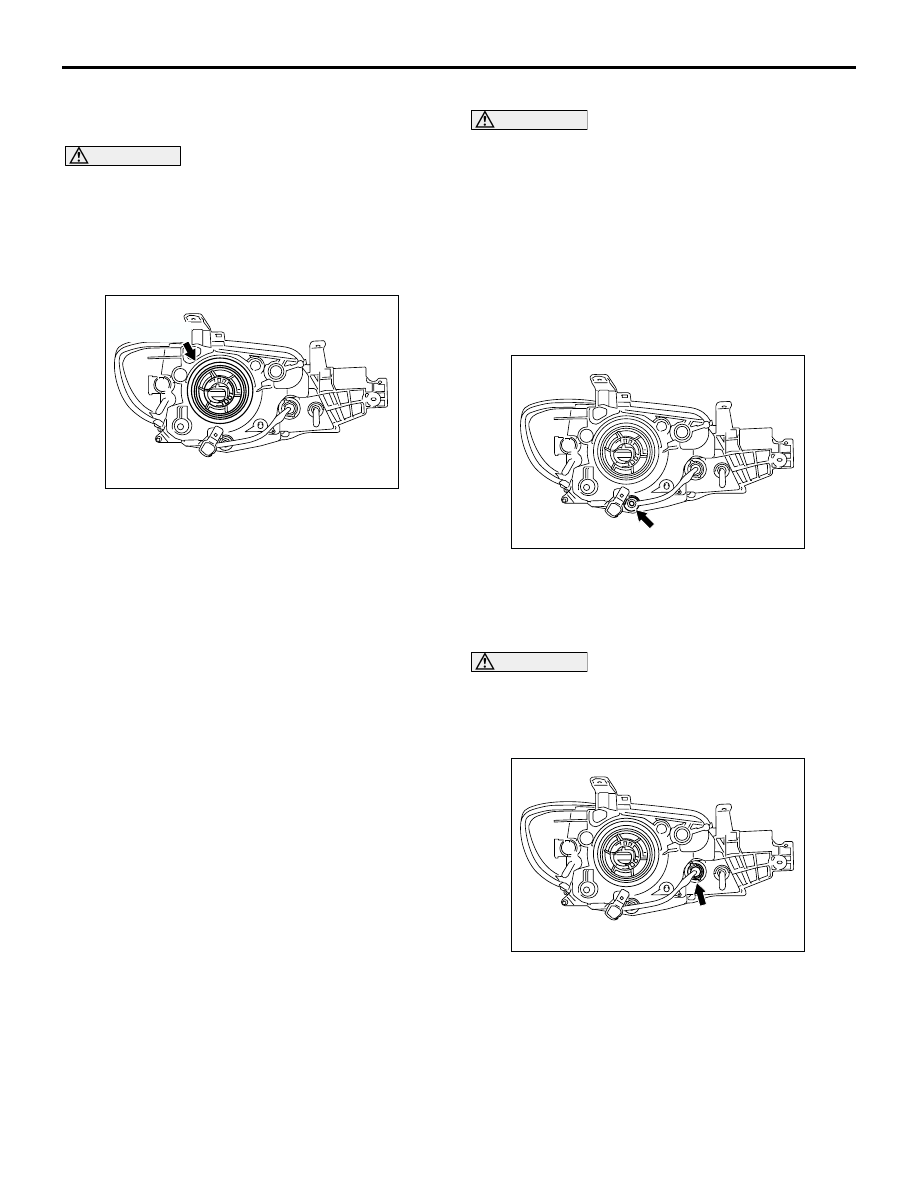

BULB REPLACEMENT

M1542001300733

Headlamp Bulb

CAUTION

Do not touch the surface of the bulb with hands
or dirty gloves as the bulb may pop after a short
time. If the surface does become dirty, clean it
with alcohol or thinner, and let it dry thoroughly
before installing.
1. Disconnect the headlamp connector.

2. Remove the socket cover, and then remove the

bulb.

Position Lamp Bulb

CAUTION

As a principal, the position lamps can be
removed as individual part. If not, remove the
position lamp from the headlamp and position
lamp assembly, and then remove the position
lamp from the headlamp. Then replace the
bulb.

Do not touch the bulb surface bare-handed or
with dirty gloves. If dirt is attached on surface
of the bulb, immediately use alcohol or
thinner to remove dirt, and install the bulb
after well dried.

1. Screw out the position lamp socket.
2. Disconnect the connector.

Front Turn-Signal Lamp bulb

CAUTION

Do not touch the bulb surface bare-handed or
with dirty gloves. If dirt is attached on surface of
the bulb, immediately use alcohol or thinner to
remove dirt, and install the bulb after well dried.

Disconnect the connector, and screw out the front
turn-signal lamp socket.

AC300097

Socket cover

AB

AC300089

AB

Position lamp socket

AC300098

AB

Front turn-signal

lamp socket

HEADLAMP

CHASSIS ELECTRICAL

54A-77

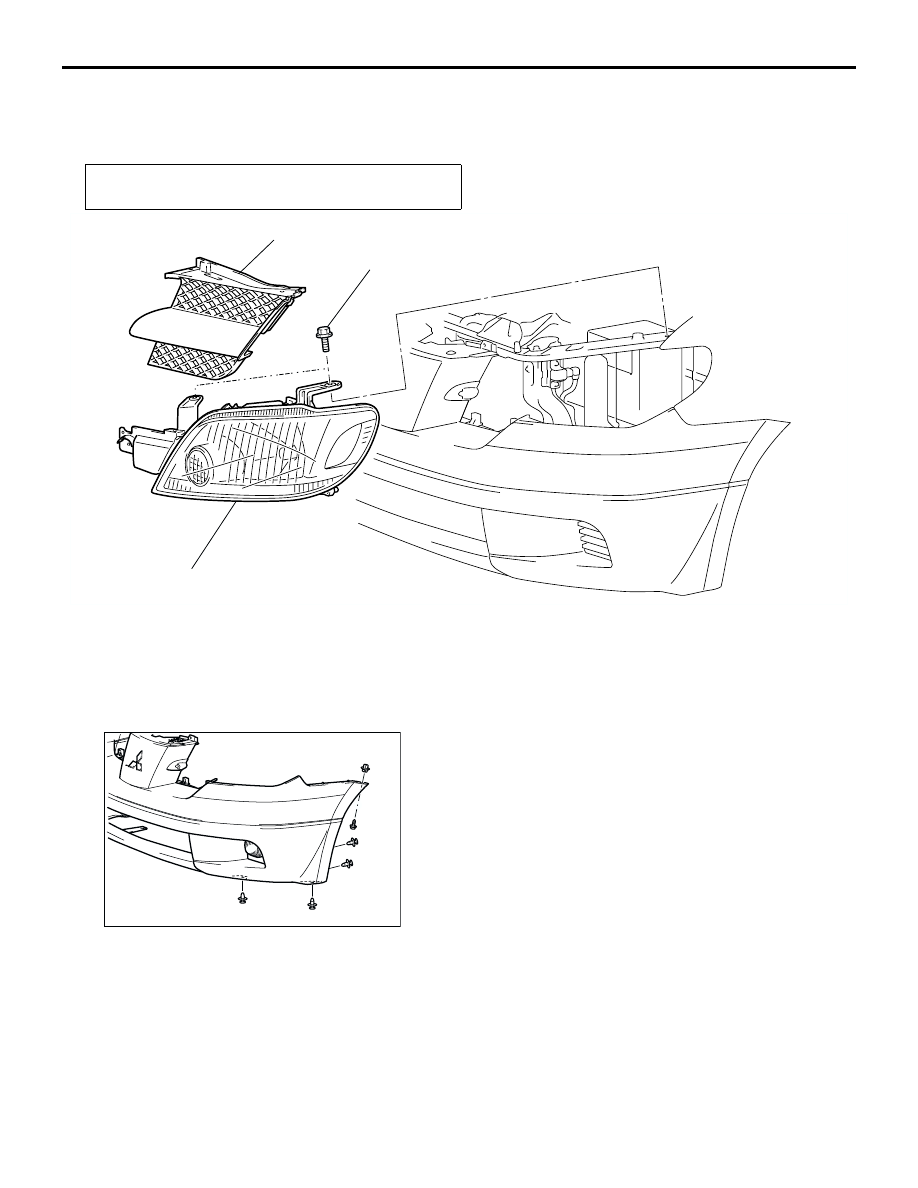

HEADLAMP

REMOVAL AND INSTALLATION

M1542001800255

REMOVAL SERVICE POINT

<<A>> HEADLAMP ASSEMBLY REMOVAL

1. Remove half of the front bumper assembling clips

and bolts.
NOTE: The Figure illustrates the procedures to
remove the headlamp assembly (LH).

2. Slide the front bumper down to remove the

headlamp assembly.

Post-installation Operation
Headlamp Aiming Adjustment (Refer to

P.54A-74

.)

AC300070 AB

4.9 ± 0.7 N·m

1

2

Removal steps

1.

Radiator grill

<<A>>

2.

Headlamp assembly

AC201812 AD

HEADLAMP

CHASSIS ELECTRICAL

54A-78

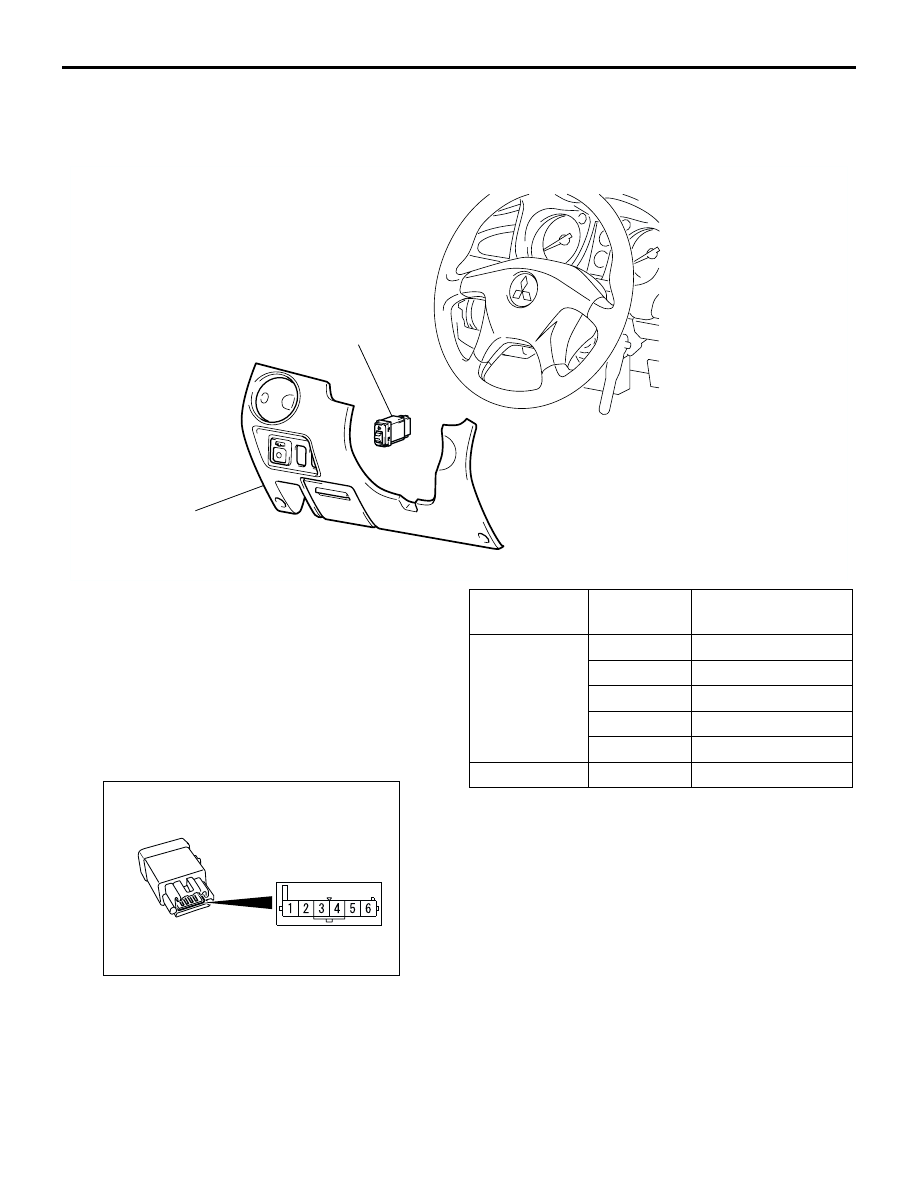

HEADLAMP LEVELING SWITCH

REMOVAL AND INSTALLATION

M1542013700051

INSPECTION

M1542011200997

HEAD LAMP LEVELING SWITCH
RESISTANCE CHECK

AC210845AE

2

1

Removal steps

1. Instrument lower panel (Refer to GROUP

52A, Instrument panel assembly

P.52A-2

<LHD> or

P.52A-8

<RHD>.)

2. Headlamp leveling switch

AC212497AB

Terminal No.

Switch
position

Resistance

4 - 6

0

750 ohms

1

1050 ohms

2

1410 ohms

3

1710 ohms

4

2010 ohms

5 - 6

0, 1, 2, 3, 4

2830 ohms
