Mitsubishi Outlander (2003+). Manual - part 411

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-39

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Speedometer does not work (the other meters work.)  <M/T>

FRONT SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

IGNITION
SWITCH (IG1)

COMBINATION
METER

CONTROL
CIRCUIT

SPEED

VEHICLE SPEED
SENSOR

DIAGNOSIS
CONNECTOR

ENGINE-ECU

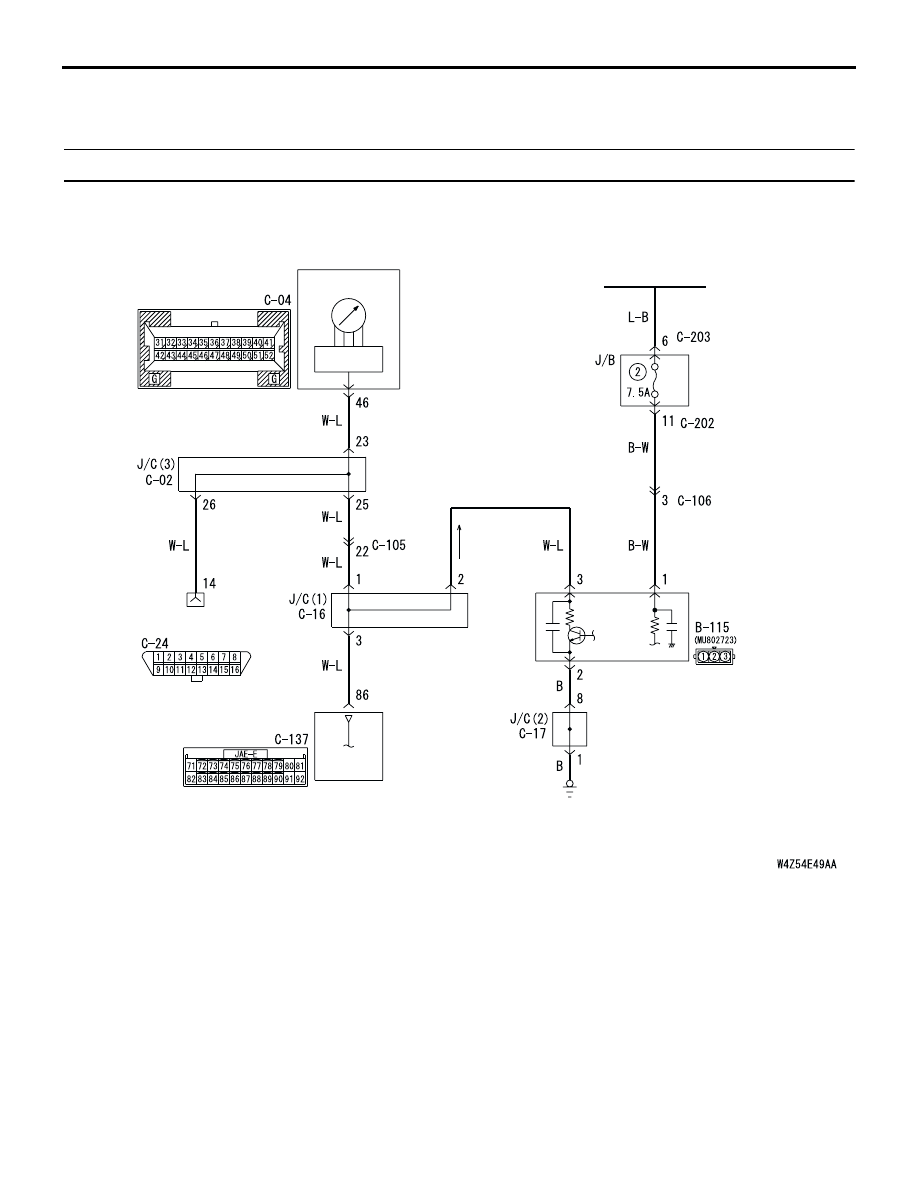

Speedometer Circuit <2000 M/T>

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-40

TECHNICAL DESCRIPTION (COMMENT)
The engine-ECU and its associated components, the
combination meter assembly, the wiring harness, or
the connector(s) may be defective.

TROUBLESHOOTING HINTS

•

Malfunction of the vehicle speed sensor

•

Malfunction of the engine-ECU

•

Malfunction of the combination meter assembly

•

The wiring harness or connectors may have
loose, corroded, or damaged terminals, or
terminals pushed back in the connector.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

IGNITION
SWITCH (IG1)

COMBINATION
METER

CONTROL
CIRCUIT

VEHICLE SPEED
SENSOR

DIAGNOSIS
CONNECTOR

FRONT SIDE

ENGINE-ECU

SPEED

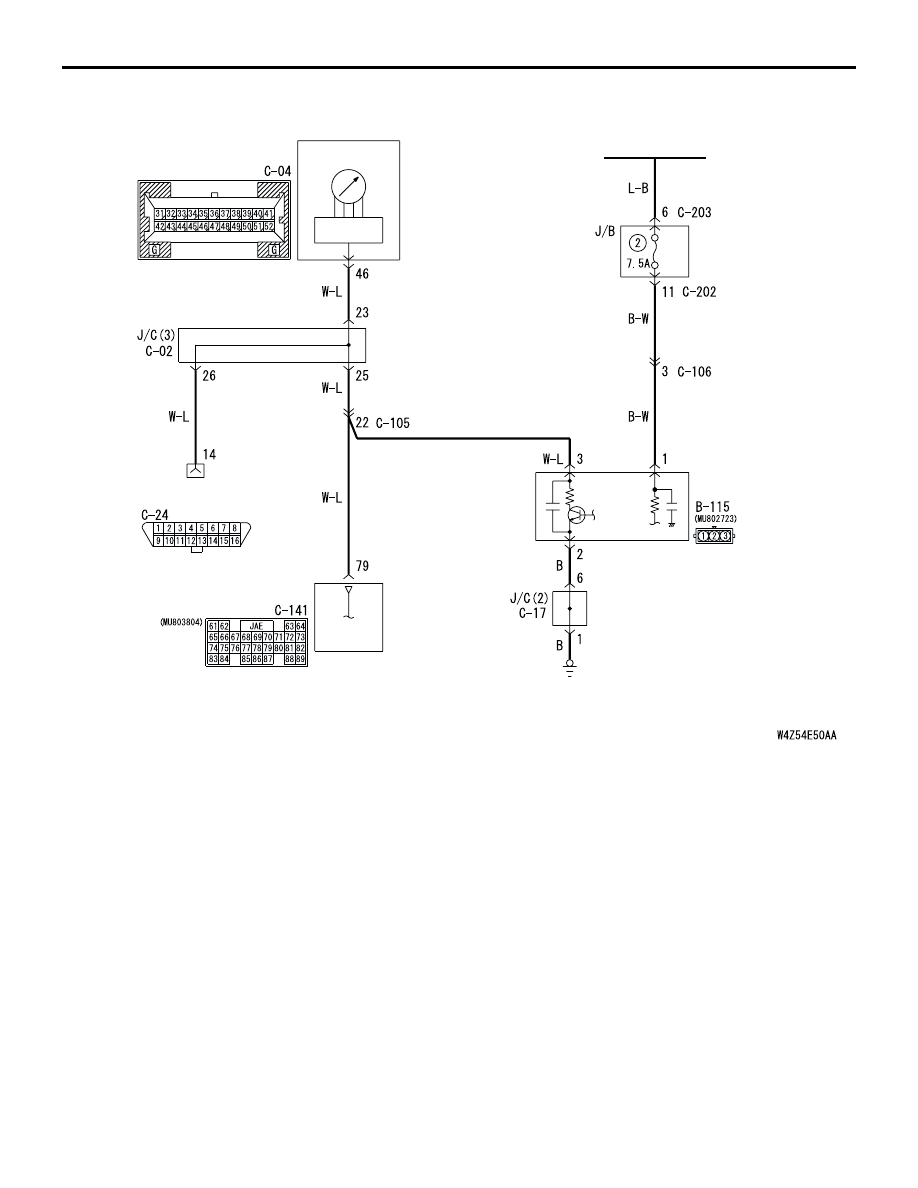

Speedometer Circuit <2400 M/T>

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-41

DIAGNOSIS PROCEDURE

STEP 1. Check the speedometer.

(1) Connect the MUT-II/III to the diagnosis connector.
(2) Use the MUT-II/III to enter simulated vehicle

speed.

Q: Does the speedometer show that simulated vehicle

speed?

YES :

Go to Step 5

NO :

Go to Step 2

STEP 2. Connector check: Combination meter
connector C-04 and diagnosis connector C-24

Q:  Is combination meter connector C-04 and

diagnosis connector C-24 in good condition?

YES :

Go to Step 3

NO :

Repair or replace the damage
component(s).

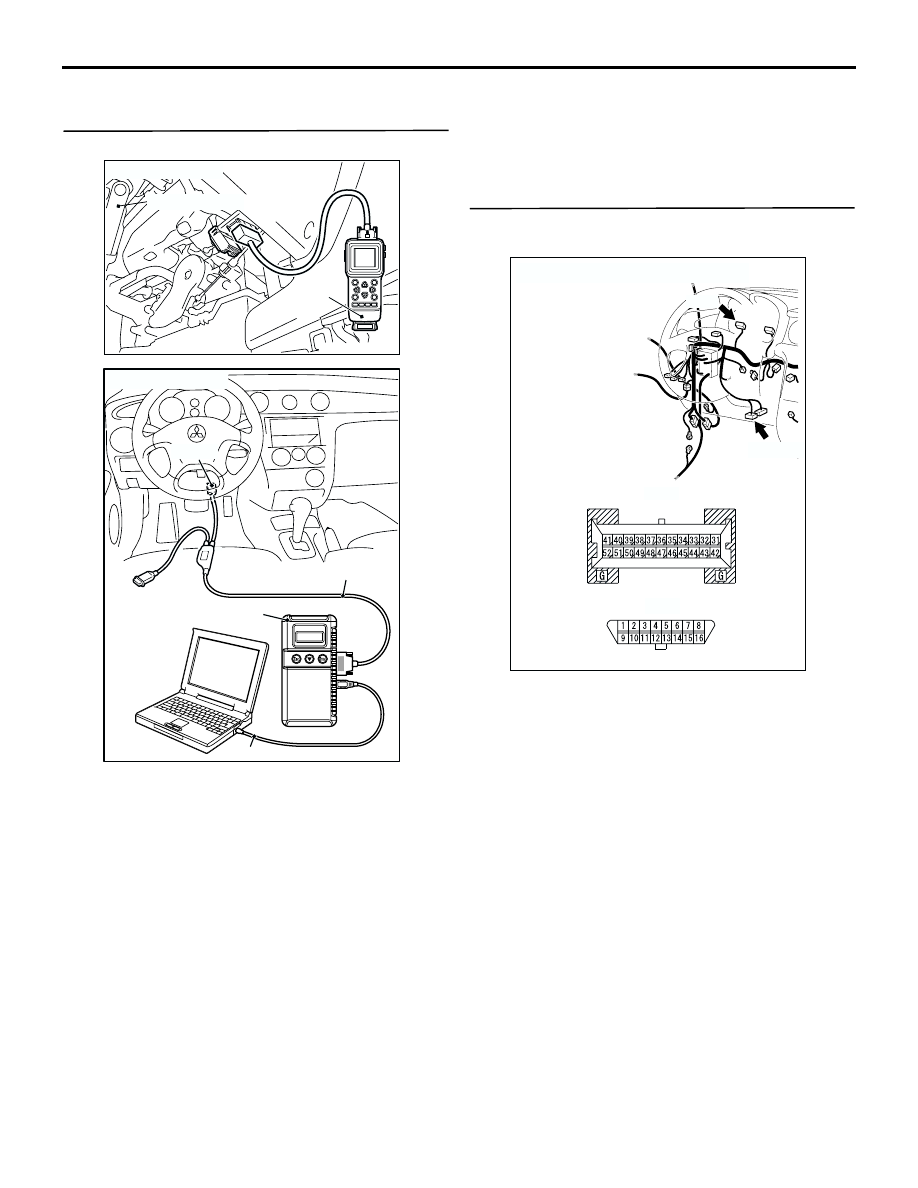

AC300830

Steering shaft

MUT-II

AC

<Using the MUT-II>

AC308915 AC

MB991911

16-PIN

MB991827

MB991824

<Using the MUT-III>

AC308717

Connectors: C-04, C-24

C-24(B)

C-04

C-04 harness side

C-24

AN

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-42

STEP 3. Check the wiring harness between
combination meter connector C-04 (terminal 46)
and diagnosis connector C-24 (terminal 14).

NOTE: Prior to the wiring harness inspection, joint
connector C-02, and repair if necessary.

Q: Is the wiring harness between combination meter

connector C-04 (terminal 46) and diagnosis
connector C-24 (terminal 14) in good condition?

YES :

Go to Step 4

NO :

Repair or replace the damage
component(s).

STEP 4. Retest the system.

Q: Is the speedometer normal?

YES :

The procedure is complete. (If no

malfunctions are found in all steps, an
intermittent malfunction is suspected. Refer
to GROUP 00, How to Use
Troubleshooting/Inspection Service
Points-How to Cope with Intermittent
Malfunction

P.00-6

).

NO :

Replace the combination meter assembly.

STEP 5. Check whether the diagnosis code is
reset.

Q: Is the MPI-related diagnosis code set?

YES :

Refer to GROUP 13A

−

 Troubleshooting

P.13A-16

or GROUP 13B

−

 Troubleshooting

P.13B-20

.

NO :

Go to Step 6

STEP6. Connector check: Joint connector C-02
and engine-ECU <2000> connector C-137 or
engine-ECU <2400> connector C-141

Q:  Is joint connector C-02 and engine-ECU <2000>

connector C-137 or engine-ECU <2400> connector
C-141 in good condition?

YES :

Go to Step 7

NO :

Repair or replace the damage
component(s).

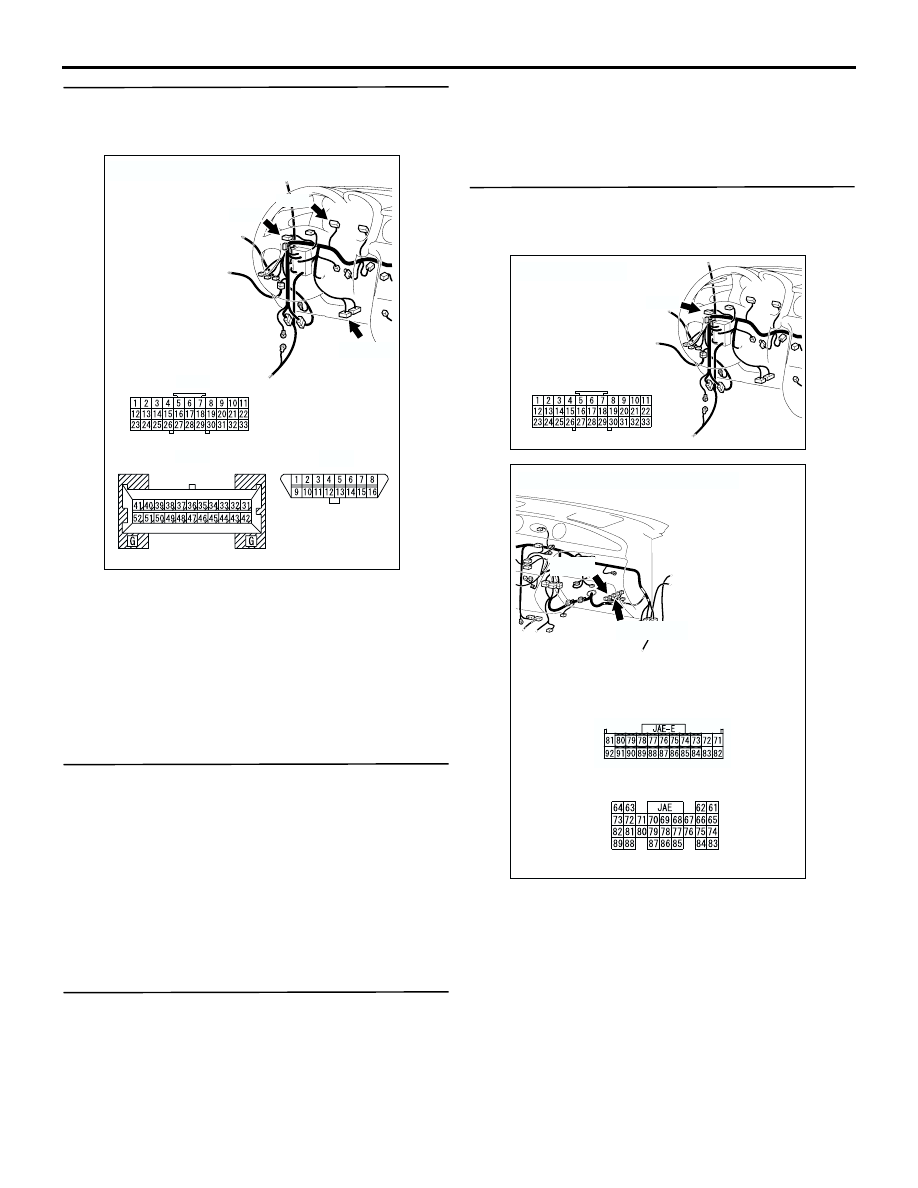

AC308717

Connectors: C-02, C-04, C-24

C-24(B)

C-04

C-04 harness side

C-24

AO

C-02

C-02

AC308716

Connector: C-02

AP

C-02

AC308719

AG

C-141(GR)

Connectors: C-137 <2000>, C-141 <2400>

Harness side

C-137

C-141

C-137
