SRS MAINTENANCE
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-167

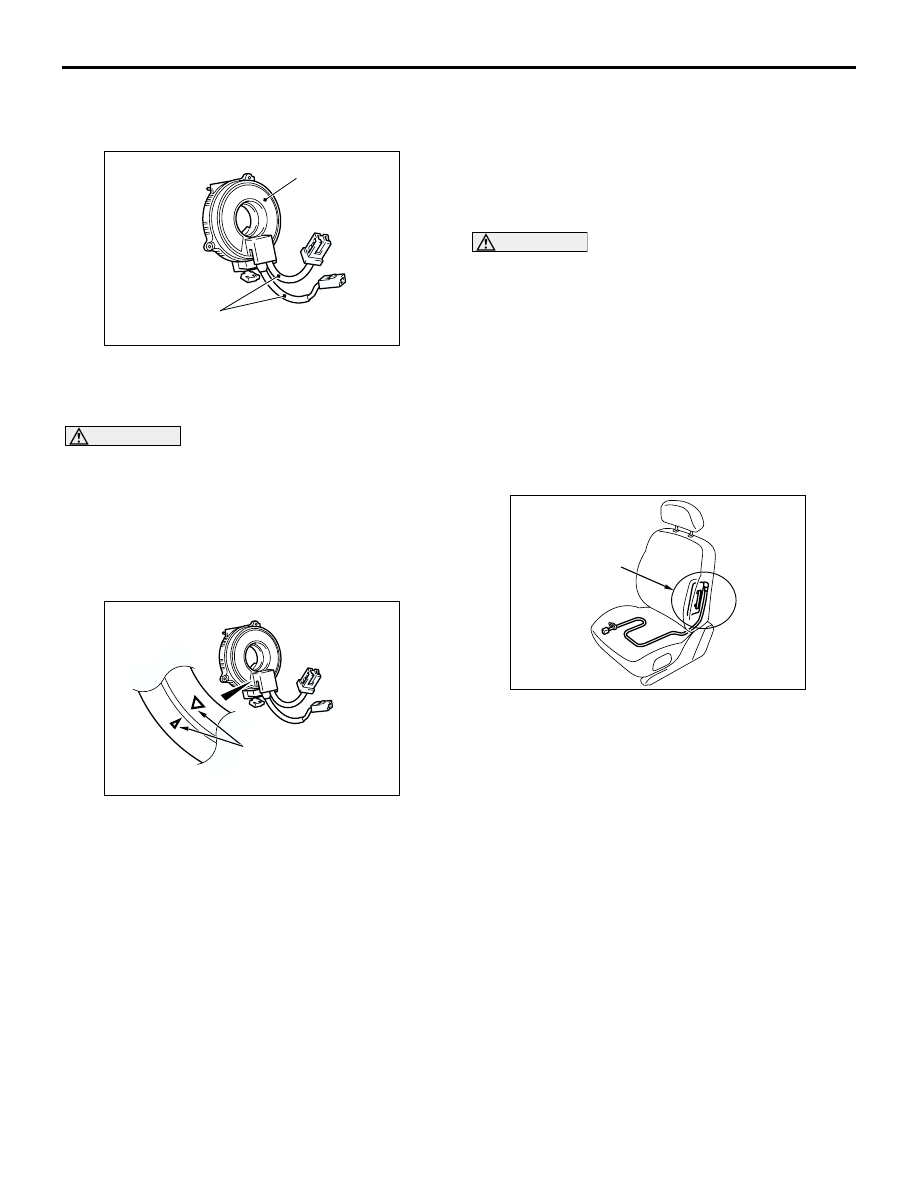

5. Check the harness (built into the steering wheel)
and connectors for damage, and check the
terminals for deformation.
6. Check the clock spring connectors and protective
tube for damage, and terminals for deformities.
7. Visually check the case for damage.
WARNING
If the clock spring's mating mark is not
properly aligned, the steering wheel may not
be completely rotational during a turn, or the
flat cable within the clock spring may be
severed, obstructing normal operation of the
SRS and possibly leading to serious injury to
the vehicle's driver or front passenger.
8. Align the mating marks of the clock spring and,
after turning the vehicle's front wheels to
straight-ahead position, install the clock spring to
the column switch.
Mating Marks Alignment;
Turn the clock spring clockwise fully. Then turn it
back approximately 3 3/4 turns counterclockwise
to align the mating marks.
9. Install the steering column covers, steering wheel
and air bag module (Refer to
).
10.Check the steering wheel for noise, binding or
difficult operation.
DANGER
The SRS may not activate if any of the above
components is not installed properly, which
could result in serious injury or death to the
vehicle's driver or front passenger.
11.Check the steering wheel for excessive free play.
12.REPLACE ANY VISUALLY INSPECTED PART IF
IT FAILS THAT INSPECTION (Refer to
FRONT SEATBACK ASSEMBLY WITH
SIDE AIR BAG MODULE
1. Check the side air bag module deployment
section in the seat for dents and deformation.
2. Check the harness for binds, the connector for
damage and the terminals for deformation.
SEAT BELT WITH PRE-TENSIONER
1. Check the seat belt pre-tensioner for dents or
deformation.
2. Check that the seat belt pre-tensioner is installed
correctly to the vehicle body.
AC304044AC
Case
Protective tubes
AC303009
Mating marks
AC
AC300172 AB
Air bag module
deployment
section
