TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-19

DIAGNOSIS CODE SET CONDITIONS
These diagnosis codes are set if these is abnormal
resistance between the input terminals of the front
impact sensors.

The most likely causes for these codes to be set are
shown in the table below:

PROBABLE CAUSES

•

Malfunction of the front impact sensor

•

Damaged wiring harnesses or connector.

•

Malfunction of the SRS-ECU.

DIAGNOSIS PROCEDURE

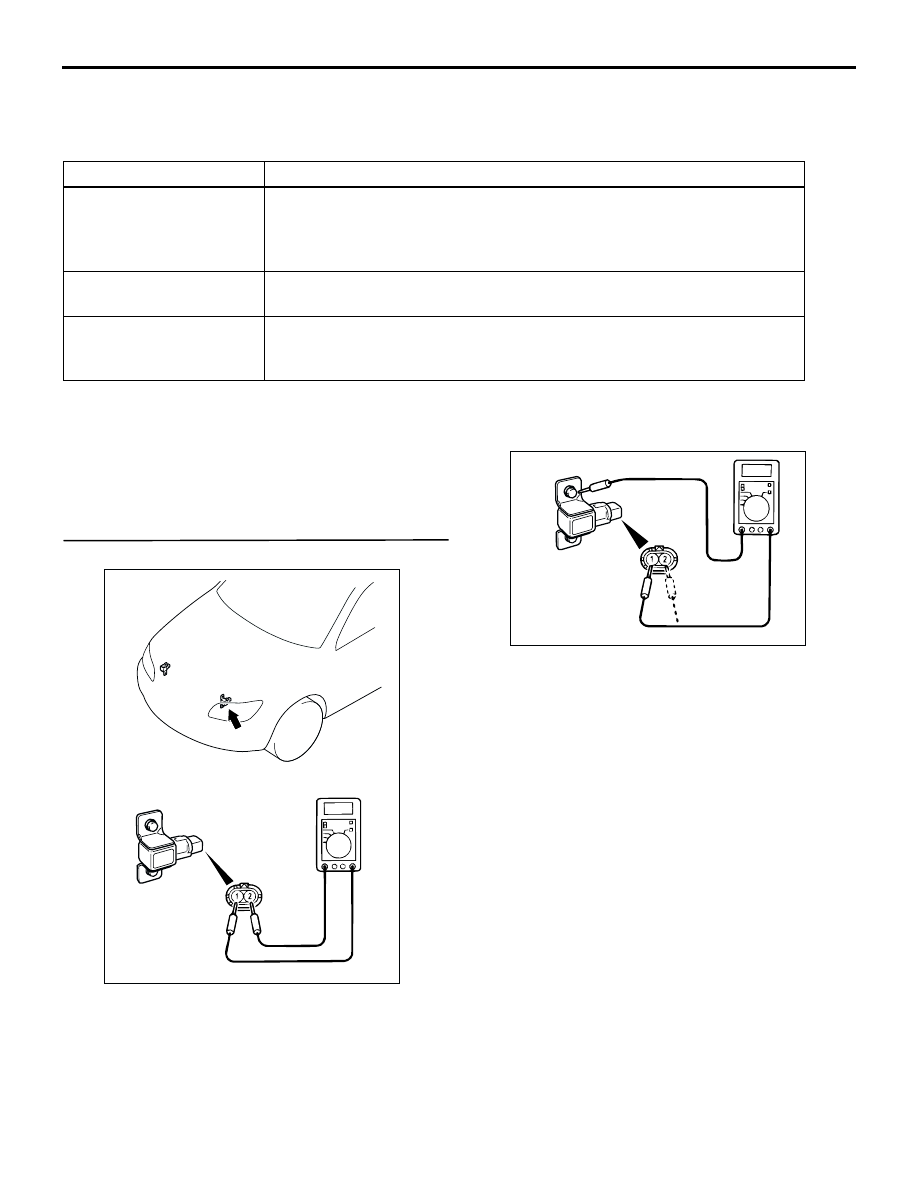

STEP 1. Check the front impact sensor.

(1) Measure the resistance between terminals and

check whether it is within the standard value.

Standard value: 820

±

 82

Ω

(2) Check for continuity between the terminal and

bracket.

OK: No continuity

Q: Does the resistance meet the value above, and is

there no continuity?
YES :

Go to Step 2.

NO :

Replace front impact sensor. Refer to

P.52B-176

.

Code No.

Trouble causes

11

•

Short circuit in front impact sensor or harness

•

Short circuit in front impact sensor harness leading to the vehicle body
eart.

•

Short circuit in front impact sensor harness leading to the power suppl.

12

•

Open circuit in either left or right from impact sensor or harnes.

•

Short circuit in front impact sensor harness leading to the power suppl.

13

•

Open circuit in both left and right front impact sensor or harness

•

Short circuit in front impact sensor harness leading to the power
supply

AC201934

AC200633

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-20

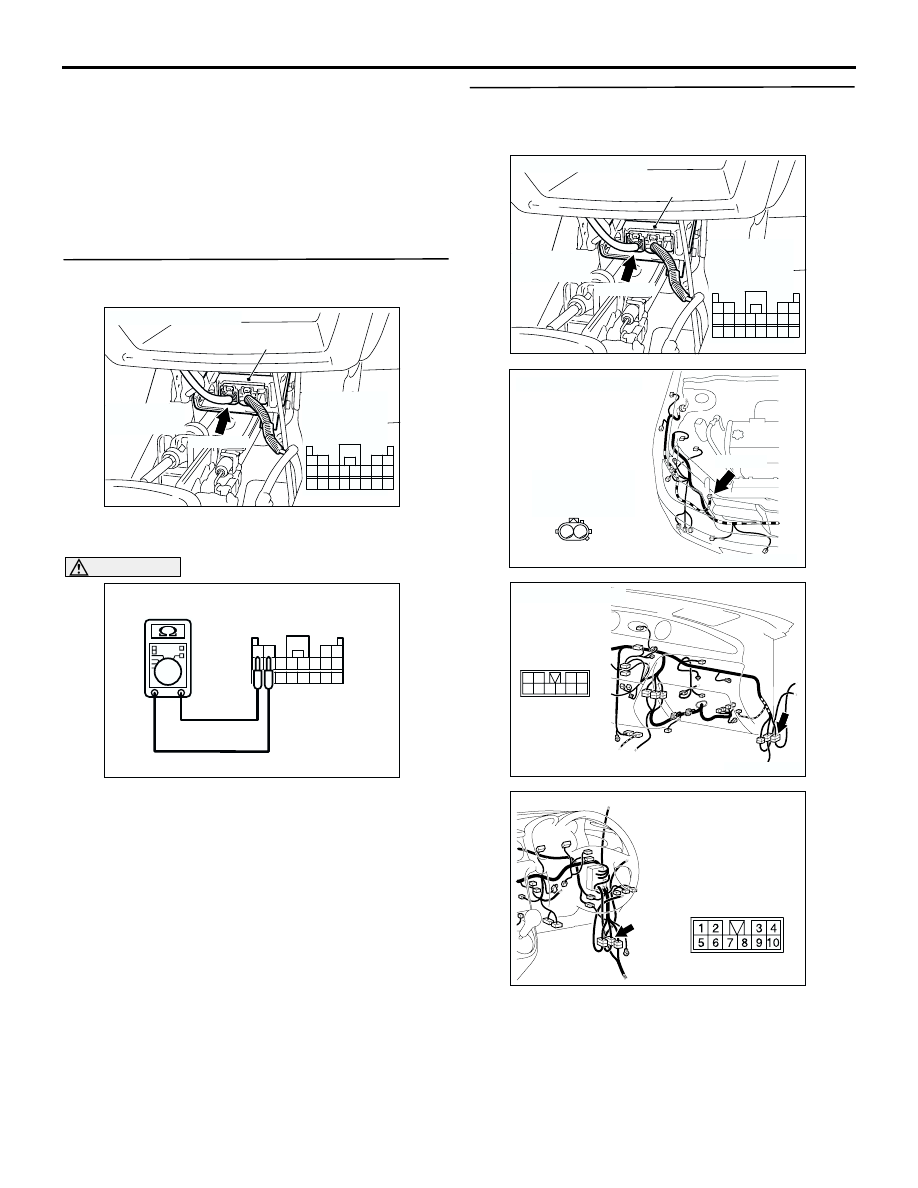

STEP 2. Measure the resistance at SRS-ECU
connector C-115.

(1) Disconnect SRS-ECU connector C-115 and

measure at the harness side (rear side).

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(2) Measure the resistance between terminal 3 and

terminal 4.

OK: 820

±

 82

Ω

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Connector check: SRS-ECU connector
C-115, front impact sensor (LH) connector A-17
and intermediate connector C-116

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

1314151617181920

5 6 7 8 9 101112

1 2

3 4

AC300941AB

C-115 Harness side
connector
(rear view)

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

AC301613

Harness side
connector
(front view)

Connector: A-17

AC

A-17 (Y)

2

1

AC301395

<LHD>

AG

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

Connector: C-116

AC308735

AP

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

Connector: C-116
<RHD>

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-21

Q: Is the check result normal?

YES :

Check the harness wires for open or short

circuit between SRS-ECU connector C-115
(terminal No.3 and 4) and front impact
sensor (LH) connector A-17 (terminal No.1
and 2), and repair if necessary. Then go to
Step 6.

NO :

Repair or replace it. Then go to Step 6.

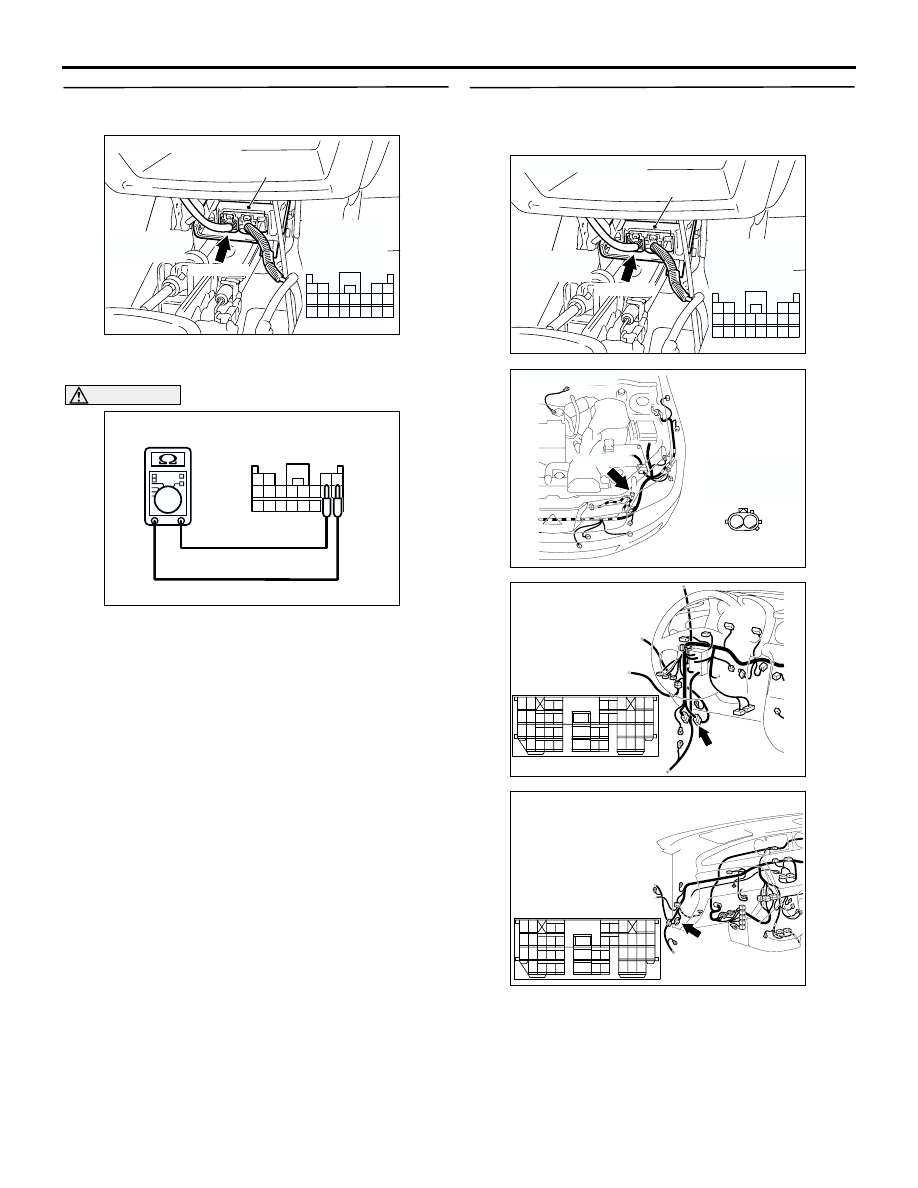

STEP 4. Measure the resistance at SRS-ECU
connector C-115.

(1) Disconnect SRS-ECU connector C-115 and

measure at the harness side (rear side).

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(2) Measure the resistance between terminal 1 and

terminal 2.

OK: 820

±

 82

Ω

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

check the diagnosis code. If diagnosis code
11, 12 or 13 sets, replace the SRS-ECU.
Refer to

P.52B-178

. Then go to Step 6  .

NO :

Go to Step 5.

STEP 5. Connector check: SRS-ECU connector
C-115, front impact sensor (RH) connector A-28
and intermediate connector C-14

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

1314151617181920

5 6 7 8 9 101112

1 2

3 4

AC300942 AB

C-115 Harness side
connector
(rear view)

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

AC210453

Harness side
connector
(front view)

CONNECTOR: A-28

AH

A-28 (Y)

2

1

AC301397

Connector: C-14

AW

9

3

2

1
5 6 7 8

4

10

<LHD>

AC308769

Connector: C-14 <RHD>

AQ

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-22

Q: Is the check result normal?

YES :

Check the harness wires for open or short

circuit between SRS-ECU connector C-115
(terminal No.1 and 2) and front impact
sensor (RH) connector A-28 (terminal No.2
and 1), and repair if necessary. Then go to
Step 6.

NO :

Repair or replace it. Then go to Step 6.

STEP 6. Check whether the diagnosis code is
reset.

Q: Is any of diagnosis code 11, 12 or 13 set?

YES :

Return to Step 1.

NO :

The procedure is complete (If no
malfunctions are found in all steps, an
intermittent malfunction is suspected. Refer
to GROUP 00

−

 How to Use

Troubleshooting/Inspection Service Points

P.00-6

).

Code No.14: Analog G-sensor malfunction
Code No.15: Safing G-sensor (for frontal collision) short-circuited
Code No.16: Safing G-sensor (for frontal collision) open-circuited
Code No.17: Safing G-sensor (for side collision) malfunction
Code No.31: SRS-ECU capacitor circuit voltage too high
Code No.32: SRS-ECU capacitor circuit voltage too low
Code No.45: SRS-ECU non-volatile memory (EEPROM) and A/D converter system
Code No.51: Driver's air bag squib activating circuit short-circuited
Code No.52: Driver's air bag squib activating circuit open-circuited
Code No.54: Passenger's (front) air bag squib activating circuit short-circuited
Code No.55: Passenger's (front) air bag squib activating circuit open-circuited
Code No.56: Driver’s seat belt pre-tensioner (squib ignition drive circuit) system detected short
Code No.57: Driver’s seat belt pre-tensioner (squib ignition drive circuit) system detected open
Code No.58: Passenger’s seat belt pre-tensioner (squib ignition drive circuit) system detected short
Code No.59: Passenger’s seat belt pre-tensioner (squib ignition drive circuit) system detected open
Code No.73: Side air bag squib (RH) drive circuit shorted
Code No.74: Side air bag squib (RH) drive circuit open
Code No.83: Side air bag squib (LH) drive circuit shorted
Code No.84: Side air bag squib (LH) drive circuit open
