TROUBLESHOOTING
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-11
CHECK CHART FOR DIAGNOSIS CODES
M1524003300573
Inspect according to the inspection chart that is appropriate for the diagnosis code.
Code No.
Diagnosis item
Reference Page
1A*
3

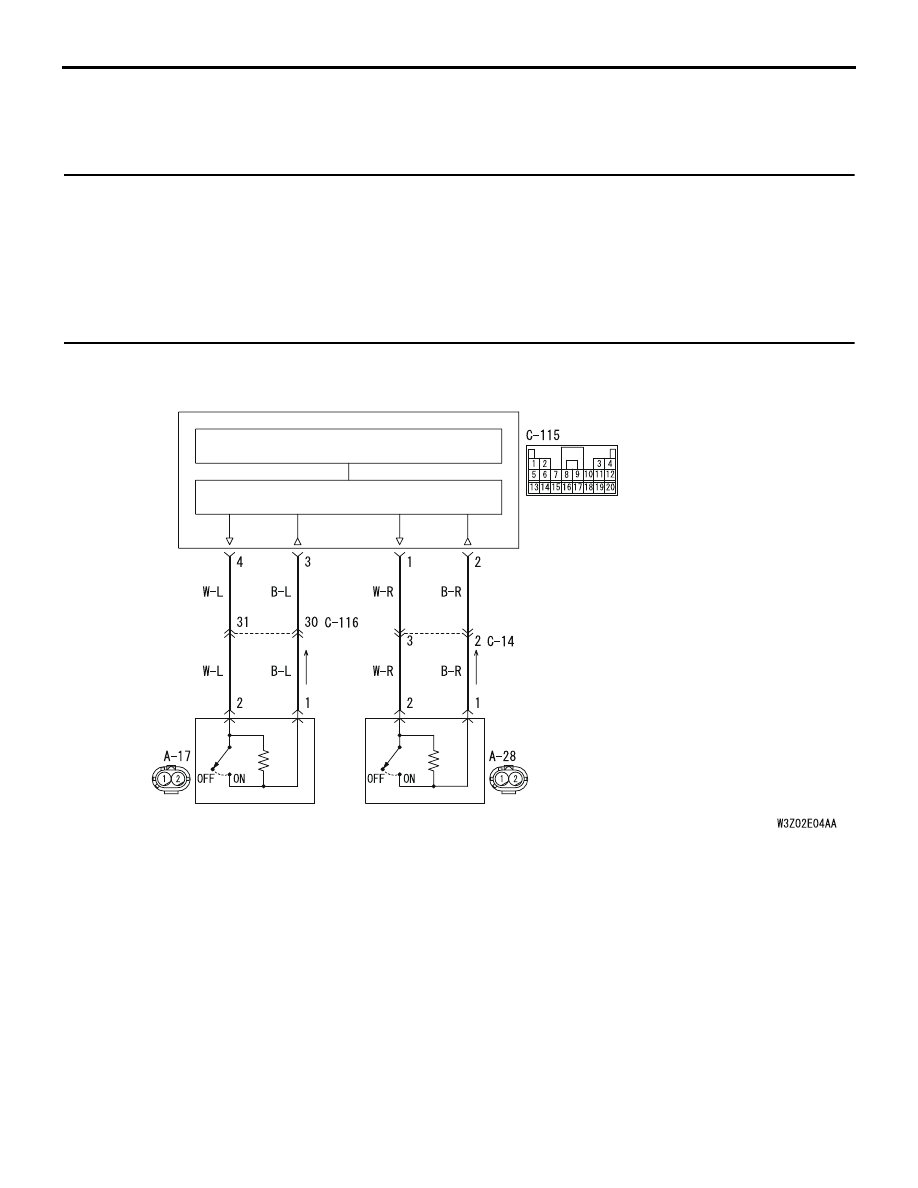

Front impact sensor LH
system
Short circuit in the sensor
1B*
3
Open circuit in the sensor
1C*
3
Short circuit to the power
supply
1D*
3
Short circuit to the earth
2A*
3
Front impact sensor RH
system
Short circuit in the sensor
2B*
3
Open circuit in the sensor
2C*
3
Short circuit to the power
supply
2D*
3
Short circuit to the earth
11*
4
Front impact sensor short-circuited
12*
4
One front impact sensor open-circuited
13*
4
Two front impact sensor open-circuited
14
Analog G-sensor malfunction
15
Safing G-sensor (for frontal collision) short-circuited
16
Safing G-sensor (for frontal collision) open-circuited
17
Safing G-sensor (for side collision) malfunction
21*
2
Driver's air bag module (squib) system (short-circuited
between terminals of the squib circuit)
22*
2
Driver's air bag module (squib) system (open-circuited in the
squib circuit)
24*
2
Passenger's (front) air bag module (squib) system
(short-circuited between terminals of the squib circuit)
25*
2
Passenger's (front) air bag module (squib) system
(open-circuited in the squib circuit)
26*
2
Driver's pre-tensioner (squib) system (short-circuited
between terminals of the squib circuit)
<LHD>
<RHD>
27*
2
Driver's seat belt pre-tensioner (squib) system
(open-circuited in the squib circuit)
<LHD>
<RHD>
28*
2
Passenger's (front) seat belt pre-tensioner (squib) system
(short-circuit between terminals of the squib circuit)
<LHD>
<RHD>
29*
2
Passenger's (front) seat belt pre-tensioner (squib) system
(open-circuited in the squib circuit)
<LHD>
<RHD>
31
SRS-ECU capacitor circuit voltage too high
32
SRS-ECU capacitor circuit voltage too low
34*
1
SRS-ECU connector lock out of order
35
Ignition of the air bag completed
41*
1
Power supply voltage (IG1 (A) voltage) drops abnormally.
