SERVICE PRECAUTIONS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

CAUTION

The SRS components and seat belt with
pre-tensioner should not be subjected to heat, so
remove the SRS-ECU, driver’s and front
passenger’s air bag modules, clock spring, side
air bag modules, and seat belt pre-tensioner
before drying or baking the vehicle after painting.

SRS-ECU, air bag modules, clock spring,
impact sensors: 93

°

C or more

Seat belt with pre-tensioner: 90

°

C or more

CAUTION

Whenever you finish servicing the SRS, always
erase the diagnosis code and check warning
lamp operation to make sure that the system
functions properly.

CAUTION

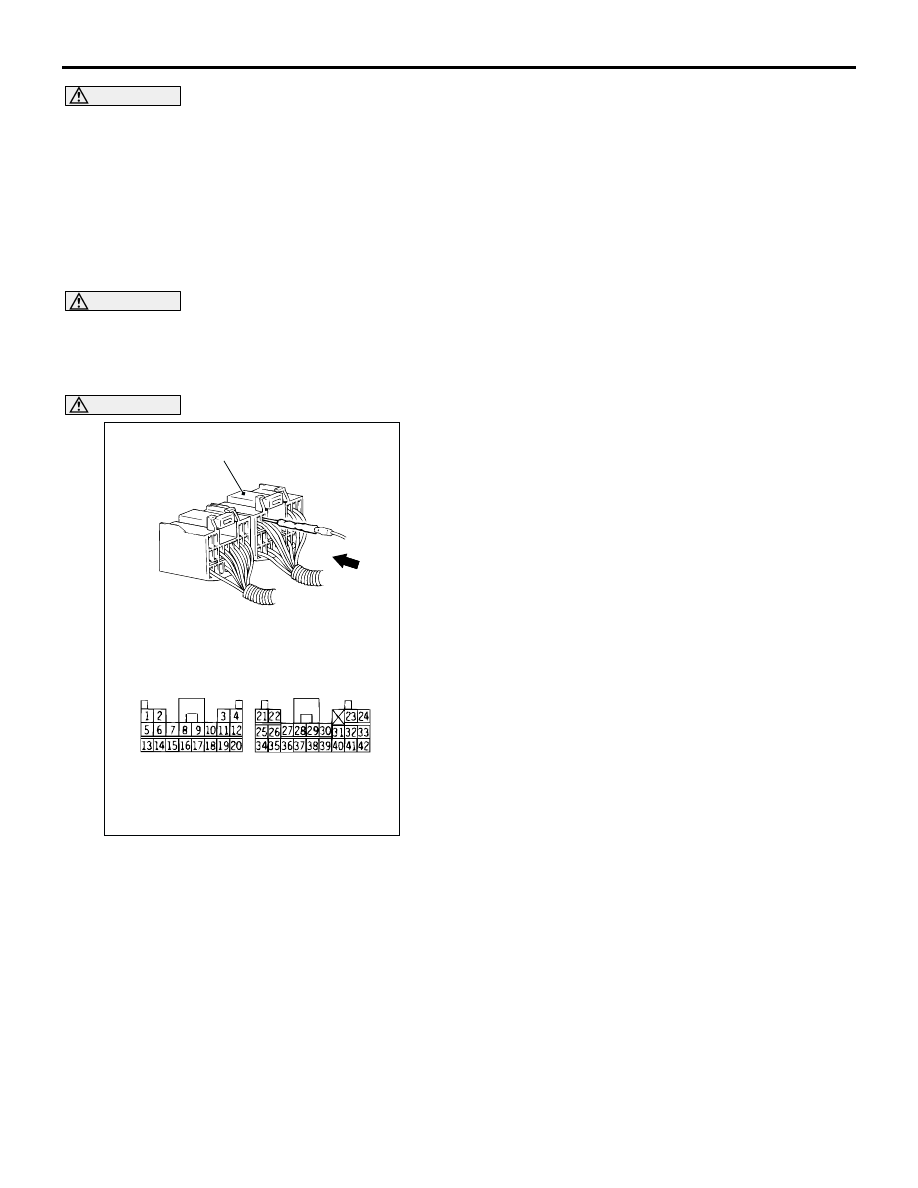

If checks are carried out by using the SRS-ECU
harness connector, observe the following
procedures: Insert the special tool (probe in the
harness set) MB991222 into connector from
harness side (rear side), and connect the tester
to this probe. If any tool than special tool is used,
damage to the harness and other components
will result. Never insert the probe directly to the
terminals from the front of the connector. The
terminals are plated to increase their
conductivity, so that if they are touched directly
by the probe, the plating may break, which will
cause drops in reliability.

AC300673AB

SRS-Harness connector

SRS-ECU harness connector
(rear side)

SPECIAL TOOLS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-8

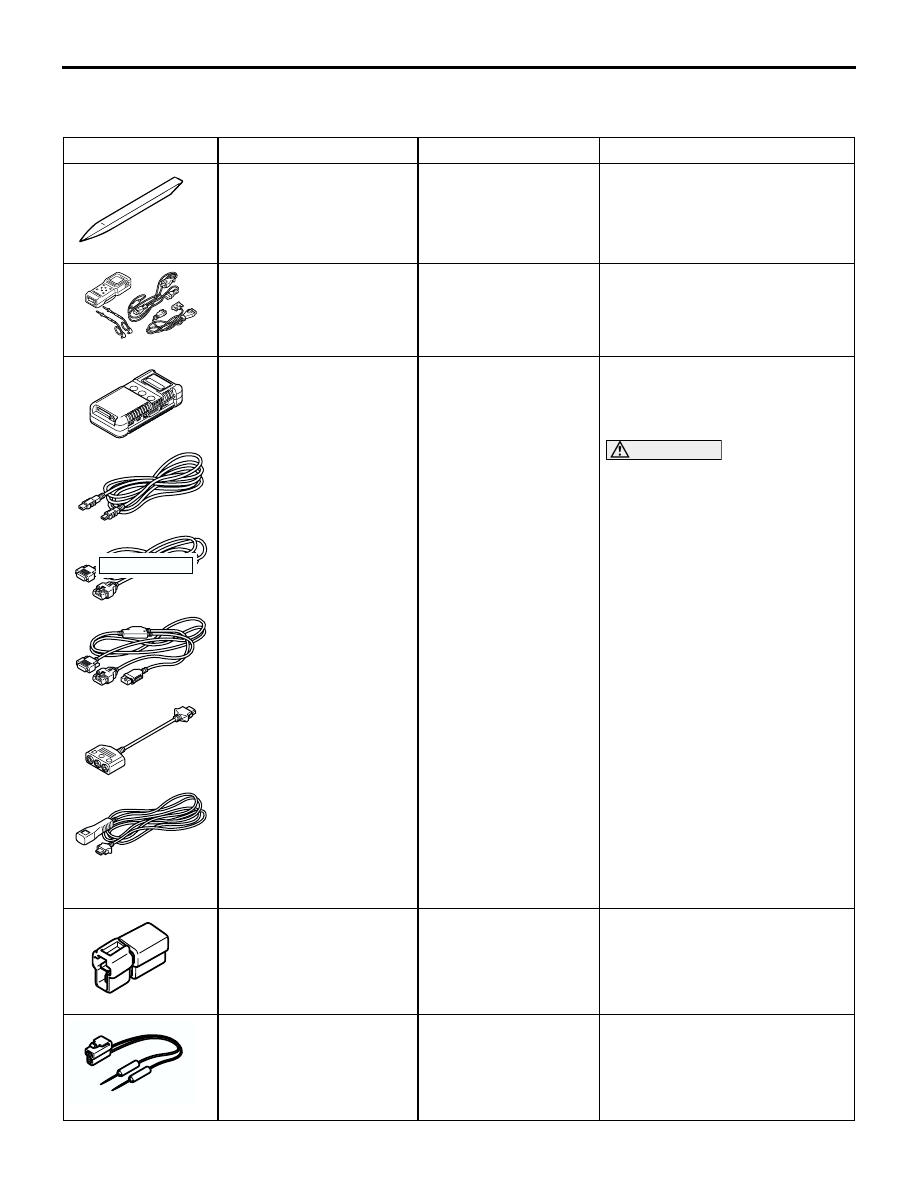

SPECIAL TOOLS

M1524000700505

Tool

No.

Name

Application

MB990784

Ornament remover

Removal of cover.

MB991502

MUT-II sub assembly

Reading and erasing
diagnosis code

Reading trouble period

Reading erase times

MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

MUT-III sub-assembly
A: Vehicle
Communication
Interface (V. C. I.)
B: MUT-III USB cable
C: MUT-III main
harness A (Vehicles
with CAN
communication system)
D: MUT-III main
harness B (Vehicles
without CAN
communication system)
E: MUT-III
measurement adapter
F: MUT-III trigger
harness

Reading and erasing
diagnosis code

Reading trouble period

Reading erase times

CAUTION

MUT-III main harness B
(MB991911) should be used.
MUT-III main harness A should
not be used for this vehicle.

MB991865

Dummy resistor

SRS air bag and seat belt with
pre-tensioner circuit check

MB991866

Resistor harness

SRS air bag circuit check

MB990784

B991502

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USED

MB991865

MB991866

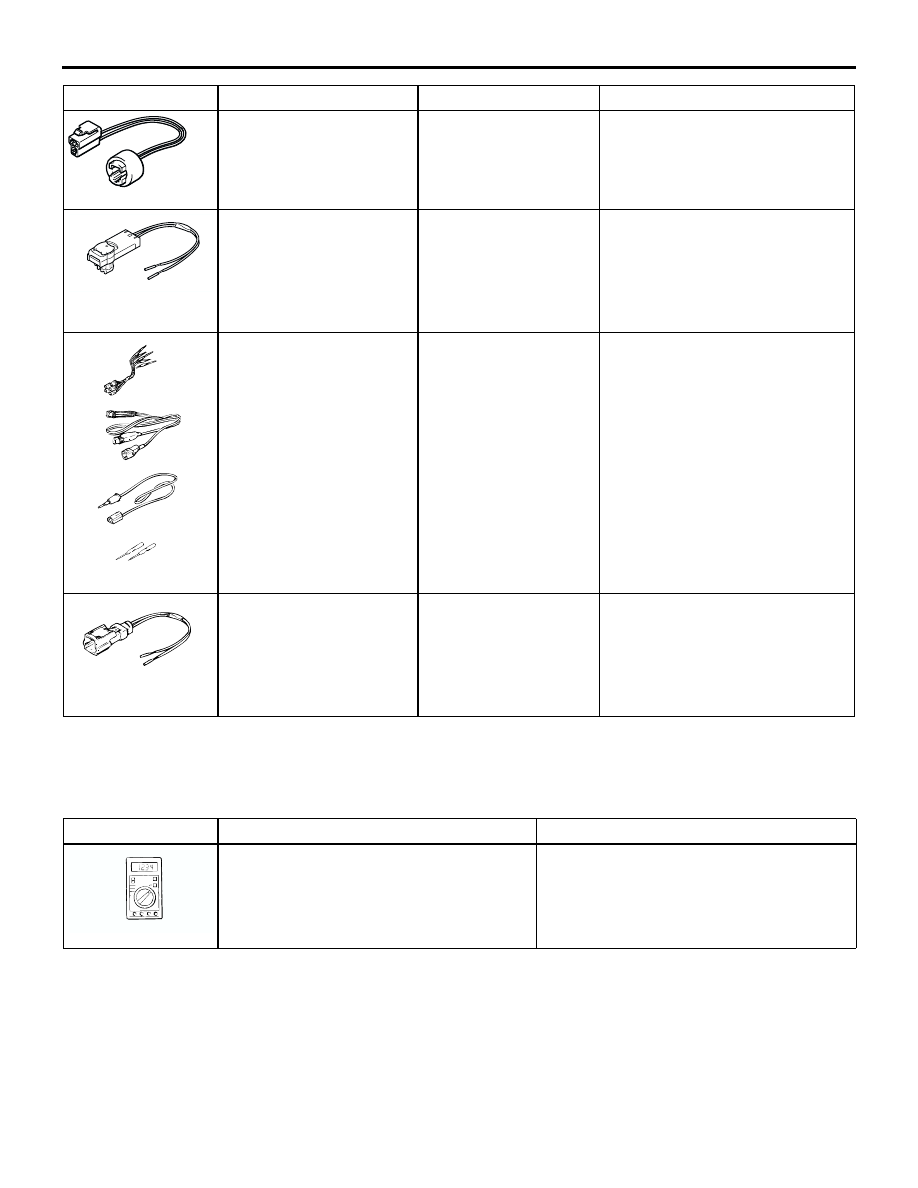

TEST EQUIPMENTS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-9

TEST EQUIPMENTS

M1524000800278

MB991884

Resistor harness (For
Pre-tensioner)

Seat belt with pre-tensioner
circuit check

MB991885

Pre-tensioner adapter
harness

Deployment of seat belt with
pre-tensioner inside the
vehicle

Deployment of seat belt with
pre-tensioner outside the
vehicle

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set
A: Test harness
B: LED harness
C: LED harness
adapter
D: Probe

Checking the continuity and
measuring the voltage at the
SRS-ECU harness connector

MB686560

SRS air bag adapter
harness

Deployment of air bag module
(Front passenger's side) inside
the vehicle

Deployment of air bag module
(Front passenger's side)
outside the vehicle

Tool

No.

Name

Application

MB991884

MB991885

MB991223AW

A

B

C

D

MB686560

Tool

Name

Application

Digital multi-meter

Checking SRS electrical circuitry (Use
multi-meter for which the maximum test
current is 2 mA or less at minimum range
of resistance measurement

AC300683

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-10

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1524003100353

Refer to GROUP 00

 How to Use

Troubleshooting/Inspection Service Points

P.00-6

.

DIAGNOSIS FUNCTION

M1524003200402

DIAGNOSIS CODES CHECK

CAUTION

Turn off the ignition switch before connecting or
disconnecting the MUT-II/III.
Connect the MUT-II/III to the diagnosis connector
(16-pin) under the instrument under cover, then
check diagnosis codes (Refer to GROUP 00

 How

to Use Troubleshooting/Inspection Service Points

P.00-6

).

ERASING DIAGNOSIS CODE

CAUTION

Turn off the ignition switch before connecting or
disconnecting the MUT-II/III.
Connect the MUT-II/III to the diagnosis connector
and erase the diagnosis code.

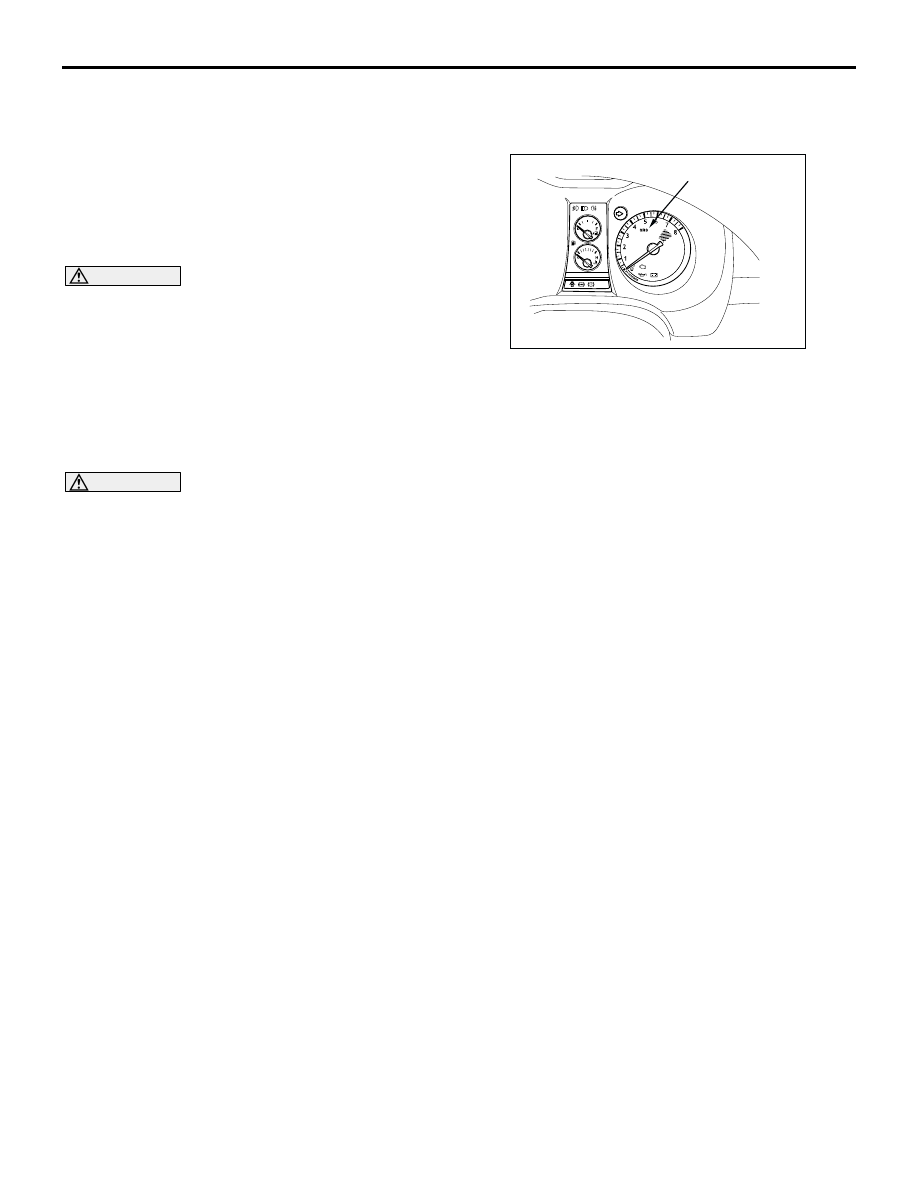

SRS WARNING LAMP CHECK

M1524004300297

1. Check that the SRS warning lamp comes on

when the ignition switch is turned ON.

2. Check that the SRS warning lamp illuminates for

about 7 seconds and then goes out.

3. If this is not the cause, check the diagnosis codes.

AC301667

SRS warning lamp

AB
