UNDER COVER

EXTERIOR

51-19

UNDER COVER

REMOVAL AND INSTALLATION

M1511019600108

AC107344

1

1

2

4

5

3

Splash shield

Splash shield

Front bumper assembly

AB

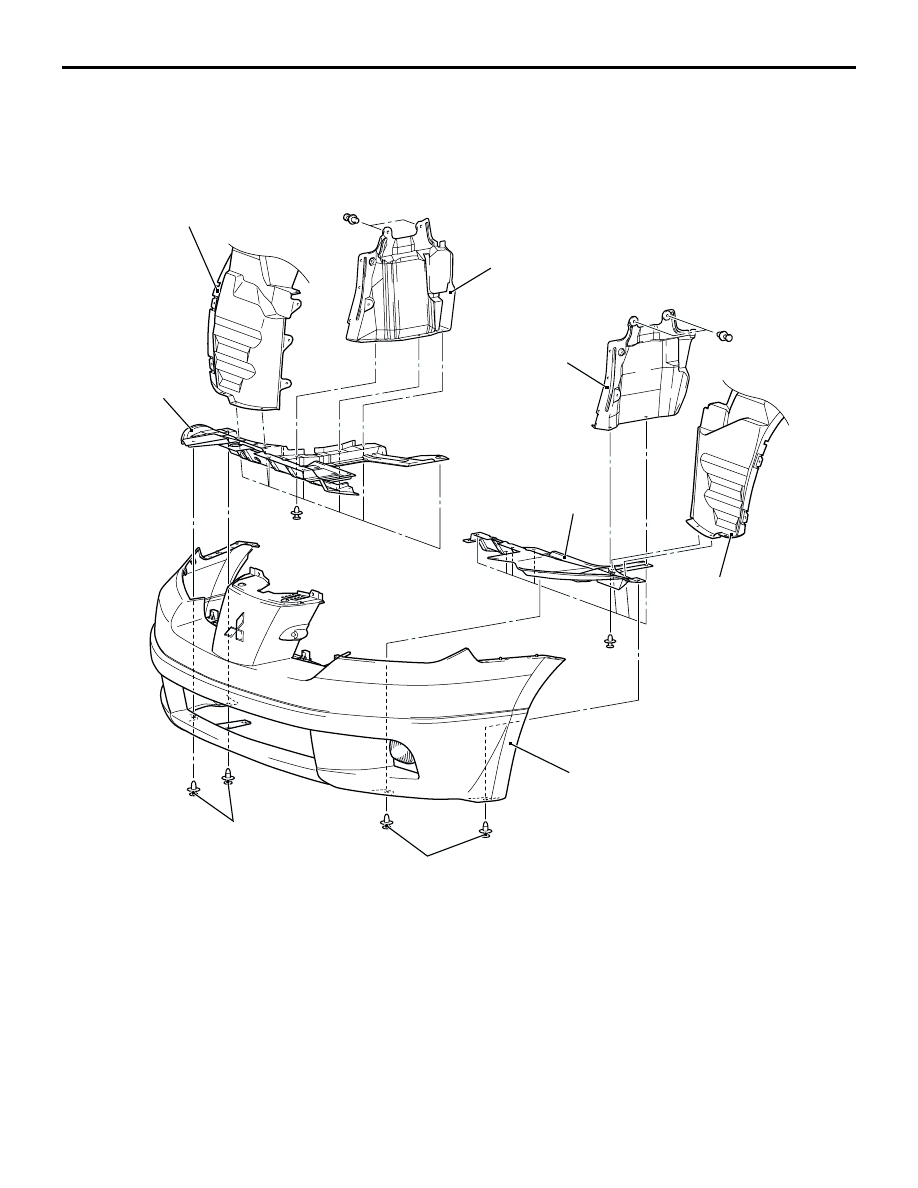

Removal steps
1. Front bumper assembly mounting

clips

2. Front under cover (LH)

3. Front under cover (RH)
4. Side under cover (LH)
5. Side under cover (RH)

Removal steps (Continued)

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-20

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATION

M1511000300392

TROUBLESHOOTING

M1511000700431

The windshield wiper and washer are controlled by
the smart wiring system (SWS). For troubleshooting,
refer to GROUP 54B, Troubleshooting

P.54B-41

 or

GROUP 54C, Troubleshooting

P.54C-25

.

NOTE: Even when the ETACS-ECU has failed, the
windshield wiper can work at low speed in fail-safe
mode. (Normally, the windshield wiper operates
when the ignition switch is at the "ACC" or "ON"
position. But, if it enters the fail-safe mode, the wiper
can operate only when the ignition switch is at the
"ON" position).

Item

Standard value

Stop position of the windshield wiper arm/blade assembly (Distance between
the edge of the wiper blade and the end of the deck garnish) mm

Driver’s side: 35

±

 5

Passenger’s side: 25

±

 5

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-21

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

M1511007900180

AC107419AB

Section B – B

Section C – C

Section D – D

4

5

6

6

6

6

Claw

Clip

Claw

1

2

4

5

7.4 ± 1.4 N·m

8

9

7

A

27 ± 2 N·m

View A

NOTE

: Clip position

: Claw position

B

B

C

C

Windshield

D

D

3

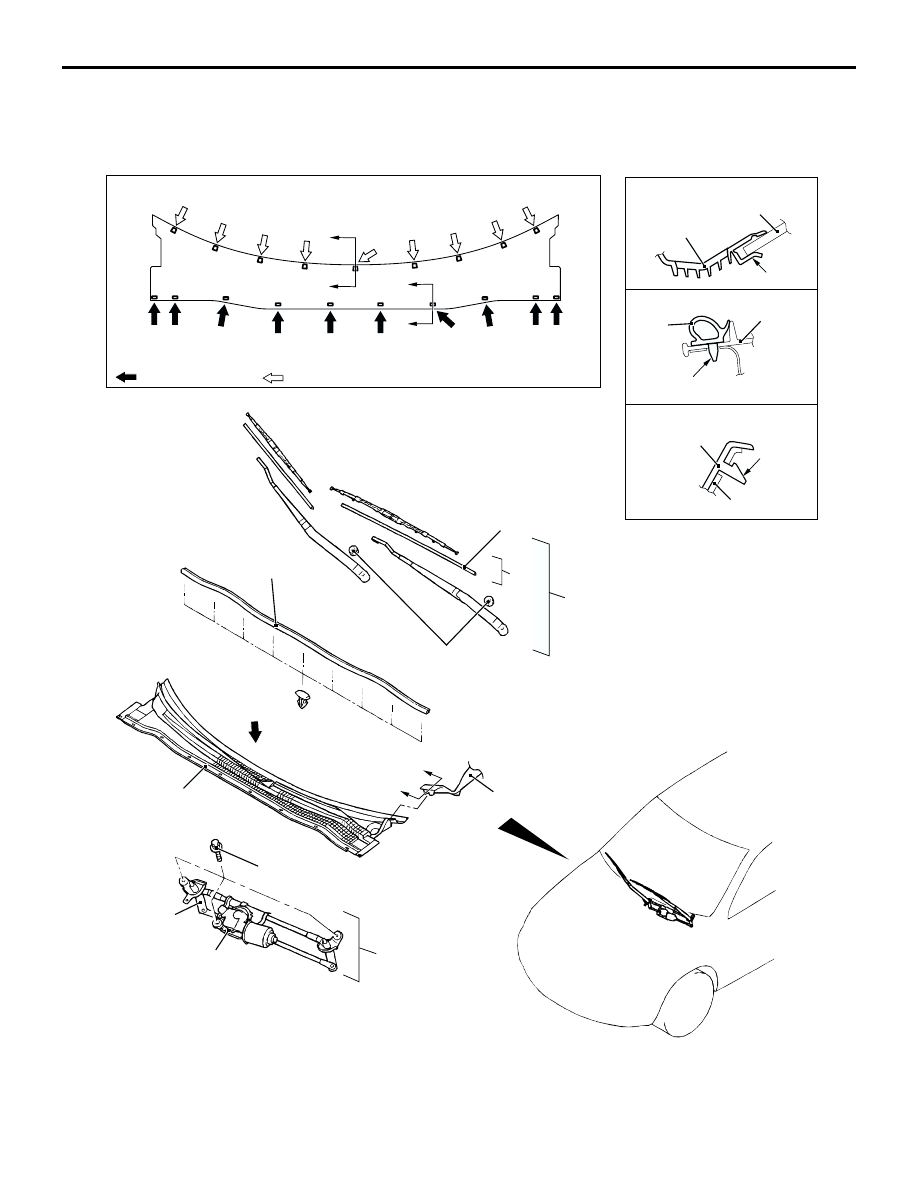

Wiper blade removal steps
1. Wiper blade assembly

>>B<<

2. Wiper blade

Windshield wiper motor and link
assembly removal steps

>>A<<

3. Wiper arm and blade assembly
4. Hood weather strip
5. Roof drip moulding and front deck

garnish connection

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-22

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-94

.

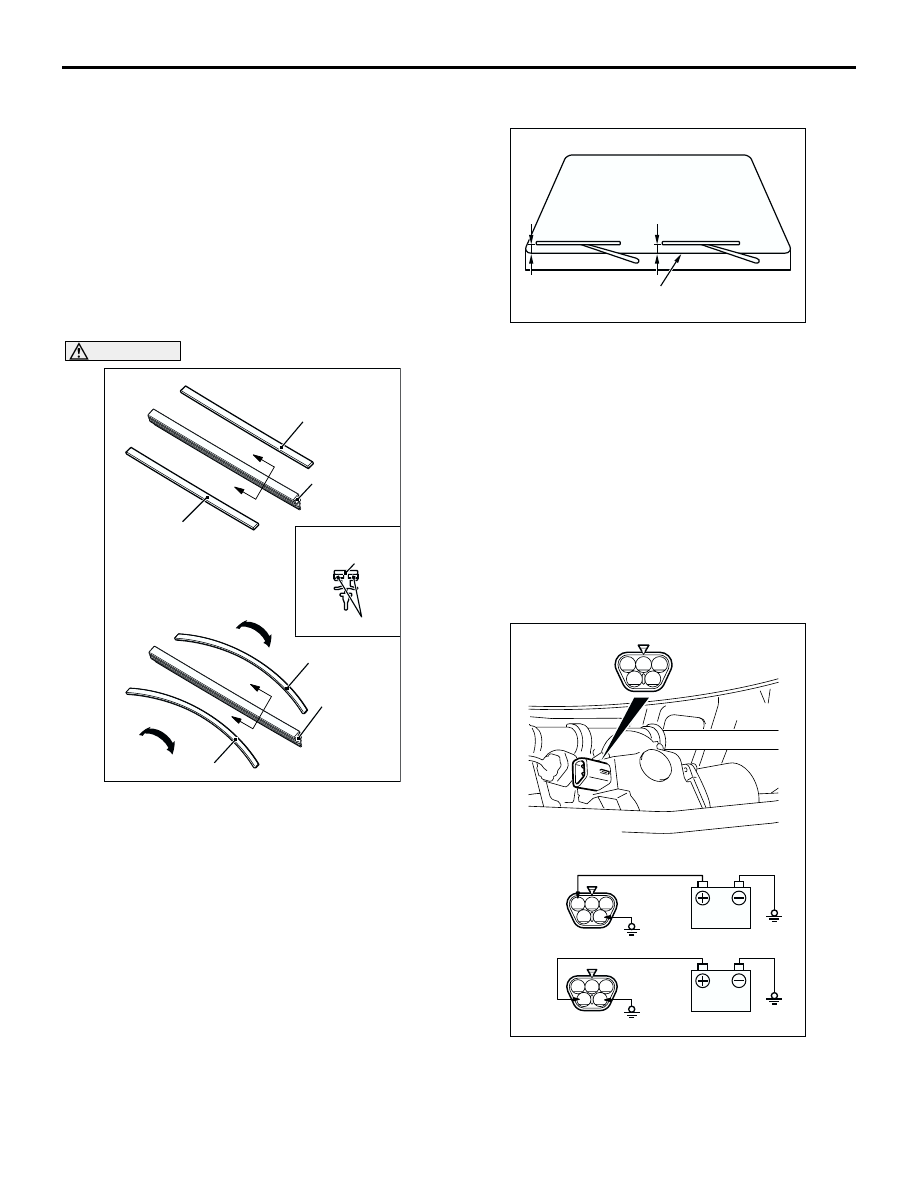

INSTALLATION SERVICE POINTS

>>A<< WIPER BLADE INSTALLATION

CAUTION

For good windshield wiper wiping performance,
use a passenger-side windshield wiper without
an curve in the backing of the wiper blade. The
windshield wiper on the driver's side should be a
wiper blade with a curved backing.

>>B<< WIPER BLADE ASSEMBLY
INSTALLATION

Install the wiper blade at the specified position
(standard value).

Standard value:
Driver’s side (A): 35

±

 5 mm

Passenger’s side (B): 25

±

 5 mm

INSPECTION

M1511008000179

WINDSHIELD WIPER MOTOR CHECK
Inspect the windshield wiper motor by removing the
harness connector with the motor attached to the
vehicle.

Wiper motor at low-speed and high-speed
operation

Connect the battery to the windshield wiper motor to
inspect the operation of motor rotation in low or high
speed.

6. Front deck garnish
7. Windshield wiper motor and link

assembly

8. Link assembly
9. Windshield wiper motor assembly

Windshield wiper motor and link
assembly removal steps (Continued)

AC103612

AC

Backing

Backing

A

A

Section A – A

Wiper blade

Backing

Wiper blade

Backing

Backing

A

A

<Passenger's side>

<Driver's side>

Wiper blade

AC309409

A

B

Front deck garnish terminal

AB

AC200893

1

4

2

3

5

1

4

2

3

5

1

4

2

3

5

Check operation

Low speed

High speed

AB
