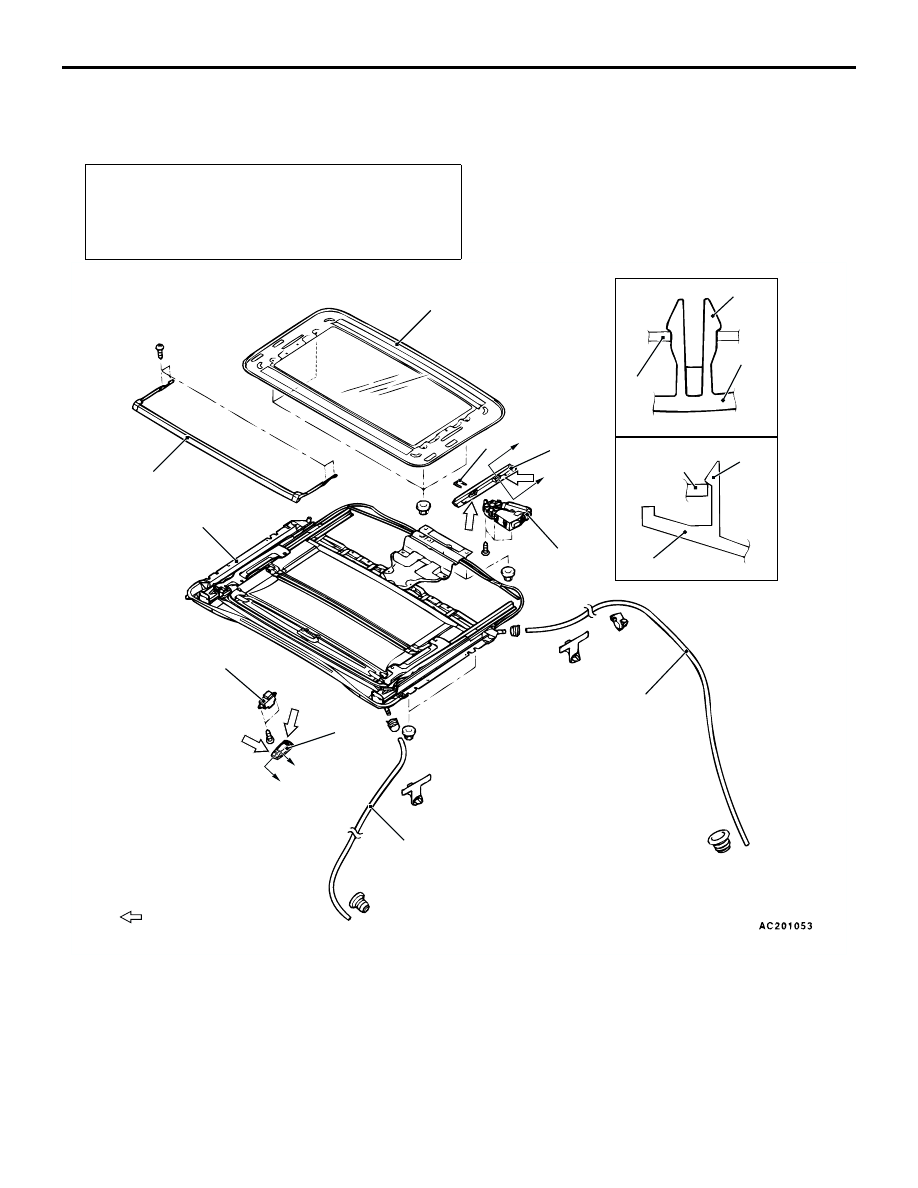

SUNROOF ASSEMBLY
BODY
42-71
ON-VEHICLE SERVICE

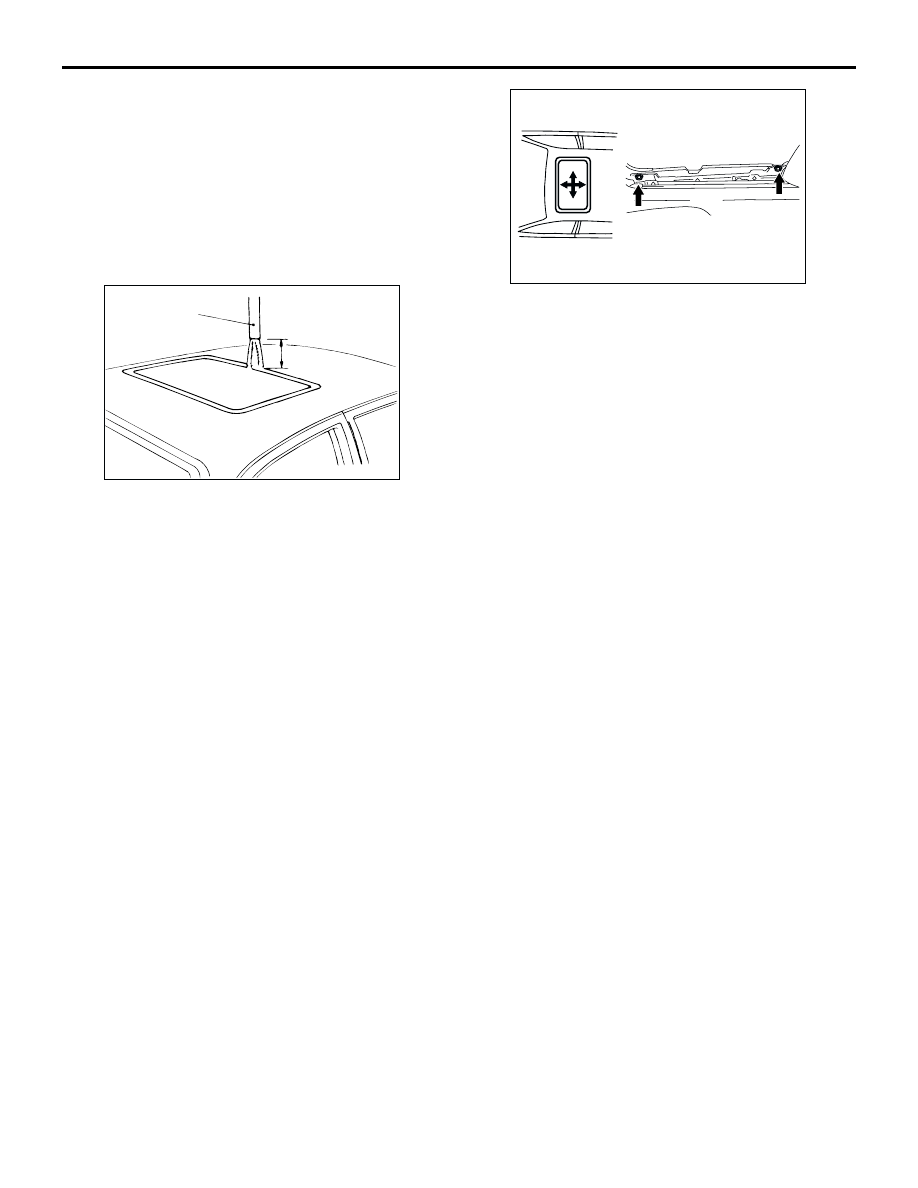

WATER TEST
M1426000900241
Check if there are any leaks in the sunroof by the
following procedure.
1. Fully close the roof lid glass.
2. Adjust the water pressure so that water comes out
of the hose to a height of approximately 50 cm
when the hose is held vertically facing upwards.
3. Hold the end of the hose approximately 30 cm
above the roof and let the water run onto the
weatherstrip for 5 minutes or more.
4. Check if any water leaks can be found in the room
while watering. Even though there are any water
leaks around the roof lid glass, it can be
acceptable as long as water is caught in the drip
area.
SUNROOF FIT ADJUSTMENT
M1426001000252
1. Fully close the roof lid glass.
2. Fully open the sunshade.
3. Remove the decoration cover (Refer to
4. To adjust the roof lid glass in the front/back or
left/right direction, loosen the nuts securing the
roof lid glass assembly, then move the roof lid
glass assembly to the front/back or left/right.
Check to see that the space between the roof lid
glass and body is even across the entire
circumference.
5. Adjust the roof lid glass height according to the
number of the adjusting plate pieces. Check to
see that the height of the roof lid glass is even
with the body.
6. After adjustment, check to be sure that the
sunroof operates smoothly.
SUNROOF CHECK
M1426004700089
Check to see that the sunroof operates by pressing
the sunroof switch. Perform troubleshooting if
operations malfunction. (Refer to
).
SUNROOF SAFETY FUNCTION CHECK
M1426004400107
1. Close the roof lid glass by applying an
approximately 10mm thickness wood chip placed
at a right angle to the roof lid glass.
2. Check to see if the roof lid glass opens after the
motor turns when the roof lid glass catches the
wooden chip. (Refer to
).

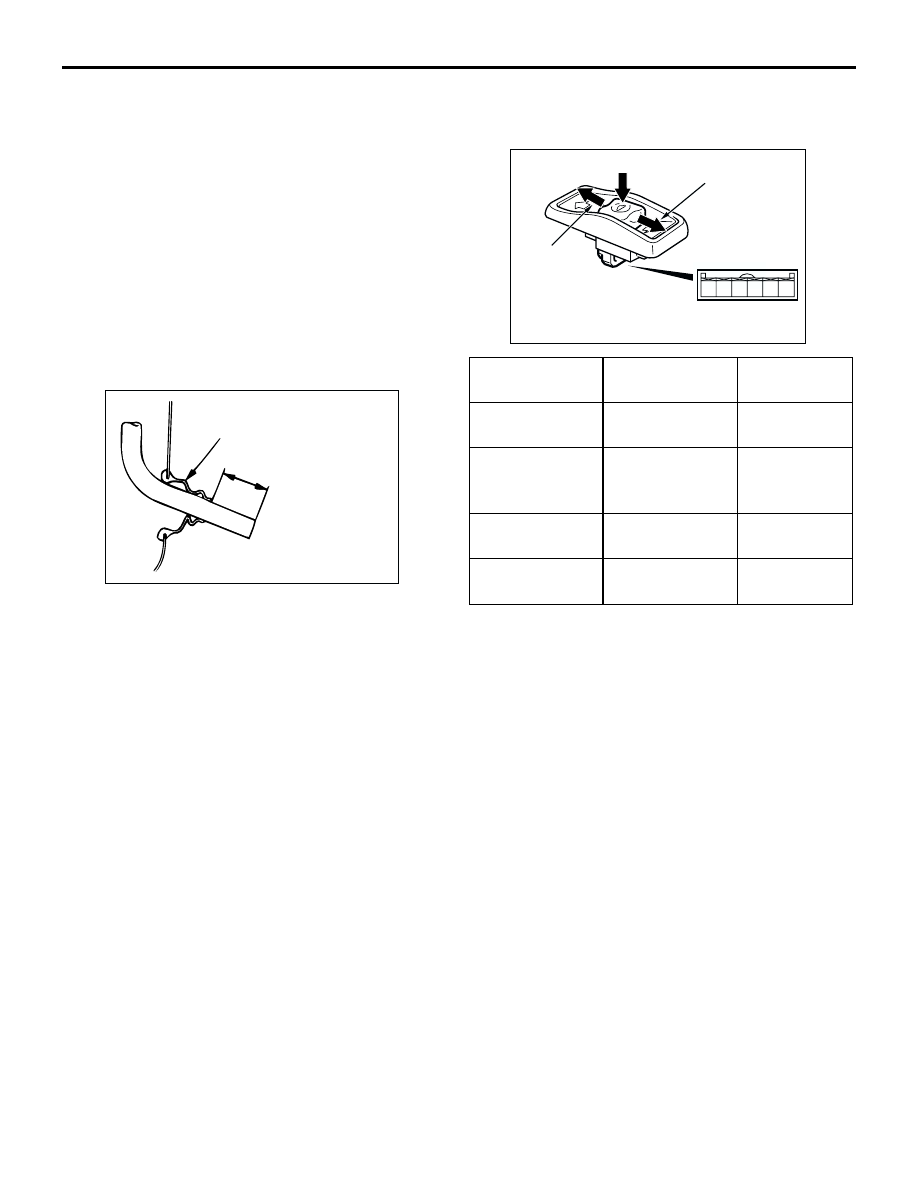

ACX00572 AB
Hose
Approx
30 cm
AC102847AC
