SUNROOF ASSEMBLY

BODY

42-67

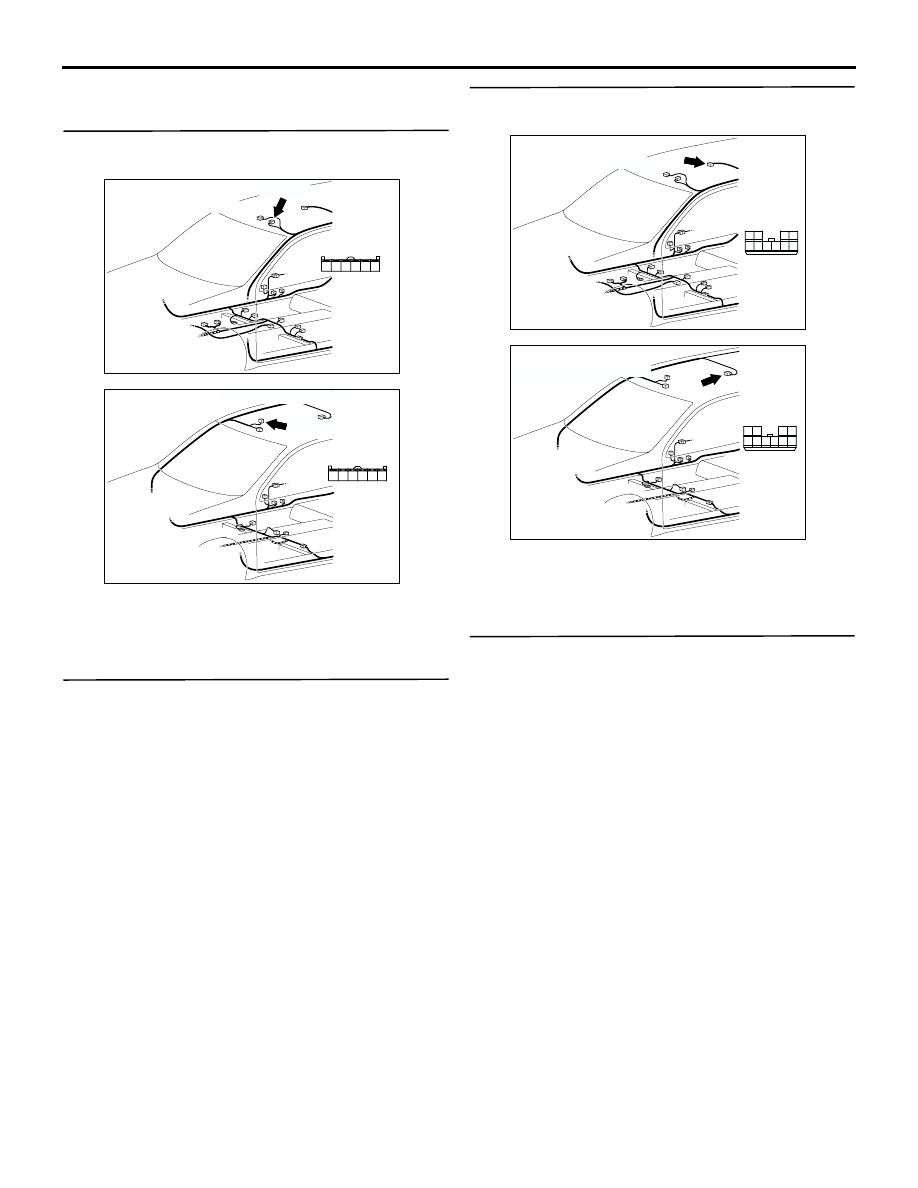

Diagnostic procedure

STEP 1. Connector check: D-06 sunroof switch
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the sunroof switch.

Refer to sunroof switch continuity check

P.42-74

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the sunroof switch.

STEP 3. Connector check: D-09 sunroof motor
assembly connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector.

STEP 4. Retest the system.

Q: Which switch position is defective?

"TILT UP" :

Go to Step 5.

"OPEN" :

Go to Step 6.

"CLOSE/DOWN" :

Go to Step 7.

AC301408

Harness side

AJ

D-06(B)

6

4

5

3 2 1

Connector: D-06
<L.H. drive vehicles>

AC309220

Harness side

AB

D-06(B)

6

4

5

3 2 1

Connector: D-06 <R.H. drive vehicles>

AC301408

Harness side

AK

9

10

4 3

6

8 7

2

5

1

Connector: D-09
<L.H. drive vehicles>

AC309220

AC

Connector: D-09
<R.H. drive vehicles>

Harness side

9

10

4 3

6

8 7

2

5

1

SUNROOF ASSEMBLY

BODY

42-68

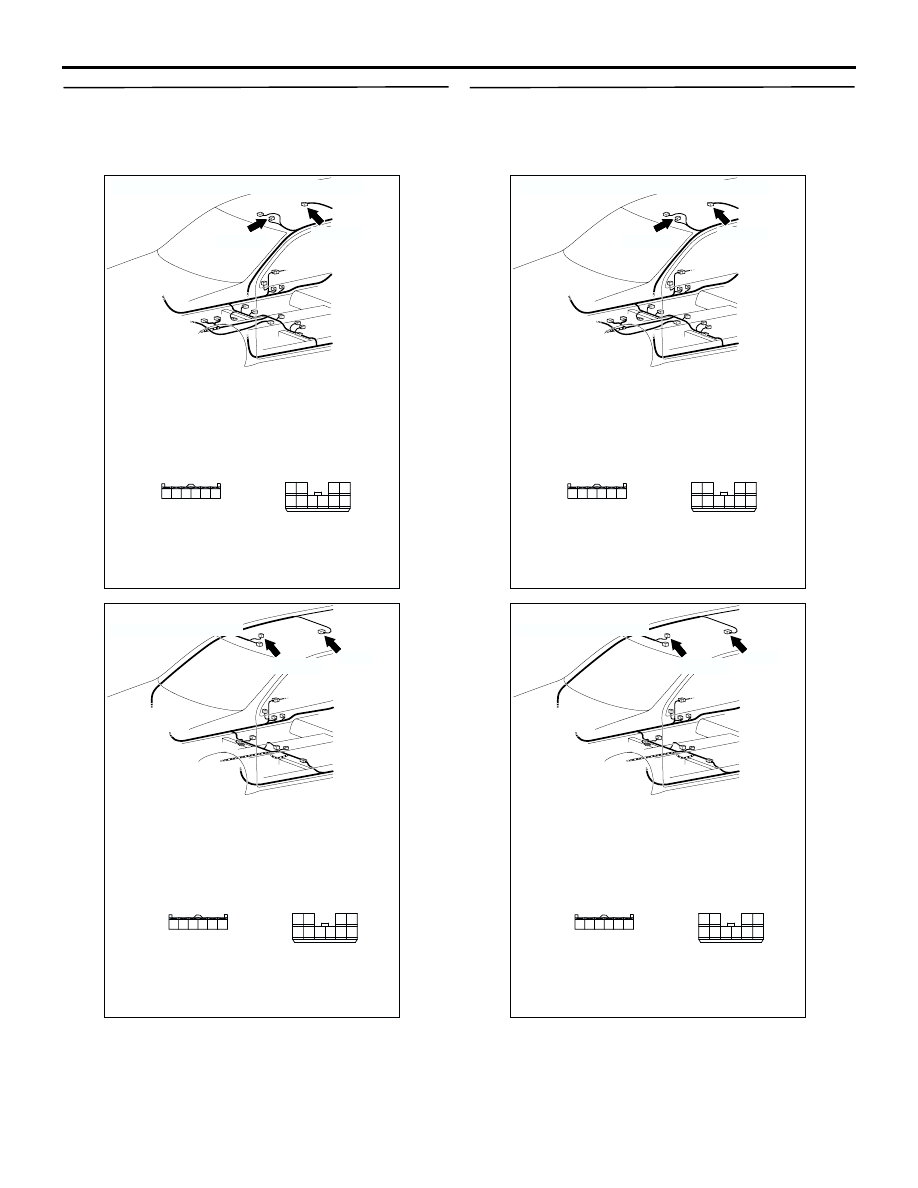

STEP 5. Check the wiring harness between D-09
sunroof motor assembly connector terminal No.7
and D-06 sunroof switch connector terminal
No.3.

•

Check the communication line for open circuit.

Q: Is the check result normal?

YES :

Replace the sunroof motor assembly.

NO :

Repair the wiring harness.

STEP 6. Check the wiring harness between D-09
sunroof motor assembly connector terminal No.8
and D-06 sunroof switch connector terminal
No.5.

•

Check the communication line for open circuit.

Q: Is the check result normal?

YES :

Replace the sunroof motor assembly.

NO :

Repair the wiring harness.

AC301409

Connectors: D-06, D-09 <L.H. drive vehicles>

Harness side

6

4

5

3 2 1

AE

D-06(B)

D-09

9

10

4 3

6

8 7

2

5

1

D-09

D-06

AC309221

Connectors: D-06, D-09
<R.H. drive vehicles>

Harness side

6

4

5

3 2 1

AB

D-06(B)

D-09

9

10

4 3

6

8 7

2

5

1

D-09

D-06

AC301409

Connectors: D-06, D-09 <L.H. drive vehicles>

Harness side

6

4

5

3 2 1

AE

D-06(B)

D-09

9

10

4 3

6

8 7

2

5

1

D-09

D-06

AC309221

Connectors: D-06, D-09
<R.H. drive vehicles>

Harness side

6

4

5

3 2 1

AB

D-06(B)

D-09

9

10

4 3

6

8 7

2

5

1

D-09

D-06

SUNROOF ASSEMBLY

BODY

42-69

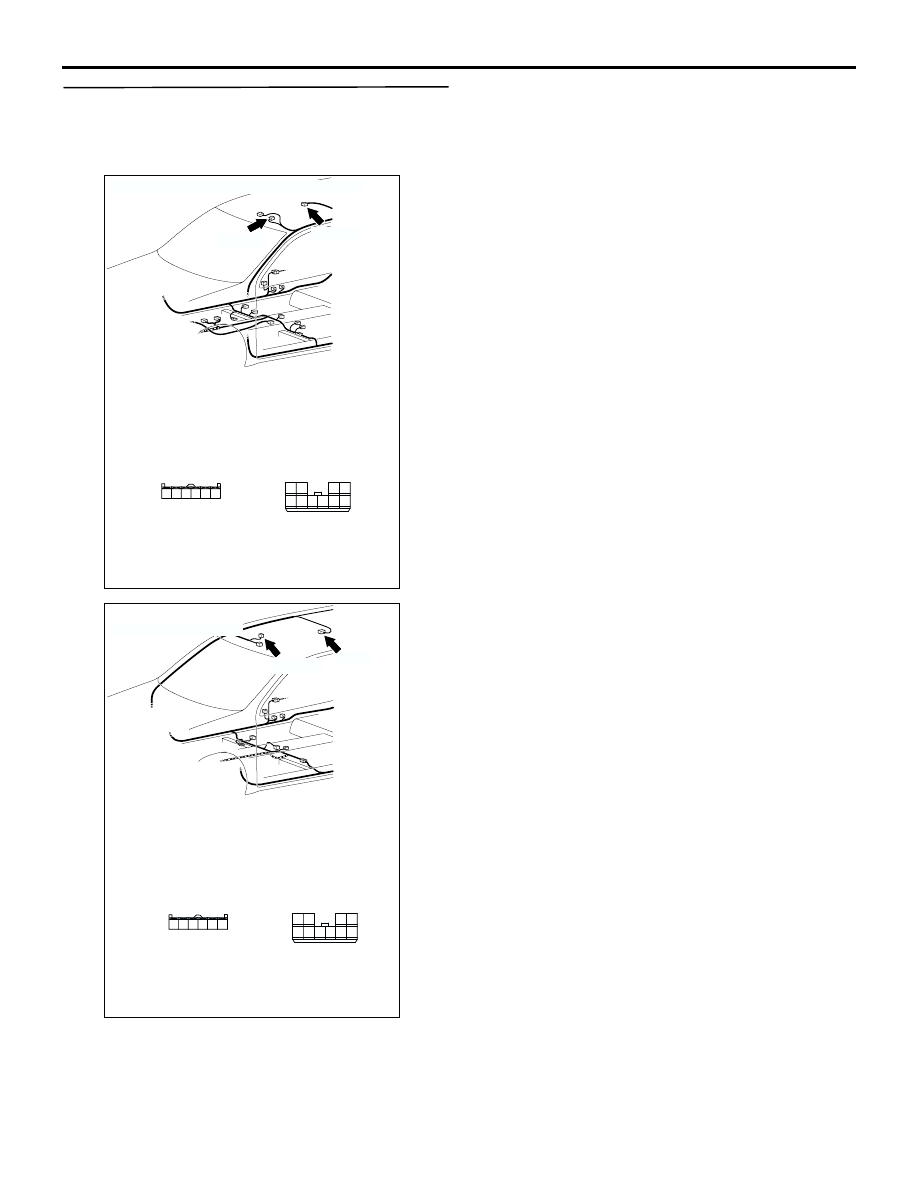

STEP 7. Check the wiring harness between D-09
sunroof motor assembly connector terminal No.6
and D-06 sunroof switch connector terminal
No.6.

•

Check the communication line for open circuit.

Q: Is the check result normal?

YES :

Replace the sunroof motor assembly.

NO :

Repair the wiring harness.

AC301409

Connectors: D-06, D-09 <L.H. drive vehicles>

Harness side

6

4

5

3 2 1

AE

D-06(B)

D-09

9

10

4 3

6

8 7

2

5

1

D-09

D-06

AC309221

Connectors: D-06, D-09
<R.H. drive vehicles>

Harness side

6

4

5

3 2 1

AB

D-06(B)

D-09

9

10

4 3

6

8 7

2

5

1

D-09

D-06

SUNROOF ASSEMBLY

BODY

42-70

INSPECTION PROCEDURE 3: Sunroof anti-trap function does not work normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
OPERATION
This function is activated by the sunroof motor
assembly (sunroof-ECU).

COMMENTS ON TROUBLE SYMPTOM
If the sunroof anti-trap function does not work, the
sunroof motor assembly (sunroof-ECU) may be
defective.

Possible causes

•

Malfunction of the sunroof motor assembly
(sunroof-ECU)

Diagnostic procedure

Retest the system.

Check that the sunroof anti-trap function work
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the sunroof motor assembly.
