TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-35

STEP 4. MUT-II/III data list

Set MUT-II/III to data reading mode, and check the
data list item.

•

Item 36: Stop lamp switch

OK:
Brake pedal stepped down: ON
Brake pedal released: OFF

Q: Is the stop lamp switch input normal?

YES :

This malfunction is intermittent. Refer to

GROUP 00, How to Use
Troubleshooting/Inspection Service Points

−



How to Cope With Intermittent Malfunction

P.00-6

.

NO :

Go to Step 5.

STEP 5. Voltage measurement at the ABS-ECU
connector B-03.

(1) Disconnect ABS-ECU connector B-03 and

measure at the harness side.

(2) Depress the brake pedal to turn on the stop lamp

switch.

(3) Measure the voltage between terminal 3 and

earth.

OK: System voltage

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

recheck if any diagnosis code sets. If
diagnosis code No.33 set, replace the
hydraulic unit (integrated with ABS-ECU).
Then go to Step 7.

NO :

Go to Step 6.

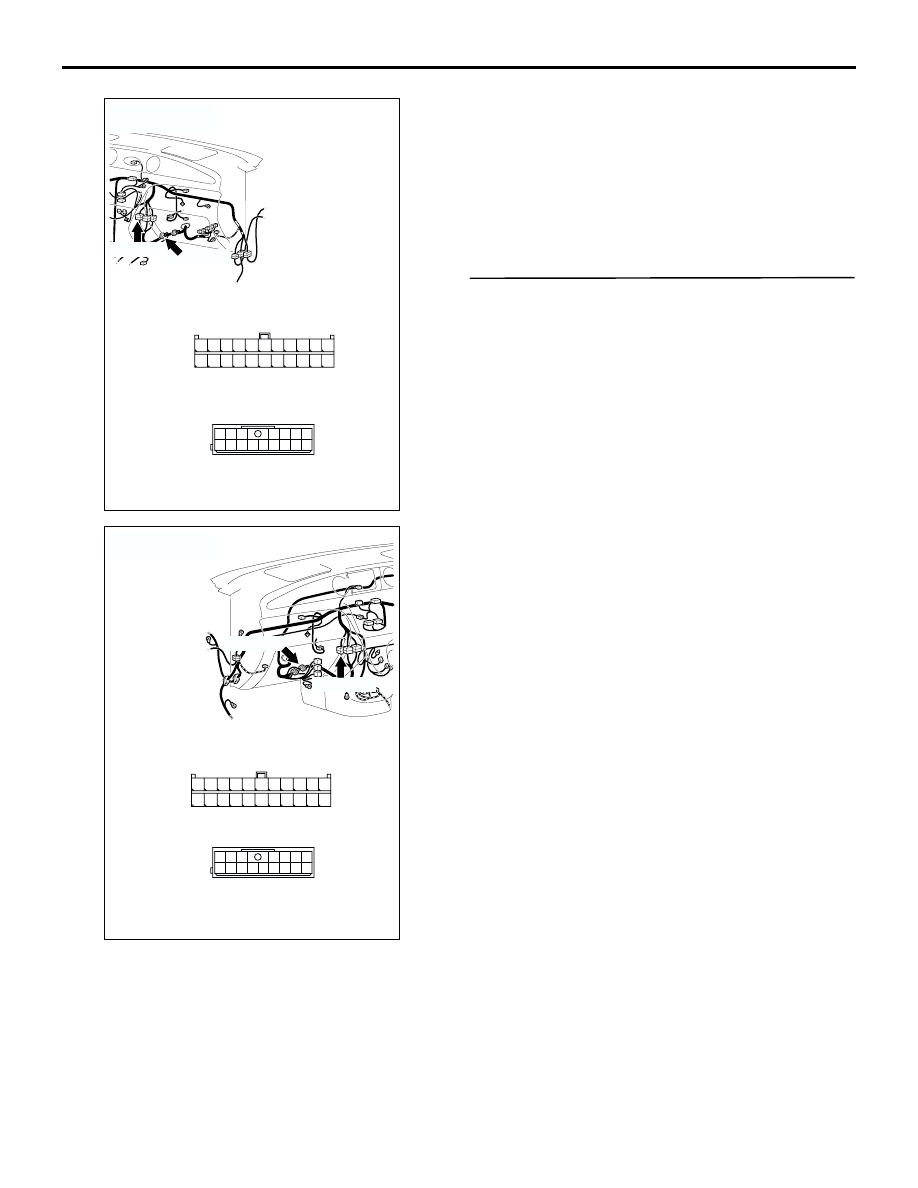

STEP 6. Check the harness wire between
ABS-ECU connector B-03 terminal 3 and stop
lamp switch connector C-101 terminal 1.

AC301441AB

Connector: B-03

B-03 (GR)

Harness side

AC301683AC

Connector B-03
(harness side)

AC301441AB

Connector: B-03

B-03 (GR)

Harness side

AC308716

AW

C-101

Connector: C-101
<LHD>

Harness side

AC308769

BA

C-101

Connector: C-101
<RHD>

Harness side

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-36

NOTE:

 After inspecting ABS-ECU connector B-03,
intermediate connectors C-16 and C-104, and stop
lamp switch connector C-101, inspect the wire. If any
of these connectors is damaged, repair or replace it.
Then go to Step 7.

Q: Is the harness wire between ABS-ECU connector

B-03 terminal 3 and stop lamp switch connector
C-101 terminal 1 damaged?

YES :

Repair it and then go to Step 7.

NO :

This malfunction is intermittent. Refer to
GROUP 00, How to Use
Troubleshooting/Inspection Service Points

−



How to Cope With Intermittent Malfunction

P.00-6

.

STEP 7. Check whether the diagnosis code is
reset.

Q: Is diagnosis code No.33 set?

YES :

Start over at Step 1.

NO :

The procedure is complete.

AC308719

C-16(L)

AJ

Connectors: C-16, C-104
<LHD>

C-104(B)

C-16(L)

C-104(B)

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

AC308736

C-16(L)

AH

C-104(B)

Connectors: C-16, C-104
<RHD>

C-16(L)

C-104(B)

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-37

Code No.41, 42, 43, and 44: ABS Solenoid Valve inside Hydraulic Unit (Open Circuit or Short Circuit)
Code No.52: Valve Relay Problem (Stays off)
Code No.53: Motor Relay Problem (Stays off)
Code No.55: Motor System (Seized Pump Motor)

OPERATION
Power is continuously supplied to the ABS-ECU
through fusible link number 3 to operate the solenoid
valve and motor.

DIAGNOSIS CODE SET CONDITIONS
These codes are set if the power supply circuit of
solenoid valve or motor is open or shorted.

PROBABLE CAUSES
The most likely causes for these diagnosis codes to
set are:

•

Damaged wiring harness or connector

•

Malfunction of the hydraulic unit (integrated with
ABS-ECU)

3

FUSIBLE
LINK

HYDRAULIC UNIT

MOTOR

ABS SOLENOID
VALVES

ABS-ECU

SOLENOID
VALVE POWER
SOURCE

MOTOR POWER
SOURCE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AC301690AB

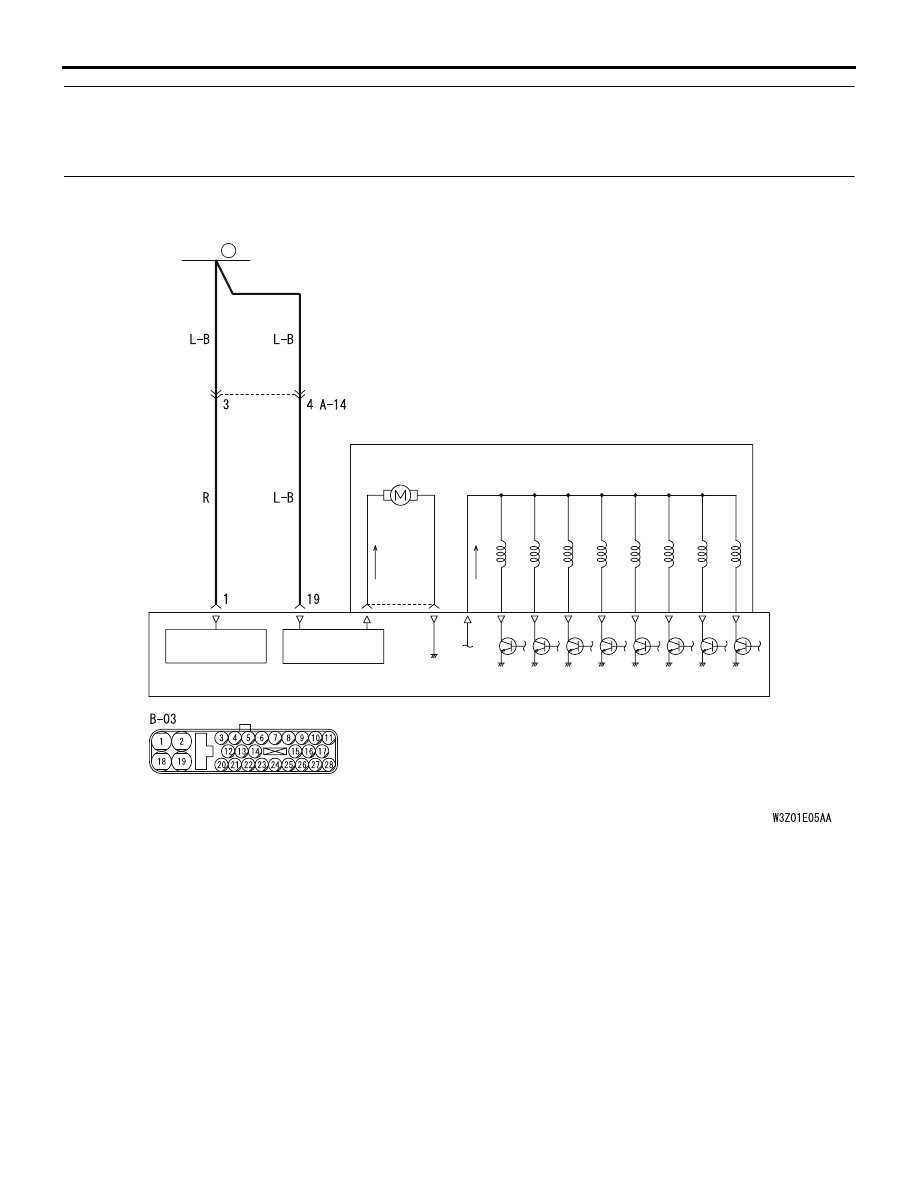

Solenoid Valve and Motor power Supply Circuit

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-38

DIAGNOSIS

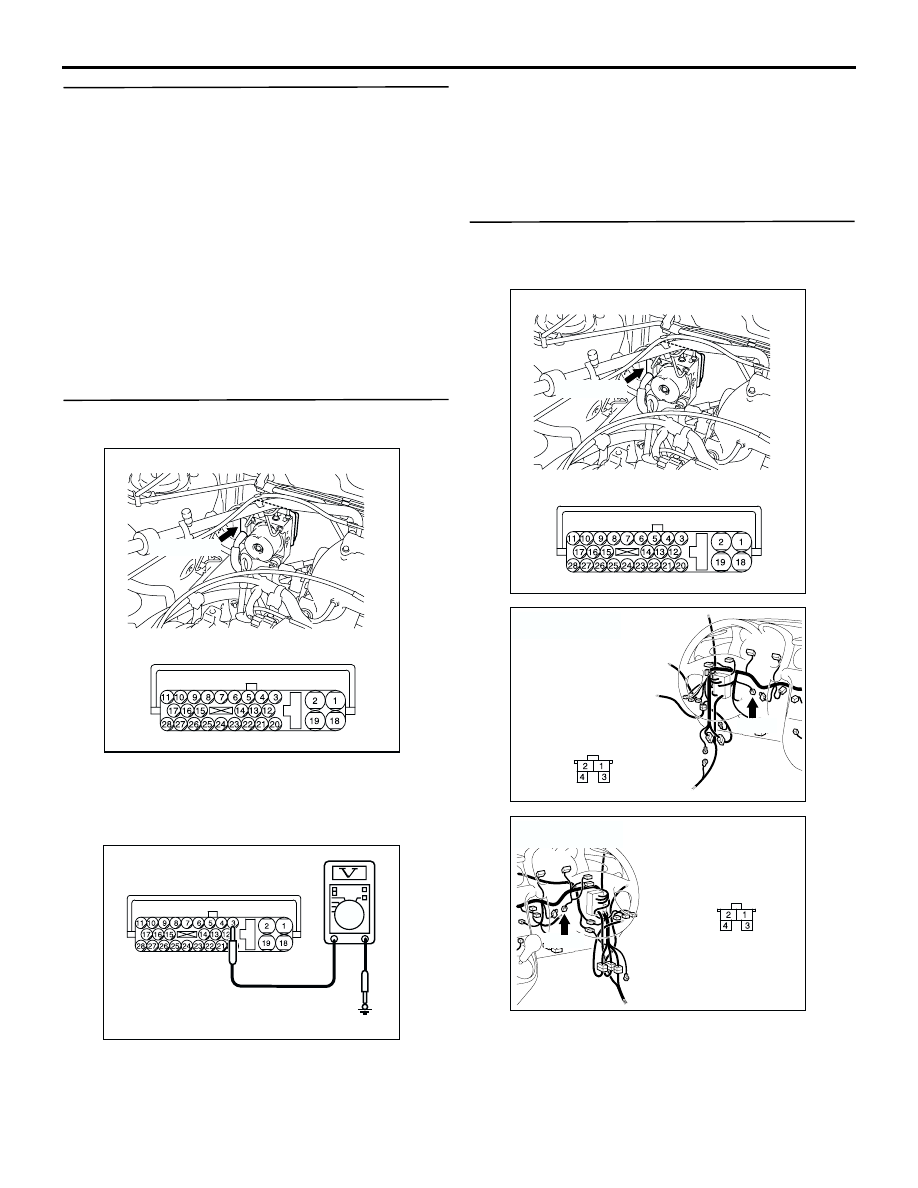

STEP 1. Voltage measurement at the ABS-ECU
connector B-03.

(1) Disconnect ABS-ECU connector B-03 and

measure at the harness side.

(2) Measure the voltage between terminal 1 and

earth, and 19 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

recheck if any diagnosis code sets. If
diagnosis code No.41, 42, 43, 44, 52, 53, or
55 set, replace the hydraulic unit (integrated
with ABS-ECU). Then go to Step 3. If
diagnosis code No.41, 42, 43, 44, 52, 53, or
55 is not set, an intermittent malfunction is
suspected. Refer to GROUP 00, How to
Use Troubleshooting/Inspection Service
Points

−

 How to Cope with Intermittent

Malfunction

P.00-6

.

NO :

Go to Step 2.

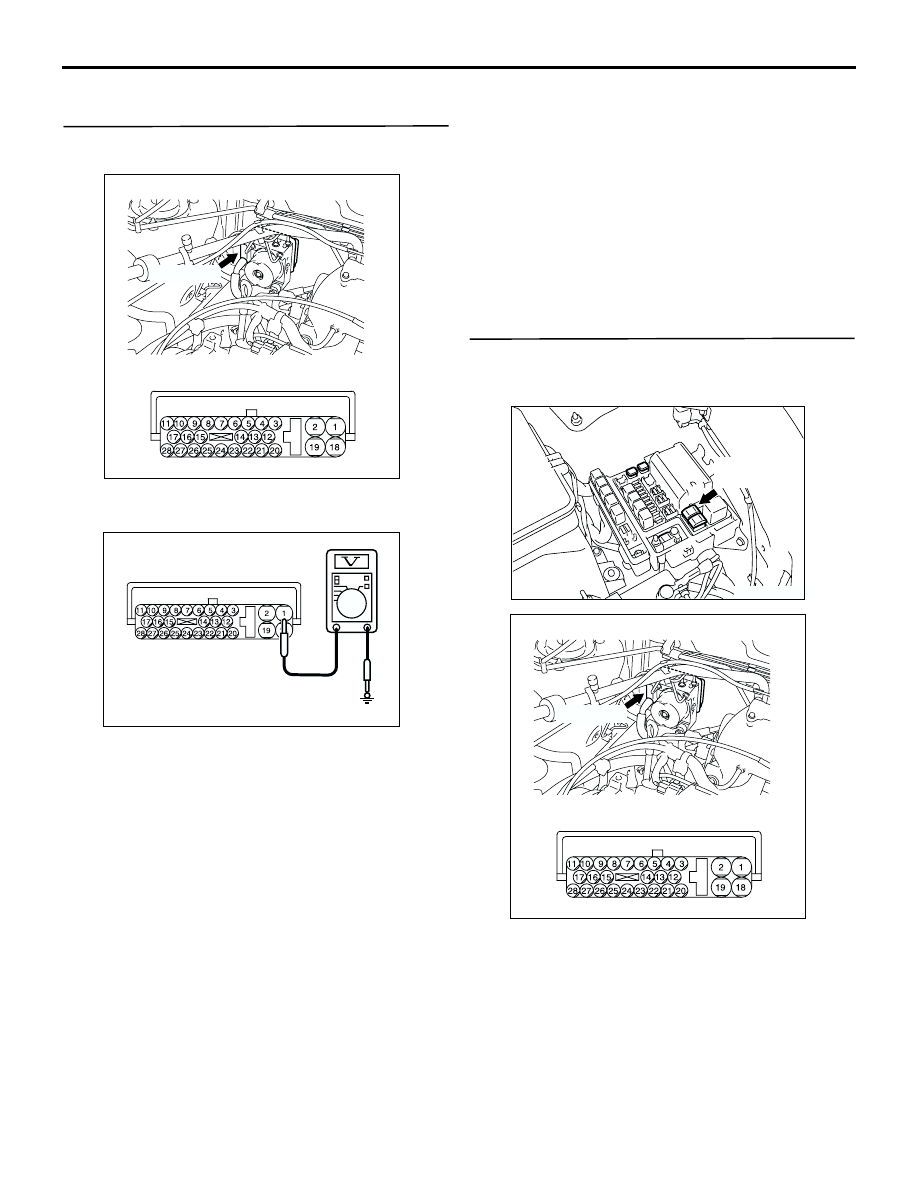

STEP 2. Check the harness wires between fusible
link number 3 and ABS-ECU connector B-03
(terminals 1 and 19).

AC301441AB

Connector: B-03

B-03 (GR)

Harness side

AC301683AD

Connector B-03
(harness side)

AC208065AD

Fusible link
No.3

AC301441AB

Connector: B-03

B-03 (GR)

Harness side
