Mitsubishi Outlander (2003+). Manual - part 257





REAR SUSPENSION CROSSMEMBER

REAR SUSPENSION

34-25

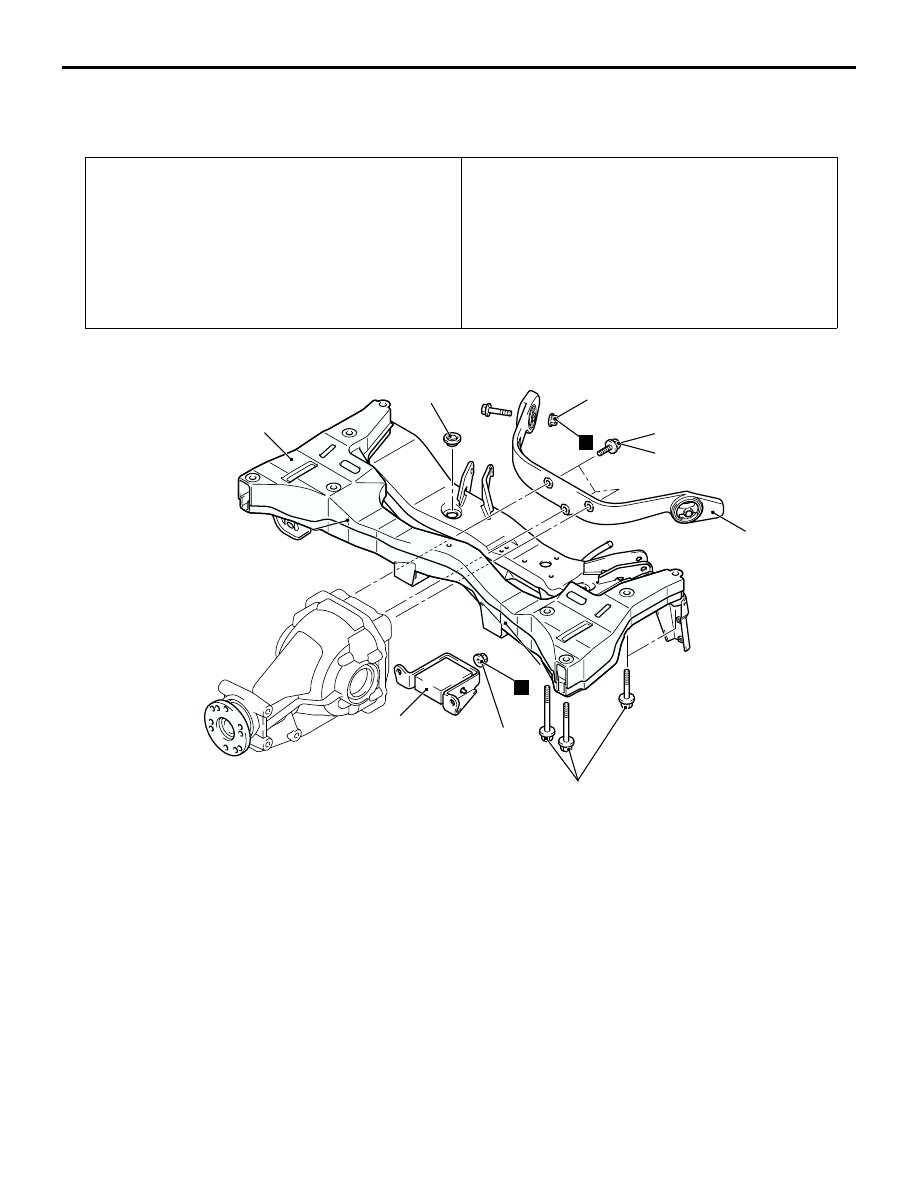

REAR SUSPENSION CROSSMEMBER

REMOVAL AND INSTALLATION

M1341006800219

INSPECTION

M1341006900067

Check the crossmember for cracks or
deformation.

Check all bolts for condition and straightness.

Pre-removal Operation

Main Muffler, Centre Exhaust Pipe Removal (Refer to

GROUP 15, Exhaust pipe and Main Muffler

P.15-13

).

Control Link, Upper Arm, Lower Arm Removal (Refer to

P.34-8

).

Stabilizer Bar Removal (Refer to

P.34-23

).

Fuel Filler Neck Protector Removal (Refer to GROUP

13B, Fuel Tank

P.13C-7

).

Post-installation Operation

Fuel Filler Neck Protector Installation (Refer to GROUP

13B, Fuel Tank

P.13C-11

).

Stabilizer Bar Installation (Refer to

P.34-23

).

Control Link, Upper Arm, Lower Arm Installation (Refer to

P.34-8

).

Main Muffler, Centre Exhaust Pipe Installation (Refer to

GROUP 15, Exhaust pipe and Main Muffler

P.15-13

).

Rear Wheel Alignment Check and Adjustment (Refer to

P.34-7

).

AC107129

44 ± 9 N·m

1

2

3

4

5

N

AB

90 ± 10 N·m

90 ± 10 N·m

95 ± 15 N·m

N

Removal steps

1.

Dynamic damper <4WD>

2.

Differential support arm connecting
bolt <4WD>

3.

Rear suspension crossmember

4.

Differential support arm <4WD>

5.

Plug

NOTES

35A-1

GROUP 35A

BASIC BRAKE

SYSTEM

CONTENTS

GENERAL INFORMATION . . . . . . . .

35A-2

SERVICE SPECIFICATIONS. . . . . . .

35A-3

LUBRICANTS  . . . . . . . . . . . . . . . . . .

35A-3

SEALANT. . . . . . . . . . . . . . . . . . . . . .

35A-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

35A-4

ON-VEHICLE SERVICE. . . . . . . . . . .

35A-4

BRAKE PEDAL CHECK AND
ADJUSTMENT  . . . . . . . . . . . . . . . . . . . . . .

35A-4

BRAKE BOOSTER OPERATING TEST . . .

35A-6

CHECK VALVE OPERATION CHECK . . . .

35A-6

BLEEDING  . . . . . . . . . . . . . . . . . . . . . . . . .

35A-7

BRAKE FLUID LEVEL SENSOR CHECK. .

35A-7

DISC BRAKE PAD CHECK AND
REPLACEMENT . . . . . . . . . . . . . . . . . . . . .

35A-7

DISC BRAKE ROTOR CHECK. . . . . . . . . .

35A-10

BRAKE PEDAL. . . . . . . . . . . . . . . . . .

35A-13

REMOVAL AND INSTALLATION . . . . . . . .

35A-13

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-14

MASTER CYLINDER ASSEMBLY
AND BRAKE BOOSTER  . . . . . . . . . .

35A-15

REMOVAL AND INSTALLATION . . . . . . . .

35A-15

MASTER CYLINDER  . . . . . . . . . . . . . . . . .

35A-18

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-18

FRONT DISC BRAKE ASSEMBLY . .

35A-19

REMOVAL AND INSTALLATION . . . . . . . .

35A-19

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-20

DISASSEMBLY AND REASSEMBLY . . . . .

35A-21

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-23

REAR DISC BRAKE ASSEMBLY  . . .

35A-24

REMOVAL AND INSTALLATION . . . . . . . .

35A-24

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-25

DISASSEMBLY AND REASSEMBLY . . . . .

35A-26

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-28

GENERAL INFORMATION

BASIC BRAKE SYSTEM

35A-2

GENERAL INFORMATION

M1351000100406

The brake system offers high dependability and
durability along with improved braking performance
and brake sensitivity.

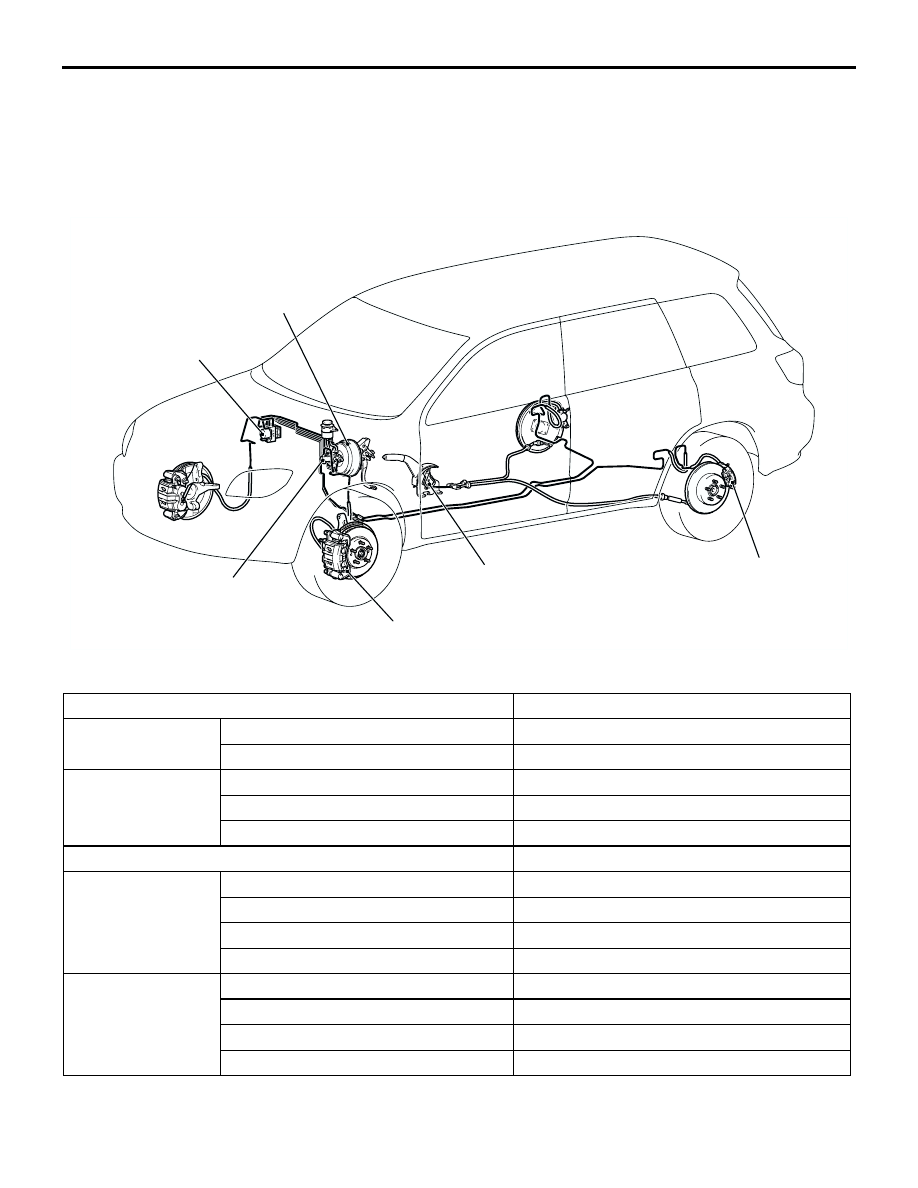

CONFIGURATION DIAGRAM

SPECIFICATIONS

AC300584

Brake booster

Master cylinder

Front disc brake

Parking brake

Rear disc brake

AC

Hydraulic unit
(Integrated with ABS-ECU)

Item

Specification

Master cylinder

Type

Tandem type

I.D. mm

25.4

Brake booster

Type

Vacuum type, tandem

Effective dia. of power cylinder mm

205 + 230

Boosting ratio

7.5

Rear wheel hydraulic control method

Electronic brake-force distribution (EBD)

Front brakes

Type

Floating caliper, 2 piston, ventilated disc

Disc effective diameter

×

 thickness mm 246

×

 24

Wheel cylinder I.D. mm

42.9

Clearance adjustment

Automatic

Rear disc brakes

Type

Floating caliper, 1 piston, solid disc

Disc effective dia.

×

 thickness mm

226

×

 10

Wheel cylinder I.D. mm

38.1

Clearance adjustment

Automatic
