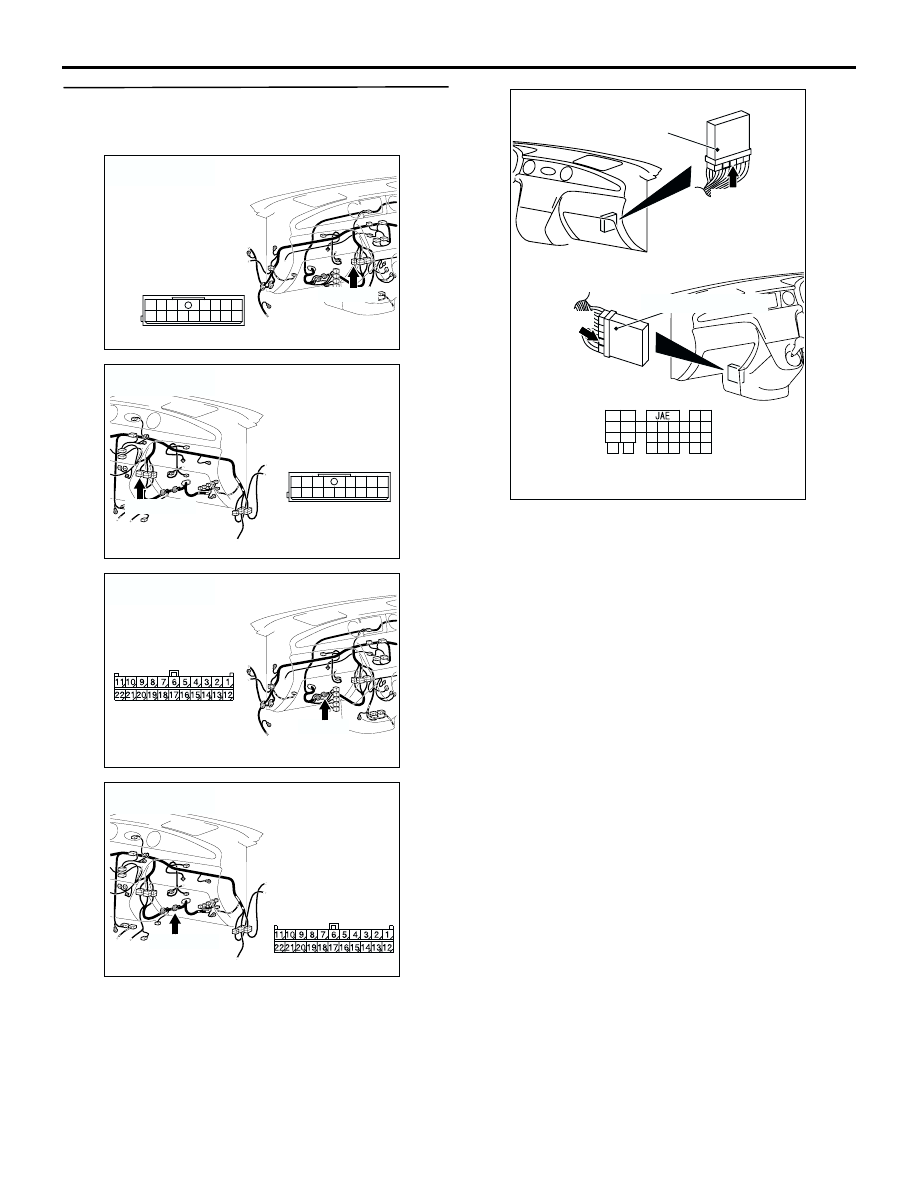

STEP 10. Connectors check: C-104 intermediate
connector, C-16 J/C (1), C-140 engine-A/T-ECU
connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

AC308735

AV

C-104 (B)

Connector: C-104
<RHD>

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

AC308718

AQ

C-104 (B)

Connector: C-104
<LHD>

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

AC308735

BH

C-16 (L)

Connector: C-16
<RHD>

AC308718

BA

C-16 (L)

Connector: C-16
<LHD>

AC309479AD

Connector: C-140 <LHD>

Connector: C-140 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-140 (GR)

C-140 (GR)

45

52

35

42 41

43

51

58

50

57

33

34

36

40393837

47

55

48

56

44

49

46

54

3231

53

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-52

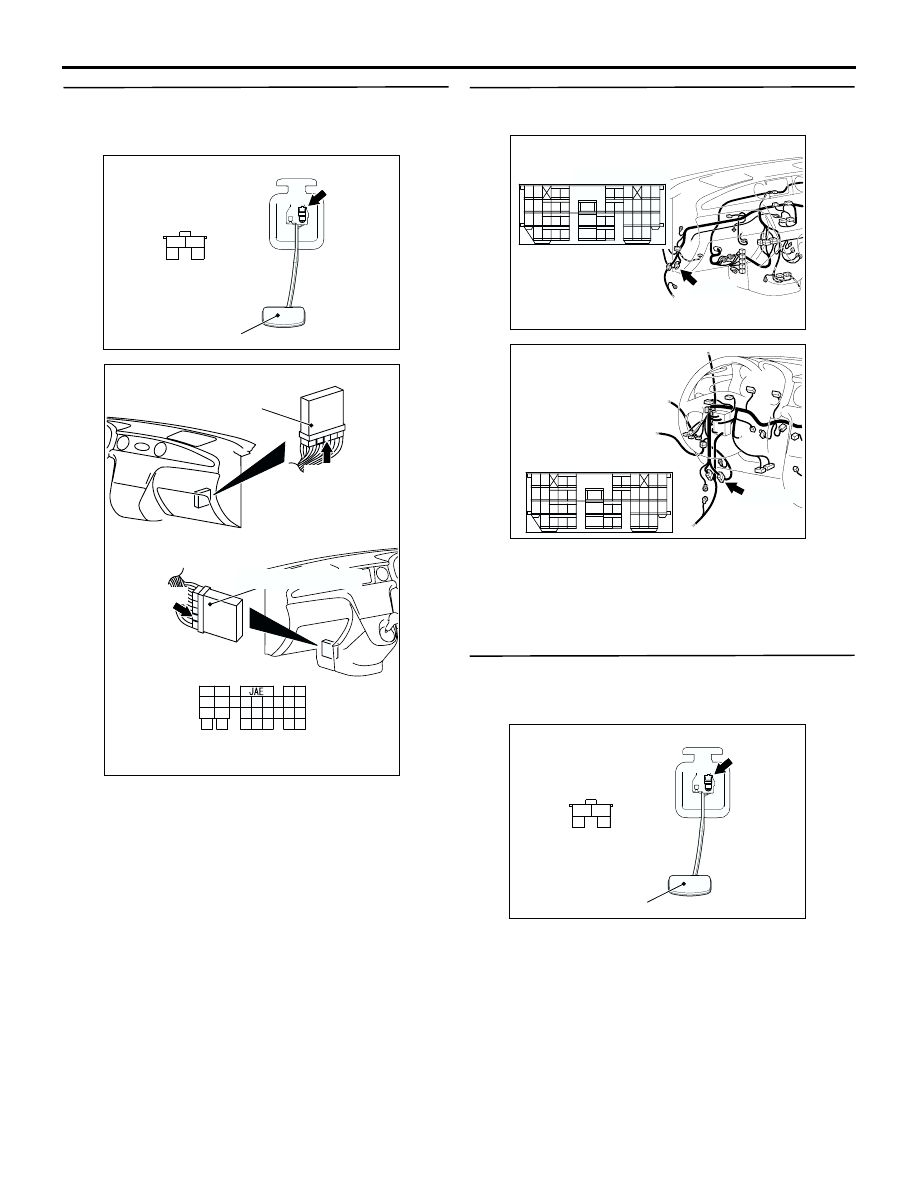

STEP 11. Check the harness between stop lamp
switch connector C-101 terminal No.1 and
engine-A/T-ECU connector C-140 terminal No.39.

Check the output line for short or open circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

STEP 12. Connector check: C-116 intermediate
connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

STEP 13. Check the harness between stop lamp
switch connector C-101 terminal No.2 and
battery.

Check the power supply line for short or open circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

AC309520

Connector: C-101

Harness side

Brake pedal

AB

4

3

2

1

AC309479AD

Connector: C-140 <LHD>

Connector: C-140 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-140 (GR)

C-140 (GR)

45

52

35

42 41

43

51

58

50

57

33

34

36

40393837

47

55

48

56

44

49

46

54

3231

53

AC308735

Connector: C-116

BD

C-116

<RHD>

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

AC308716

Connector: C-116

AY

C-116

<LHD>

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

AC309520

Connector: C-101

Harness side

Brake pedal

AB

4

3

2

1

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-53

Code No.27: Inhibitor switch system

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

IGNITION
SWITCH (IG1)

INHIBITOR
SWITCH

ENGINE-
A/T-ECU

SHIFT
SWITCH
ASSENBLY

SELECT
SWITCH

SHIFT
SWITCH

COMBINATION
METER

AC309572

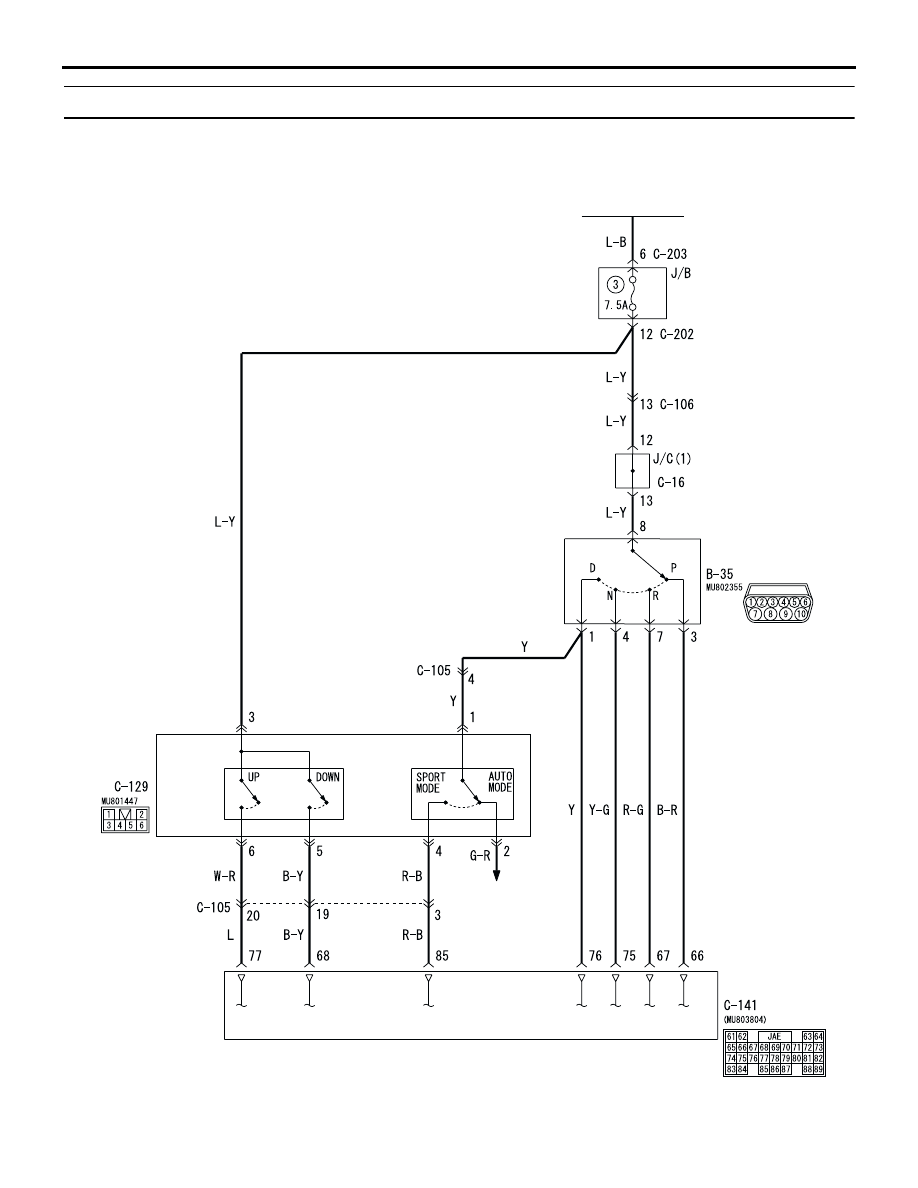

Inhibitor switch system circuit <RHD>

AC

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-54

OPERATION
The inhibitor switch detects the selector lever
position (P, R, N or D) which the driver has selected,
and sends the information to the engine-A/T-ECU.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

IGNITION
SWITCH (IG1)

INHIBITOR
SWITCH

ENGINE-
A/T-ECU

SHIFT
SWITCH
ASSENBLY

SELECT
SWITCH

SHIFT
SWITCH

COMBINATION
METER

AC309566

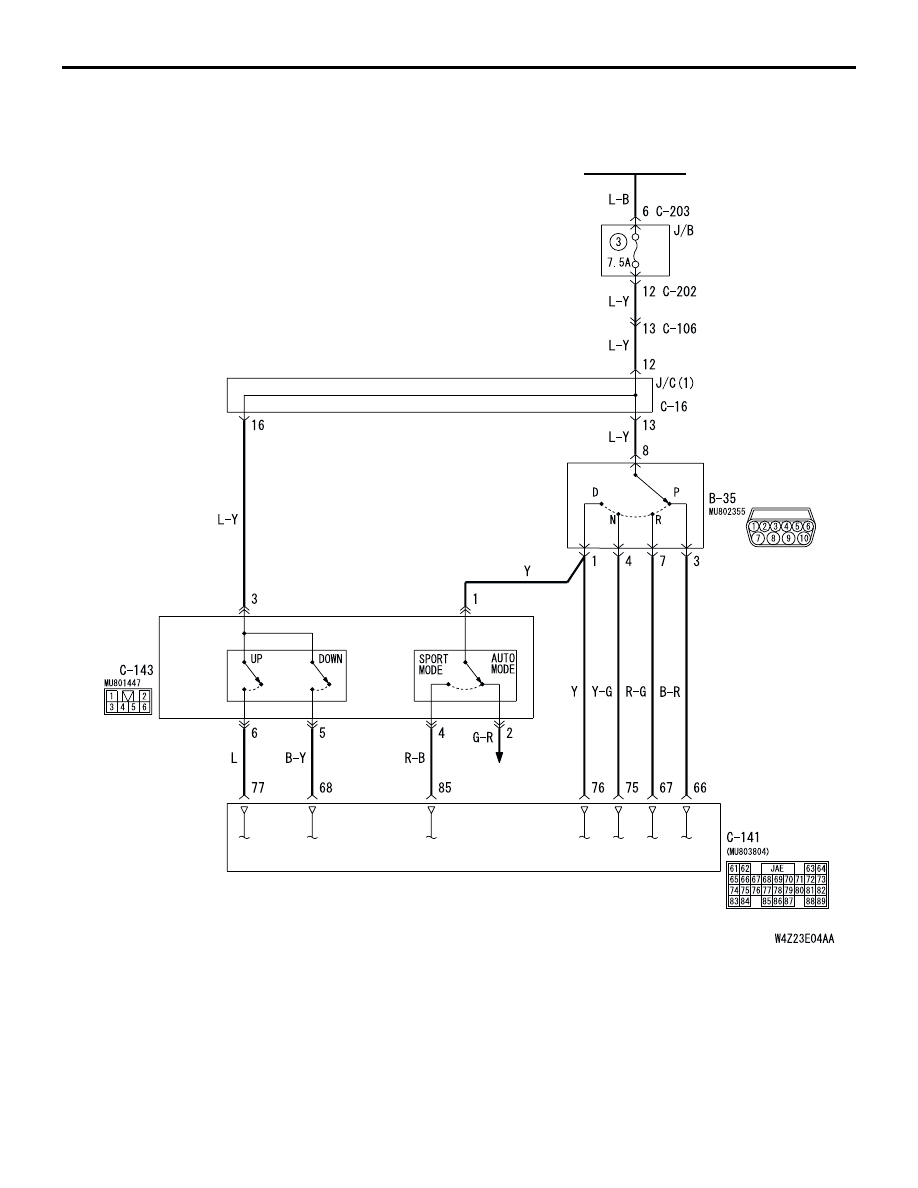

Inhibitor switch system circuit <LHD>

AB
