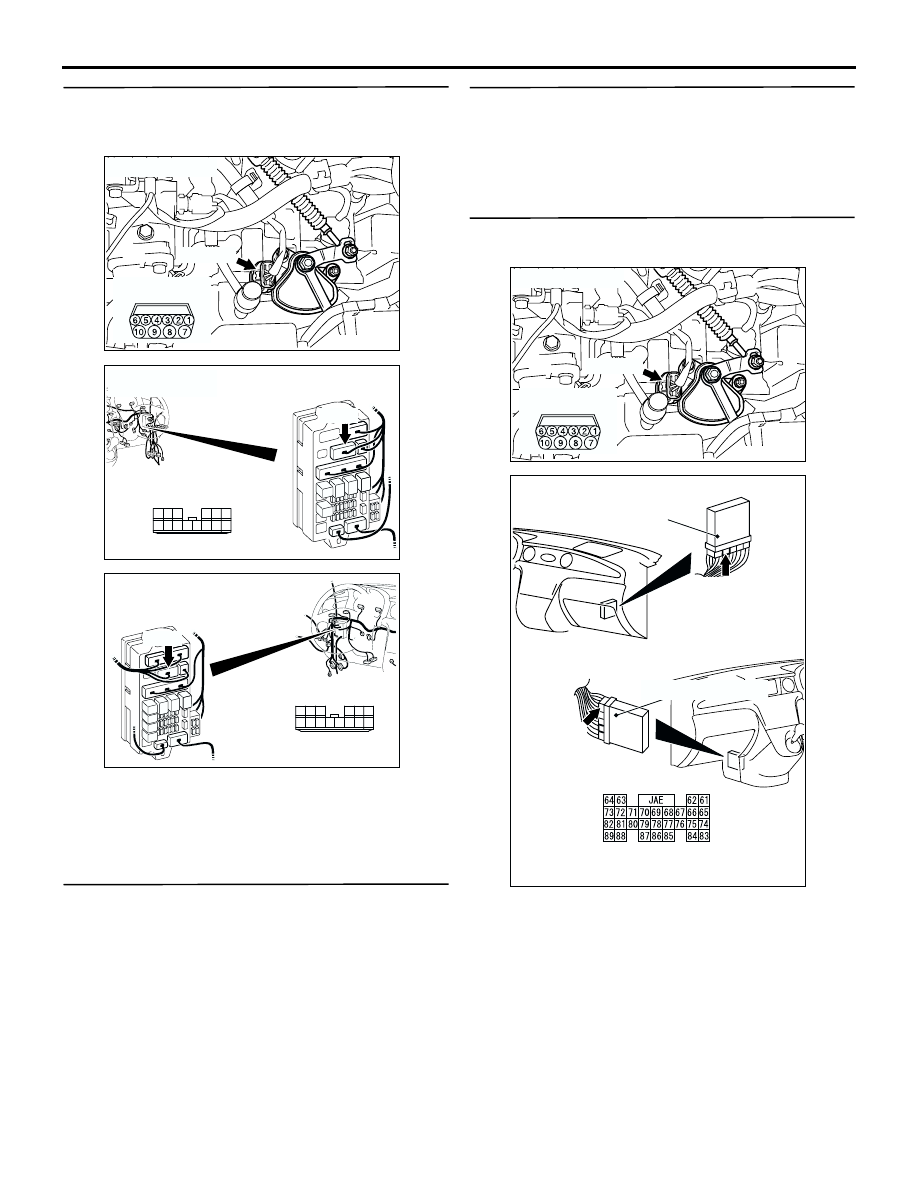

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-55

DIAGNOSIS CODE SET CONDITIONS
If the inhibitor switch has not been sending any
signal for at least 30 seconds, an open circuit may be
present and dianosis code No.27 will be set.

POSSIBLE CAUSES

•

Malfunction of the inhibitor switch

•

Damaged harness wires and connectors

•

Malfunction of the engine-A/T-ECU

DIAGNOSIS

STEP 1. MUT-II/III data list

Item 61: Inhibitor switch

P.23A-133

 (Refer to data list

reference table).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO <none of the selector lever positions are
displayed on MUT II/III> :

Go to Step 2.

NO <only one of the selector lever positions is not
displayed on MUT II/III> :

Go to Step 6.

STEP 2. Check the inhibitor switch.

Refer to

P.23A-145

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the inhibitor switch.

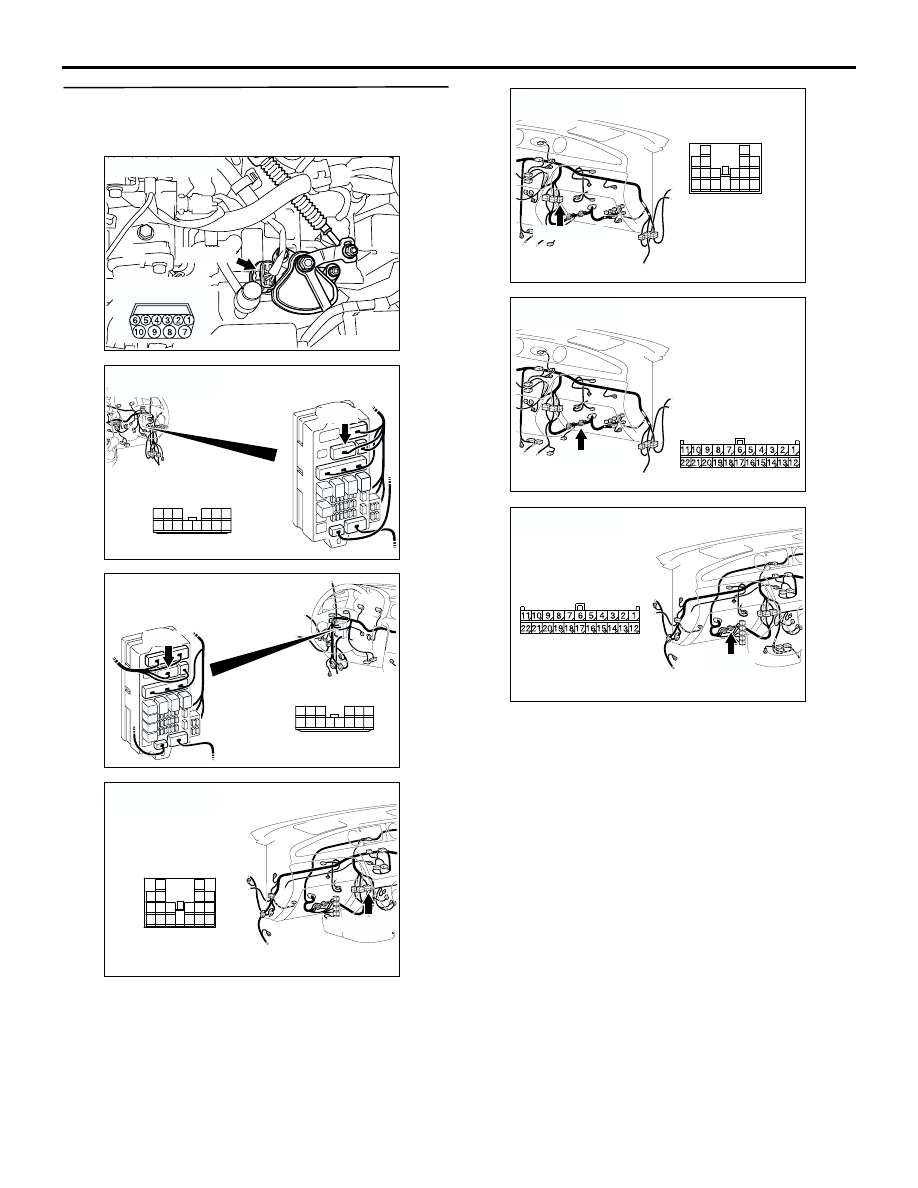

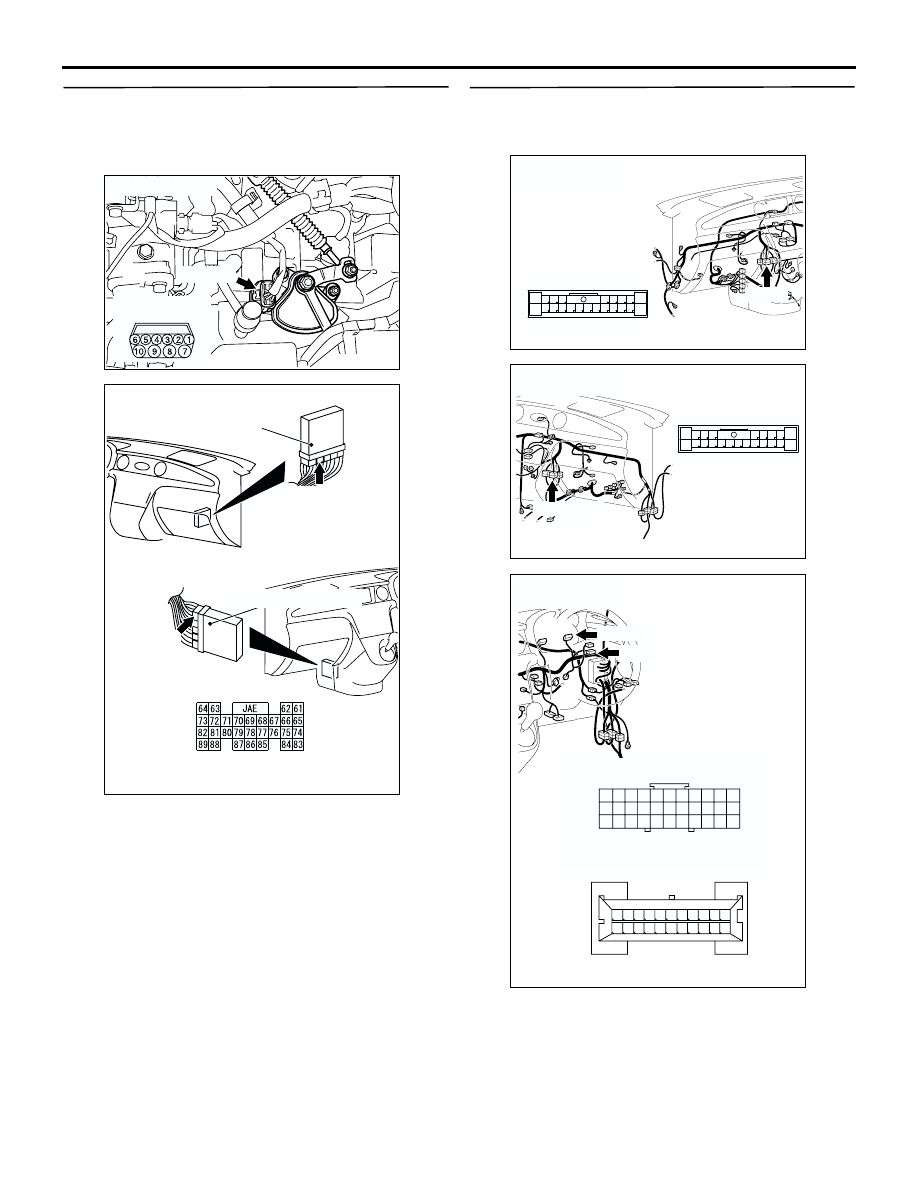

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-56

STEP 3. Connector check: B-35 Inhibitor switch
connector, C-202 J/B connector, C-106
intermediate connector, C-16 J/C (1)

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

AC103395

Connector: B-35

AN

B-35 (B)

Harness side

AC308772

C-202

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Connector: C-202
<RHD>

AL

AC308720

C-202

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AM

Connector: C-202
<LHD>

AC308735

AX

C-106 (GR)

Connector: C-106
<RHD>

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

AC308718

C-106 (GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

Connector: C-106
<LHD>

AS

AC308718

BA

C-16 (L)

Connector: C-16
<LHD>

AC308735

BH

C-16 (L)

Connector: C-16
<RHD>

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-57

STEP 4. Check the harness between inhibitor
switch connector B-35 terminal No.8 and J/B
connector C-202 terminal No.12.

Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness.

STEP 5. MUT-II/III data list

Item 61: Inhibitor switch

P.23A-133

 (Refer to data list

reference table).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO :

Replace the engine-A/T-ECU.

STEP 6. Check the inhibitor switch.

Refer to

P.23A-145

.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Replace the inhibitor switch.

STEP 7. Connector check: B-35 inhibitor switch
connector, C-141 engine-A/T-ECU connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

AC103395

Connector: B-35

AN

B-35 (B)

Harness side

AC308772

C-202

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Connector: C-202
<RHD>

AL

AC308720

C-202

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AM

Connector: C-202
<LHD>

AC103395

Connector: B-35

AN

B-35 (B)

Harness side

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-58

STEP 8. Check the harness between inhibitor
switch connector B-35 terminal No.3, 7, 4, 1 and
engine-A/T-ECU connector C-141 terminal No.66,
67, 75, 76.

Check the output line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

STEP 9. Connector check: C-105 intermediate
connector,  C-02 J/C (3), C-05 combination meter
connector

AC103395

Connector: B-35

AN

B-35 (B)

Harness side

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

AC308735

AW

C-105

Connector: C-105
<RHD>

10

1

21

16

13

4

11

2

12

3

1415

1718

5

20

7

19

6

8

22

9

AC308718

AR

C-105

Connector: C-105
<LHD>

10

1

21

16

13

4

11

2

12

3

1415

1718

5

20

7

19

6

8

22

9

AC308770

C-02

AI

C-05 (L)

Connectors: C-02, C-05
<RHD>

C-02

C-05

Harness side

1

12

23

2

13

24

3

14

25

4

15

26

5

16

27

6

17

28

7

18

29

8

19

30

9

20

31

10
21

32

11
22

33

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12
