TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-43

STEP 11. Check the harness between output
shaft speed sensor connector B-33 terminal No.3
and junction block connector C-202 terminal
No.12.

Check the power supply line for short or open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

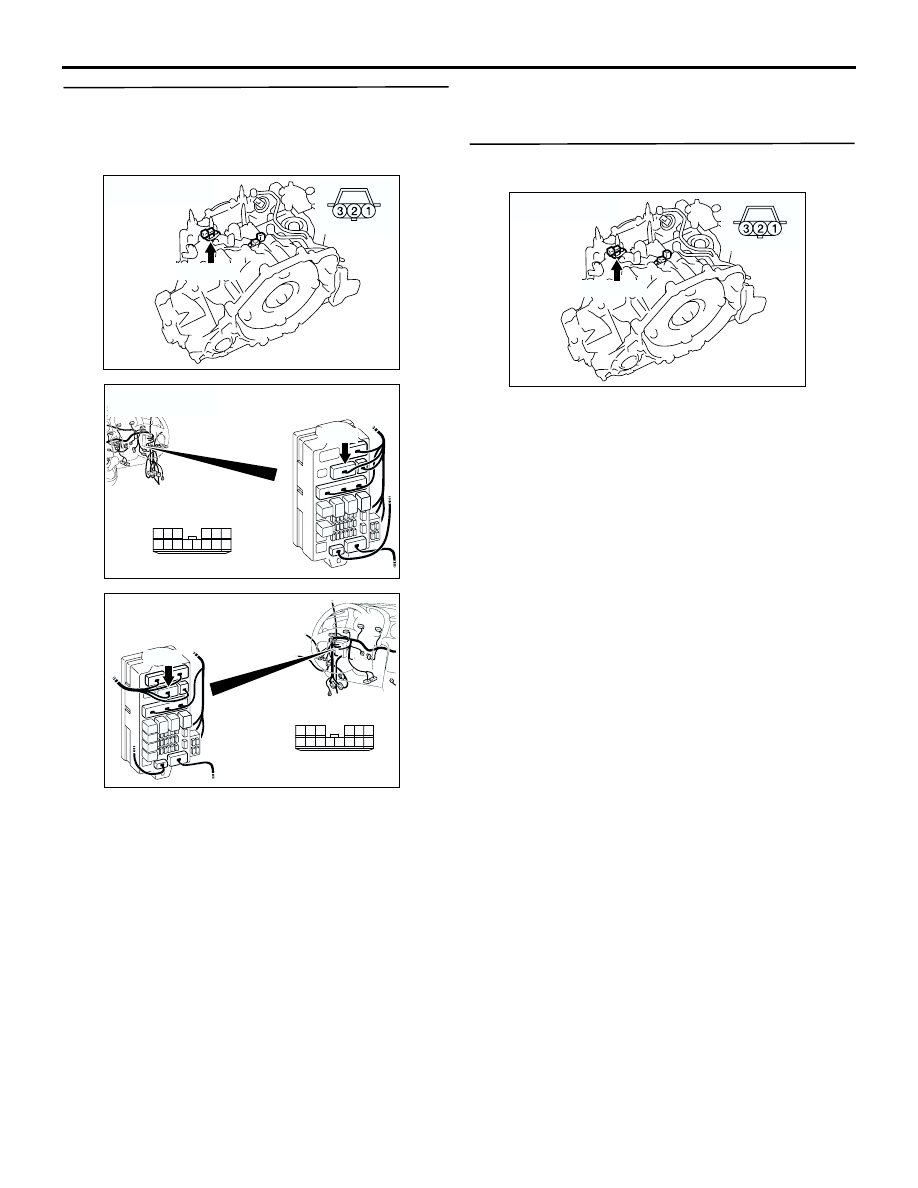

STEP 12. Measure the voltage at output shaft
speed sensor connector B-33.

(1) Disconnect the connector, and measure the

voltage between terminal 2 and earth at the
wiring harness side.

(2) Turn the ignition switch to the ON position.

OK: 4.5

 4.9 V

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Go to Step 13.

AC309512 AD

B-33 (GR)

Connector: B-33

Harness side

AC308772

C-202

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Connector: C-202
<RHD>

AL

AC308720

C-202

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AM

Connector: C-202
<LHD>

AC309512 AD

B-33 (GR)

Connector: B-33

Harness side

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-44

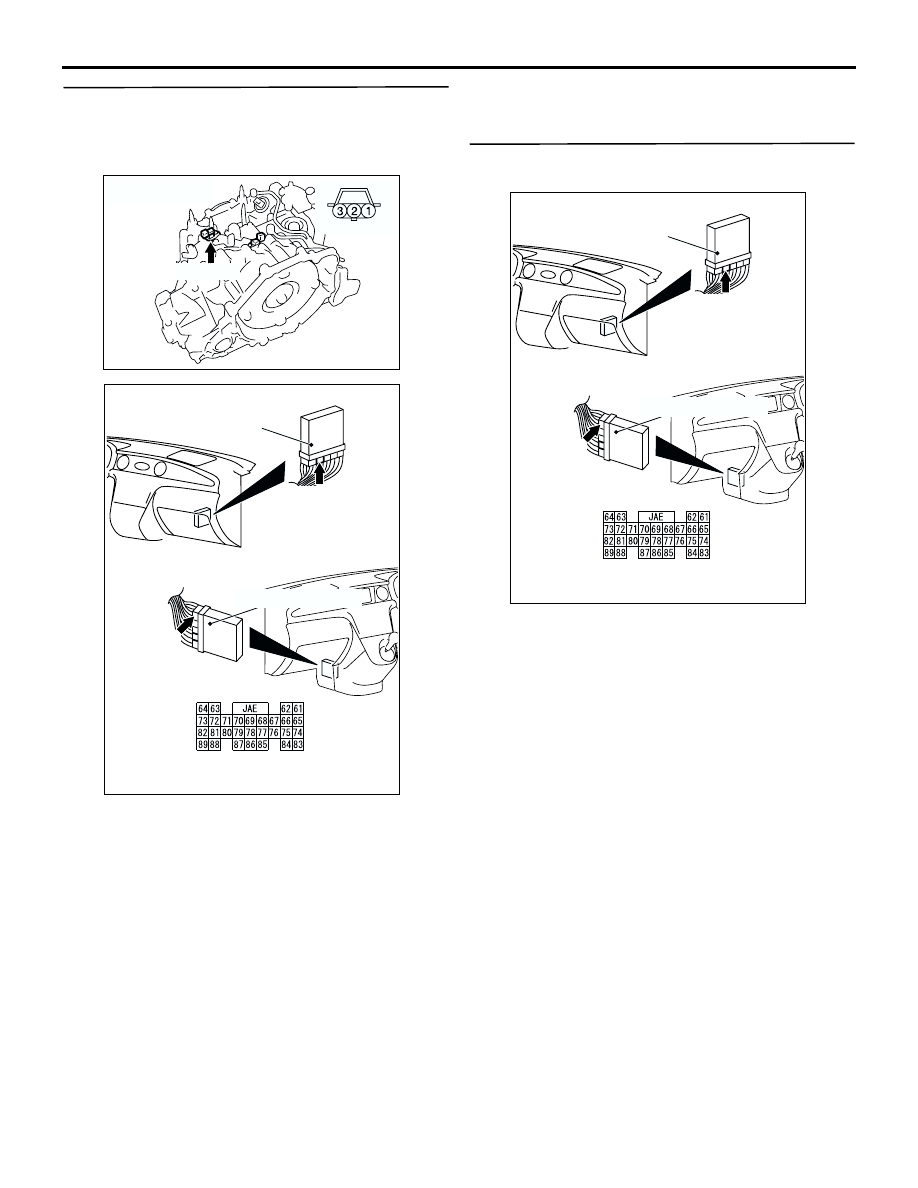

STEP 13. Measure the voltage at engine-A/T-ECU
connector C-141.
(1) Disconnect output shaft speed sensor connector

B-33.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between engine-A/T-ECU

connector C-141 terminal No.73 and earth.

OK: 4.5

 4.9 V

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Go to Step 14.

STEP 14. Connector check: C-141
engine-A/T-ECU connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the defective connector.

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-45

STEP 15. Check the harness between output
shaft speed sensor connector B-33 terminal No.2
and engine-A/T-ECU connector C-141 terminal
No.73.

Check the output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

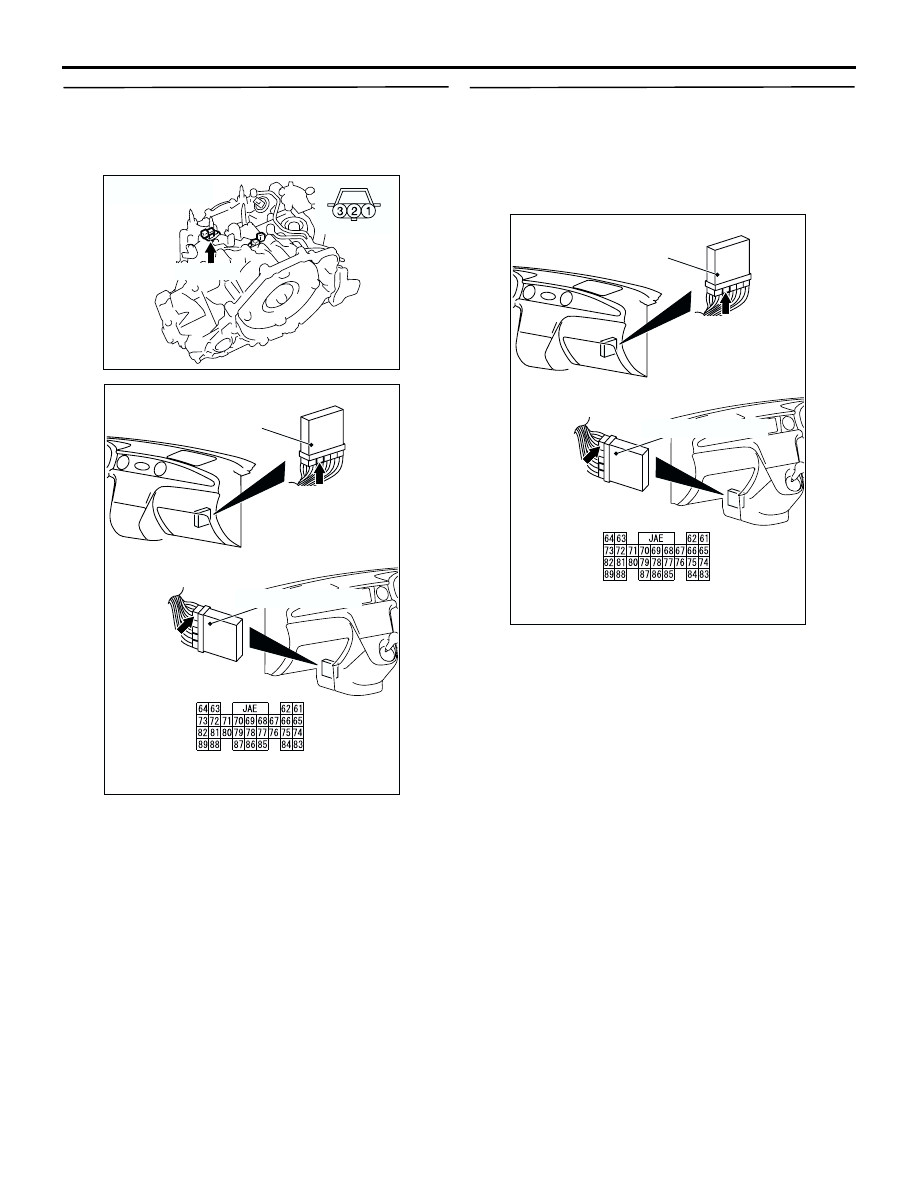

STEP 16. Connector check: C-141
engine-A/T-ECU connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

AC309512 AD

B-33 (GR)

Connector: B-33

Harness side

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-46

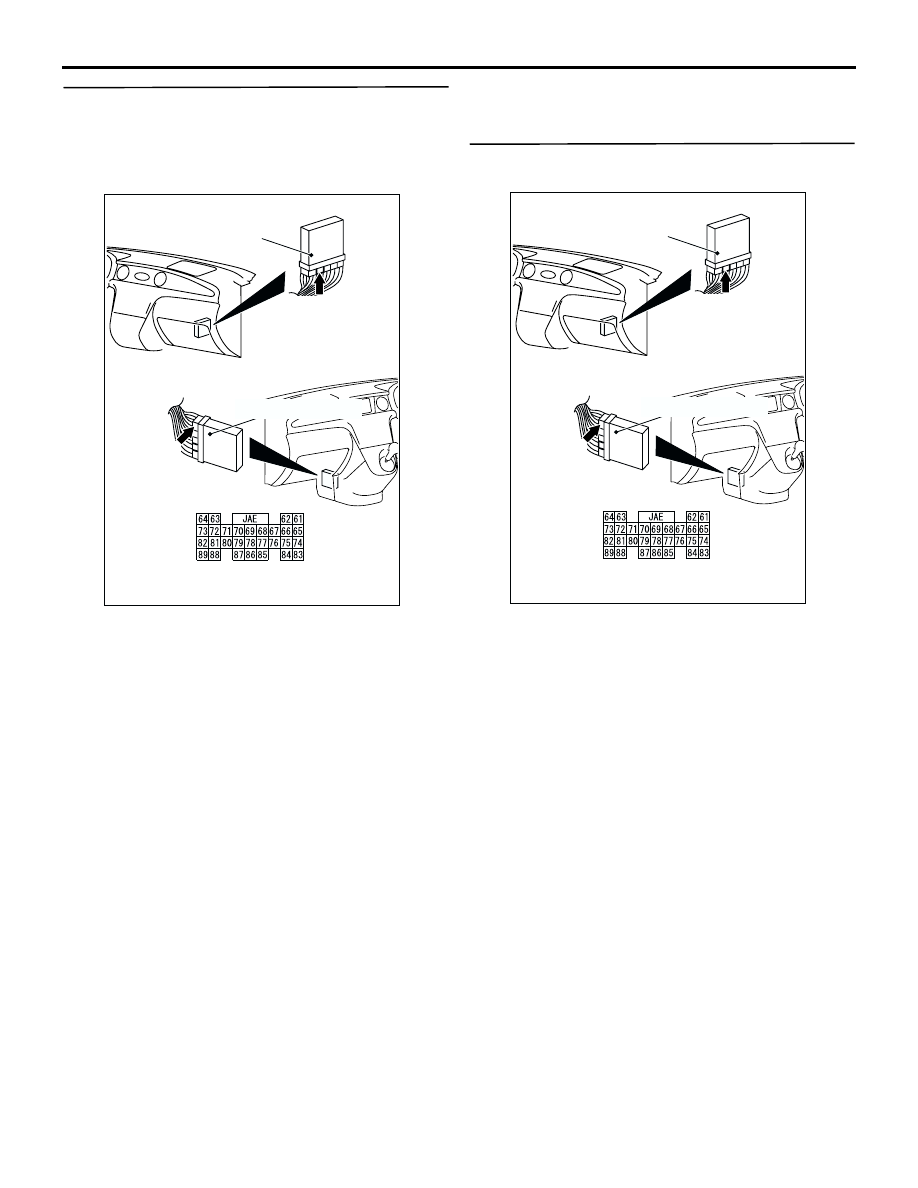

STEP 17. Check the harness between output
shaft speed sensor connector B-33 terminal No.2
and engine-A/T-ECU connector C-141 terminal
No.73.

Check the output line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

STEP 18. Measure the output wave pattern of the
output shaft speed sensor at engine-A/T-ECU
connector C-141 (using an oscilloscope).
(1) Shift the selector lever to the D range.
(2) Accelerate the vehicle to approximately 50 km/h

(shift range; 3rd.)

(3) Connect an oscilloscope, and measure the

voltage between engine-A/T-ECU connector
C-141 terminal No.73 and earth.

OK: A wave pattern such as the one
shown on

P.23A-139

 (Check Procedure

Using an Oscilloscope) should be output,
and the maximum value should be 4.8 V
or more and the minimum value should
be 0.8 V or less. There should be no noise
in the output wave pattern.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 19.

AC309512 AD

B-33 (GR)

Connector: B-33

Harness side

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)
