SERVICE SPECIFICATIONS

AUTOMATIC TRANSMISSION (FF)

23A-3

SERVICE SPECIFICATIONS

M1231000300393

LUBRICANTS

M1231000400453

Item

Standard value

A/T fluid temperature sensor resistance k

Ω

At 0

°

C

16.7

−

 20.5

At 20

°

C

7.3

−

 8.9

At 40

°

C

3.4

−

 4.2

At 60

°

C

1.9

−

 2.2

At 80

°

C

1.0

−

 1.2

At 100

°

C

0.57

−

 0.69

Damper clutch control (DCC) solenoid valve coil resistance (at 20

°

C)

Ω

2.7

−

 3.4

Low & reverse (LR) solenoid valve coil resistance (at 20

°

C)

Ω

2.7

−

 3.4

Second (2ND) solenoid valve coil resistance (at 20

°

C)

Ω

2.7

−

 3.4

Underdrive (UD) solenoid valve coil resistance (at 20

°

C)

Ω

2.7

−

 3.4

Overdrive (OD) solenoid valve coil resistance (at 20

°

C)

Ω

2.7

−

 3.4

Stall speed r/min

2,300

−

 2,800

Line pressure MPa

1,01

−

 1,05

Item

Specified lubricants

 Capacity L

A/T fluid

DIA QUEEN ATF SP III

8.1

Transfer oil

Hypoid gear oil API classification GL-5 SAE 90

0.55

SPECIAL TOOLS

AUTOMATIC TRANSMISSION (FF)

23A-4

SPECIAL TOOLS

M1231000600480

Tools

No.

Name

Application

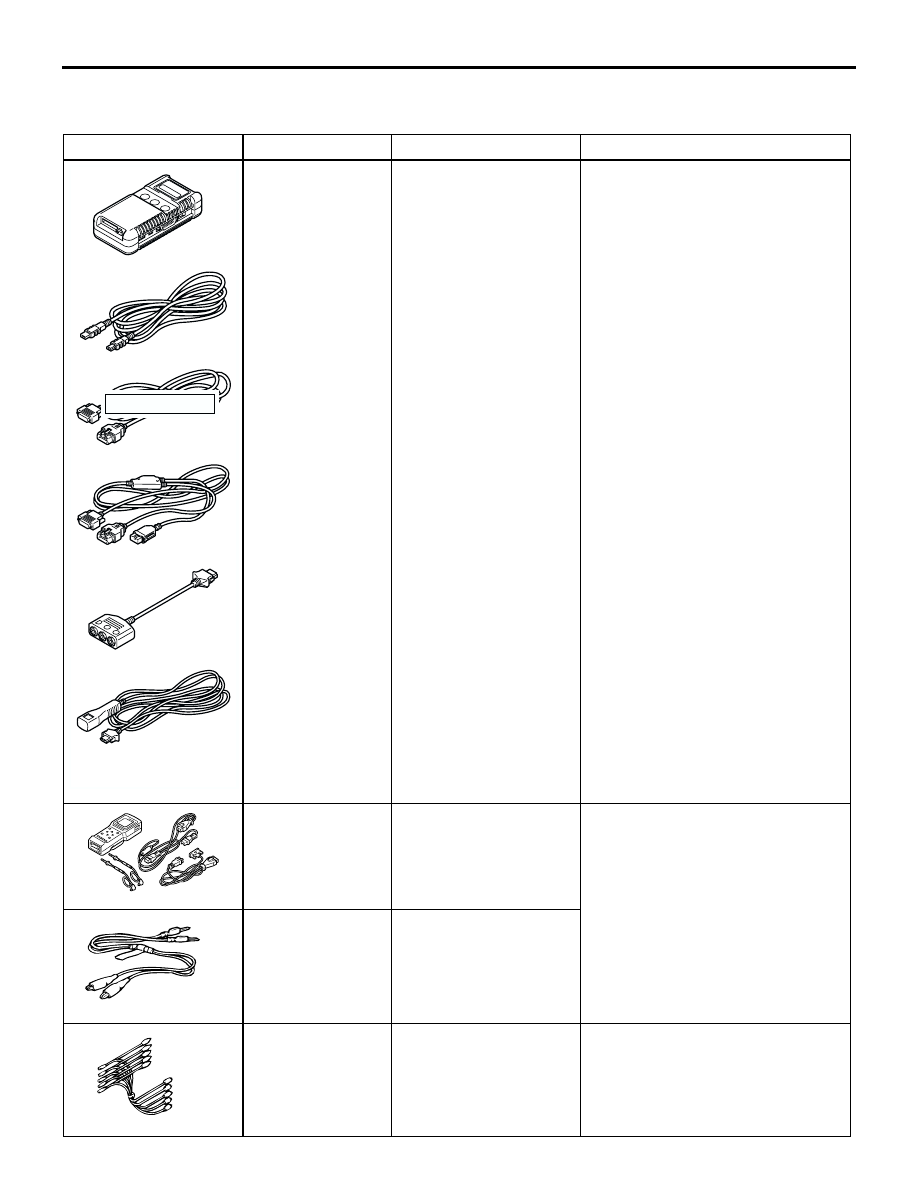

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

MUT-III sub-assembly

A: Vehicle

Communication
Interface (V. C. I.)

B: MUT-III USB cable
C: MUT-III main

harness A (Vehicles
with CAN
communication
system)

D: MUT-III main

harness B (Vehicles
without CAN
communication
system)

E: MUT-III

measurement
adapter

F: MUT-III trigger

harness

SWS communication line check
(ECU check and service data)

MB991502

MUT-II sub assembly

Diagnosis code checking

MB991529

Diagnosis code
checking harness

MD991658

Test harness

Voltage measurement

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USED

B991502

MB991529

MB991658

SPECIAL TOOLS

AUTOMATIC TRANSMISSION (FF)

23A-5

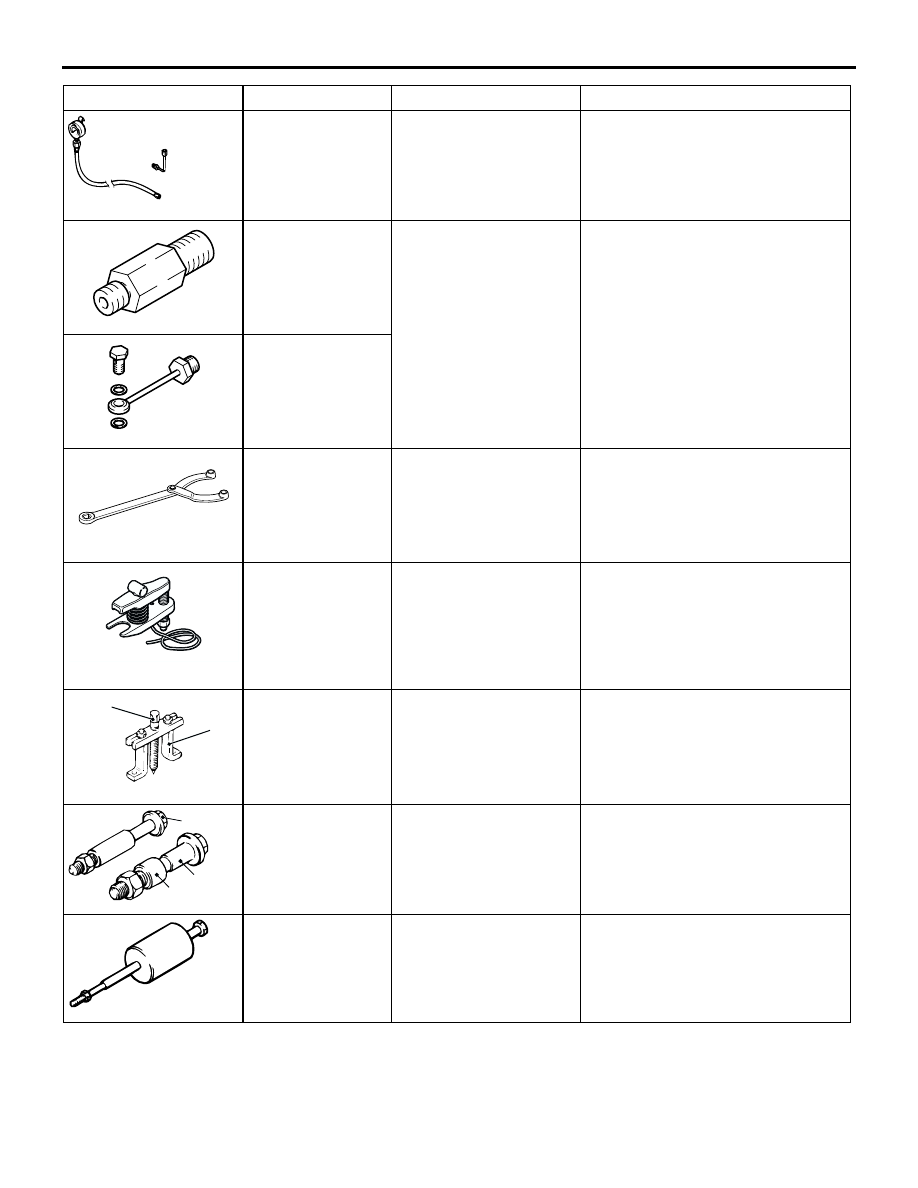

MD998330
(including
MD998331)

Oil pressure gauge (3.0
MPa)

Hydraulic pressure measurement

MD998332

Adapter

Oil pressure gauge connection

MD998900

MB990767

End yoke holder

Fixing of the hub

MB991897

Ball joint remover

Knuckle and tie rod end ball joint
disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113)is also
used to disconnect knuckle and tie
rod end ball joint.

MB990241

A:MB990242
B:MB990244

Axle shaft puller

A: Puller shaft
B: Puller bar

•

Drive shaft removal

•

Hub assembly removal

A:MB991017
B:MB990998
C:MB991000

A, B: Front hub remover

and installer

C: Spacer

Wheel bearing temporarily fixing
NOTE: Use MB991000 (a part of
MB990998) for spacer

MB991721

Sliding hammer

Output shaft removal

Tools

No.

Name

Application

AC103525

B990767

AC106827

MB990241AB

A

B

A

B

C

MB991017

SPECIAL TOOLS

AUTOMATIC TRANSMISSION (FF)

23A-6

MB991454

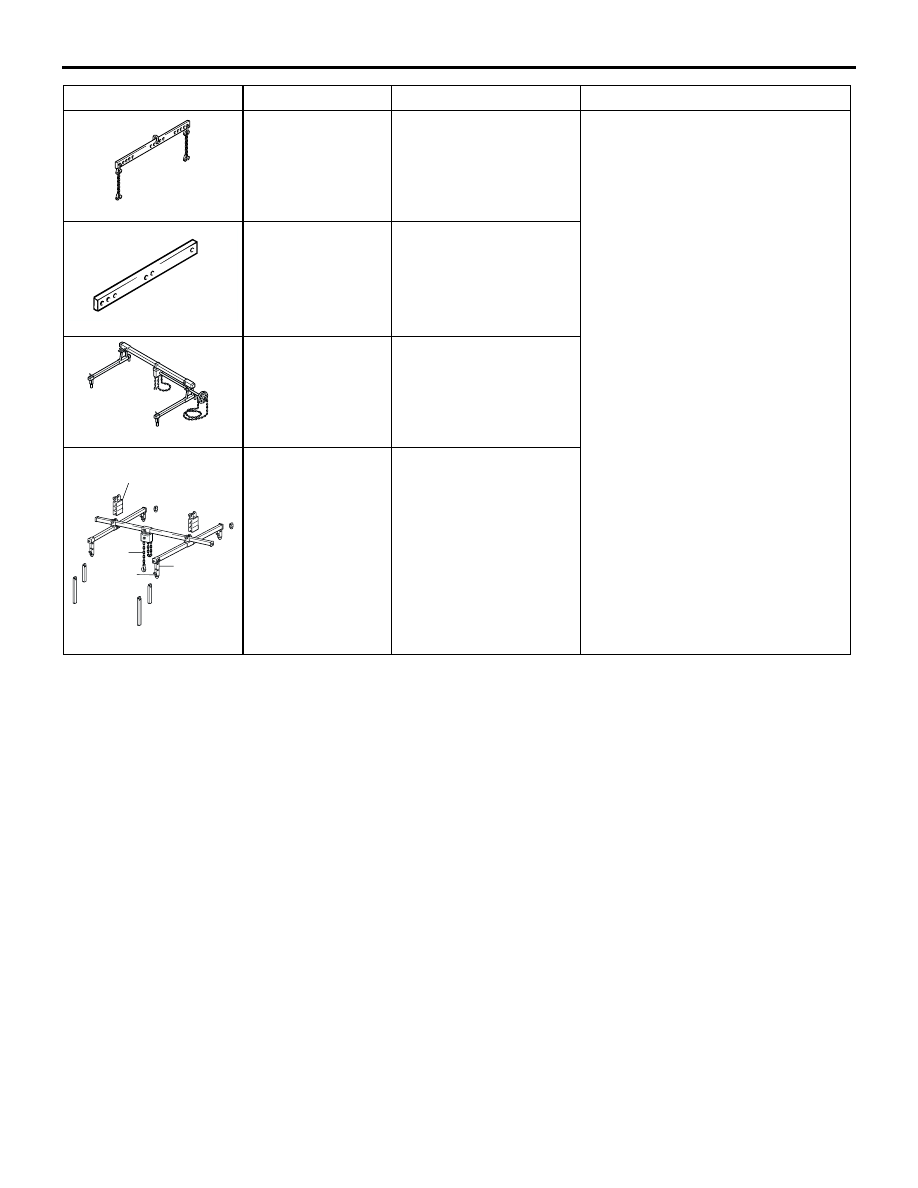

Engine hanger balancer When the engine hanger is used:

Supporting the engine assembly
during removal and installation of
the transmission assembly
NOTE: Special tool MB991454 is a
part of engine hanger attachment
set MB991453.

MB991527

Hanger

MB991895

Engine hanger

MB991928

A: MB991929
B: MB991930
C: MB991931
D: MB991932
E: MB991933
F: MB991934

Engine hanger

A: Joint (50)

×

 2

B: Joint (90)

×

 2

C: Joint (140)

×

 2

D: Foot (standard)

×

 4

E: Foot (short)

×

 2

F: Chain and hook

assembly

Tools

No.

Name

Application

B991454

B991527

Z203830

B991928

A

B

C

D

E

F

Slide bracket (HI)
