The clutch is a dry single-disc, diaphragm type;
hydraulic pressure is used for the clutch control. The
clutch shares a brake fluid reservoir with the brake
system.

SERVICE SPECIFICATIONS

M1211000300197

LUBRICANTS

M1211000400150

Item

Standard value

Clutch pedal height mm

208.4

Clutch pedal clevis pin play mm

−

Clutch pedal free play mm

−

Distance between the clutch pedal and the clutch pedal
stopper when the clutch pedal is released mm

105 or more

Item

Specified lubricant

Quantity

Clutch fluid

Brake Fluid DOT 3 or DOT 4

As required

Pushrod assembly

Rubber grease

As required

Boot

Rubber grease

As required

Release cylinder push rod

MITSUBISHI genuine grease Part
No.0101011

As required

ON-VEHICLE SERVICE

CLUTCH

21A-3

ON-VEHICLE SERVICE

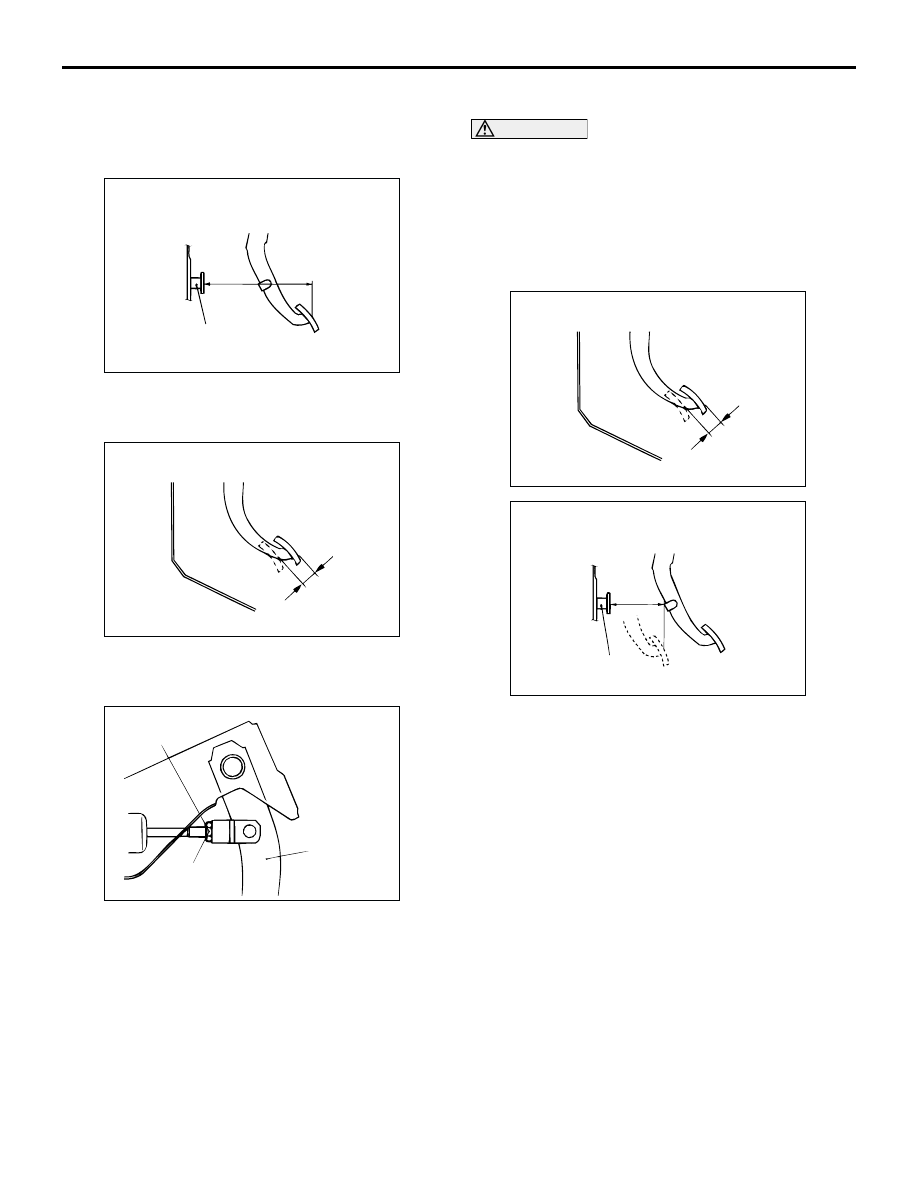

CLUTCH PEDAL CHECK AND
ADJUSTMENT

M1211000900218

1. Measure the clutch pedal height.

Standard value (A): 208.4

2 mm

2. Measure the clutch pedal clevis pin play.

Standard value (B): 1

−

3 mm

CAUTION

Do not push in the master cylinder pushrod at
this time, otherwise the clutch will not operate
properly.
3. If the clutch pedal height and clutch pedal clevis

pin play are not within the standard value, loosen
the setting nut to adjust the clutch pedal height
and clevis pin play to the standard value.

4. After completing the adjustments, confirm that the

clutch pedal free play (measured at the face of the
pedal pad) and the distance between the clutch
pedal (the face of the pedal pad) and the clutch
pedal stopper when the clutch is disengaged are
within the standard value ranges.

Standard value (C): 4

−

13 mm

Standard value (D): 105 mm or more

5. If the clutch pedal free play and the distance

between the clutch pedal and the clutch pedal
stopper when the clutch is disengaged do not
agree with the standard values, it is probably the
result of either air in the hydraulic system or a
faulty master cylinder, release cylinder or clutch.
Bleed the air, or disassemble and inspect the
master cylinder, release cylinder or clutch.

AC100354

Clutch pedal height

Clutch pedal stopper

AC100355 AB

Clutch pedal clevis pin play

AC100356

Setting nut

Clutch pedal

13 ± 2 N·m

AC100355 AC

Clutch pedal free play

AC100357

Clutch pedal
stopper

Distance between the clutch pedal and the
clutch pedal stopper when the clutch is dis-
engaged

ON-VEHICLE SERVICE

CLUTCH

21A-4

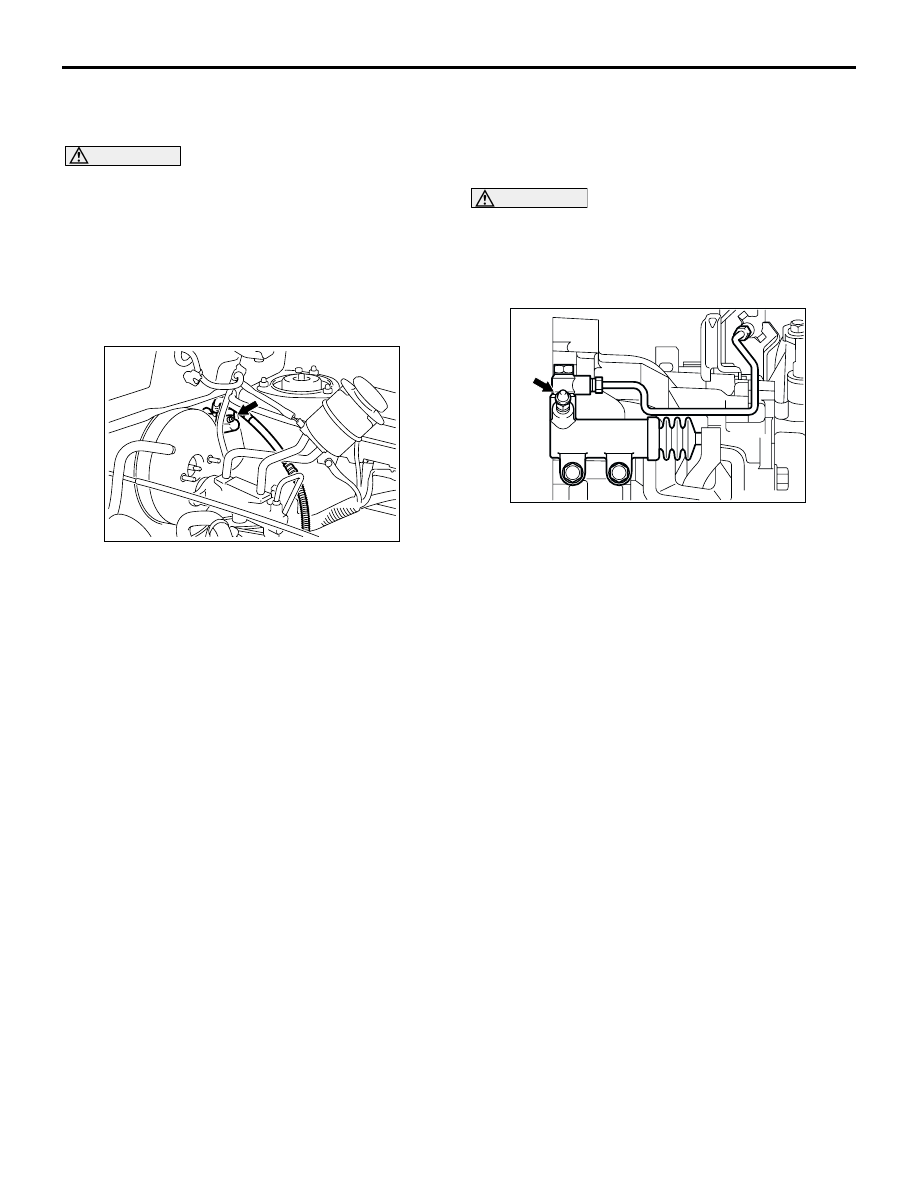

CLUTCH BLEEDING

M1211001400164

Clutch master cylinder bleeding

CAUTION

Use the specified brake fluid. Do not mix brake
fluids.

Specified fluid: Brake fluid DOT 3 or DOT 4

1. Disconnect the brake tube clamp and remove the

brake master cylinder with the brake tubes
connected.

2. Remove the brake fluid reservoir with the hoses

connected.

3. Connect a hose with a bottle to the bleeder screw.
4. Open the bleed nipple.
5. Depress the clutch pedal slowly. Open the bleeder

screw to let air and brake fluid out. Close the
bleeder screw. Release the clutch pedal. Repeat
until only brake fluid and no air comes out.

6. Check that the brake fluid reservoir level stays

between "MAX" and "MIN" marks throughout the
clutch bleeding process.

Clutch release cylinder bleeding

CAUTION

Use the specified brake fluid. Do not mix brake
fluids.

Specified fluid: Brake fluid DOT 3 or DOT 4

1. Remove the under cover.

2. Connect a hose with a bottle to the bleeder screw.
3. Open the bleed nipple.
4. Depress the clutch pedal slowly. Open the bleeder

screw to let air and brake fluid out. Close the
bleeder screw. Release the clutch pedal. Repeat
until only brake fluid and no air comes out.

5. Check that the brake fluid reservoir level stays

between "MAX" and "MIN" marks throughout the
clutch bleeding process.

AC301530

AC301000AB
