Mitsubishi Outlander (2003+). Manual - part 11





CAMSHAFT AND VALVE STEM SEAL

ENGINE MECHANICAL

11A-21

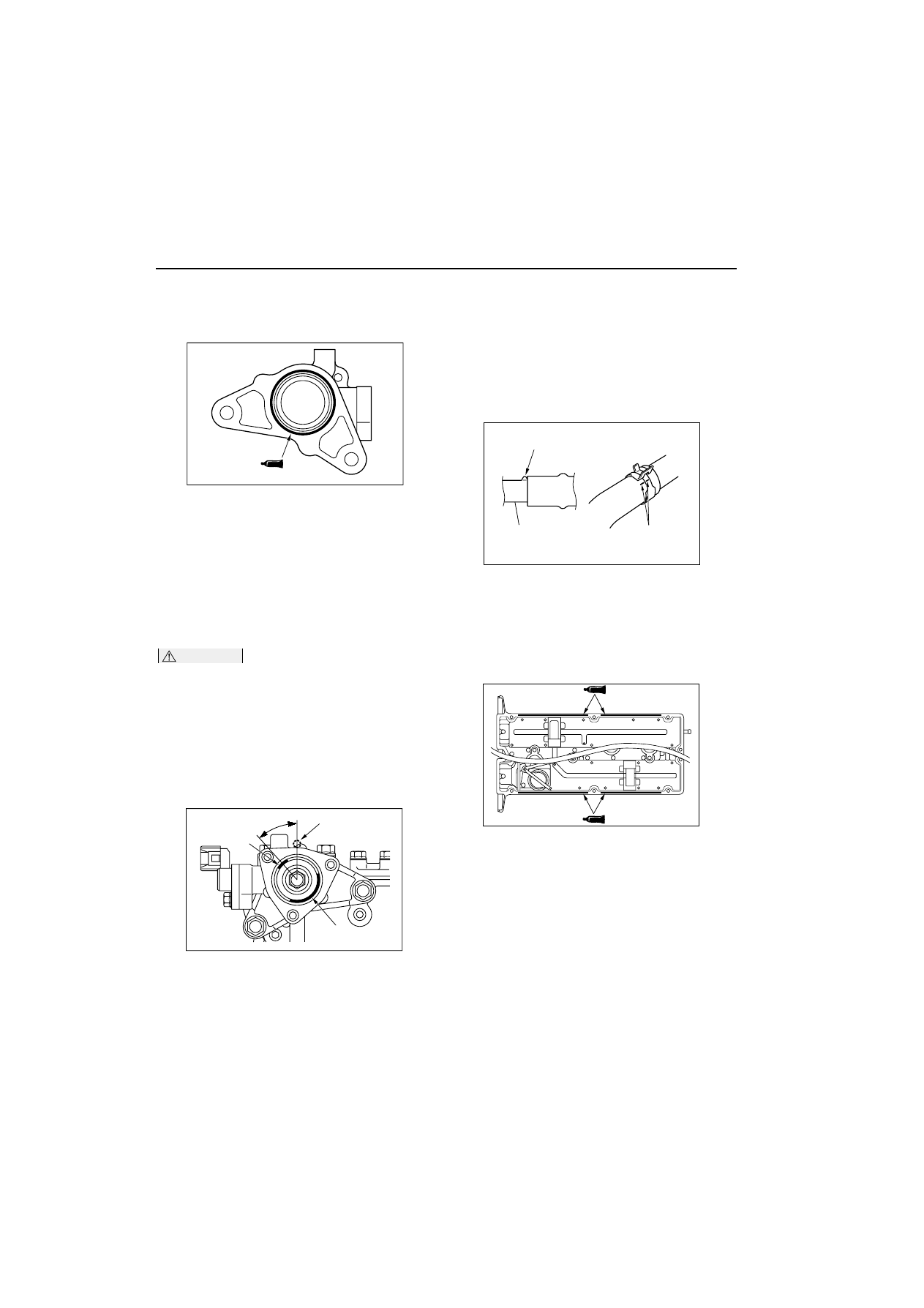

>>I<< CAMSHAFT POSITION SENSOR SUPPORT
INSTALLATION
1. Remove sealant from the camshaft position

sensor support and cylinder head surfaces.

2. Apply the sealant to the camshaft position sensor

support flange in a continuous bead as shown in
the illustration.

Specified sealant: MITSUBISHI GENUINE
PART MD970389 or equivalent

NOTE: Install the camshaft position sensor
support within 15 minutes after applying liquid
gasket.

3. Install the camshaft position sensor support to the

cylinder head.

CAUTION

Then wait at least one hour. Never start the
engine or let engine oil or coolant touch the
adhesion surface during that time.

4. Tighten the camshaft position sensor support

mounting bolts to the specified torque.

Tightening torque: 14

–

 1 N

¼

m

>>J<< CAMSHAFT POSITION SENSING
CYLINDER INSTALLATION

1. Set the dowel pin of the exhaust camshaft to the

position (No.1 cylinder at compression TDC) as
shown in the illustration.

NOTE: Use the force of the exhaust valve spring
to rotate anti-clockwise.

2. Install the vane (small) of the camshaft position

sensing cylinder at an angle of approximately 45
degrees to the position of the dowel pin of the
exhaust camshaft.

3. Tighten the camshaft position sensing cylinder

mounting bolts to the specified torque.

Tightening torque: 22

–

 4 N

¼

m

>>K<< RADIATOR UPPER HOSE CONNECTION

1. Insert each hose as far as the projection of the

water outlet fitting.

2. Align the mating marks on the radiator hose and

hose clamp, and then connect the radiator hose.

>>L<< ROCKER COVER GASKET INSTALLATION
1. Remove sealant remained on the rocker cover.

2. Apply sealant to the positions (4 areas) of the

lower side of the rocker cover as shown in the
illustration.

Specified sealant: MITSUBISHI GENUINE
PART MD970389 or equivalent

NOTE: Install the rocker cover gasket within 15
minutes after applying liquid gasket.

3. Install the rocker cover gasket to the rocker cover.

AC201463

φ

3 mm

AB

AC201464AB

Dowel pin

Vane (large)

Vane (small)

Approximately 45˚

AC200642

Mating marks

Projection

Water outlet fitting

AE

AC201465AB

CAMSHAFT AND VALVE STEM SEAL

ENGINE MECHANICAL

11A-22

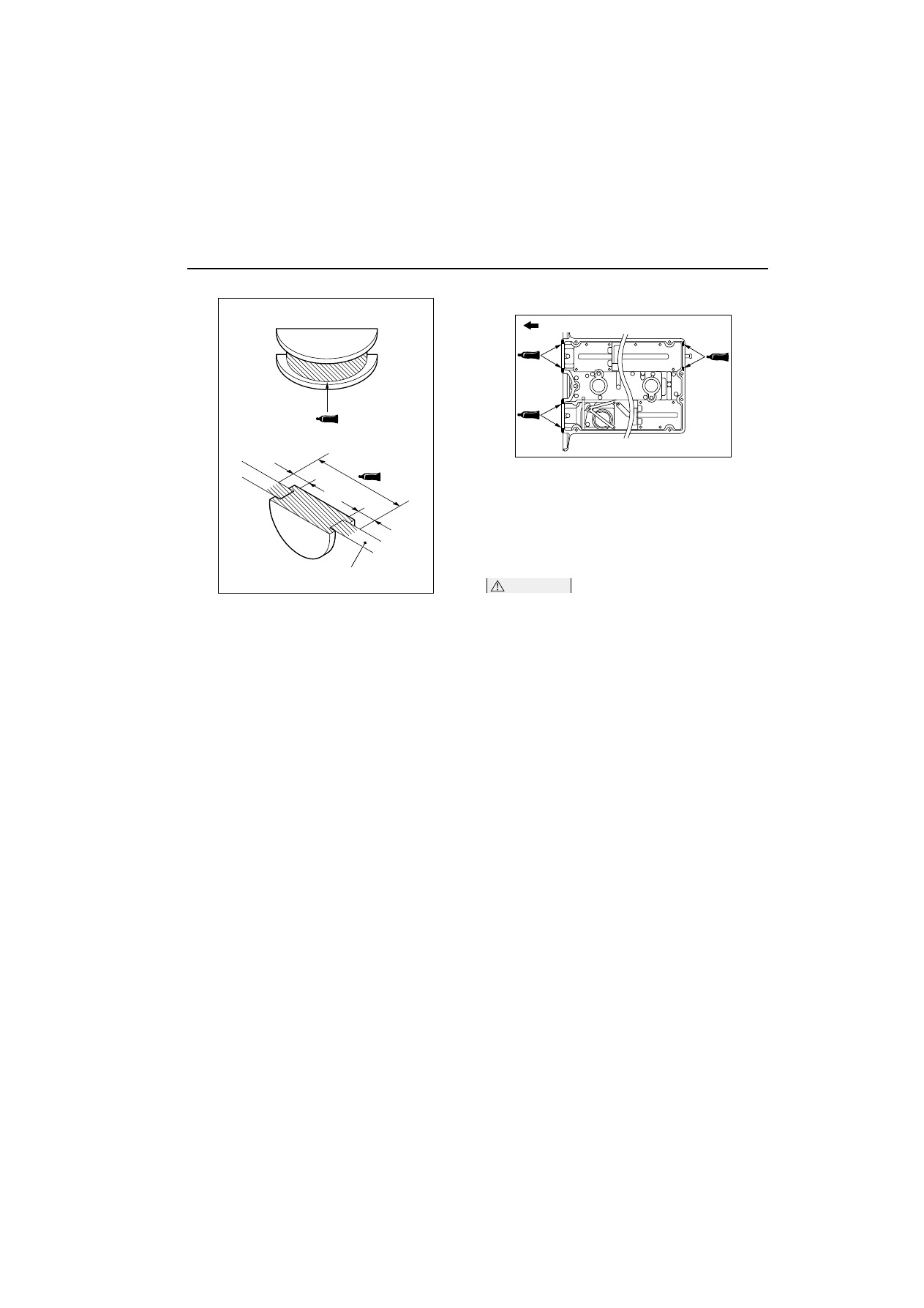

>>M<< CAMSHAFT END SEAL INSTALLATION

Apply sealant to the positions of the camshaft end
seal as shown in the illustration and install to the
cylinder head.

Specified sealant: 3M ATD Part No.8660 or
equivalent

NOTE: Install the camshaft end seal within 15
minutes after applying liquid gasket.

>>N<< ROCKER COVER INSTALLATION

1. Apply sealant to the positions of the rocker cover

gasket (6 areas) as shown in the illustration.

Specified sealant: MITSUBISHI GENUINE
PART MD970389 or equivalent

NOTE: Install the rocker cover within 15 minutes
after applying liquid gasket.

2. Install the rocker cover to the cylinder head.

CAUTION

Then wait at least one hour. Never start the
engine or let engine oil or coolant touch the
adhesion surface during that time.

3. Tighten the rocker cover mounting bolts to the

specified torque.

Tightening torque: 3.5

–

 0.5 N

¼

m

AC201468

Cylinder head

10 mm

10 mm

AB

AC201469

Engine front

AB

OIL PAN

ENGINE MECHANICAL

11A-23

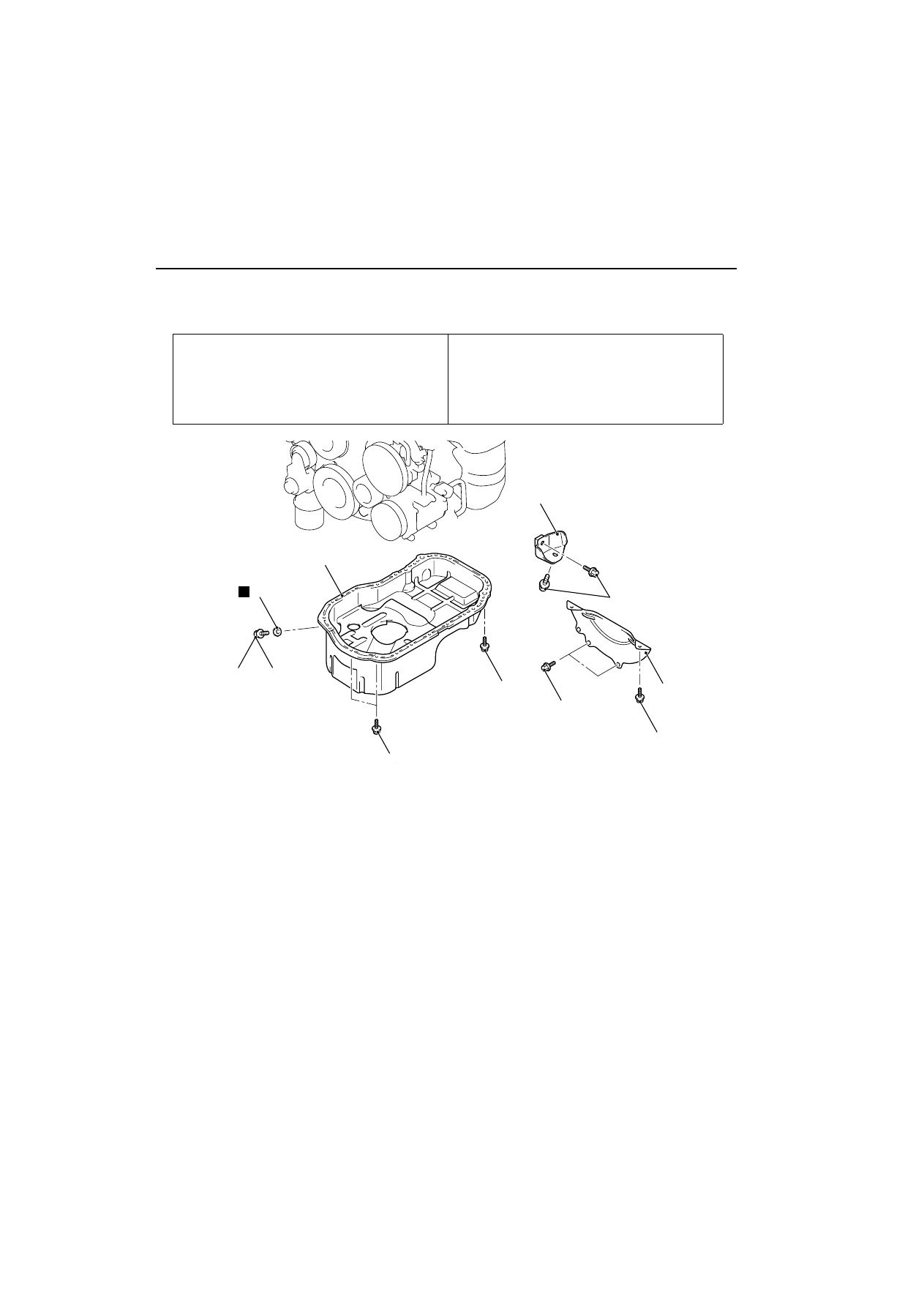

OIL PAN

REMOVAL AND INSTALLATION <2WD>

M1112002800592

Pre-removal Operation

œ

Under Cover Removal (Refer to GROUP 51, Under Cover

3

51



).

œ

Engine Oil Draining (Refer to GROUP 12, On-vehicle
Service

-

 Engine Oil Replacement

3

12



).

œ

Front Exhaust Pipe Removal (Refer to GROUP 15,
Exhaust Pipe and Main Muffler

3

15



).

Post-installation Operation

œ

Front Exhaust Pipe Installation (Refer to GROUP 15,
Exhaust Pipe and Main Muffler

3

15



).

œ

Engine Oil Refilling (Refer to GROUP 12, On-vehicle
Service

-

 Engine Oil Replacement

3

12



).

œ

Under Cover Installation (Refer to GROUP 51, Under
Cover

3

51



).

AC300542

N

9.0 ± 3.0 N·m

26 ± 5 N·m

9.0 ± 1.0 N·m

39 ± 5 N·m

3

4

5

2

AB

1

35 ± 6 N·m

9.0 ± 3.0 N·m

Removal steps

1.

Exhaust manifold bracket

2.

Flywheel housing front lower cover

3.

Engine oil pan drain plug

>>B<<

4.

Engine oil pan drain plug gasket

<<A>> >>A<<

5.

Engine oil pan

Removal steps

 &RQWLQXHG

OIL PAN

ENGINE MECHANICAL

11A-24

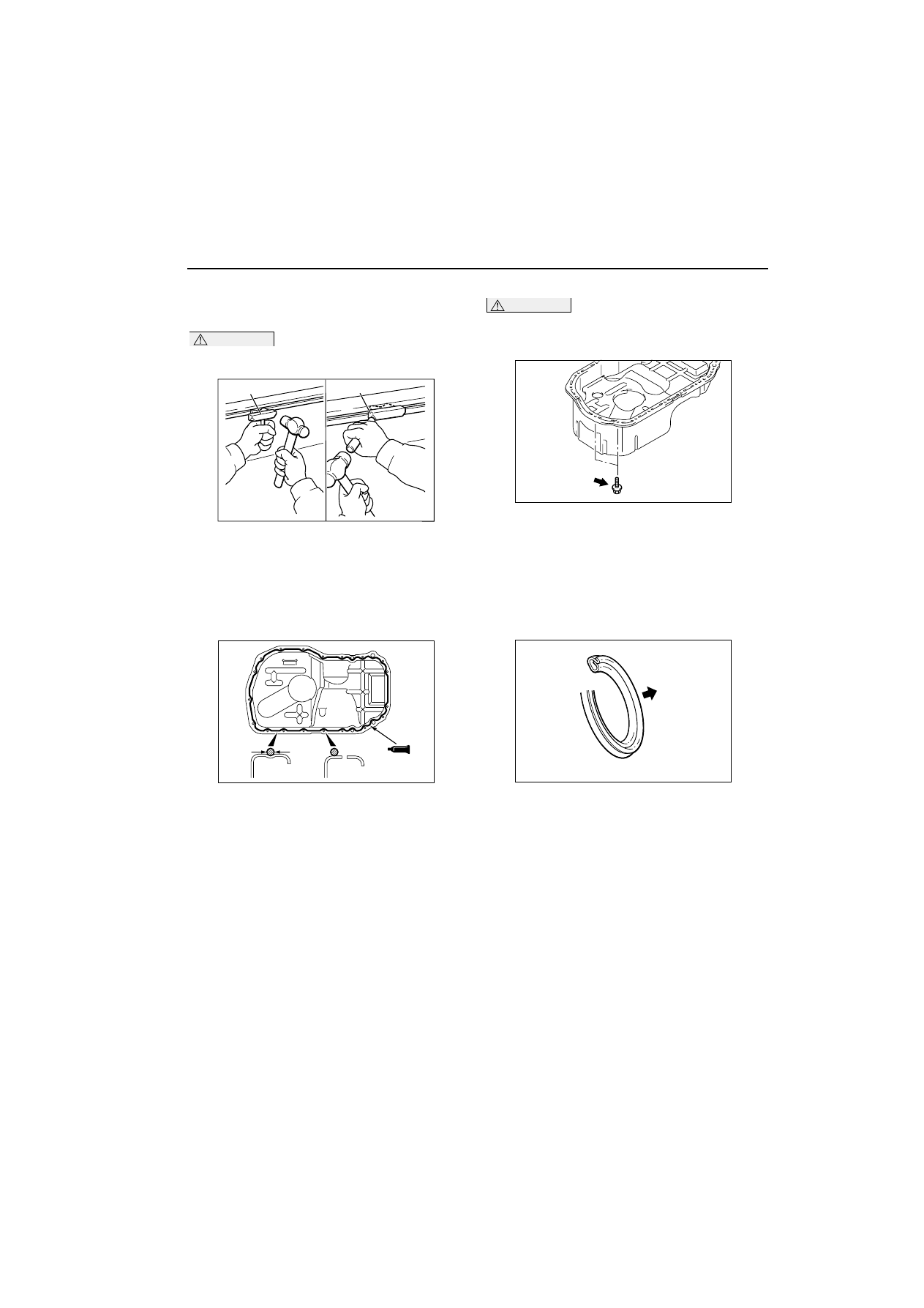

REMOVAL SERVICE POINT

<<A>> ENGINE OIL PAN REMOVAL
1. Remove the engine oil pan mounting bolts.

CAUTION

Perform this slowly to avoid deformation of the
engine oil pan flange.

2. Remove the engine oil pan using special tool oil

pan remover (MD998727).

INSTALLATION SERVICE POINTS

>>A<< ENGINE OIL PAN INSTALLATION
1. Remove sealant from the engine oil pan and

cylinder block surfaces.

2. Apply a bead of the sealant to the cylinder block

mating surface of the engine oil pan as shown.

Specified sealant: MITSUBISHI GENUINE
PART MD970389 or equivalent

NOTE: Install the engine oil pan within 15 minutes
after applying sealant.

3. Assemble the engine oil pan to the cylinder block.

CAUTION

Then wait at least one hour. Never start the
engine or let engine oil or coolant touch the
sealant surface during that time.

4. Tighten the engine oil pan mounting bolts to the

specified torque. Be careful when installing, as the
oil pan mounting bolts (indicated in the illustration)
have different lengths from the other bolts.

Tightening torque: 9.0

–

 3.0 N

¼

m

>>B<< ENGINE OIL PAN DRAIN PLUG GASKET
INSTALLATION

Replace the gasket with a new gasket. Install the
new gasket in the direction shown in the illustration.

AC102324 AB

MD998727

MD998727

AC102133AB

Groove portion

φ

4 mm

Bolt hole portion

AC102698

M6

×

8 mm

AB

AC102325 AE

Engine
oil pan
side
