ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-49

STEP 10. Check the harness wire between ABS relay
connector A-35 (terminal No. 3) and combination meter
connector C-05 (terminal No.10).

Q: Is the harness wire between ABS relay connector A-35

(terminal No. 3) and combination meter connector C-05
(terminal No.10) damaged?
YES : Repair it and then go to Step 15.
NO :  Go to Step 15.

STEP 11. Check ABS relay connector A-35 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Are the connector and terminals in good condition?

YES : Go to Step 12.
NO :  Repair or replace it. Then go to Step 15.

AC201944

CONNECTOR : A-35

A-35(B)

A-35 HARNESS
CONNECTOR:
COMPONENT SIDE

AC

1

3

2

4

AC201948

CONNECTOR : C-05

AC

3 2 1

4

5

7 6

8

9

11

12

10

13

14

C-05 HARNESS CONNECTOR:
COMPONENT SIDE

C-05

AC201944

CONNECTOR : A-35

A-35(B)

A-35 HARNESS
CONNECTOR:
COMPONENT SIDE

AC

1

3

2

4

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-50

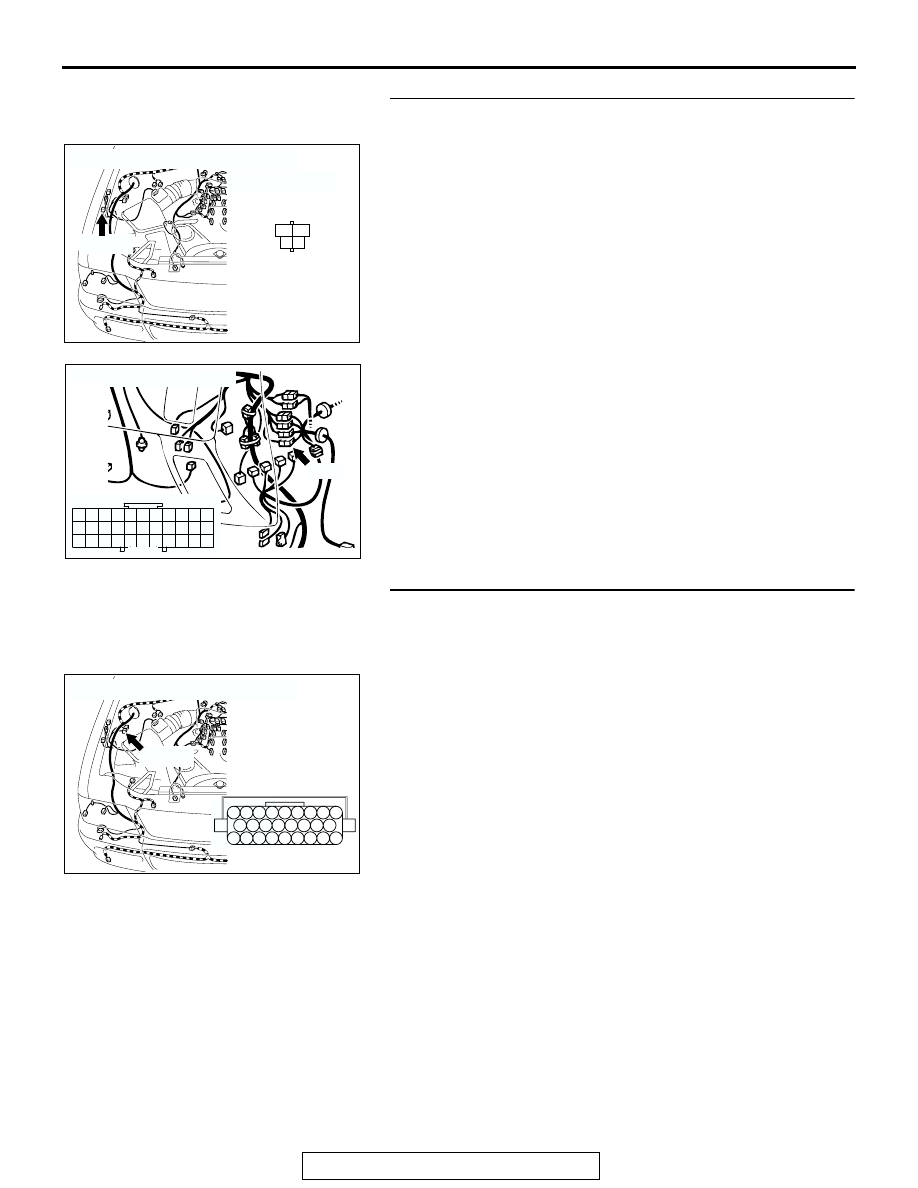

STEP 12. Check the harness wire between ABS relay
connector A-35 (terminal No.4) and ground.

NOTE: After inspecting joint connector C-14, inspect the wire. If
joint connector C-14 is damaged, repair or replace it. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-2

. If the

connector has been repaired or replaced, go to Step 15.
Q: Is the harness wire between ABS relay connector A-35

(terminal No.4) and ground damaged?
YES : Repair it and then go to Step 15.
NO :  Go to Step 13.

STEP 13. Check ABS-ECU connector A-85 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Are the connector and terminals in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Then go to Step 15.

AC201944

CONNECTOR : A-35

A-35(B)

A-35 HARNESS
CONNECTOR:
COMPONENT SIDE

AC

1

3

2

4

AC202713

9 10

8

6 7

31 32

30

29

21

20

19

18

5

4

2

1

3

27

26

24

23

25

16

15

14

13

12

28

17

33

22

11

CONNECTOR: C-14

AB

C-14

AC201944

CONNECTOR : A-85

A-85(B)

A-85 HARNESS
CONNECTOR:
COMPONENT SIDE

AD

18

12 11

20 19

10

3 2 1

13

14

22

23

17 16

25 24

15

8 7 6 5 4

21

9

26

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-51

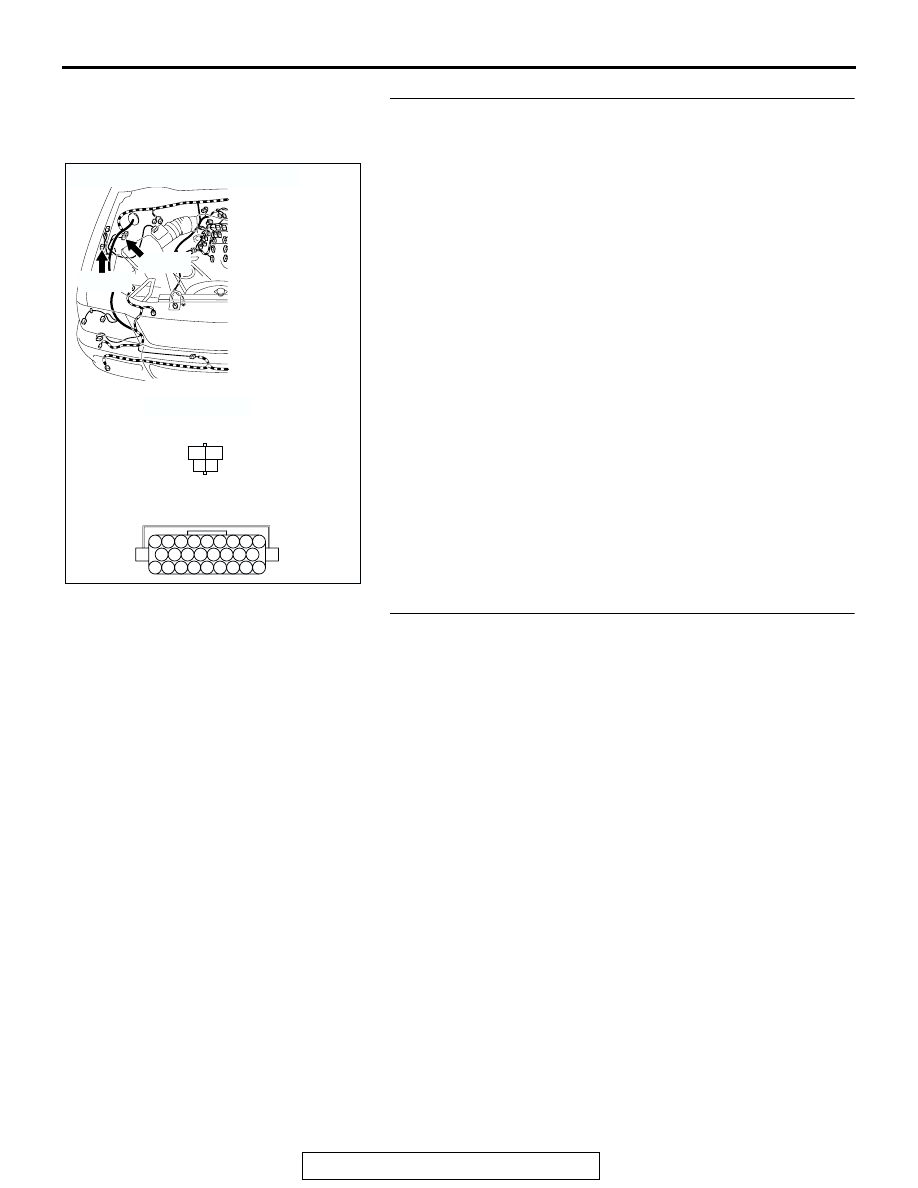

STEP 14. Check the harness wire between ABS relay
connector A-35 (terminal No.1) and ABS-ECU connector
A-85 (terminal No.16).

Q: Is the harness wire between ABS relay connector A-35

(terminal No.1) and ABS-ECU connector A-85 (terminal
No.16) damaged?
YES : Repair it and then go to Step 15.
NO :  Go to Step 15.

STEP 15. Retest the system.
Q: Does the ABS warning light illuminate for 3 seconds

when the ignition switch is turned to the "ON" position
with engine stopped or upon start-up?
YES : The procedure is complete.
NO :  Return to Step 1.

AC201955

A-85(B)

A-35(B)

CONNECTORS :A-35, A-85

AC

A-85 HARNESS CONNECTOR:
COMPONENT SIDE

18

12 11

20 19

10

3 2 1

13

14

22

23

17 16

25 24

15

8 7 6 5 4

21

9

26

A-35 HARNESS CONNECTOR:
COMPONENT SIDE

1

3

2

4

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-52

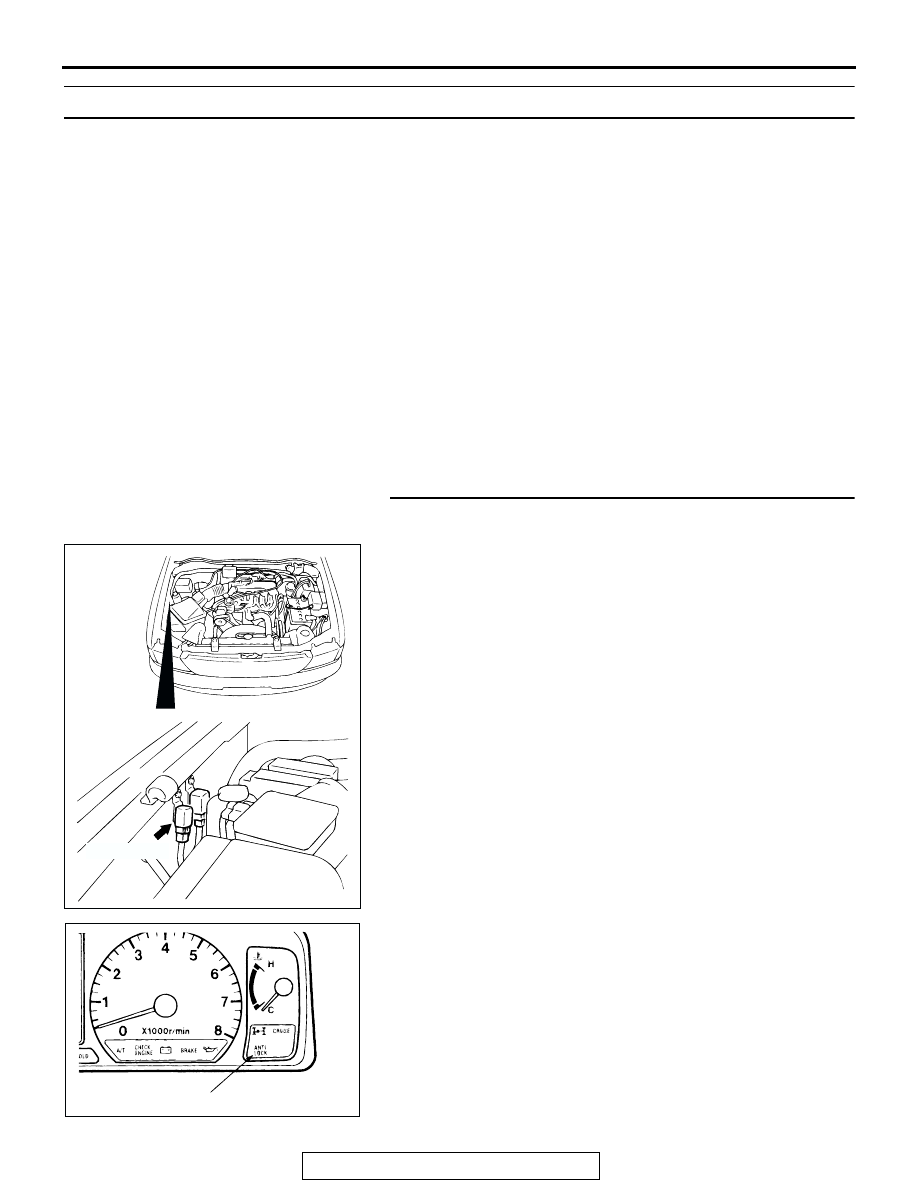

INSPECTION PROCEDURE 3: The ABS Warning Light Remains Illuminated after the Engine is Started.

NOTE: This diagnosis procedure is limited to cases where communication with the scan tool is possible
(ABS-ECU power supply is normal) and no diagnostic trouble code outputs.

.

ABS Warning Light Circuit
Refer to

P.35B-43

.

.

CIRCUIT OPERATION
Refer to

P.35B-43

.

.

TECHNICAL DESCRIPTION (COMMENT)
The cause is probably the ABS-ECU, ABS relay and
hydraulic unit malfunction.

.

TROUBLESHOOTING HINTS (The most likely
causes for this condition:)

• Damaged wiring harness

• Malfunction of hydraulic unit (integrated with

ABS-ECU)

• Malfunction of ABS relay

.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

.

STEP 1. Check the ABS warning light circuit at ABS relay
connector A-35.

(1) Remove the ABS relay.
(2) Turn the ignition switch to the "ON" position.
Q: Is the ABS warning light illuminate?

YES : Go to Step 2.
NO :  Go to Step 4.

AC309441AB

ABS RELAY

AC004503 AC

ABS WARNING LIGHT
