GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

NOTES

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

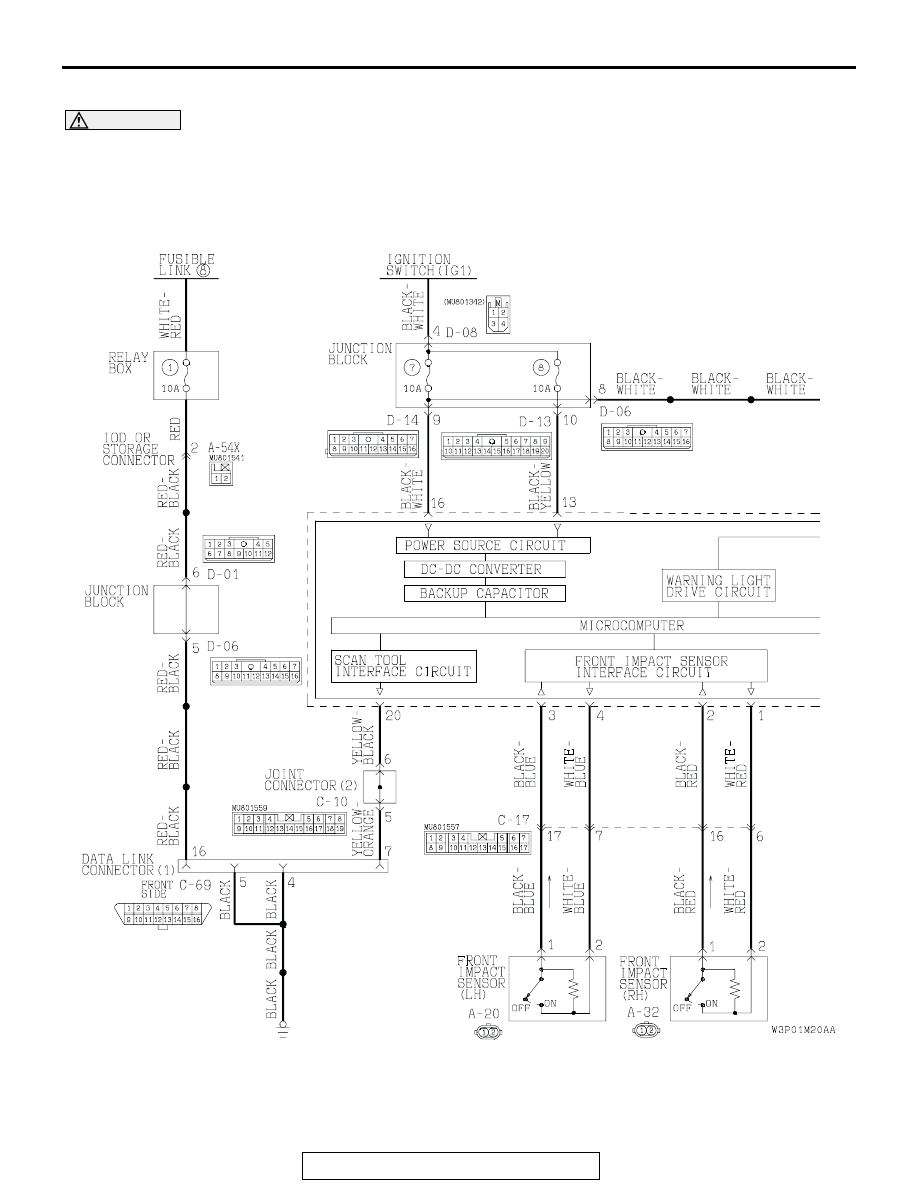

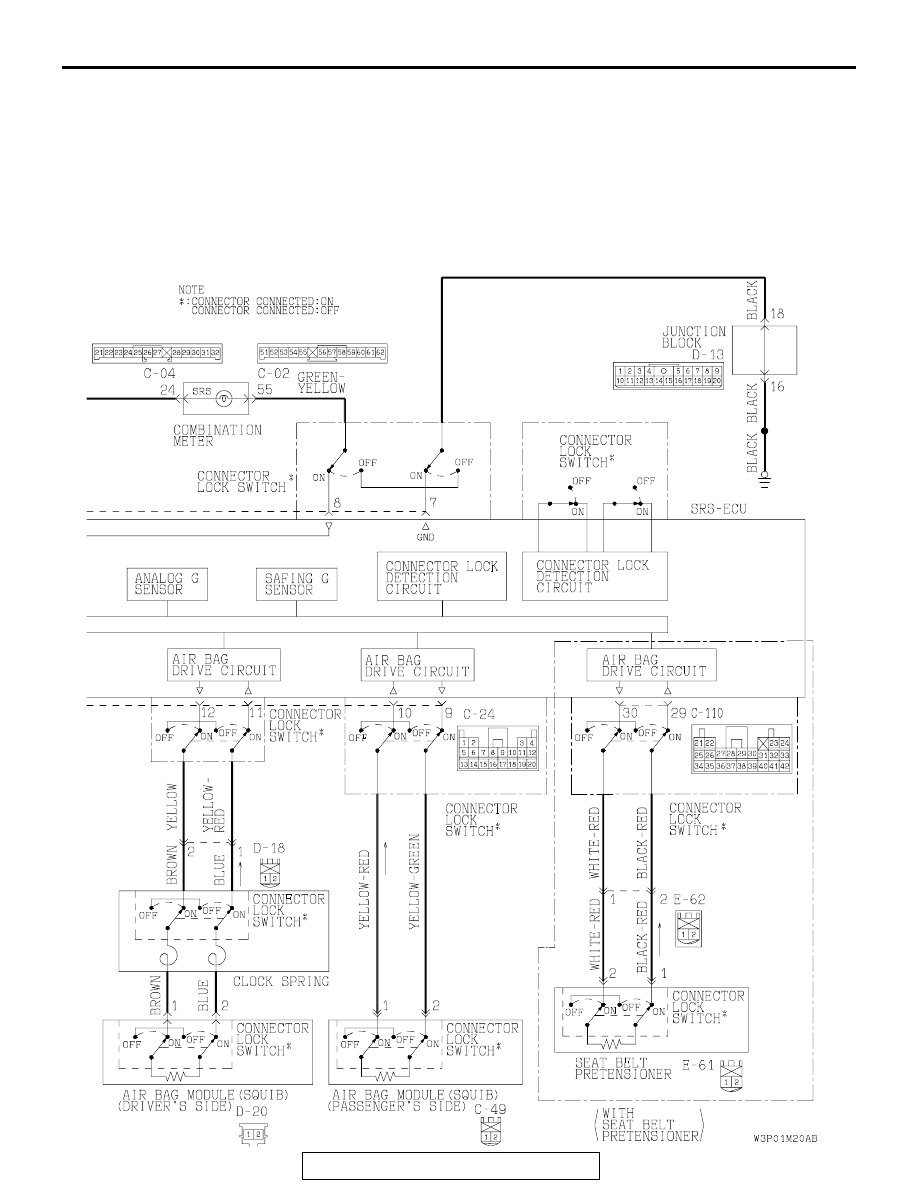

CIRCUIT DIAGRAM

WARNING

•

Do not repair, splice, or modify the SRS wiring (except for specific repairs to the front wir-
ing harness and the body wiring harness shown on

P.52B-17

): replace the wiring if neces-

sary, after reading and following all precautions and procedures in this manual.

•

Do not use an analog ohmmeter to check the SRS wiring or components; use only the
special tools (refer to

P.52B-71

) and a digital multi-meter (refer to

P.52B-73

).

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-16

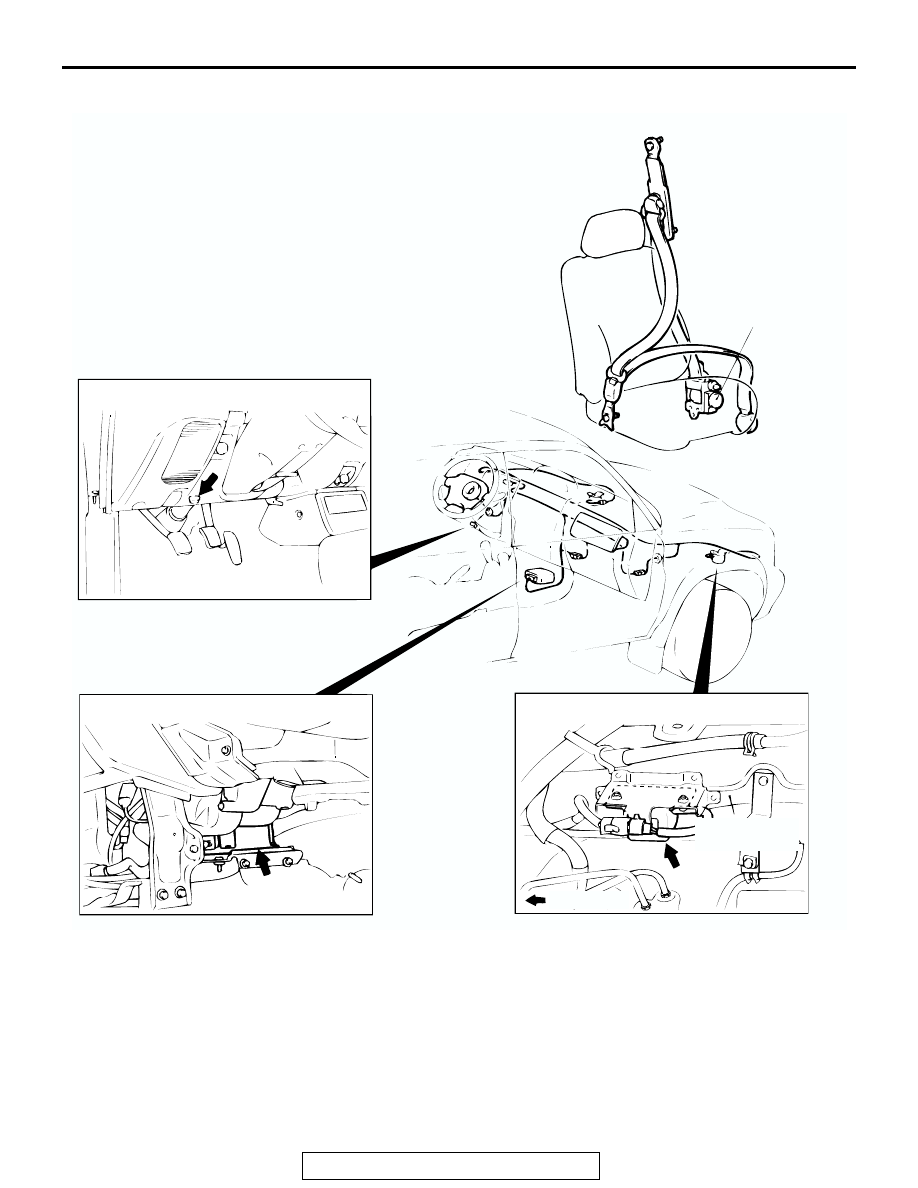

COMPONENT LOCATION

AC003282

DATA LINK CONNECTOR

SRS-ECU

FRONT IMPACT SENSOR

FENDER
SHIELD PANEL

FORWARD

AB

SEAT BELT
PRE-TENSIONER
