GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-5

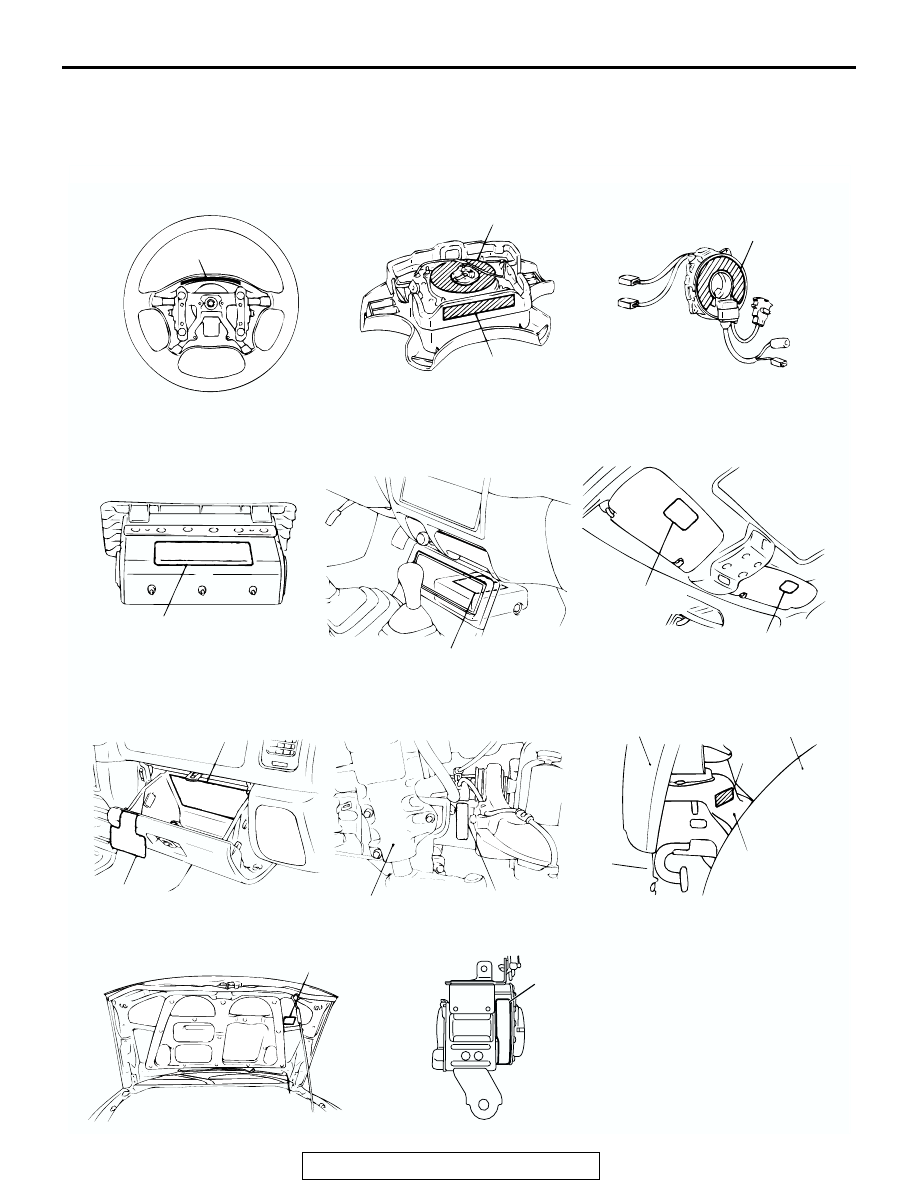

WARNING/CAUTION LABELS

A number of caution labels related to the SRS are
found in the vehicle, as shown in the following illus-
tration. Follow label instructions when servicing SRS.

The label J is not to be removed except by owner. If
the other labels are dirty or damaged, replace label.

AC003279

STEERING WHEEL

AIR BAG MODULE

(DRIVER'S SIDE)

CLOCK SPRING

SUN VISOR

G <FRONT SIDE>

H <REAR SIDE>

SRS-ECU

AIR BAG MODULE

(FRONT PASSENGER'S SIDE)

GLOVE BOX

FRAME*

STEERING GEAR

BOX

FRONT BUMPER

TIRE

BODY MOUNTING

BRACKET (LH)

FRAME*

HOOD

NOTE

*: The frame label is affixed to

either of these positions.

SEAT BELT
PRE-TENSIONER

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-6

LABEL CONTENTS
A. CAUTION:

SRS BEFORE REPLACING STEERING
WHEEL, READ SERVICE MANUAL. CENTER
FRONT WHEELS, AND ALIGN SRS CLOCK
SPRING NEUTRAL MARKS.
FAILURE TO DO SO MAY RENDER SRS
SYSTEM INOPERATIVE, RISKING SERIOUS
DRIVER INJURY.

B. WARNING:

SRS THIS AIR BAG MODULE CANNOT BE
REPAIRED.
DO NOT DISASSEMBLE OR TAMPER. DO
NOT PERFORM DIAGNOSIS. DO NOT
TOUCH WITH ELECTRICAL TEST
EQUIPMENT OR PROBES. REFER TO
SERVICE MANUAL FOR FURTHER
INSTRUCTIONS, AND FOR SPECIAL
HANDLING, STORAGE, AND DISPOSAL
PROCEDURES.
TAMPERING OR MISHANDLING CAN
RESULT IN INJURY.

C. DANGER POISONOUS FLAMMABLE

MATERIAL TO PREVENT PERSONAL
INJURY, DO NOT DISMANTLE, INCINERATE,
OR BRING INTO CONTACT WITH
ELECTRICITY STORE BELOW 200

°F (93 °C).

D. CAUTION: SRS CLOCK SPRING THIS IS NOT

A REPAIRABLE PART. DO NOT
DISASSEMBLE OR TAMPER. IF DEFECTIVE,
REPLACE ENTIRE UNIT PER SERVICE
MANUAL INSTRUCTIONS.
TO RE-CENTER: ROTATE CLOCKWISE
UNTIL TIGHT. THEN ROTATE IN OPPOSITE
DIRECTION APPROXIMATELY 3 4/5 TURNS
AND ALIGN ARROWS ><.

E. WARNING FLAMMABLE/EXPLOSIVE

SRS AIR BAG MODULE TO AVOID SERIOUS
INJURY:

• DO NOT REPAIR, DISASSEMBLE OR

TAMPER.

• AVOID CONTACT WITH FLAME OR

ELECTRICITY.

• DO NO DIAGNOSIS/USE NO TEST

EQUIPMENT OR PROBES.

• STORE BELOW 200°F (93°C).

• BEFORE DOING ANY WORK INVOLVING

MODULE, READ SERVICE MANUAL FOR
IMPORTANT FURTHER DATA.

F. CAUTION:

DO NOT DISASSEMBLE OR DROP. IF
DEFECTIVE REFER TO SERVICE MANUAL.

AIR BAG WARNING FLIP
VISOR OVER

WARNING
DEATH or SERIOUS INJURY
can occur

• Children 12 and under can

be killed by the air bag.

• The BACK SEAT is the

SAFEST place for children.

• NEVER put a rear-facing

child seat in the front.

• Sit as far back as possible

from the air bag.

• ALWAYS use SEAT BELTS

and CHILD RESTRAINTS.

LABEL CONTENTS

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

AIR BAG SYSTEM INFORMATION
THIS VEHICLE HAS AN AIR BAG SYSTEM
WHICH WILL SUPPLEMENT THE SEAT BELT
IN CERTAIN FRONTAL COLLISIONS, THE AIR
BAG IS NOT A SUBSTITUTE FOR THE SEAT
BELT IN ANY TYPE OF COLLISION, THE
DRIVER AND ALL OTHER OCCUPANTS
SHOULD WEAR SEAT BELTS AT ALL TIMES.
WARNING!
IF THE "SRS" WARNING LIGHT DOES NOT
ILLUMINATE FOR SEVERAL SECONDS
WHEN THE IGNITION KEY IS TURNED TO
"ON" OR THE ENGINE IS STARTED, OR IF
THE WARNING LIGHT STAYS ON WHILE
DRIVING, TAKE THE VEHICLE TO YOUR
NEAREST AUTHORIZED DEALER
IMMEDIATELY. ALSO, IF THE VEHICLES'
FRONT END IS DAMAGED OR IF THE AIR
BAG HAS DEPLOYED, TAKE THE VEHICLE
FOR SERVICE IMMEDIATELY.
THE AIR BAG SYSTEM MUST BE
INSPECTED BY AN AUTHORIZED DEALER
TEN YEARS AFTER THE VEHICLE
MANUFACTURE DATE SHOWN ON THE
CERTIFICATION LABEL LOCATED ON THE
LEFT FRONT DOOR-LATCH POST OR DOOR
FRAME.
REAR THE "SRS" SECTION OF YOUR
OWNER'S MANUAL BEFORE DRIVING FOR
IMPORTANT INFORMATION ABOUT
OPERATION AND SERVICE OF THE AIR BAG
SYSTEM.
WHEN YOU ARE GOING TO DISCARD YOUR
GAS GENERATOR OR VEHICLE, PLEASE
SEE YOUR DEALER.

J. WARNING

Children Can Be KILLED or INJURED by
Passenger Air Bag. The back seat is the safest
place for children 12 and under. Make sure all
children use seat belts or child seat. Not to be
removed except by owner.

LABEL CONTENTS

K,
L.

CAUTION: SRS BEFORE REMOVAL OF
STEERING GEAR BOX, READ SERVICE
MANUAL, CENTER FRONT WHEELS AND
REMOVE IGNITION KEY.
FAILURE TO DO SO MAY DAMAGE SRS
CLOCK SPRING AND RENDER SRS SYSTEM
INOPERATIVE, RISKING SERIOUS DRIVER
INJURY.

M. WARNING

THIS VEHICLE HAS AN AIR BAG SYSTEM.
REFER TO SERVICE MANUAL BEFORE
SERVICING OR DISASSEMBLING
UNDERHOOD COMPONENTS. READ "SRS"
SECTION OF MANUAL FOR IMPORTANT
INSTRUCTIONS. IMPROPER SERVICE
PROCEDURES CAN RESULT IN THE AIR
BAG FIRING OR BECOMING INOPERATIVE,
LEADING TO INJURY.

• DO NOT IMPACT. DISMANTLE OR

INSTALL IT INTO ANOTHER VEHICLE.

• SERVICE OR DISPOSE OF IT AS

DIRECTED IN THE REPAIR MANUAL.

LABEL CONTENTS

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-8

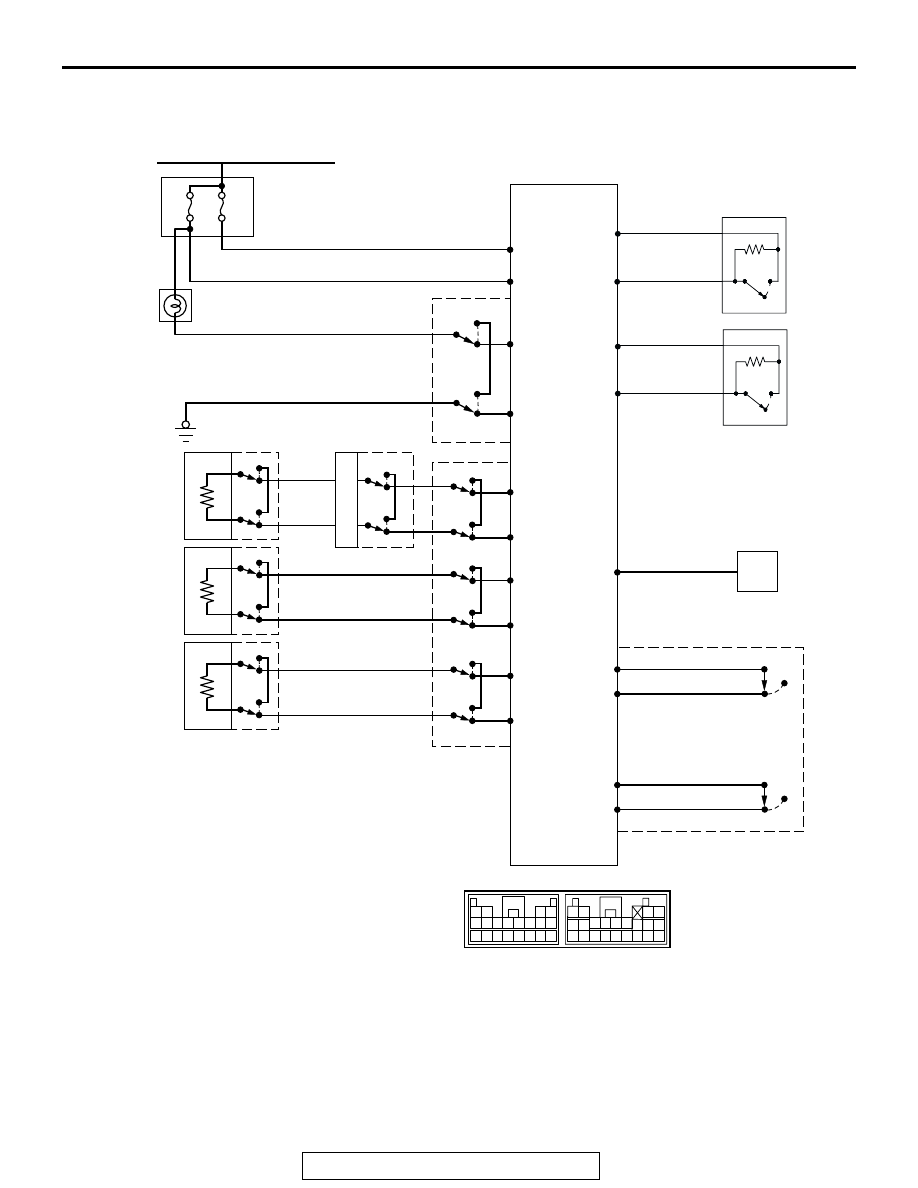

SCHEMATIC

2122

404142

3435

2526

313233

2324

1314151617181920

5 6 7 8 9 101112

1 2

3 4

2930

AC202131

IGNITION SWITCH <IG1>

FUSES

10A

COMBINATION
METER
(SRS WARNING
LIGHT)

OFF

NOTE
*: CONNECTOR LOCK SWITCH
CONNECTOR CONNECTED: ON
CONNECTOR DISCONNECTED: OFF

AIR BAG MODULE
(DRIVER'S SIDE)

CLOCK
SPRING

AIR BAG MODULE
(FRONT
PASSENGER'S
SIDE)

SEAT BELT
PRE-TENSIONER
(DRIVER'S SIDE)

SRS-ECU

DATA LINK
CONNECTOR
(FOR SCAN TOOL)

OFF

SRS-ECU CONNECTOR

OFF

FRONT IMPACT
SENSOR (RH)

FRONT IMPACT
SENSOR (LH)
