GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-9

SRS air bag special connector

To enhance the system reliability, a connector lock
switch is integrated in the SRS-ECU connector, the
air bag module connectors and the clock spring con-
nector (black connector "A" shown in the illustration
below).

.

AC103743

SRS-ECU

CLOCK
SPRING

AIR BAG MODULE
(DRIVER'S SIDE)

AIR BAG MODULE
(FRONT PASSENGER'S SIDE)

A

AB

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-10

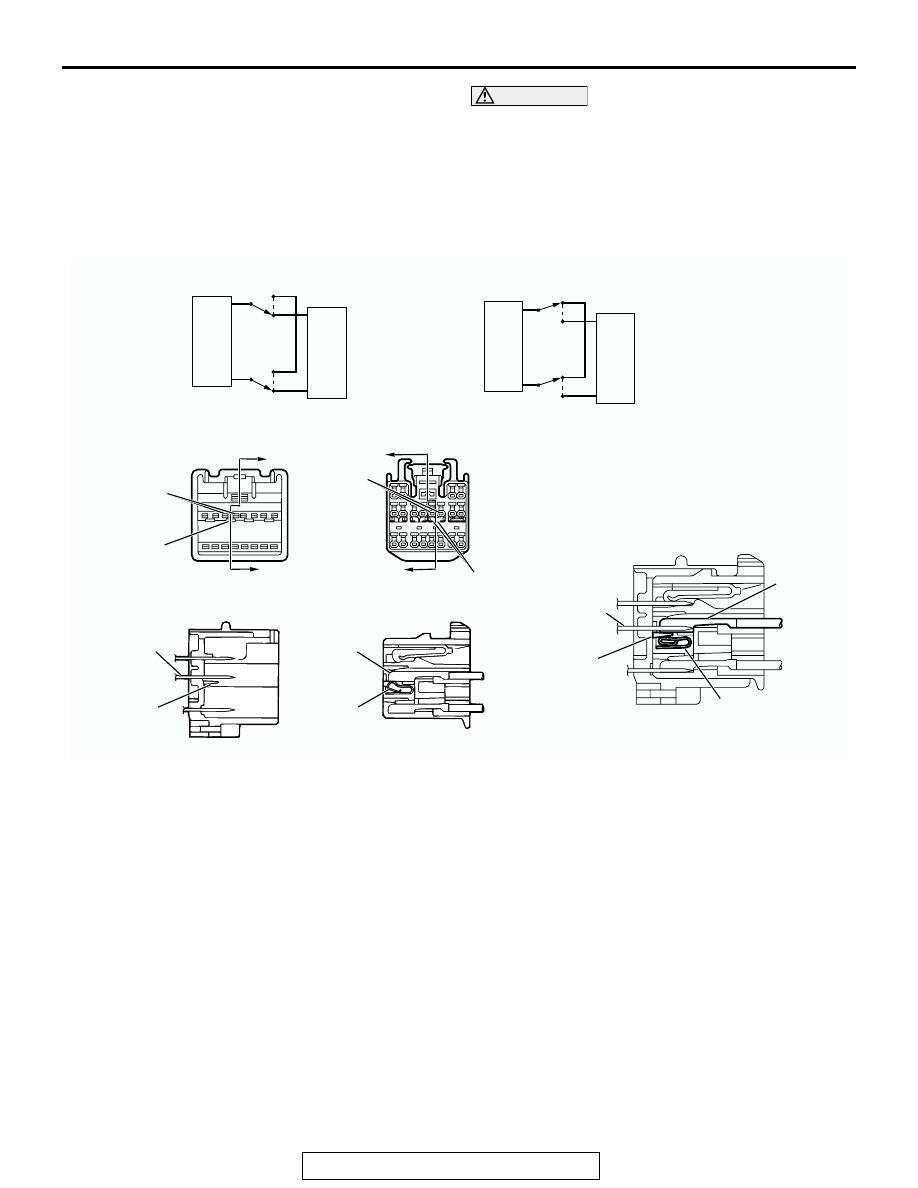

SQUIB CIRCUIT CONNECTOR LOCK SWITCH
The switch is a mechanism that shorts the power
supply terminal to the ground terminal automatically
in the air bag squib circuit when the connector is dis-
connected. A "short" spring is integrated inside the
connector. This spring prevents static electricity from
flowing to the squib by shorting the power supply ter-
minal to the ground terminal (i.e. there is no potential
difference between the two terminals).

CAUTION

When the connector is disconnected, there will
be short circuit between the terminals. This is not
a fault.

.

AC006197

OFF

ON

OFF

ON

SQUIB

SRS-ECU

SQUIB

SRS-ECU

OFF

OFF

ON

ON

A

A

CONNECTOR DISCONNECTED

<CONNECTOR SHORTING PREVENTION MECHANISM (E.G. SRS-ECU CONNECTOR)>

ECU-SIDE CONNECTOR

WIRING HARNESS-SIDE CONNECTOR

TERMINAL
(MALE)

PARTION PANEL

B

B

SHORT SPRING

SHORT SPRING

AB

SECTION B - B

SHORT
SPRING

SECTION A - A

CONNECTOR CONNECTED

TERMINAL
(MALE)

TERMINAL
(MALE)

PARTION PANEL

PARTION PANEL

TERMINAL
(FEMALE)

TERMINAL
(FEMALE)

TERMINAL
(FEMALE)

CONNECTOR CONNECTED

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-11

WARNING LIGHT CIRCUIT CONNECTOR LOCK SWITCH
The switch is a mechanism that shorts the power supply termi-
nal to the ground terminal automatically in the warning light cir-
cuit when the connector is disconnected. Its structure is similar
to the squib circuit connector shorting mechanism.

AC006203

IGNITION
SWITCH (IG1)

SRS WARNING
LIGHT

SHORT
SPRING

AD

SRS-ECU HARNESS-SIDE
CONNECTOR

OFF

ON

NOTE
*: CONNECTOR CONNECTED: ON
   CONNECTOR DISCONNECTED: OFF

CONNECTOR
LOCK SWITCH*

OFF

ON

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

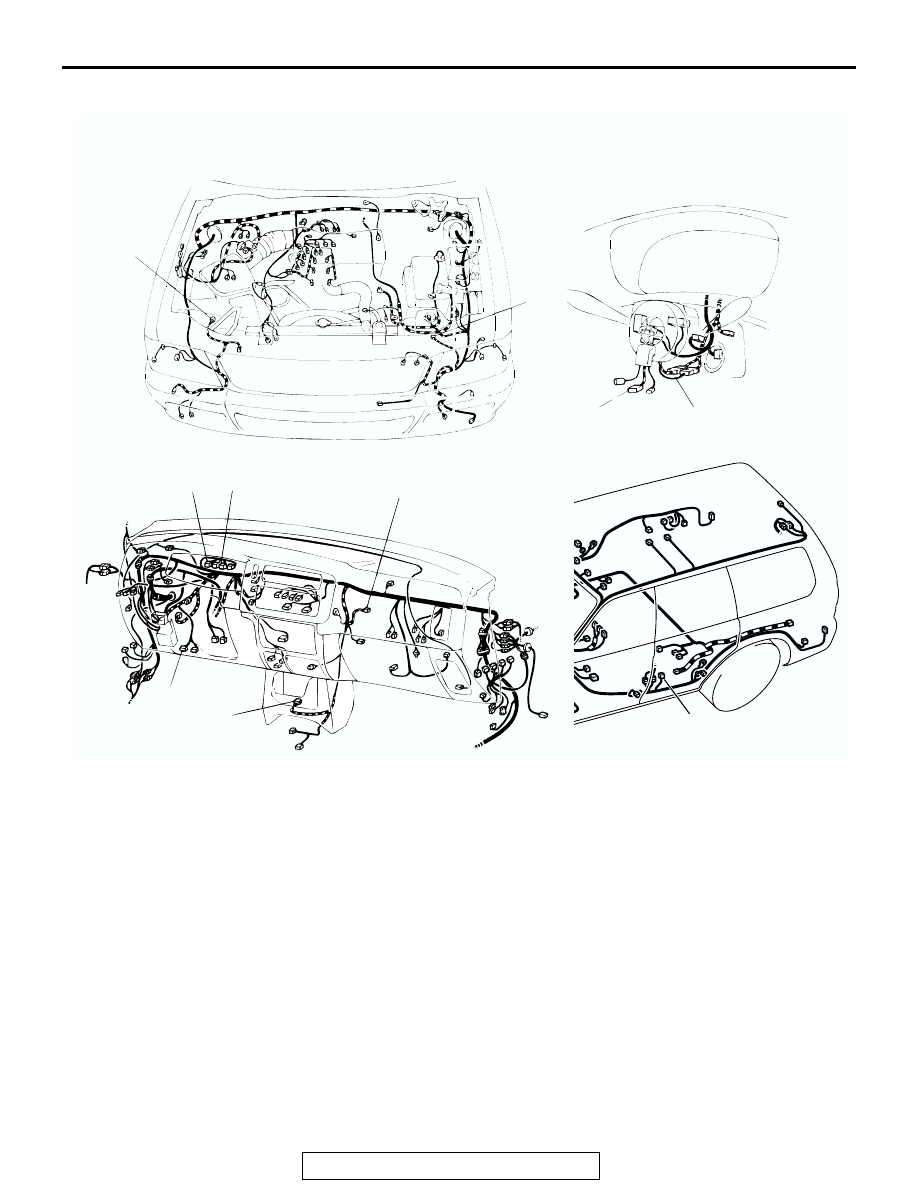

CONFIGURATION DIAGRAMS

AC003281

ENGINE COMPARTMENT

A-32 (Y)

A-20 (Y)

STEERING COLUMN

D-20

D-18 (2R)

INTERIOR

E-61 (R)

C-49 (R)

C-04

C-02 (B)

C-69 (B)

C-24 (Y)

AC

DASH PANEL

A-20 FRONT IMPACT SENSOR (LH)

A-32

FRONT IMPACT SENSOR (RH)

C-02

COMBINATION METER (FOR SRS WARNING
LIGHT)

C-04

COMBINATION METER (FOR SRS WARNING
LIGHT)

C-24

SRS-ECU

C-49

AIR BAG MODULE (FRONT PASSENGER'S
SIDE)

C-69

DATA LINK CONNECTOR (FOR SCAN TOOL)

D-18

CLOCK SPRING

D-20

AIR BAG MODULE (DRIVER'S SIDE)

E-61

SEAT BELT PRE-TENSIONER
