AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-29

Only overdrive clutch hydraulic
pressure is abnormal.

Malfunction of the oil seal D
Malfunction of the oil seal E
Malfunction of the oil seal F
Malfunction of the overdrive solenoid valve
Malfunction of the overdrive pressure control valve
Malfunction of the check ball
Clogged orifice
Incorrect valve body installation

Only low-reverse brake hydraulic
pressure is abnormal.

Malfunction of the oil seal I
Malfunction of the oil seal J
Malfunction of the oil seal P
Malfunction of the low-reverse solenoid valve
Malfunction of the low-reverse pressure control valve
Malfunction of the switch valve
Malfunction of the fail safe valve A
Malfunction of all the check ball
Clogged orifice
Incorrect valve body installation

Only second brake hydraulic pressure
is abnormal.

Malfunction of the oil seal G
Malfunction of the oil seal H
Malfunction of the oil seal O
Malfunction of the second solenoid valve
Malfunction of the second pressure control valve
Malfunction of the fail safe valve B
Clogged orifice
Incorrect valve body installation

Only torque converter pressure is
abnormal.

Clogged oil cooler
Malfunction of the oil seal N
Malfunction of the torque converter clutch solenoid valve
Malfunction of the torque converter clutch control valve
Malfunction of the torque converter clutch pressure control valve
Clogged orifice
Incorrect valve body installation

Pressure applied to element which
should not receive pressure.

Incorrect transmission control cable adjustment
Malfunction of the manual valve
Malfunction of the check ball
Incorrect valve body installation

SYMPTOM

PROBABLE CAUSE

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-30

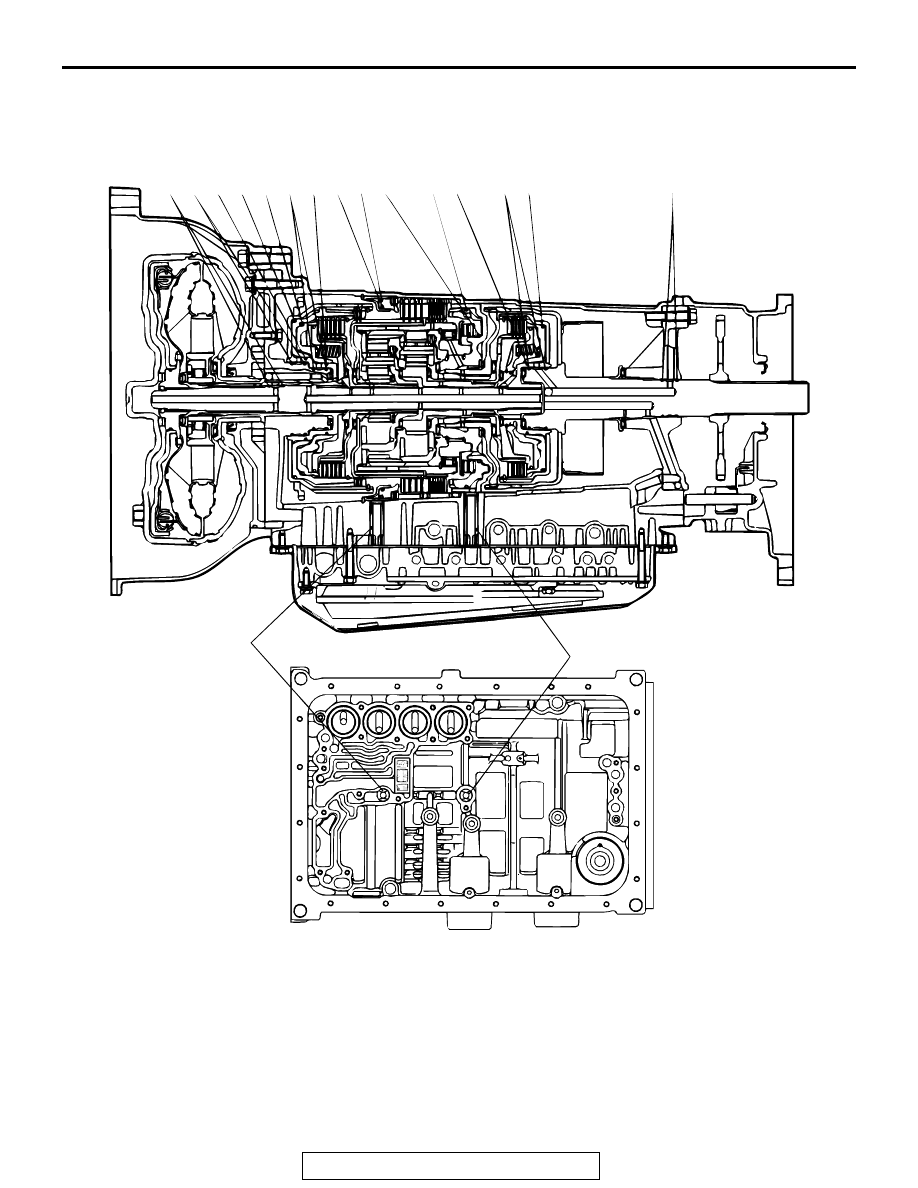

OIL SEAL LAYOUT

AC100421AB

N A B C D E F G H I

J K

L M

Q

O

P

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-31

HYDRAULIC CIRCUIT

M1231103900131

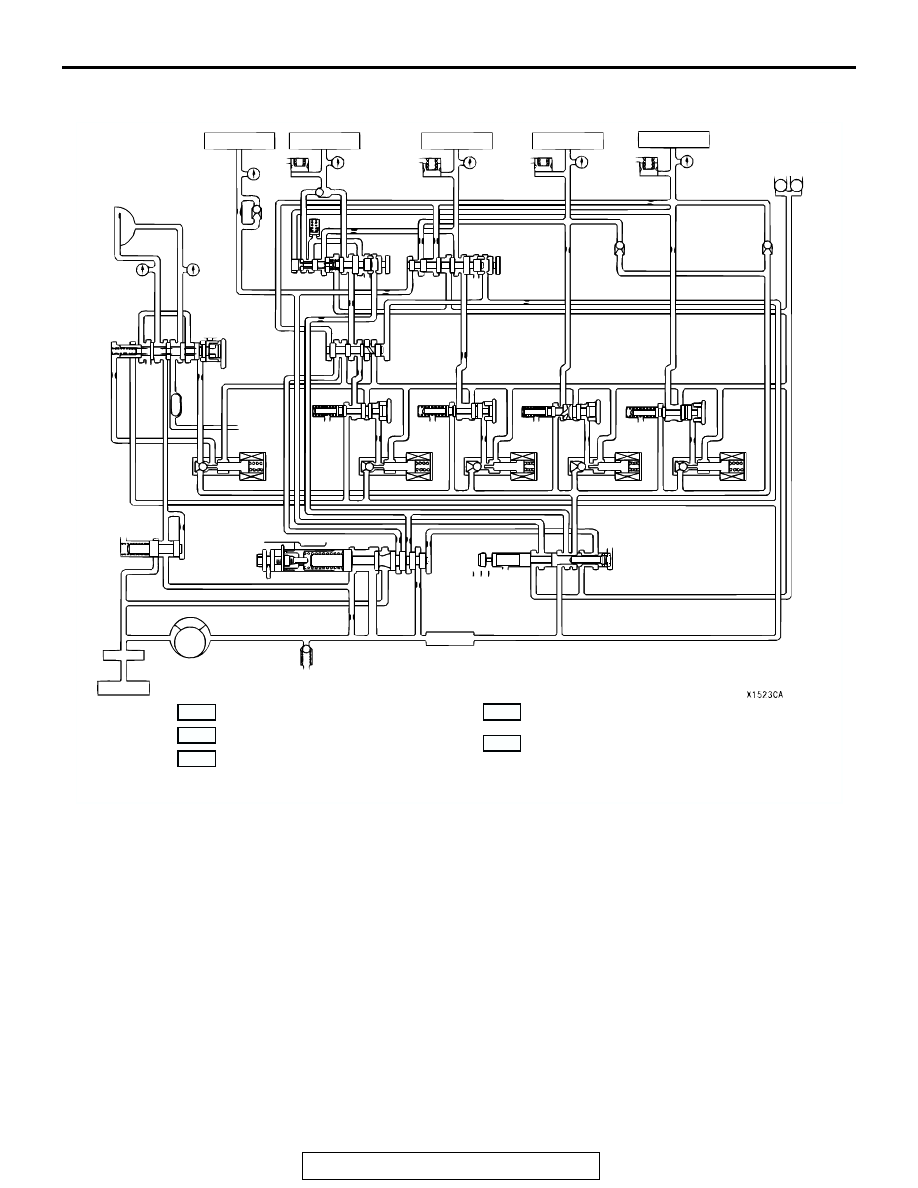

PARKING AND NEUTRAL

1

2

3

4

5

6

6

6

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

R N

P

D
3
2
L

: LINE PRESSURE

: OIL PUMP SUCTION PRESSURE

: TORQUE CONVERTER CLUTCH
  PRESSURE

: TORQUE CONVERTER AND LUBRICATION
  PRESSURE

: TORQUE CONVERTER CLUTCH SOLENOID
  VALVE PRESSURE



 1. REVERSE

CLUTCH



2. LOW-REVERSE

BRAKE



3. SECOND

BRAKE



4. UNDERDRIVE

CLUTCH



5. OVERDRIVE

CLUTCH



6. ACCUMULATOR



7. CHECK

BALL



8. TORQUE

CONVERTER

CLUTCH



9.  FAIL SAFE VALVE A



10.  FAIL SAFE VALVE B



11.  TORQUE CONVERTER CLUTCH CONTROL

VALVE



12. SWITCH VALVE



13.  TRANSMISSION FLUID COOLER



14. LUBRICATION



15.  LOW-REVERSE PRESSURE CONTROL VALVE



16.  SECOND PRESSURE CONTROL VALVE



17.  UNDERDRIVE PRESSURE CONTROL VALVE



18.  OVERDRIVE PRESSURE CONTROL VALVE



19.  TORQUE CONVERTER CLUTCH SOLENOID

VALVE



20.  LOW-REVERSE SOLENOID VALVE



21. SECOND SOLENOID VALVE



22.  UNDERDRIVE SOLENOID VALVE



23.  OVERDRIVE SOLENOID VALVE



24.  TORQUE CONVERTER PRESSURE

CONTROL VALVE



25. REGULATOR VALVE



26. MANUAL VALVE



27. OIL FILTER



28. OIL PUMP



29. OIL STRAINER



30. RELIEF VALVE



31. OIL PAN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-32

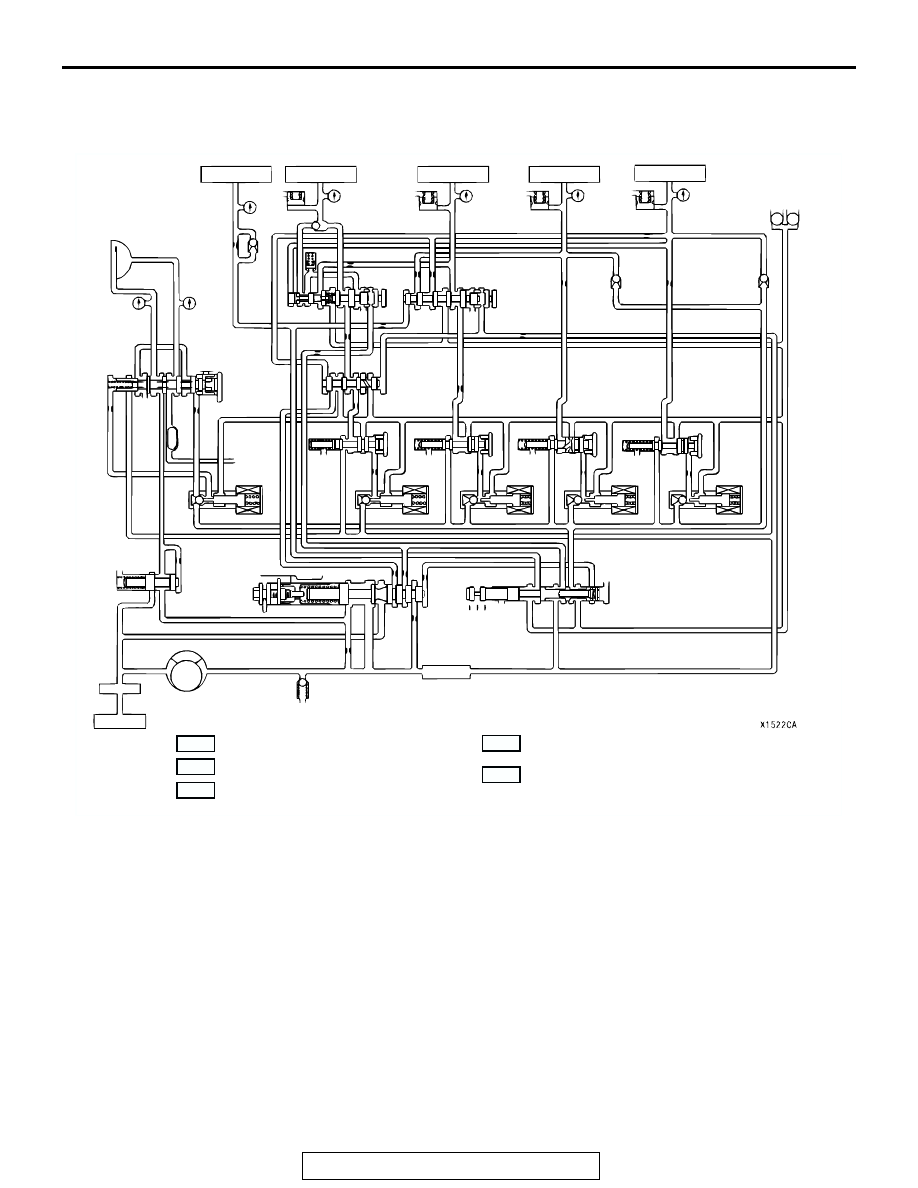

1ST GEAR

1

2

3

4

5

6

6

6

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

R N

P

D
3
2
L

: LINE PRESSURE

: OIL PUMP SUCTION PRESSURE

: TORQUE CONVERTER CLUTCH
  PRESSURE

: TORQUE CONVERTER AND LUBRICATION
  PRESSURE

: TORQUE CONVERTER CLUTCH SOLENOID
  VALVE PRESSURE

  1. REVERSE

CLUTCH

  2. LOW-REVERSE

BRAKE

  3. SECOND

BRAKE

  4. UNDERDRIVE

CLUTCH

  5. OVERDRIVE

CLUTCH

  6. ACCUMULATOR
  7. CHECK

BALL

  8. TORQUE

CONVERTER

CLUTCH

    9.  FAIL SAFE VALVE A
    10.  FAIL SAFE VALVE B
    11.  TORQUE CONVERTER CLUTCH CONTROL

VALVE

  12.

SWITCH

VALVE

    13.  A/T FLUID COOLER
  14.

LUBRICATION

    15.  LOW-REVERSE PRESSURE CONTROL VALVE
    16.  SECOND PRESSURE CONTROL VALVE

    17.  UNDERDRIVE PRESSURE CONTROL VALVE
    18.  OVERDRIVE PRESSURE CONTROL VALVE
    19.  TORQUE CONVERTER CLUTCH SOLENOID

VALVE

    20.  LOW-REVERSE SOLENOID VALVE
  21.

SECOND

SOLENOID

VALVE

    22.  UNDERDRIVE SOLENOID VALVE
    23.  OVERDRIVE SOLENOID VALVE
    24.  TORQUE CONVERTER PRESSURE

CONTROL VALVE

  25.

REGULATOR

VALVE

  26.

MANUAL

VALVE

  27.

OIL

FILTER

  28.

OIL

PUMP

  29.

OIL

STRAINER

  30.

RELIEF

VALVE

  31.

OIL

PAN
