AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-17

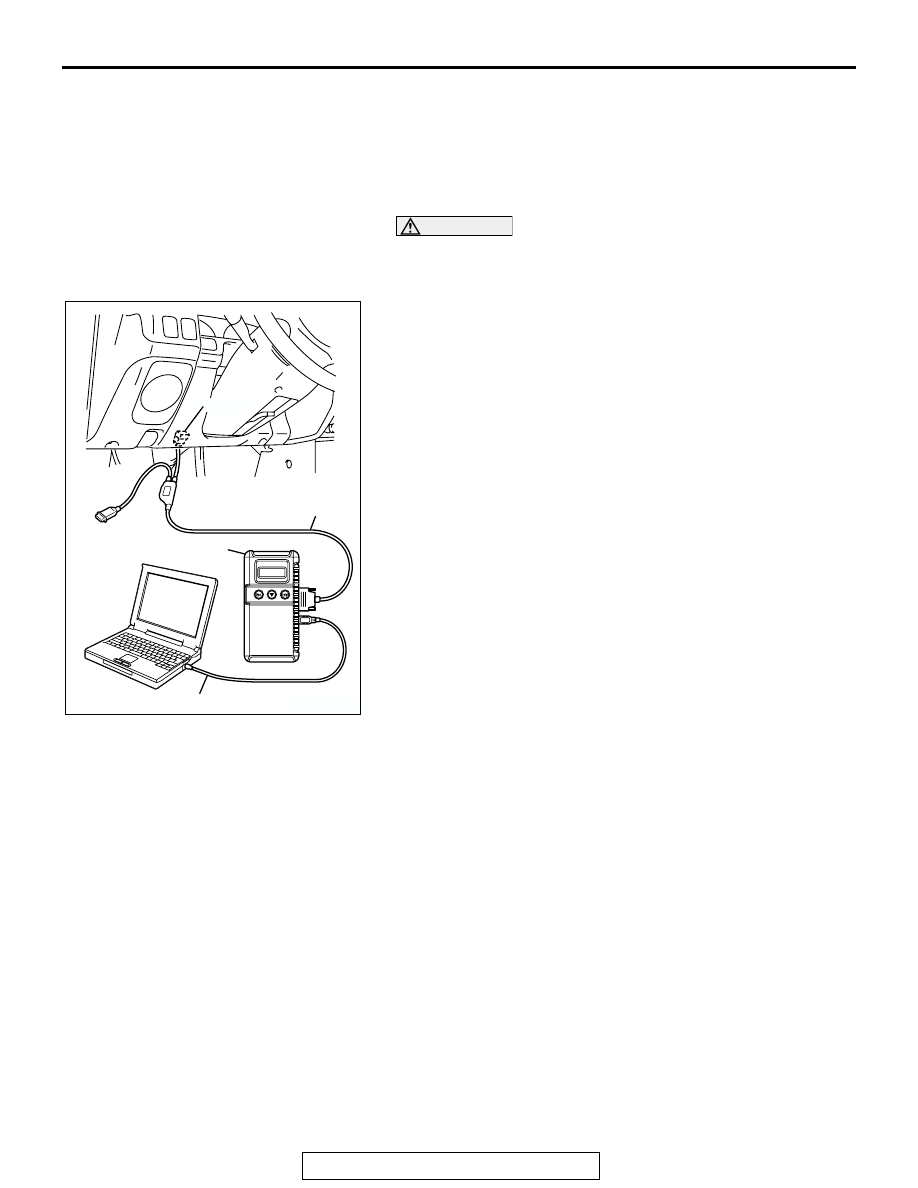

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "ELC-A/T" from the "POWER TRAIN" tab.
6. Select "MITSUBISHI."
7. Select "Actuator Test."
8. Choose an appropriate item and select the "OK" button.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-18

FAIL-SAFE/BACKUP FUNCTION

M1231101100128

When a malfunction of a main sensor or actuator is
detected by the PCM, the transmission is controlled
by pre-set control logic to maintain safe conditions
for driving.

The following table shows how the fail-safe/backup
function affects vehicle driveability and operation.

MALFUNCTIONING ITEM JUDGMENT CONDITION

CONTROL DEFAULT DURING MALFUNCTION

Input shaft speed sensor

If no output pulse from the
input shaft speed sensor is
detected for one second or
more when the vehicle
speed is 30 km/h (19 mph)
or greater.

The diagnostic trouble code is recorded when the
malfunction occurs once during 4 monitoring
periods in one drive cycle. When the judgment
condition is met, the transmission holds 3rd gear
or 2nd gear, depending on speed and  "N" range
light flashes as a fail-safe.

Output shaft speed sensor Output from the output

shaft speed sensor is
continuously 50% or less of
the output from the vehicle
speed sensor one second
or more when the vehicle
speed is 30 km/h (19 mph)
or more.

The diagnostic trouble code is recorded when the
malfunction occurs once during 4 monitoring
periods in one drive cycle. When the judgment
condition is met, the transmission holds 3rd gear
or 2nd gear, depending on speed and  "N" range
light flashes as a fail-safe.

Low-reverse solenoid
valve

Solenoid valve resistance
is below 2.7 ohms for 0.32
seconds.

The diagnostic trouble code is recorded when the
malfunction occurs during 4 monitoring periods in
one drive cycle. When the judgment condition is
met, the A/T control relay is turned off and "N"
range light flashes. The transaxle will only operate
in 3rd and reverse gears until the system is
repaired.

Underdrive solenoid valve
Second solenoid valve
Overdrive solenoid valve
Torque converter clutch
solenoid valve
Incomplete
shifting

1st

The gear ratio value from
the output shaft speed
sensor is not the same as
the output from the input
shaft speed sensor for one
second after shifting has
been completed.

The diagnostic trouble code is recorded when the
malfunction occurs during 4 monitoring periods in
one drive cycle. When the judgment condition is
met, the A/T control relay is turned off and "N"
range light flashes. The transaxle will only operate
in 3rd and reverse gears until the system is
repaired.

2nd
3rd
4th
Reverse

A/T control relay

A/T control relay voltage is
less than seven volts for
0.1 second after the ignition
switch is turned "ON."

The A/T control relay is switched off. The
transmission will only operate in 3rd and Reverse
gears until the system is repaired.

Malfunction in the PCM

Malfunction has occurred in
the PCM.

The A/T control relay is switched off. The
transmission will only operate in 3rd and Reverse
gears until the system is repaired.

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-19

ROAD TEST

M1231100800157

Check using the following procedures.

STEP CONDITION

BEFORE TEST/
OPERATION

TEST/
OPERATION

STANDARD

INSPECTION
ITEM

DTC INSPECTION

PROCEDURE
PAGE

1

Ignition switch:
OFF

Ignition switch
(1) ON

Data list No.54

(1) Control Relay

Voltage [V]

A/T Control
relay output
voltage

54

A/T Control
relay system
(

P.23A-319

)

2

Ignition switch:
ON
Engine: Stopped
Transmission
range: P

Transmission
range
(1) P, (2) R, (3) N,
(4) D, (5) 3, (6) 2,
(7) L

Data list No.61
(1) P, (2) R, (3) N,
(4) D, (5) 3, (6) 2,
(7) L

Transmission
range switch

27,
28

Transmission
range switch
system
(

P.23A-123

 ,

P.23A-181

)

Accelerator pedal
(1) Fully closed
(2) Depressed
(3) Fully open

Data list No.11
(1) 535

− 735 mV

(2) Gradually rises
from (1)
(3) 4,500

− 5,500

mV

TP sensor

11,
12,
14

Group 13A,
Diagnostic
Trouble Code
Procedures

−

DTCs P0121,
P0122, 0123:
Throttle
Position Sensor
System
(

P.13A-137

,

P.13A-148

,

P.13A-157

).

Brake pedal
(1) Depressed
(2) Released

Data list No. 26
(1) ON
(2) OFF

Stoplight switch 26

Stoplight switch
system
(

P.23A-113

)

Transfer position
<V4A51>
(1) Other than 4L
(2) 4L

Data list No.75
(1) OFF
(2) ON

Transfer low
detection switch
<V4A51>

−

Transfer low
detection switch
<V4A51>
(

P.23A-398

)

3

Ignition switch:
ST
Engine: Stopped

Cranking test with
lever in P or N
range

Cranking should
be possible.

Cranking

−

Engine does not
crank
(

P.23A-343

).

4

Engine warmed

Drive for 15
minutes or more
so that the
transmission fluid
temperature
becomes 70

−

80

°C. (158 −

176

°F)

Data list No.15
Gradually rises to
70

− 80°C (158 −

176

°F)

Transmission
fluid
temperature
sensor

15,
16

Transmission
fluid
temperature
sensor system
(

P.23A-42

,

P.23A-59

)

5

Engine: Idling
Transmission
range: N

Brake pedal
(Retest)
(1) Depressed
(2) Released

Data list No.26
(1) ON
(2) OFF

Stoplight switch 26

Stoplight switch
system
(

P.23A-113

)

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-20

5

Engine: Idling
Transmission
range: N

A/C switch
(1) ON
(2) OFF

Data list No.65
(1) ON
(2) OFF

Dual pressure
switch

−

Vehicle shifts
differently with
A/C engaged
(

P.23A-376

).

Accelerator pedal
(1) Fully closed
(2) Depressed

Data list No.21
(1) Engine
tachometer and
the scan tool
MB991958
(MUT-III sub
assembly) show
the same engine
speed.
(2) Gradually rises
from (1).

Crankshaft
position sensor

21

Group 13A,
Diagnostic
Trouble Code
Procedures

−

DTC P0335:
Crank shaft
Position Sensor
System
(

P.13A-452

).

Transmission
range
(1) N

→ D

(2) N

→ R

Should be no
abnormal shift
shocks.
Time delay when
engaging should
be within 2
seconds.

Malfunction
when starting

−

Engine stalls
when moving
selector lever
from N to D or N
to R
(

P.23A-352

)

−

Shift shock
when shifting
from N to D and
long delay
(

P.23A-353

)

−

Shift shock
when shifting
from N to R and
long delay
(

P.23A-357

)

−

Shift shock
when shifting
from N to D, N
to R and long
delay
(

P.23A-360

)

Does not move

−

Does not move
forward
(

P.23A-345

)

−

Does not move
backward
(

P.23A-348

)

−

Does not move
(forward or
backward)
(

P.23A-350

)

STEP CONDITION

BEFORE TEST/
OPERATION

TEST/
OPERATION

STANDARD

INSPECTION
ITEM

DTC INSPECTION

PROCEDURE
