AMBIENT TEMPERATURE SENSOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-59

AMBIENT TEMPERATURE SENSOR

REMOVAL AND INSTALLATION

M1554003400120

Pre-removal and Post-installation Operation
Front Bumper Removal and Installation (Refer to GROUP
51, Front Bumper

P.51-2

.)

AC002872

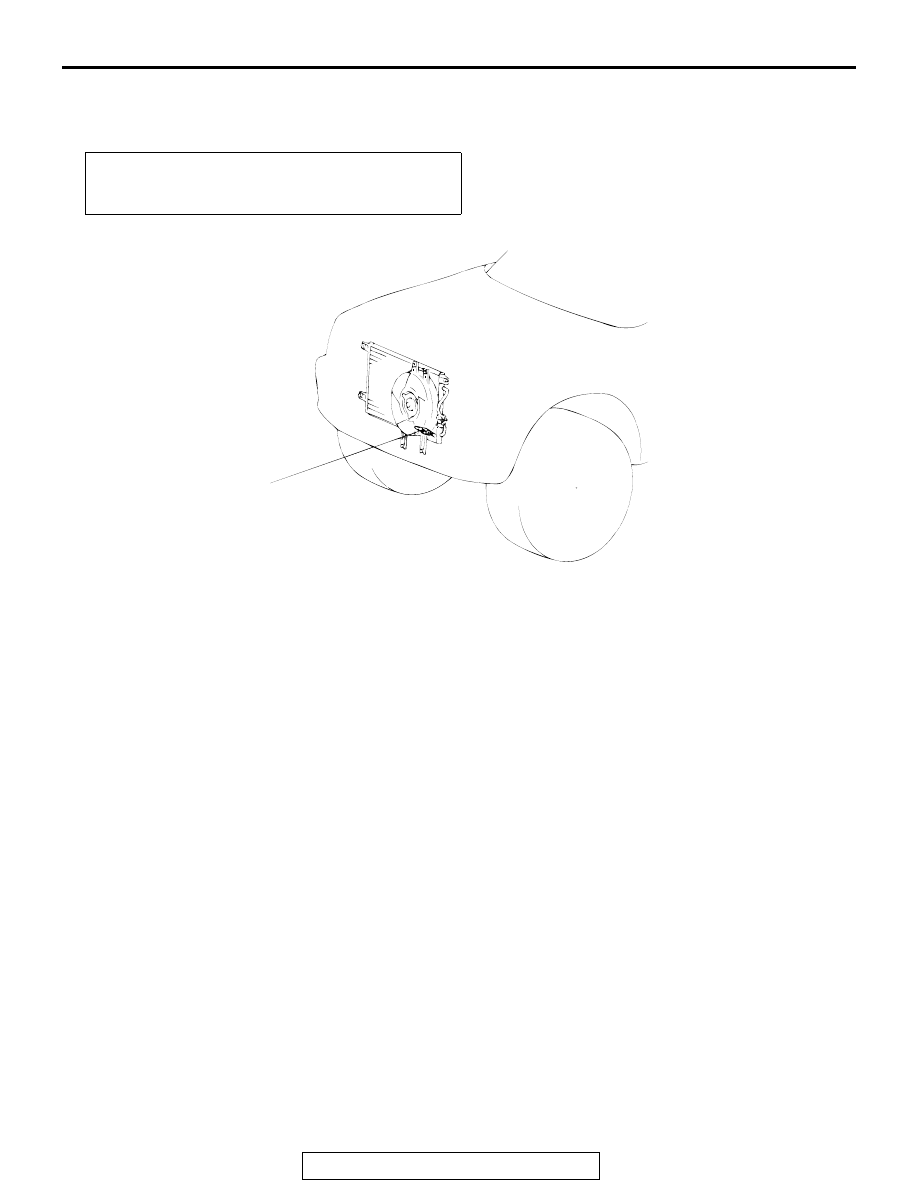

AMBIENT AIR TEMPERATURE
SENSOR

AD

VENTILATORS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-60

VENTILATORS

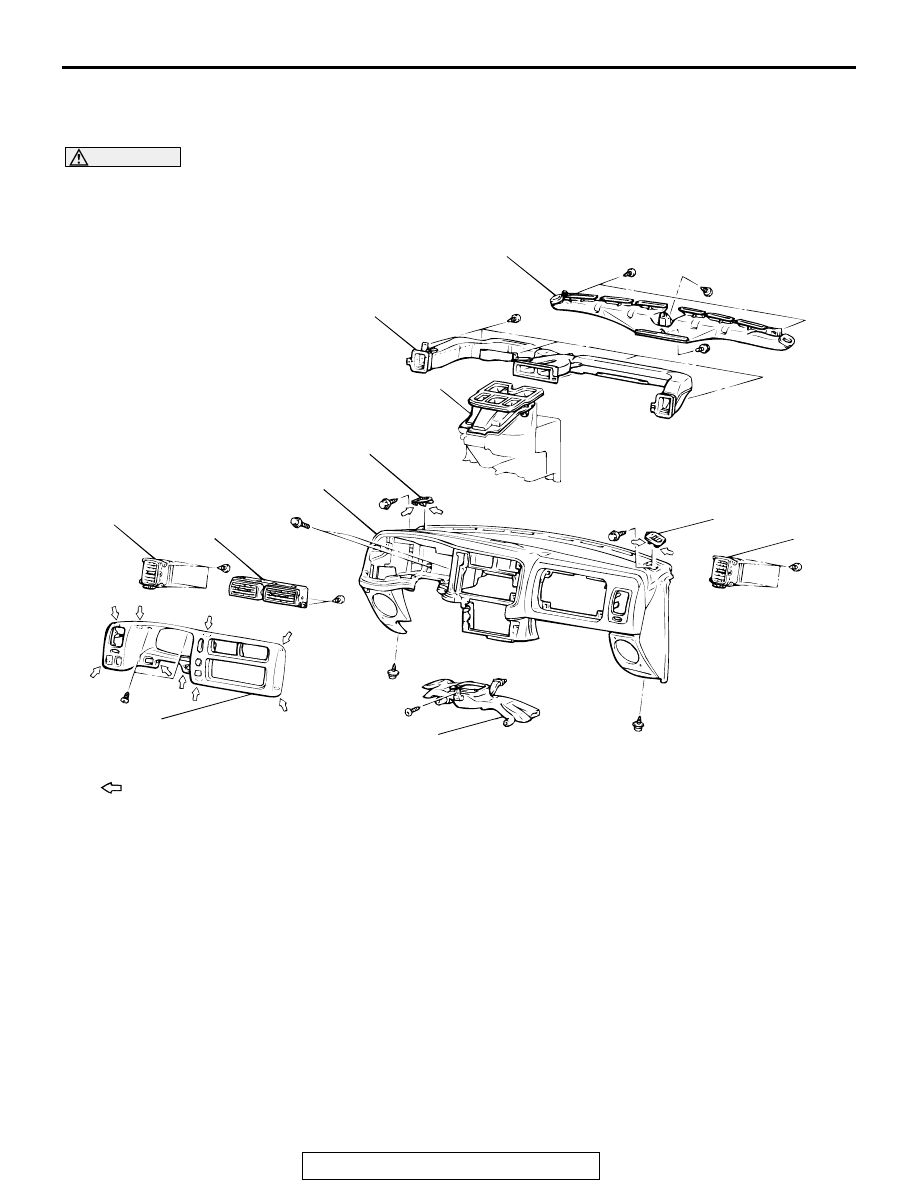

REMOVAL AND INSTALLATION

M1553001600233

WARNING

When removing and installing the Instrument panel assembly from vehicles equipped with
SRS do not let it bump against the SRS-ECU or the components.

AC002873

1

2

3

4

5

6

7

8

9

10

NOTE

: Metal clip position

AB

1

1.

SIDE DEFROSTER GRILL

AIR OUTLET ASSEMBLY
(DRIVER'S SIDE) AND CENTER
OUTLET ASSEMBLY REMOVAL
STEPS

2.

METER BEZEL ASSEMBLY

3.

AIR OUTLET ASSEMBLY (DRIVER'S
SIDE)

4.

CENTER OUTLET ASSEMBLY
FOOT DUCT REMOVAL STEPS

•

FRONT FLOOR CONSOLE
ASSEMBLY (REFER TO GROUP
52A, FLOOR CONSOLE

P.52A-40

.)

5.

FOOT DUCT

DEFROSTER NOZZLE,
DISTRIBUTION DUCT AIR
OUTLET ASSEMBLY
(PASSENGER'S SIDE) AND
CENTER VENTILATION DUCT
REMOVAL STEPS

6.

INSTRUMENT PANEL (REFER TO
GROUP 52A, INSTRUMENT
PANEL

P.52A-37

.)

7.

DEFROSTER NOZZLE

8.

DISTRIBUTION DUCT

9.

AIR OUTLET ASSEMBLY
(PASSENGER'S SIDE)

10. CENTER VENTILATION DUCT

SPECIFICATIONS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-61

SPECIFICATIONS

SERVICE SPECIFICATIONS

M1552000300388

LUBRICANTS

M1552000400374

AC002874 AB

11

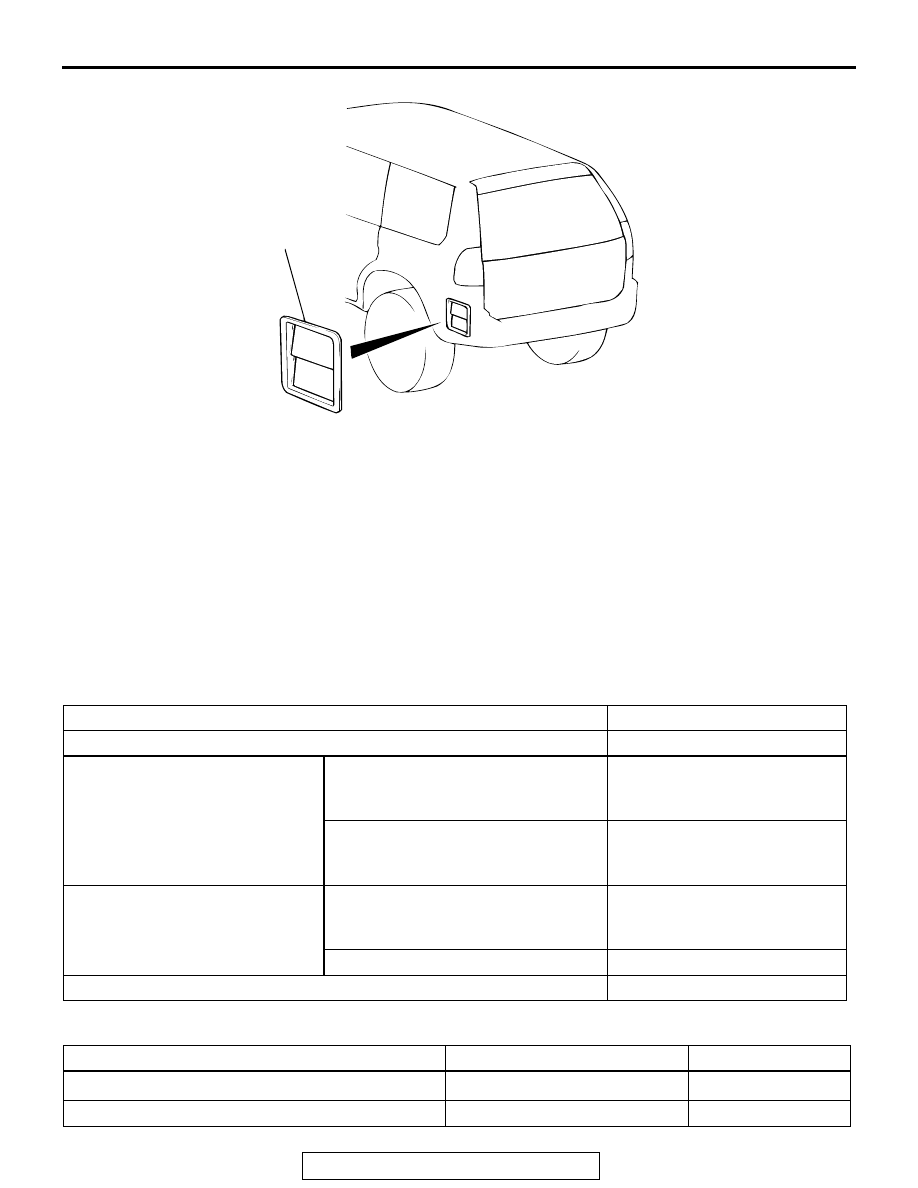

REAR VENTILATION DUCT
REMOVAL STEPS

•

REAR BUMPER ASSEMBLY
(REFER TO GROUP 51, REAR
BUMPER

P.51-4

.)

11. REAR VENTILATION DUCT

ITEM

STANDARD VALUE

Idle speed r/min.

700

± 100

Idle-up speed r/min.

When the air conditioning is working
under low load (Outside air
temperature sensor: ON)

750

± 100

When the air conditioning is working
under high load (Outside air
temperature sensor: OFF)

900

± 100

Resistor (for blower motor)

Ω

Front

LO: 2.0
ML: 1.1
MH: 0.37

Rear

3.9

Air gap (magnetic clutch) mm (in)

0.3

− 0.5 (0.01 − 0.02)

ITEM

SPECIFIED LUBRICANTS

QUANTITY

Compressor refrigerant unit lubricant cm

3

 (floz)

SUN PAG 56

170 (5.7)

Each connection of refrigerant line

SUN PAG 56

As required

NOTES
