COMPRESSOR ASSEMBLY

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-51

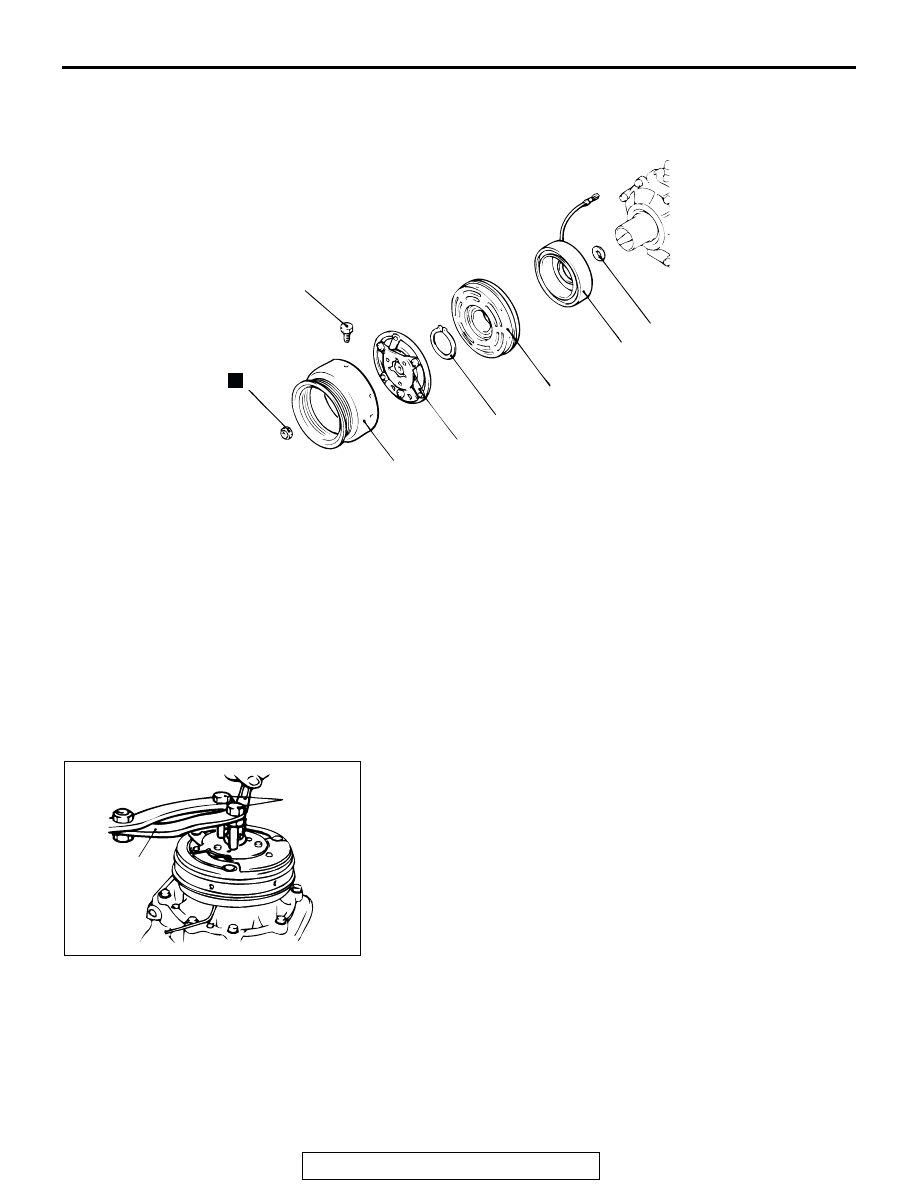

COMPRESSOR

M1552004600518

DISASSEMBLY AND ASSEMBLY

Required Special Tools:

• MB991367: Special Spanner

• MB991386: Pin

DISASSEMBLY SERVICE POINT

.

<<A>> NUT REMOVAL
Use special tools MB991367 and MB991386 to hold the A/C
compressor clutch, and remove the nut.

AC002868

1

2

3

4

5

6

7

8

AB

N

DISASSEMBLY STEPS

1.

BOLT

2.

PULLEY

>>E<<

•

AIR GAP ADJUSTMENT

<<A>>

>>D<<

3.

NUT

>>C<<

4.

ARMATURE PLATE

5.

SHIMS

>>B<<

6.

SNAP RING

7.

ROTOR

>>A<<

8.

CLUTCH COIL

DISASSEMBLY STEPS

AC003058AB

MB991367

MB991386

COMPRESSOR ASSEMBLY

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-52

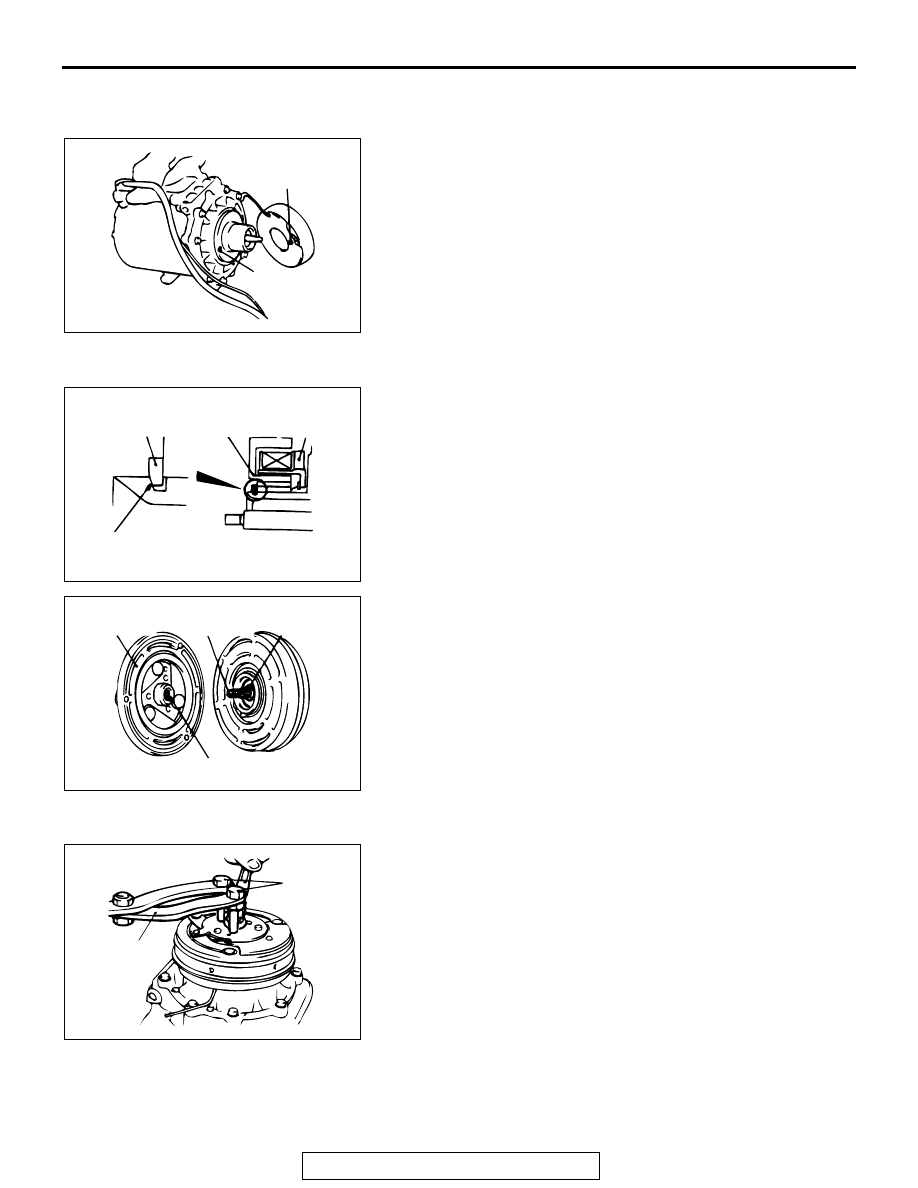

ASSEMBLY SERVICE POINTS

.

>>A<< CLUTCH COIL INSTALLATION
When installing the clutch coil to the A/C compressor boy,
install so that the pin hole of the A/C compressor body and the
clutch coil projection are aligned.

.

>>B<< SNAP RING INSTALLATION
Install the snap ring so that the tapered surface is to the out-
side.

.

>>C<< ARMATURE PLATE INSTALLATION

Align the serration protrusion on the crankshaft with the notch
on the armature and install.

.

>>D<< NUT INSTALLATION
Use special tools MB991367 and MB991386 to hold the A/C
compressor clutch, and tighten the nut in the same manner as
for removal.

.

AC003059 AB

CLUTCH COIL
PROJECTION

COMPRESSOR
BODY PIN HOLE

AC003061AB

SNAP-RING

ROTOR

FIELD CORE

TAPERED PART

AC003060AB

ARMATURE

PLATE

SERRATION

NOTCH

SERRATION PROTRUSION

CRANKSHAFT

AC003058AB

MB991367

MB991386

COMPRESSOR ASSEMBLY

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-53

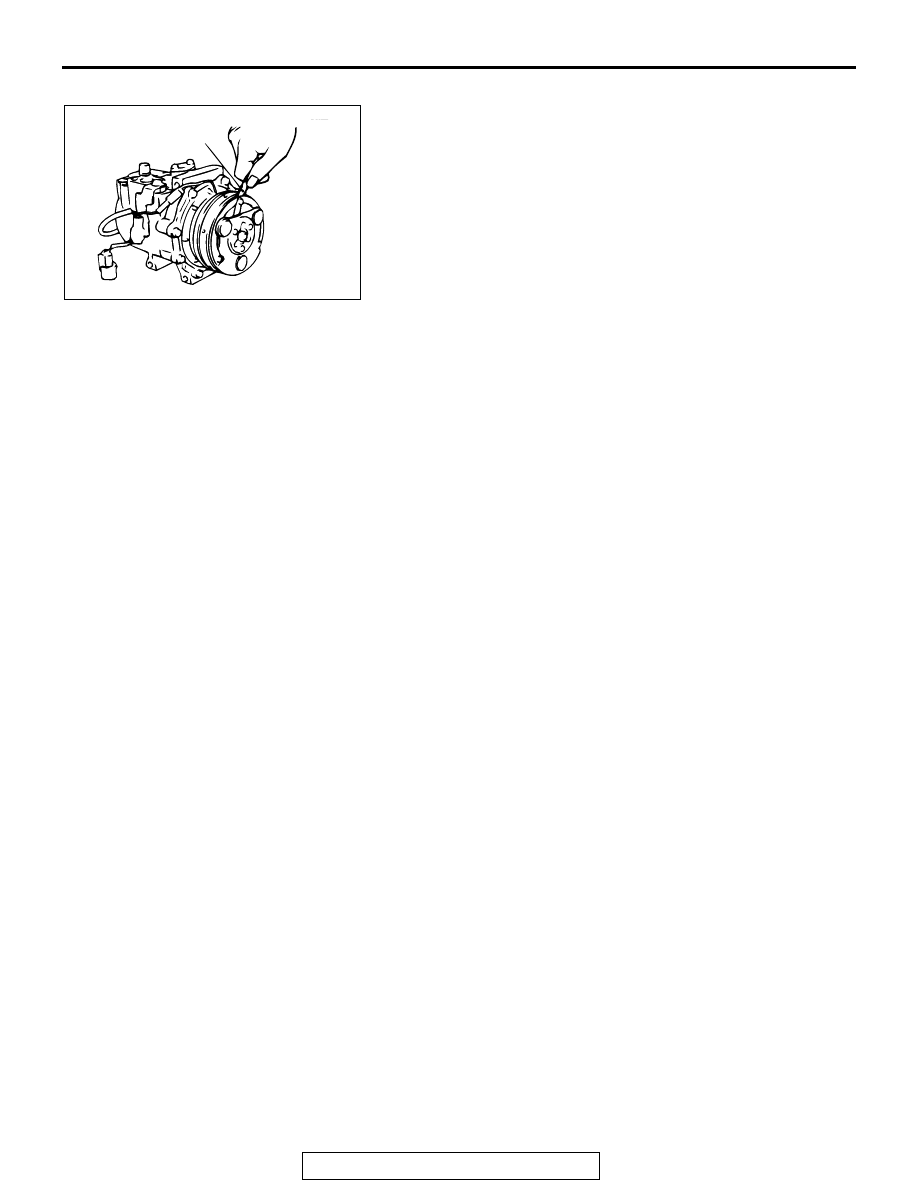

>>E<< AIR GAP ADJUSTMENT
Check whether or not the air gap of the clutch is within the stan-
dard value.

Standard value: 0.3

− 0.5 mm (0.01 − 0.02 inch)

NOTE: If there is a deviation of the air gap from the standard
value, make the necessary adjustment by adjusting the number
of shims.

AC003057

FEELER GAUGE

AB

CONDENSER AND CONDENSER FAN MOTOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-54

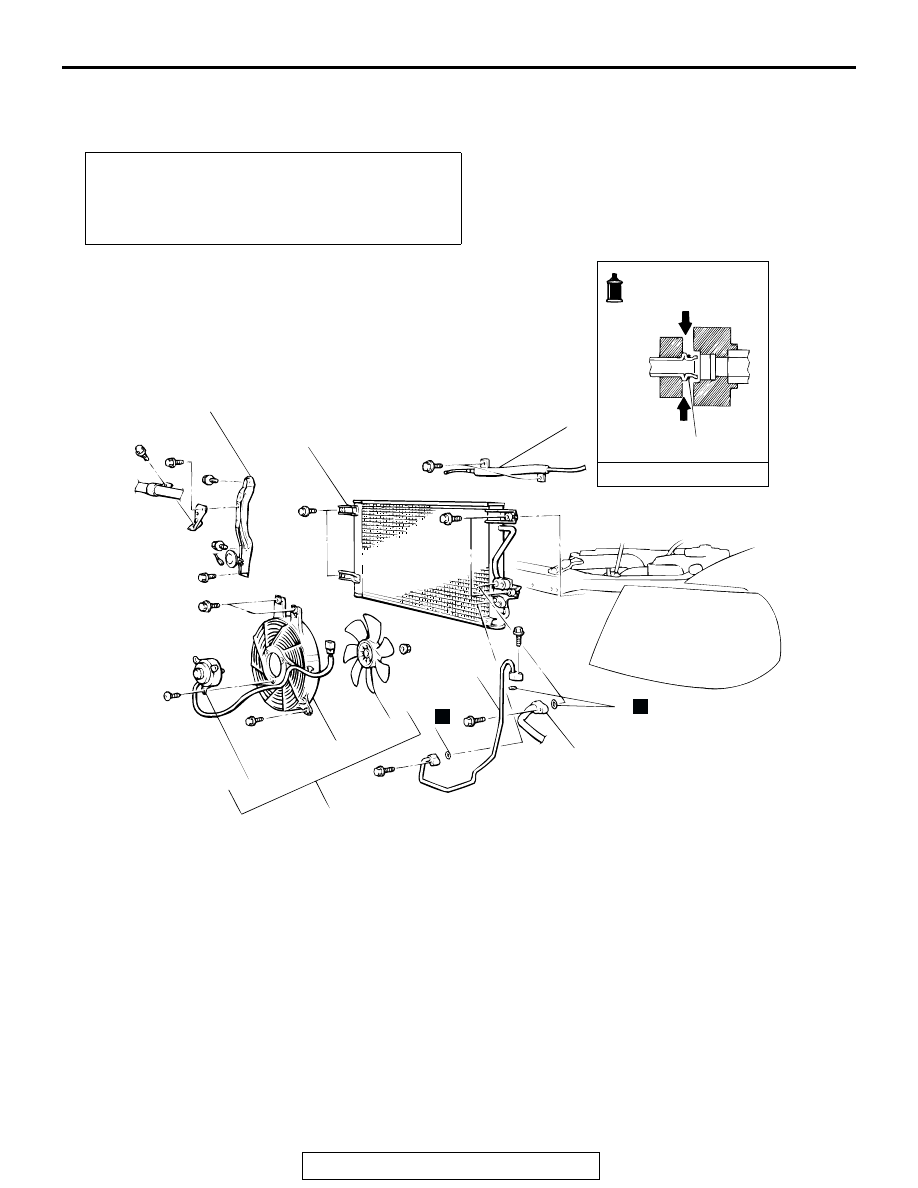

CONDENSER AND CONDENSER FAN MOTOR

REMOVAL AND INSTALLATION

M1552006700447

Pre-removal and Post-installation Operation
• Radiator Grill Removal and Installation (Refer to GROUP

51, Grill, Molding and Garnish

P.51-6

.)

• Front Bumper Removal and Installation (Refer to GROUP

51, Front Bumper

P.51-2

.)

AC002869

1

2

3

4

5

6

7

8

9

PIPING CONNECTION

COMPRESSOR OIL:

SUN PAG56

7

N

8

N

AB

8

CONDENSER FAN MOTOR
REMOVAL STEPS

1.

HOOD LOCK STAY

2.

CONDENSER FAN MOTOR AND
SHROUD ASSEMBLY

3.

CONDENSER FAN MOTOR

4.

SHROUD

5.

CONDENSER FAN

CONDENSER REMOVAL STEPS

•

REFRIGERANT DISCHARGING
AND CHARGING (REFER TO

P.55-28

.)

1.

HOOD LOCK STAY

2.

CONDENSER FAN MOTOR AND
SHROUD ASSEMBLY

6.

CABLE PROTECTOR

<<A>>

7.

DISCHARGE HOSE, LIQUID PIPE
A AND CONDENSER
CONNECTION

8.

O-RING

>>A<<

9.

CONDENSER
