Mitsubishi Montero Sport (2004+). Manual - part 502





FRONT SEAT BELT

TSB Revision

INTERIOR

52A-53

INSPECTION

M1523004400138

.

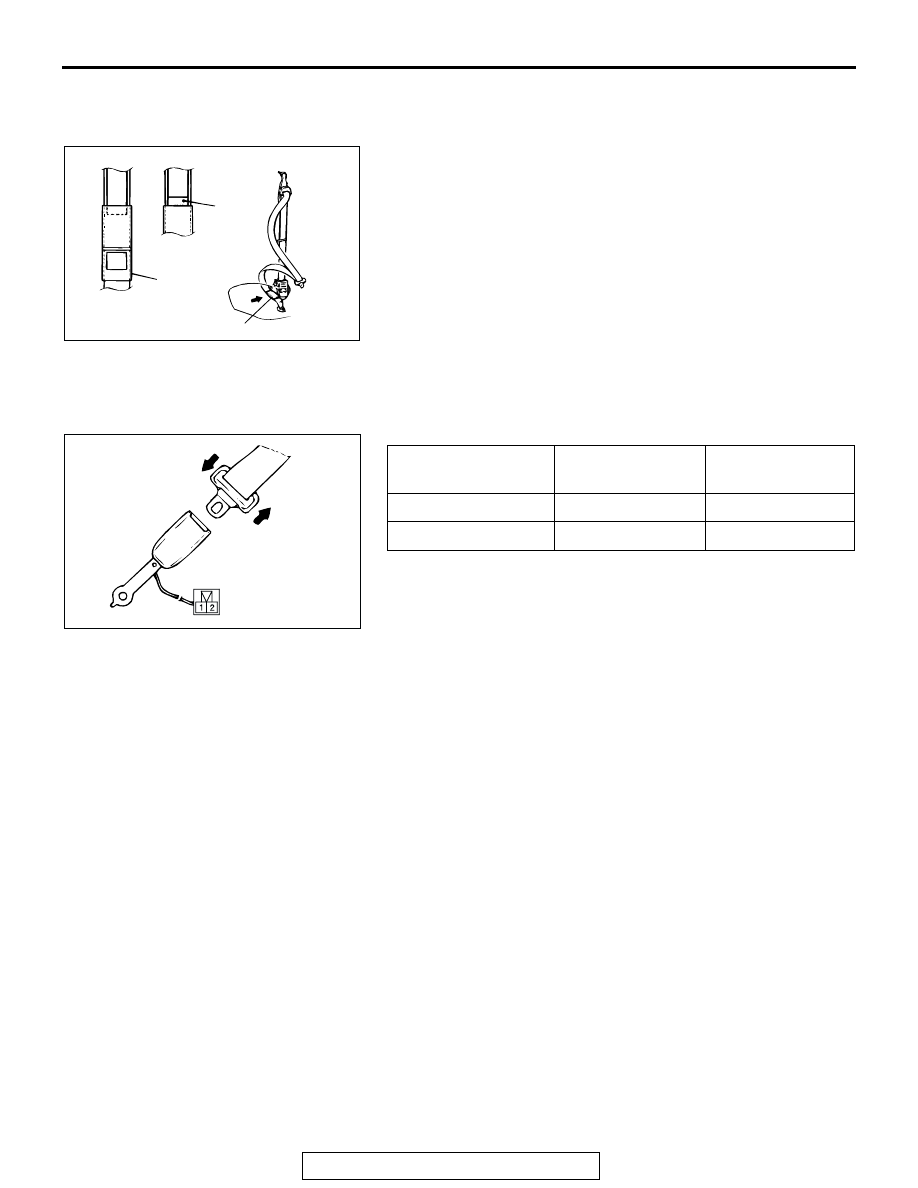

OUTER SEAT BELT CHECK
Check that the B section (red) of the label attached to the outer
seat belt is not exposed from the outer seat belt sleeve. If it is
exposed, replace the outer seat belt.

.

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK
Follow the table bellow to check the seat belt buckle switch for
continuity.

AC003156AB

SLEEVE

B

SLEEVE

VIEW A

GOOD

BAD

A

ITEM

TESTER
CONNECTION

SPECIFIED
CONDITION

Fastened seat belt

1

− 2

Open circuit

Unfastened seat belt 1

− 2

Less than 2 ohms

AC308036

REAR SEAT BELT

TSB Revision

INTERIOR

52A-54

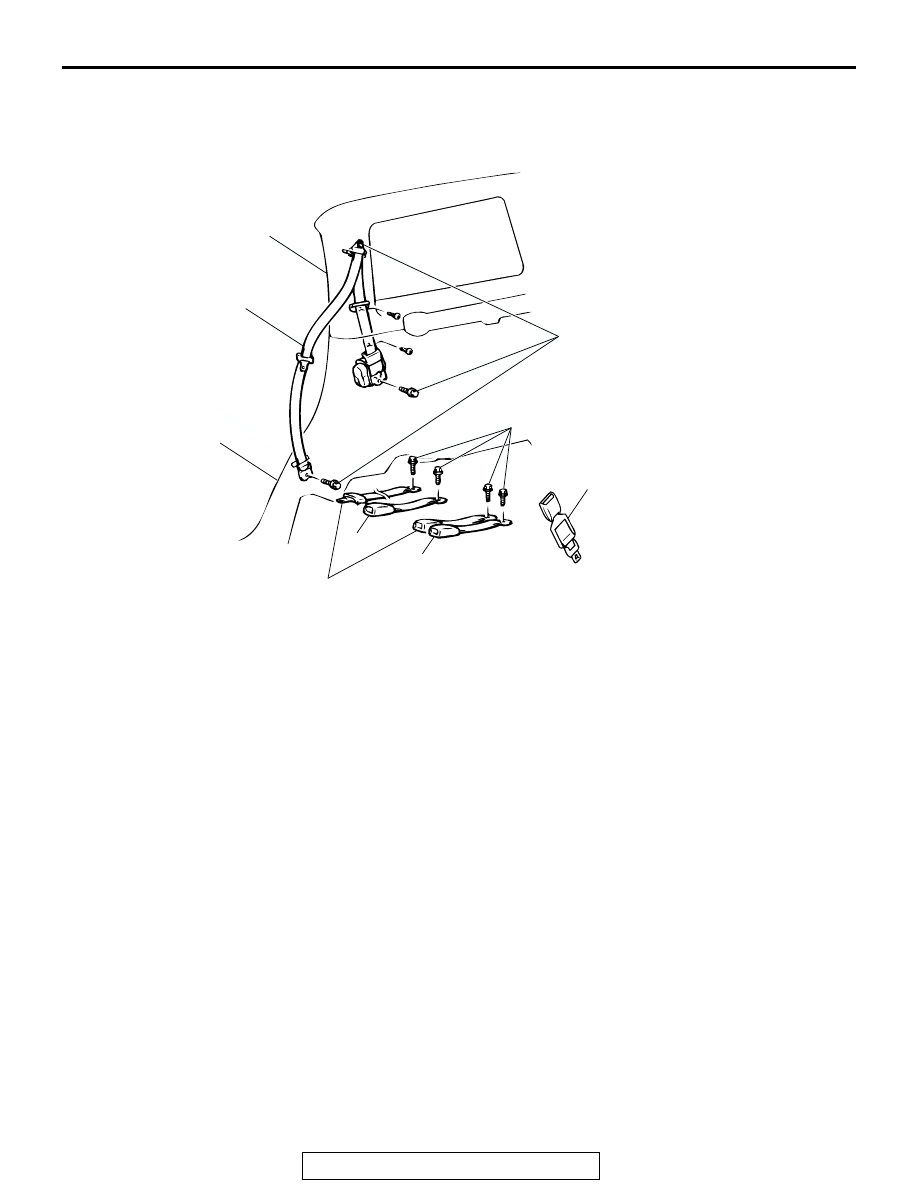

REAR SEAT BELT

REMOVAL AND INSTALLATION

M1523001600207

AC103793

5

6

4

1

2

2

44 N·m

33 ft-lb

44 N·m

33 ft-lb

AB

3

1.

CENTER SEAT BELT

2.

INNER SEAT BELT

3.

EXTENDER SEAT BELT
ASSEMBLY

OUTER SEAT BELT REMOVAL
STEPS

4.

QUARTER TRIM, LOWER (REFER
TO

P.52A-41

.)

5.

QUARTER TRIM, UPPER (REFER
TO

P.52A-41

.)

6.

OUTER SEAT BELT

SPECIFICATIONS

TSB Revision

INTERIOR

52A-55

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1521004100120

SERVICE SPECIFICATIONS

M1522000300062

ITEM

SPECIFICATION

Adjustable seat belt anchor bolt

44 N

⋅m (33 ft-lb)

Front inner seat belt bolt

44 N

⋅m (33 ft-lb)

Front outer seat belt bolt

44 N

⋅m (33 ft-lb)

Front seat adjuster bolt

24 N

⋅m (17 ft-lb)

Front seat bolt

44 N

⋅m (33 ft-lb)

Front seat height adjuster lever bolt

4.9 N

⋅m (43 in-lb)

Front seat reclining adjuster bolt

44 N

⋅m (33 ft-lb)

Rear center seat belt bolt

44 N

⋅m (33 ft-lb)

Rear inner seat belt bolt

44 N

⋅m (33 ft-lb)

Rear outer seat belt bolt

44 N

⋅m (33 ft-lb)

Rear seat band bolt

12 N

⋅m (104 in-lb)

Rear seat catch bolt

22 N

⋅m (16 ft-lb)

Rear seat cushion assembly bolt

22 N

⋅m (16 ft-lb)

Rear seat hinge bolt

22 N

⋅m (16 ft-lb)

Rear seat hinge bracket bolt

13 N

⋅m (115 in-lb)

Rear seat lever assembly bolt

22 N

⋅m (16 ft-lb)

Rear seat lock bracket screw

12 N

⋅m (104 in-lb)

Rear seat reclining adjuster bolt

44 N

⋅m (33 ft-lb)

Rear seatback assembly bolt

44 N

⋅m (33 ft-lb)

Striker assembly

22 N

⋅m (16 ft-lb)

Tether anchor bracket bolt

22 N

⋅m (16 ft-lb)

ITEM

STANDARD VALUE

Seat cushion

Ω

Between terminals 2 and 3

Approximately 11

Between terminals 1 and 3

Approximately 9

Seatback

Ω

Between terminals 1 and 2

Approximately 10
