FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-45

INSTALLATION SERVICE POINT

.

>>A<< FRONT SEAT ASSEMBLY INSTALLATION
First install all of the front seat assembly mounting nuts and
bolts, and then tighten them to the specified torque.

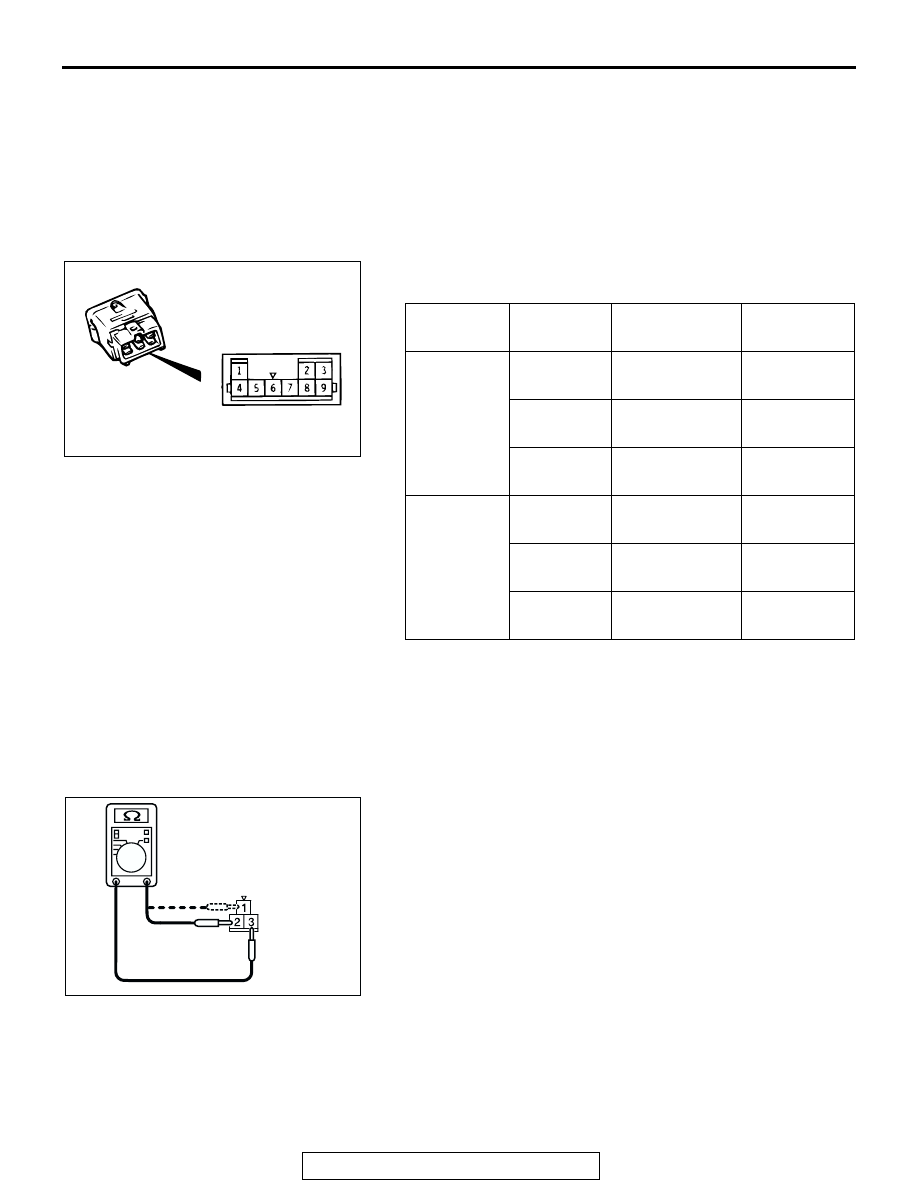

INSPECTION

M1522005500135

.

CONTINUITY TEST OF HEATED SEAT SWITCH
1. Follow the table below to check between terminals for

continuity.

2. Check that the indicator is lighted at HI or LO when battery

voltage is supplied or the terminal 5 ad the terminal 8 is
ground.

3. Check that the illumination is lighted when battery voltage is

supplied to the terminals 2 and 6.

.

SEAT CUSHION HEATER CHECK
Measure the resistance between terminals.

Standard value:

Between terminals 2 and 3: Approximately 11

Ω

Between terminals 1 and 3: Approximately 9

Ω

.

ITEM

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Driver's seat
side

HI

1 - 5, 3 - 5, 5 - 8 Less than 2

ohms

OFF

1 - 3, 1 - 5, 1 - 8,
3 - 5, 3 - 8, 5 - 8

Open circuit

LO

3 - 5, 5 - 8

Less than 2
ohms

Front
passenger's
seat side

HI

4 - 5, 5 - 8, 5 - 9 Less than 2

ohms

OFF

4 - 5, 4 - 8, 4 - 9,
5 - 8, 5 - 9, 8 - 9

Open circuit

LO

5 - 8, 5 - 9

Less than 2
ohms

AC003266AB

AC308661

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-46

SEATBACK HEATER CHECK
Measure the resistance between terminals.

Standard value: Approximately 10

Ω

AC308662

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-47

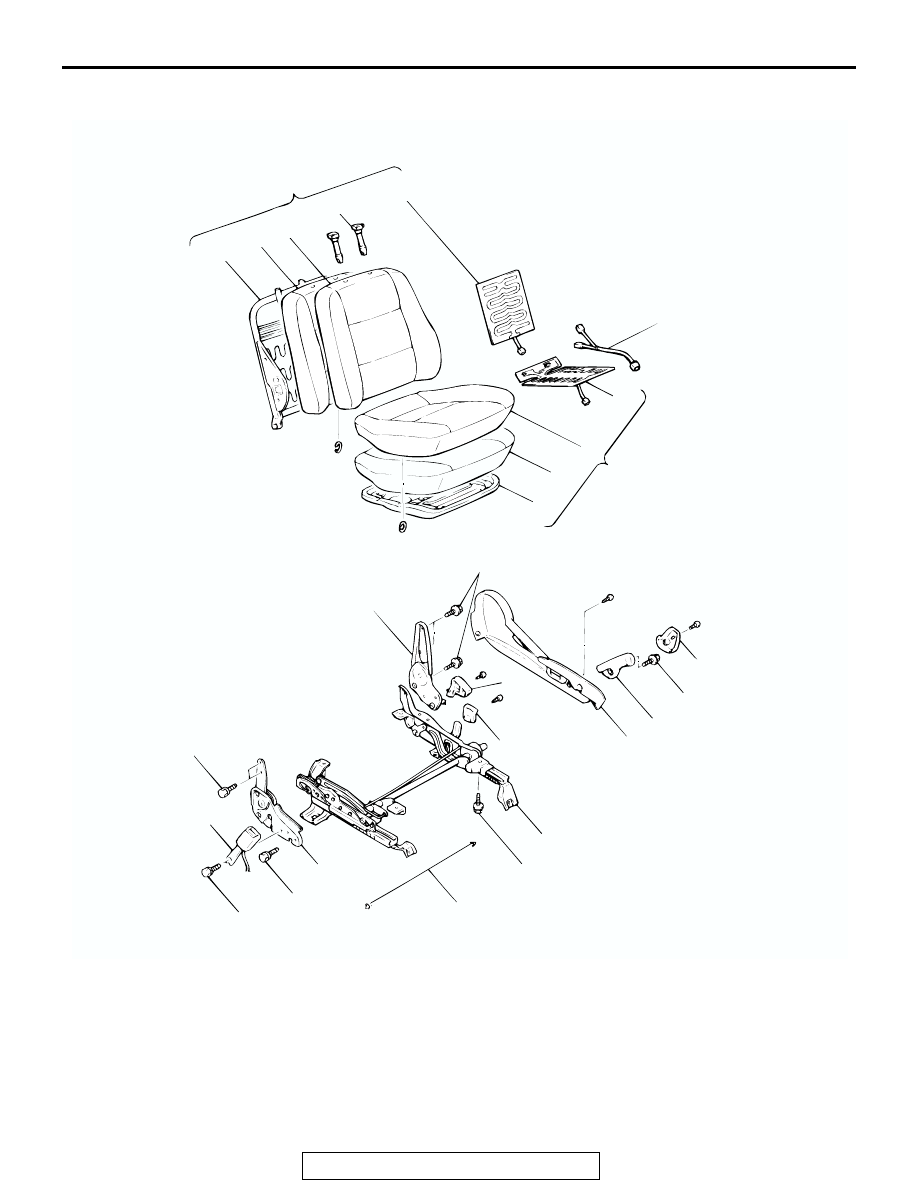

DISASSEMBLY AND ASSEMBLY

M1522001500229

AC003269

13

7

9

8

19

1

2

5

4

3

44 N·m
33 ft-lb

4.9 N·m

43 in-lb

20

24 N·m
17 ft-lb

21

44 N·m
33 ft-lb

44 N·m
33 ft-lb

44 N·m
33 ft-lb

19

6

AB

16

14

15

17

18

10

11

12

DISASSEMBLY STEPS

1. RECLINING ADJUSTER KNOB
2. SLIDE ADJUSTER KNOB
3. FRONT SEAT HEIGHT ADJUSTER

INNER LEVER <VEHICLES WITH
HEIGHT ADJUSTER>

4. FRONT SEAT HEIGHT ADJUSTER

LEVER <VEHICLES WITH HEIGHT
ADJUSTER>

5. FRONT SEAT SHIELD COVER

6. INNER SEAT BELT
7. SEAT HEATER HARNESS

<VEHICLES WITH HEATED SEAT>

8. FRONT SEAT CUSHION ASSEMBLY
9. FRONT SEAT CUSHION COVER
10. FRONT SEAT CUSHION HEATER

<VEHICLES WITH HEATED SEAT>

11. FRONT SEAT CUSHION PAD
12. FRONT SEAT CUSHION FRAME

DISASSEMBLY STEPS (Continued)

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-48

13. FRONT SEATBACK ASSEMBLY
14. HEAD RESTRAINT GUIDE
15. FRONT SEATBACK COVER
16. FRONT SEATBACK HEATER

<VEHICLES WITH HEATED SEAT>

17. FRONT SEATBACK PAD
18. FRONT SEATBACK FRAME
19. RECLINING ADJUSTER
20. SEAT ADJUSTER
21. PULL WIRE

DISASSEMBLY STEPS (Continued)
