DOOR

TSB Revision

BODY

42-87

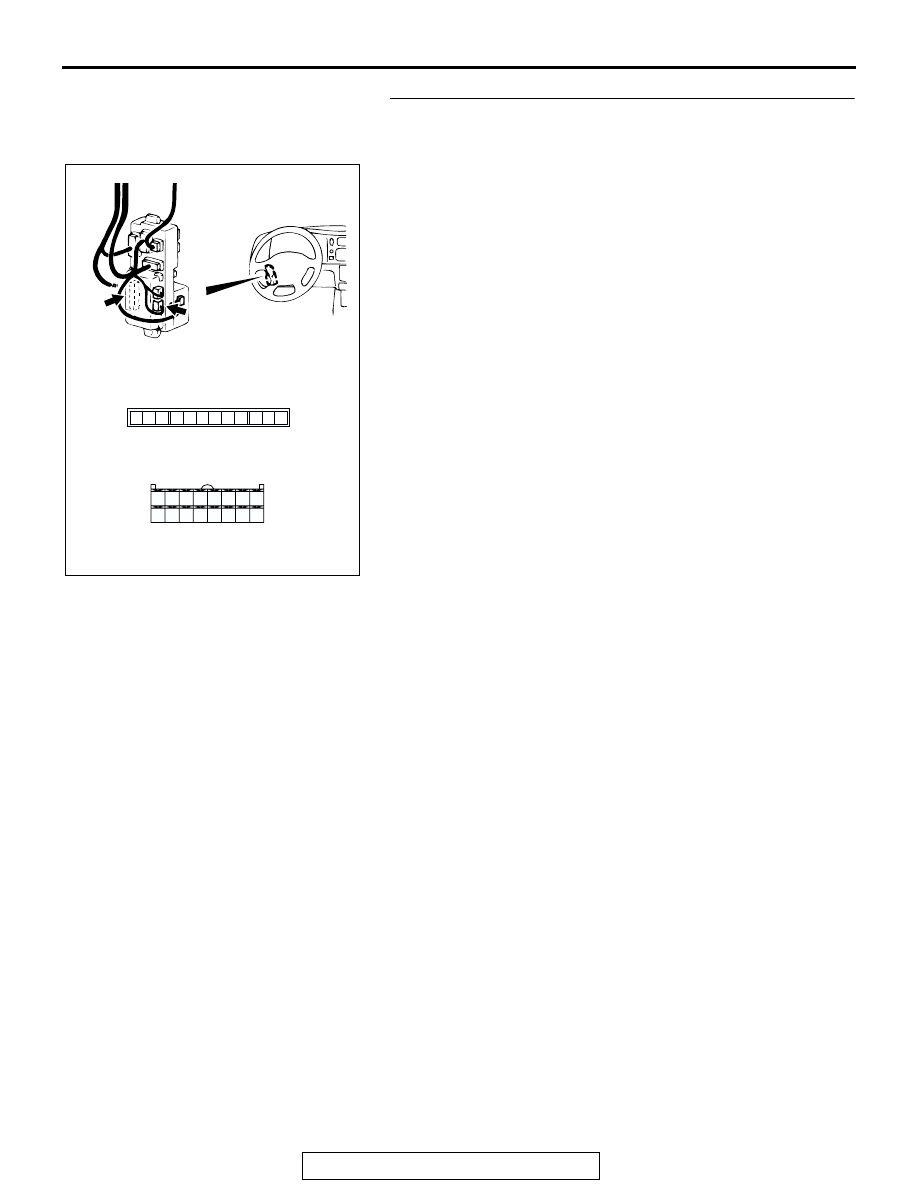

STEP 13. Check ETACS-ECU connector D-11 and D-27 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are ETACS-ECU connector D-11 and D-27 in good

condition?
YES : Go to step 14.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 19.

AC202055

1

4 3 2

5

7 6

8

9

11

12

10

32

33

40

41

35

36

43

44

42

334

38

4645

37

39

31

CONNECTORS: D-11, D-27

AB

D-11

D-27 (B)

D-11 COMPONENT SIDE

D-27 COMPONENT SIDE

41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56

DOOR

TSB Revision

BODY

42-88

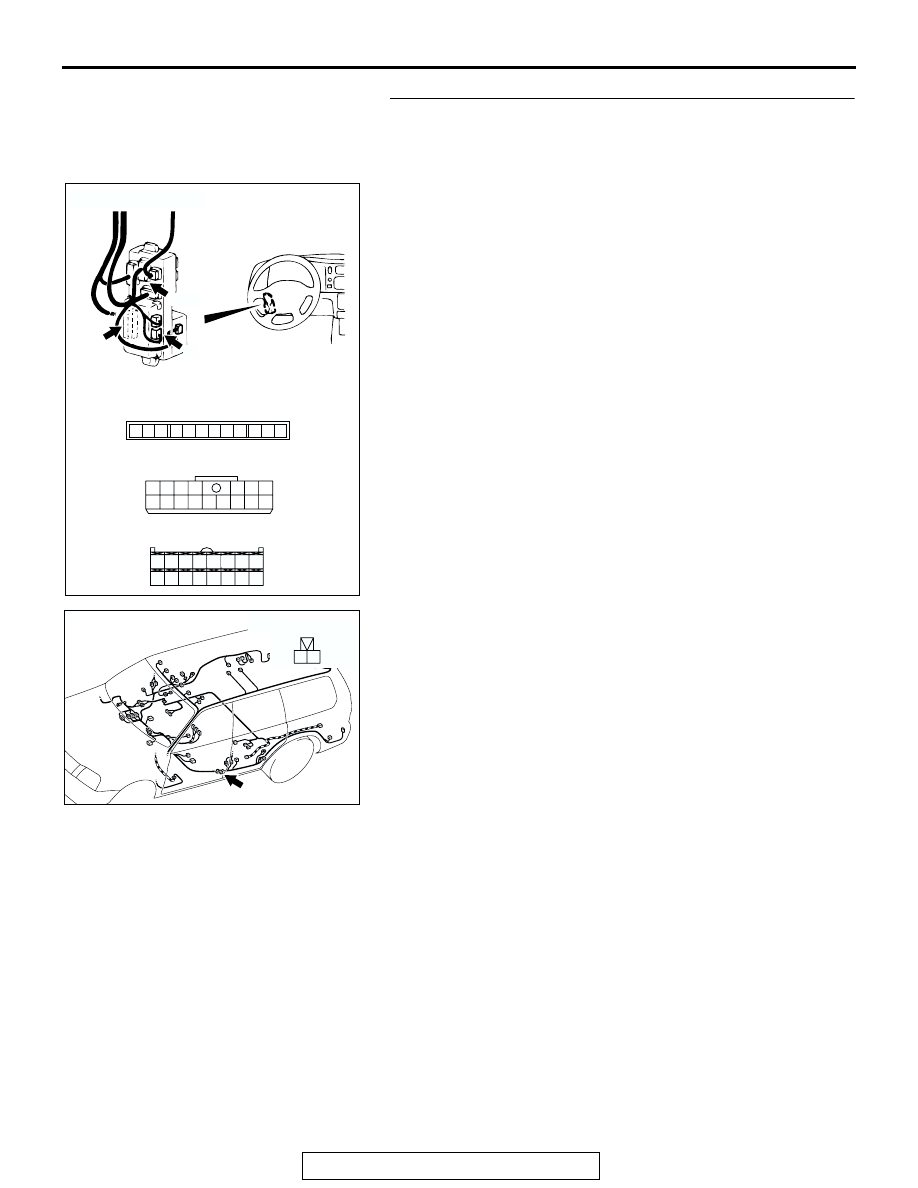

STEP 14. Check the harness wire between ETACS-ECU
connector D-11 (terminal No.9), D-27 (terminal No.51) and
front driver's door switch connectors E-33 (terminals No.1
and No.2).

AC309327AC

CONNECTORS: D-11, D-14, D-27

JUNCTION BLOCK (REAR)

1

4 3 2

5

7 6

8

9

11

12

10

32

33

40

41

35

36

43

44

42

334

38

4645

37

39

31

D-11 COMPONENT SIDE

D-14 COMPONENT SIDE

D-27 COMPONENT SIDE

41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56

D-11

D-27 (B)

D-14 (B)

1

2

3

4

5

7 6

1615141312 1110 9 8

AC004329AL

E-33

CONNECTOR: E-33

COMPONENT SIDE

2 1

DOOR

TSB Revision

BODY

42-89

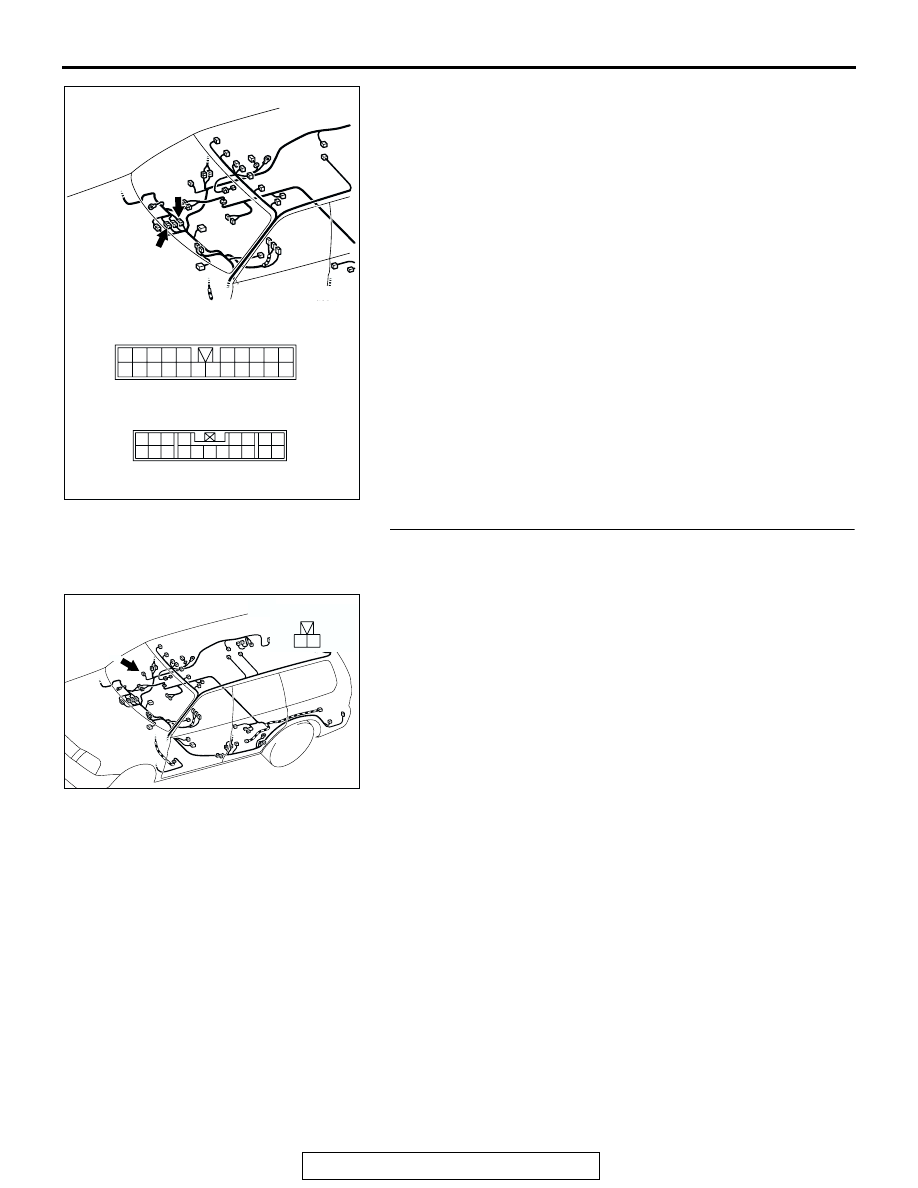

NOTE: After inspecting junction block connector D-14, interme-
diate connector E-41 and E-42 inspect the wire. If junction
block connector D-14, intermediate connector E-41 or E-42 is
damaged, repair or replace it. Refer to GROUP 00E

P.00E-2

,

Harness Connector Inspection. Then go to Step 19.
Q: Are there any damaged harness wires between

ETACS-ECU connector D-11 (terminal No.9), D-27
(terminal No.51) and front driver's door switch
connectors E-33 (terminals No.1 and No.2)?
YES : Repair or replace the harness wire, then go to

Step19.

NO :  Replace the ETACS-ECU and then go to Step19.

STEP 15. Check front passenger’s door switch connector
E-46 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is front passenger’s door switch E-46 in good

condition?
YES : Go to step 16.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 19.

AC202059

22

2021

10

9

8

1718

6 7

19

1415

4 5

1112

1 2 3

13

16

8

19

7

6

5

16

15

17 18

4

3

2

10 11 12 13

1
9

14

CONNECTORS: E-41, E-42

E-41

E-42

AB

E-41

E-42

AC004329AM

E-46

CONNECTOR: E-46

COMPONENT SIDE

2 1

DOOR

TSB Revision

BODY

42-90

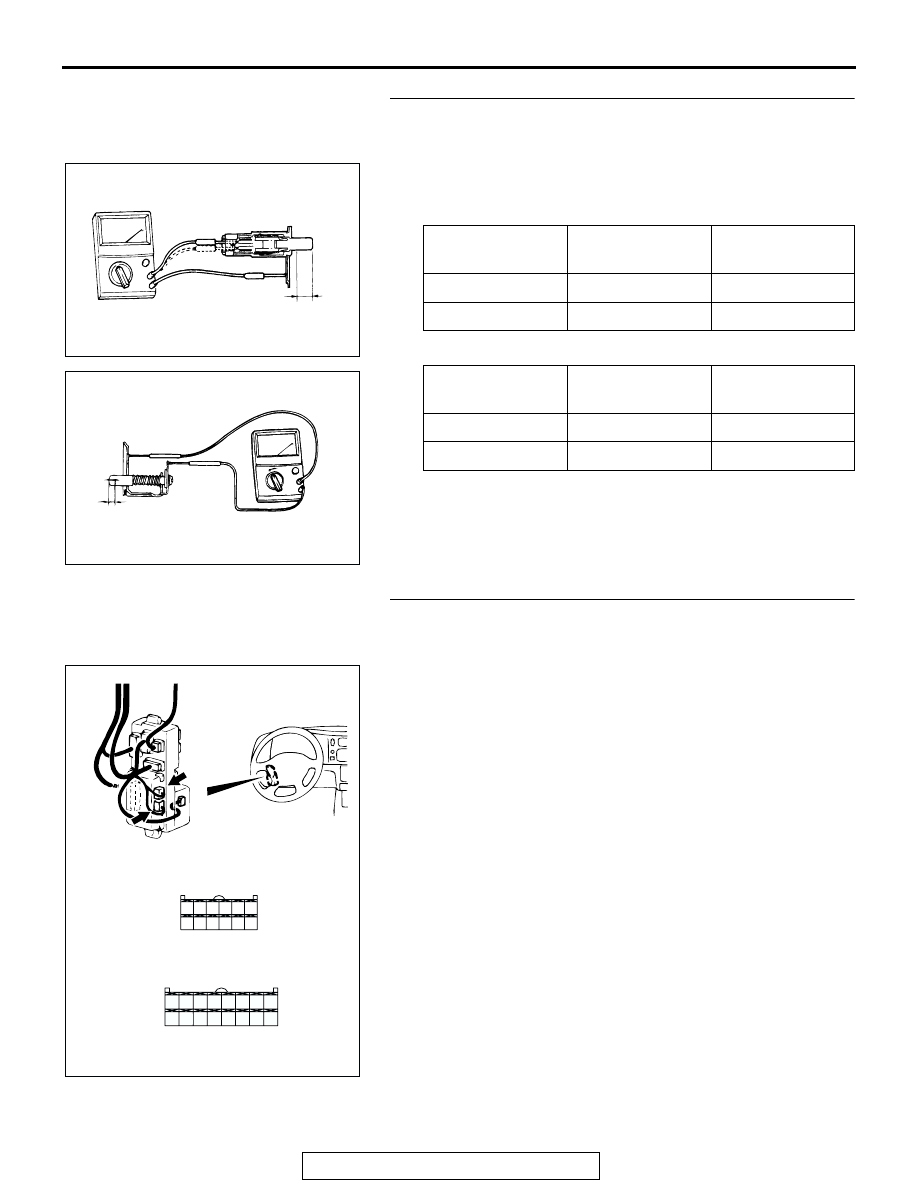

STEP 16. Check the front passenger’s door switch.
(1) Remove the fornt passenger’s door switch (Refer to

P.42-132

).

(2) Follow the table to check the front passenger’s door switch

continuity.
TYPE1

TYPE2

Q: Is the front passenger’s door switch in good condition?

YES : Go to Step 17 .
NO :  Replace front passenger’s door switch, then go to

Step 19.

STEP 17. Check ETACS-ECU connector D-26 and D-27 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are ETACS-ECU connector D-26 and D-27 in good

condition?
YES : Go to step 18.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 19.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released (ON)

1

− 2, 1 − 3, 2 − 3 Less than 2 ohms

Depressed (OFF) 1

− 2, 1 − 3, 2 − 3 Open circuit

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released (ON)

1

− 2

Less than 2 ohms

Depressed (OFF) 1

− 2

Open circuit

AC003906

TYPE 1

AB

1

2

3

OFF

ON

STROKE

AC003907

TYPE 2

1

2

ON

OFF

STROKE

AB

AC202057

21

22

28 27

24

30

25

31

32

26

29

23

32

33

40

41

35

36

43

44

42

34

38

4645

37

39

31

CONNECTORS: D-26, D-27

AB

D-26 (B)

D-27 (B)

D-26 COMPONENT SIDE

D-27 COMPONENT SIDE

JUNCTION BLOCK

(REAR)

41 42 43

45 46 47 48

49 50 51 52 53 54 55 56

44
