DOOR

TSB Revision

BODY

42-91

STEP 18. Check the harness wire between ETACS-ECU
connector D-26 (terminal No.23), D-27 (terminal No.51) and
front passenger’s side door switch connector E-46
(terminals No.1 and No.2).

AC202057

21

22

28 27

24

30

25

31

32

26

29

23

32

33

40

41

35

36

43

44

42

34

38

4645

37

39

31

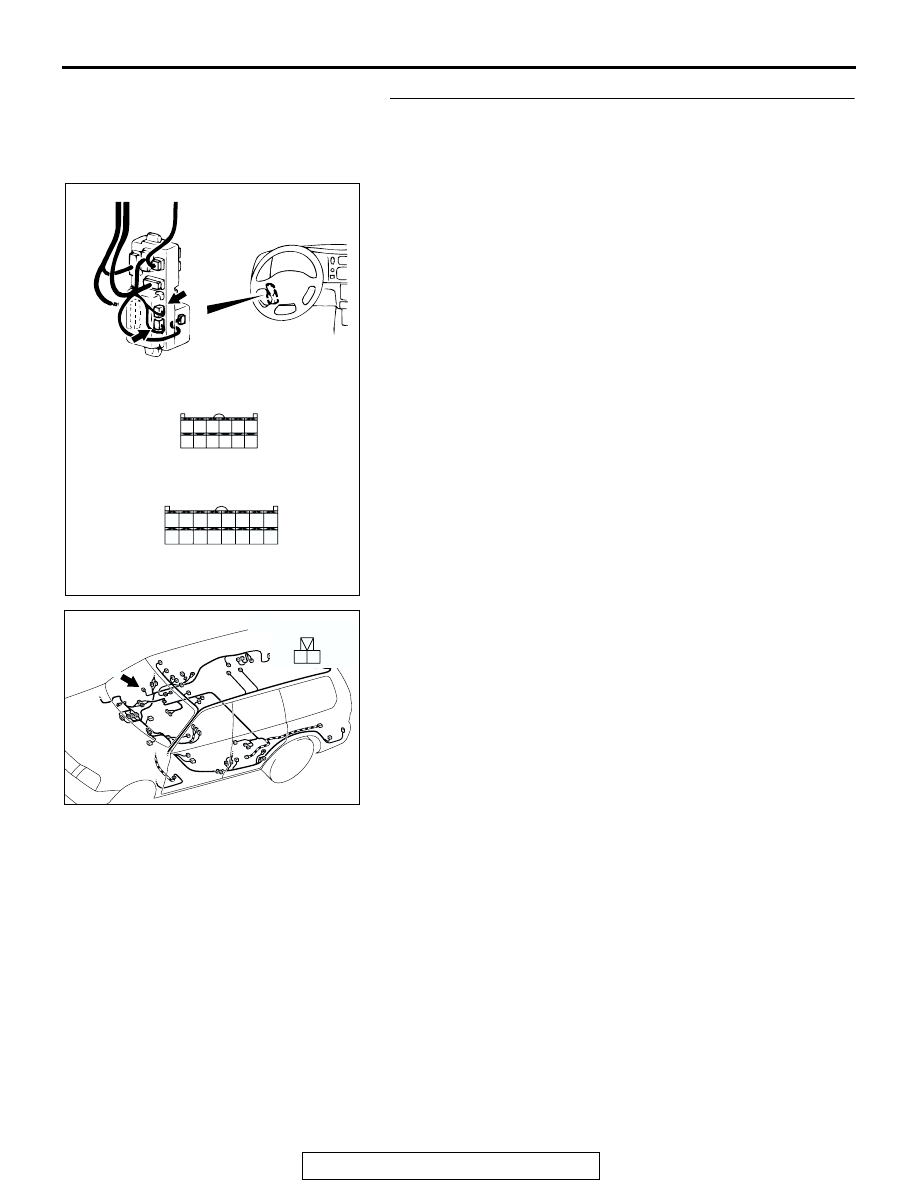

CONNECTORS: D-26, D-27

AB

D-26 (B)

D-27 (B)

D-26 COMPONENT SIDE

D-27 COMPONENT SIDE

JUNCTION BLOCK

(REAR)

41 42 43

45 46 47 48

49 50 51 52 53 54 55 56

44

AC004329AM

E-46

CONNECTOR: E-46

COMPONENT SIDE

2 1

DOOR

TSB Revision

BODY

42-92

NOTE: After inspecting intermediate connector E-41 and E-42
inspect the wire. If intermediate connector E-41 or E-42 is dam-
aged, repair or replace it. Refer to GROUP 00E

P.00E-2

, Har-

ness Connector Inspection. Then go to Step 19.
Q: Are there any damaged harness wires between

ETACS-ECU connector D-26 (terminal No.23), D-27
(terminal No.51) and front passenger’s side door switch
connector E-46 (terminals No.1 and No.2)?
YES : Repair or replace the harness wire, then go to

Step19.

NO :  Replace the ETACS-ECU and then go to Step19.

STEP 19.Retest the system.
Q: Does the door lock function operate normally?

YES : The procedure is complete.
NO :  Return to Step 1.

AC202059

22

2021

10

9

8

1718

6 7

19

1415

4 5

1112

1 2 3

13

16

8

19

7

6

5

16

15

17 18

4

3

2

10 11 12 13

1
9

14

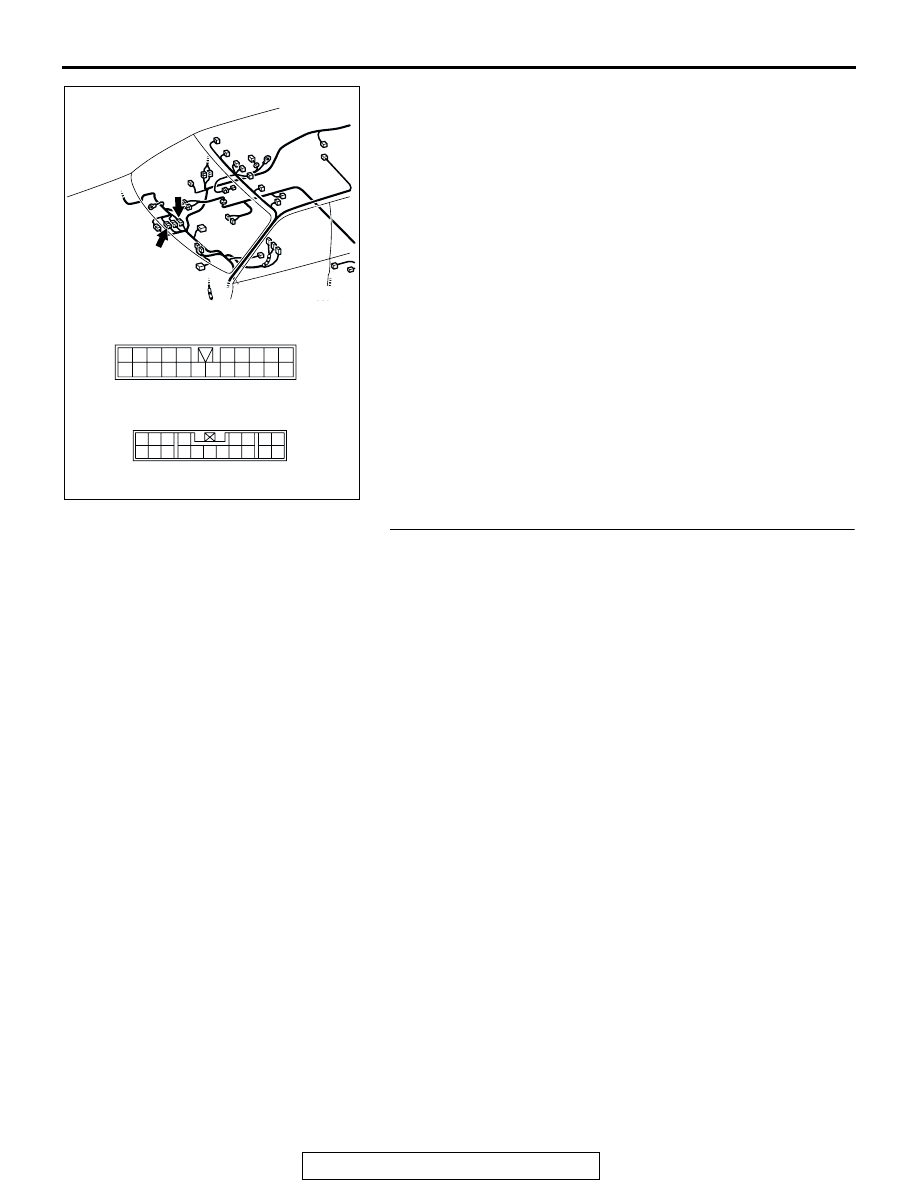

CONNECTORS: E-41, E-42

E-41

E-42

AB

E-41

E-42

DOOR

TSB Revision

BODY

42-93

POWER WINDOW DIAGNOSIS

INTRODUCTION TO POWER WINDOWS DIAGNOSIS

M1429002600148

 If the power windows cannot be operated, the fuse,
relay, main switch, sub switch, ETACS-ECU or motor
may be faulty.
 When the power window switch (main or sub) is
operated, the power window motor operates and
opens or closes the door window.
A timer function has been provided to allow the door
windows to be opened or closed in 30 seconds after
the ignition switch is turned from "ON" to "LOCK"
(OFF) position when a front door <LH> and <RH> is
closed (door switch is OFF). When the lock switch is
changed from unlock to lock, the door windows can
only be opened or closed by the power window main
switch on the driver's side.

If the following types of symptom occur, there may be
a fault.

• None of the door windows open or close.

• There are door windows that do not open or close

using the power window (main or sub) switch.

• The windows cannot be opened or closed using

the power window (main or sub) switch within 30
seconds after the ignition switch is turned from
"ON" to "LOCK" (OFF) position.

POWER WINDOWS DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1429002700145

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
power windows fault.
1. Gather information from customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

SYMPTOM CHART

M1429002800197

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

All windows does not open or close using the power window
main/sub switch <Vehicles without keyless entry system>.

1

P.42-94

All windows does not open or close using the power window
main/sub switch <Vehicles with keyless entry system>.

2

P.42-103

Power window timer function does not work normally. (power
window operates) <vehicles with keyless entey system>

3

P.42-115

DOOR

TSB Revision

BODY

42-94

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: All Windows does not Open or Close Using the Power Window

Main/Sub Switch <Vehicles without keyless entry system>.

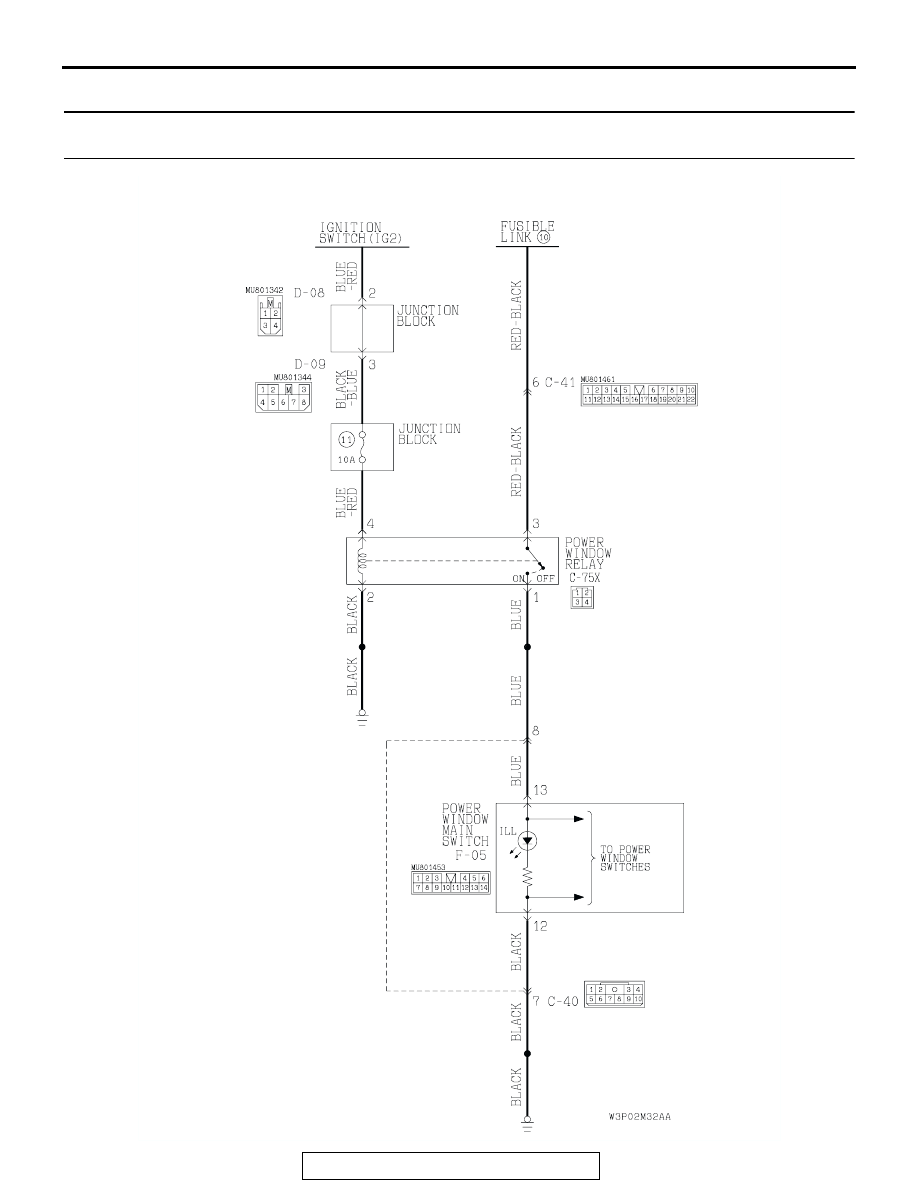

Power Window Switch Circuit

AC309322
