DOOR

TSB Revision

BODY

42-79

NOTE: After inspecting intermediate connectors C-01 and E-18
inspect the wire. If intermediate connectors C-01 or E-18 is
damaged, repair or replace damaged component. Refer to
GROUP 00E

P.00E-2

, Harness Connector Inspection. Then go

to Step 22.
Q: Are there any damaged harness wires between

ETACS-ECU connectors D-10 (terminals No.21 and
No.24) <Vehicles without keyless entry system> or D-27
(terminals No.41 and No.42) <Vehicles with keyless
entry system> and door lock actuator (liftgate)
connector G-04 (terminals No.1 and No.2)?
YES : Replace the ETACS-ECU and then go to step 22.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 22.

STEP 22. Retest the system.
Q: Does the door lock function operate normally?

YES : The procedure is complete.
NO :  Return to Step 1.

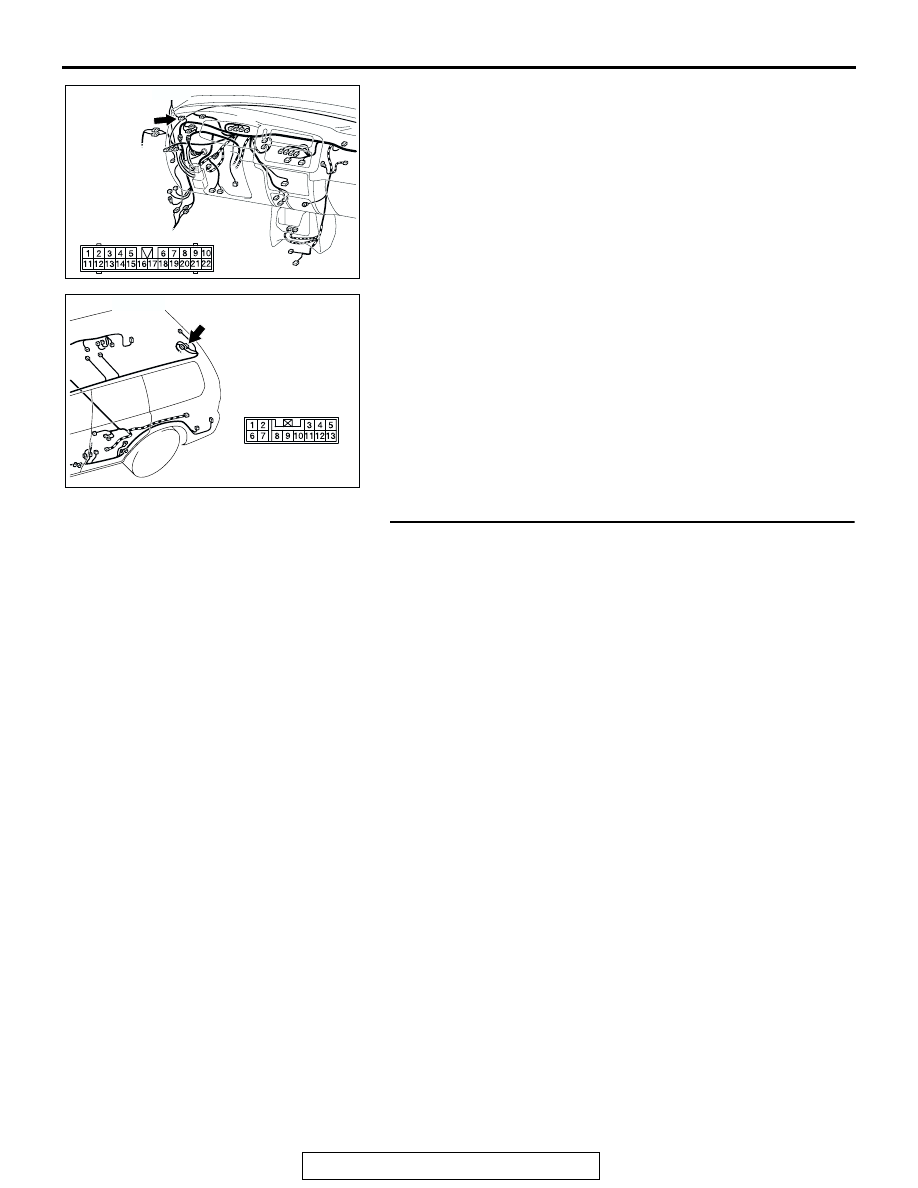

AC309309AC

C-01

CONNECTOR: C-01

AC309463

CONNECTOR: E-18

E-18

AB

DOOR

TSB Revision

BODY

42-80

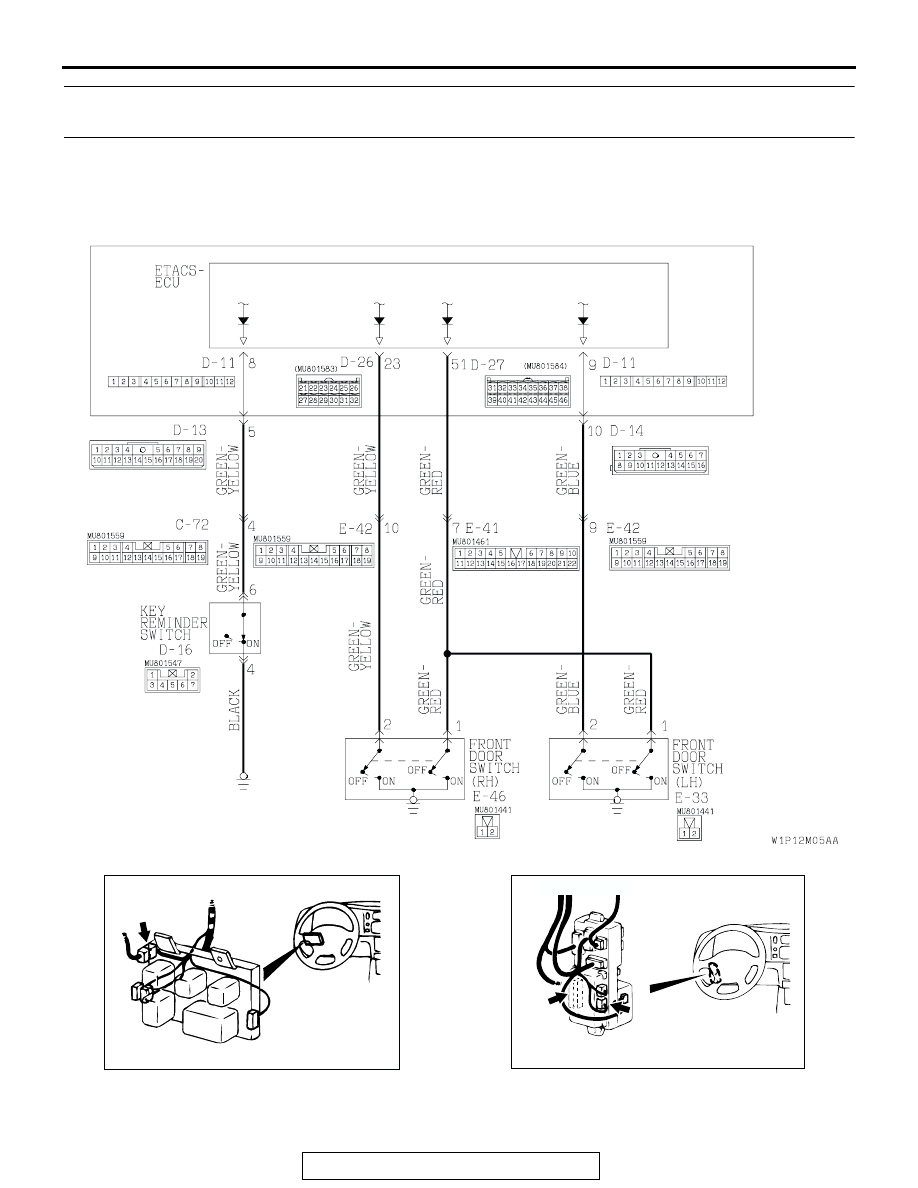

INSPECTION PROCEDURE 6: Forgotten Key Prevention Function does not Operate (Center Door
Locking System Function Works Normally) <Vehicles with keyless entry system>.

AC004333AB

Key Reminder Switch Circuit

AC004969

CONNECTOR: C-72

AC

C-72 (B)

AC004311BB

CONNECTORS: D-11, D-27

D-11

D-27 (B)

JUNCTION BLOCK

(REAR)

DOOR

TSB Revision

BODY

42-81

.

TECHNICAL DESCRIPTION (COMMENT)
The ETACS-ECU operates the forgotten key preven-
tion function, based on the input signals from the fol-
lowing switches:

• Key reminder switch

• Driver's or front passenger's door switch

If the function does not work normally, a defect on
the relevant circuit or the ETACS-ECU may be sus-
pected.

.

TROUBLESHOOTING HINTS

• Malfunction of the key reminder switch

• Malfunction of the driver's or front passenger's

door switch

• Malfunction of the ETACS-ECU

• Damaged harness wires or connectors

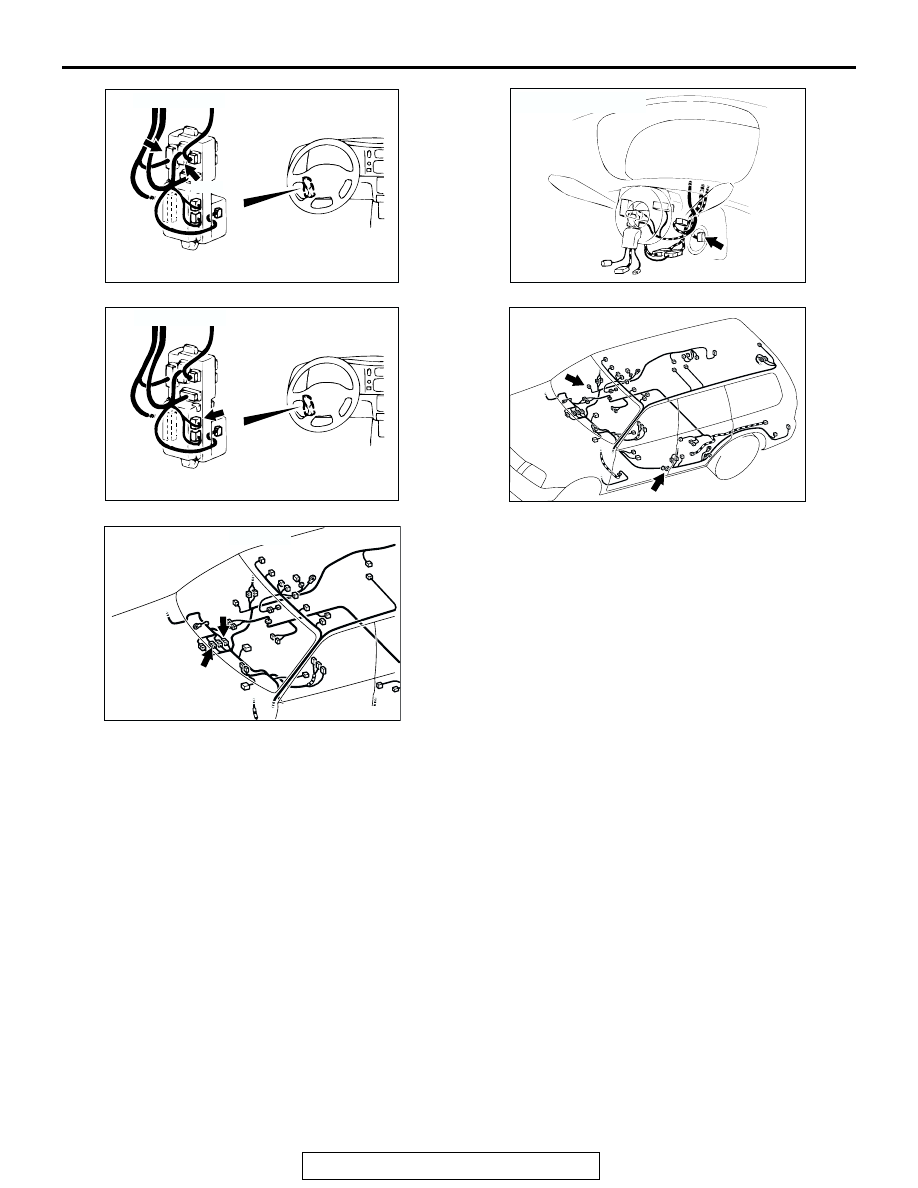

AC004311BC

CONNECTORS: D-13, D-14

JUNCTION BLOCK

(REAR)

D-14 (B)

D-13

AC004968

CONNECTOR: D-16

AC

D-16

AC004311BD

CONNECTOR: D-26

JUNCTION BLOCK

(REAR)

D-26 (B)

AC004329AF

E-33

CONNECTORS: E-33, E-46

E-46

AC005005AB

E-42

E-41

CONNECTORS: E-41, E-42

DOOR

TSB Revision

BODY

42-82

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991529: Diagnostic Trouble Code Check Harness

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

STEP 1.Choose method of ETACS-ECU input signal check.
Q: Is the ETACS-ECU input signal check performed by

scan tool MB991958 or a voltmeter?
By Scan tool MB991958 : Go to Step 2.
By a Voltmeter <Key reminder switch input signal
check> : Go to Step 3.
By a Voltmeter <Front driver’s door switch input signal
check> : Go to Step 4.
By a Voltmeter <Front passenger’s door switch input
signal check> : Go to Step 5.

STEP 2. Check the input signal (by using the pulse check)
(by using MB991958).
Check the ETACS-ECU input signal (key reminder switch or
front door switches) by using scan tool MB991958.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

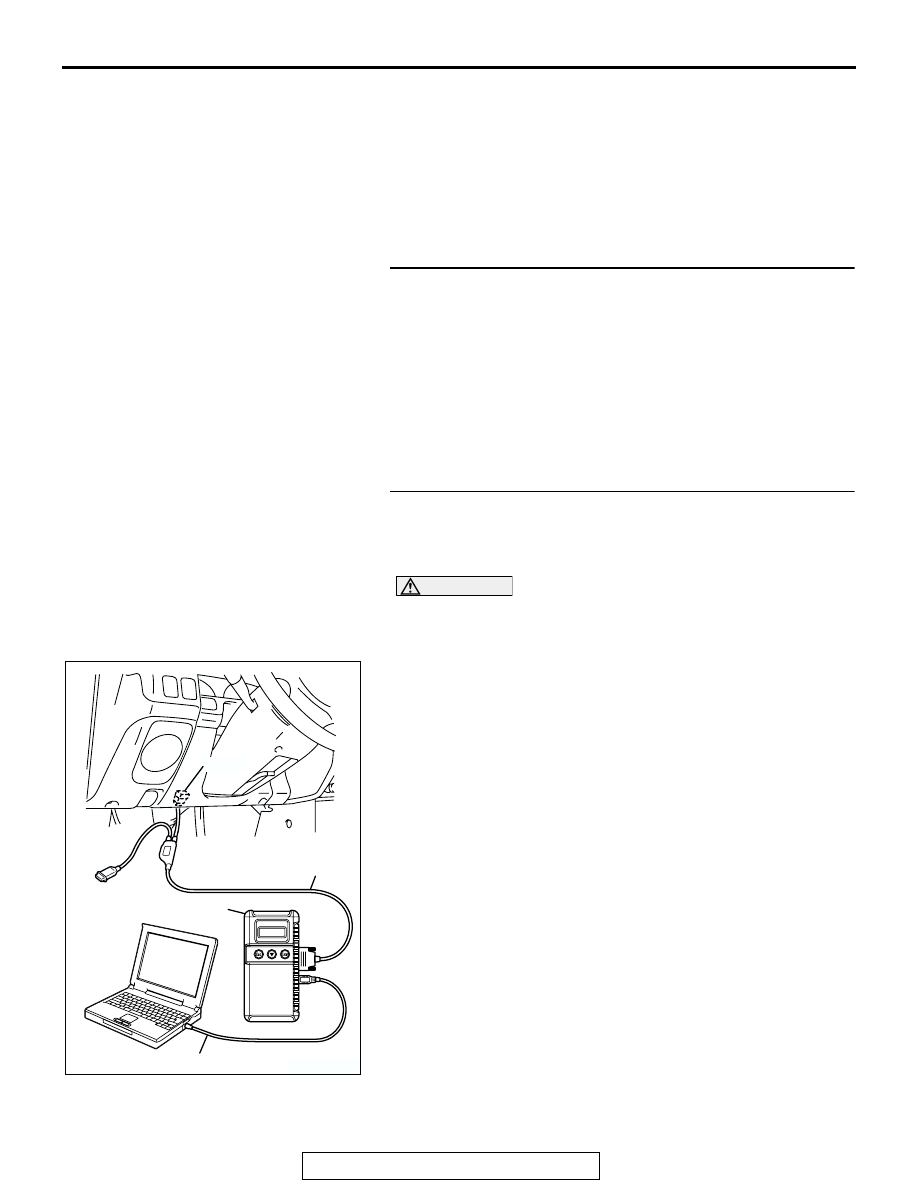

(1) Connect scan tool MB991958 to the data link connector.
(2) Operate scan tool MB991958 as follows:

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "PULSE CHECK."

(3) Insert the key to the ignition switch.
(4) Open the front driver’s door or front passenger’s door.
(5) Check that scan tool MB991958 sounds
Q: Does the tone alarm of scan tool MB991958 sound when

the input signal enters?
YES : Replace the ETACS-ECU and then go to Step 19.
NO <Key reminder switch input signal> : Go to Step 6.
NO <Front driver’s door switch input signal> : Go to

Step 11.

NO <Front passenger’s door switch input signal> : Go

to Step 15.

AK303629AB

MB991911

MB991827

MB991824

16-PIN
