Mitsubishi Montero Sport (2004+). Manual - part 455





DOOR

TSB Revision

BODY

42-75

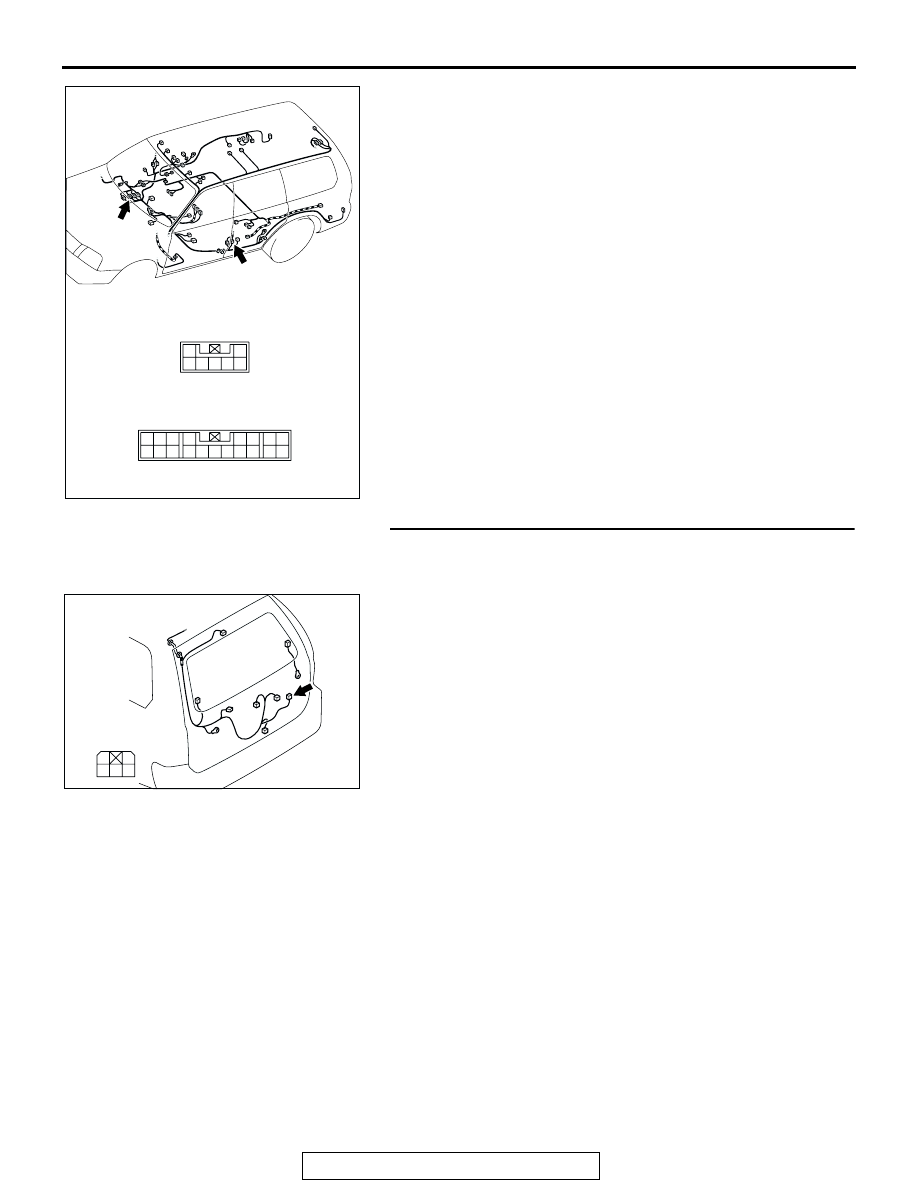

NOTE: After inspecting intermediate connectors E-31 and E-42
inspect the wire. If intermediate connectors E-31 or E-42 is
damaged, repair or replace damaged component. Refer to
GROUP 00E

P.00E-2

, Harness Connector Inspection. Then go

to Step 22.
Q: Are there any damaged harness wires between

ETACS-ECU connectors D-10 (terminals No.21 and
No.24) <Vehicles without keyless entry system> or D-27
(terminals No.41 and No.42) <Vehicles with keyless
entry system> and door lock actuator (reart: LH)
connector F-09 (terminals No.1 and No.2)?
YES :
Replace the ETACS-ECU and then go to step 22.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 22.

STEP 18. Check door lock actuator (liftgate) connector
G-04 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is the connector in good condition?

YES : Go to step 19.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 22.

AC309451

6

2
7

5

1
3 4

8

19

7

6

5

16

15

17 18

4

3

2

10 11 12 13

1
9

14

CONNECTORS: E-31, E-42

E-03

E-42

E-42

E-31

AB

AC202036

1

4 3

2
5

CONNECTOR: G-04

AB

G-04

COMPONENT
SIDE

DOOR

TSB Revision

BODY

42-76

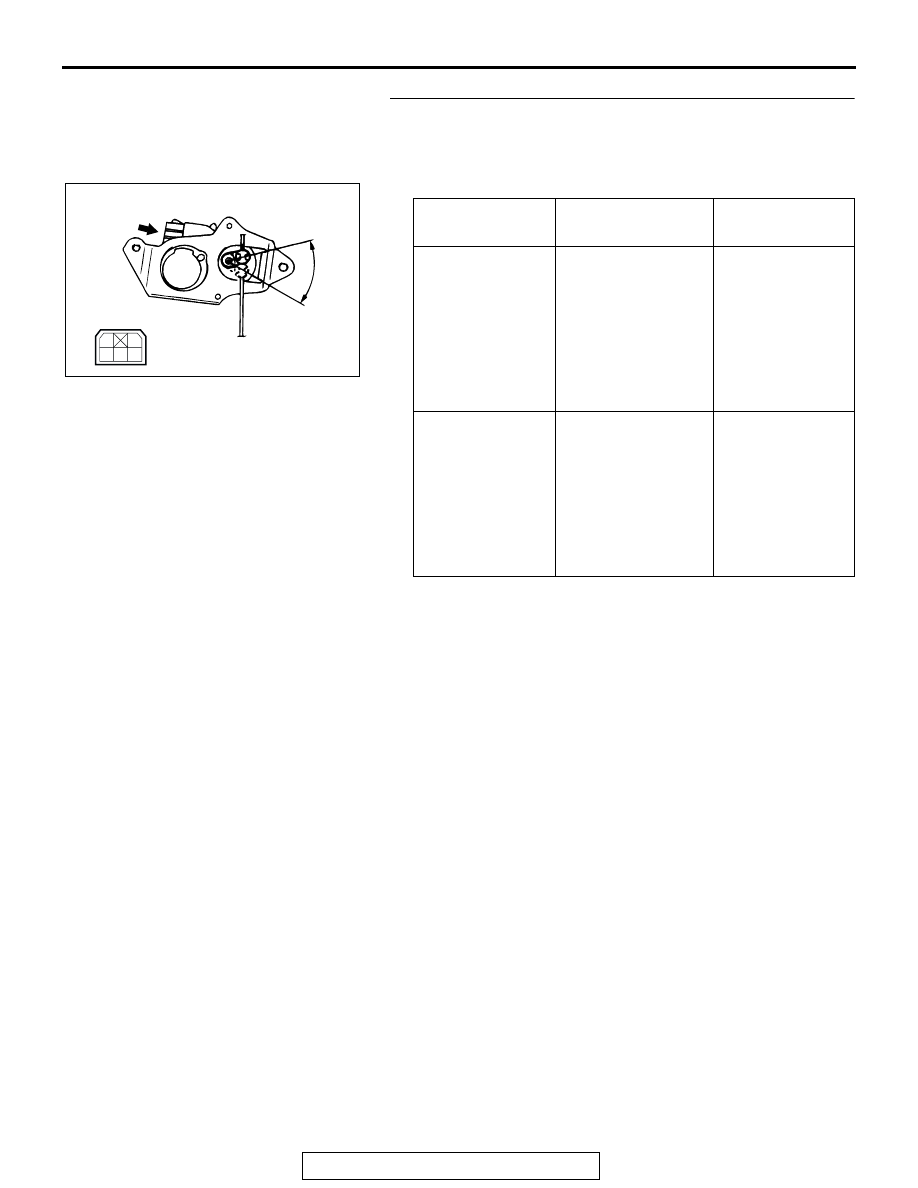

STEP 19. Check the door lock actuator (liftgate).
(1) Remove the liftgate lock key cylinder (Refer to

P.42-152

).

(2) Follow the table to check the liftgate lock actuator operation

(lock/unlock).
Actuator Operation Check

Q: Is the liftgate lock actuator damaged?

YES : Replace liftgate lock actuator, then go to Step 22 .
NO :  Go to Step 20.

LEVER
POSITION

BATTERY
CONNECTION

LEVER
OPERATION

At the "LOCK"
position

• Connect terminal

No. 1 and the
positive battery
terminal.

• Connect terminal

No. 2 and the
negative battery
terminal.

The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.

At the "UNLOCK"
position

• Connect terminal

No. 2 and the
positive battery
terminal.

• Connect terminal

No. 1 and the
negative battery
terminal.

The lever moves
from the
"UNLOCK"
position to the
"LOCK" position.

5

4

3

2

1

AC003805AB

UNLOCK

LOCK

A

VIEW A

DOOR

TSB Revision

BODY

42-77

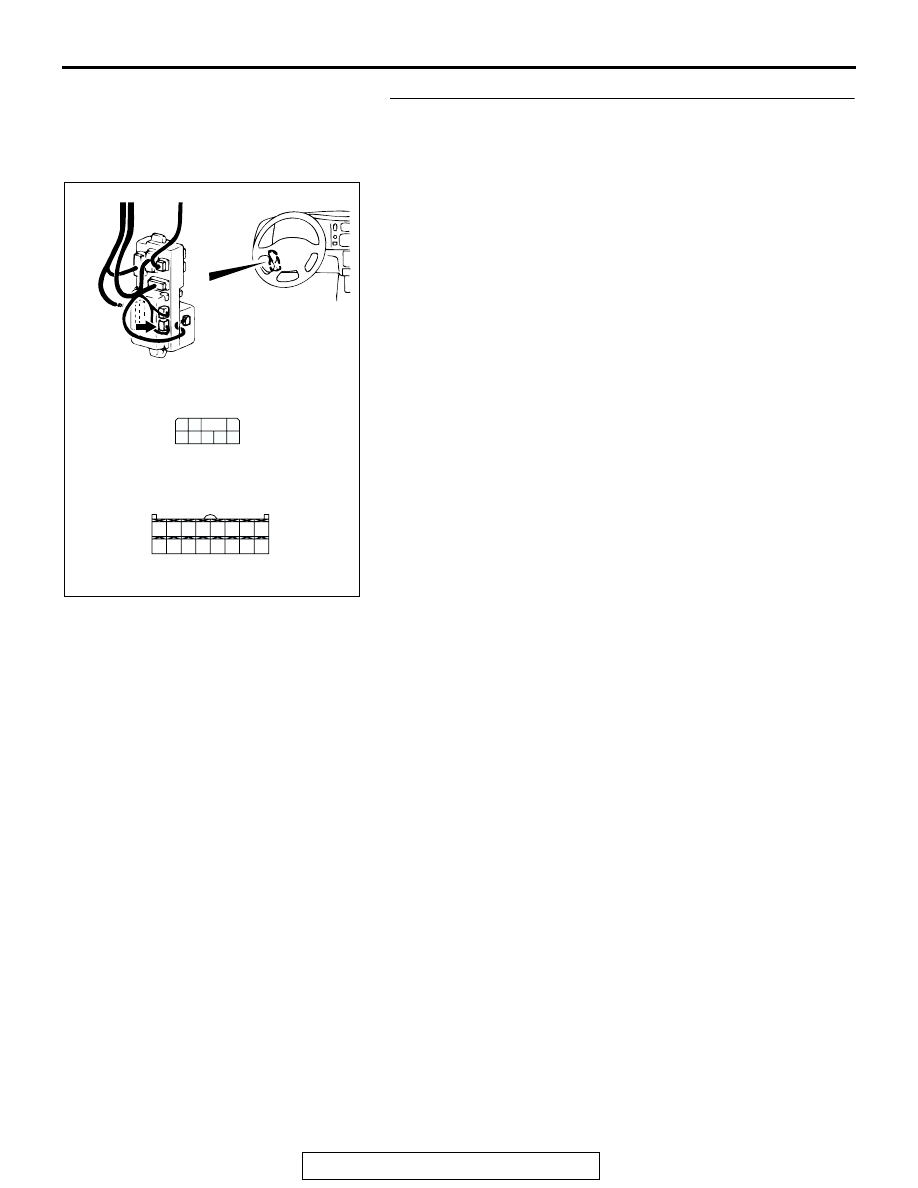

STEP 20. Check ETACS-ECU connectors D-10 <Vehicles
without keyless entry system> and D-27 <Vehicles with
keyless entry system> for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are ETACS-ECU connectors D-10 <Vehicles without

keyless entry system> and D-27 <Vehicles with keyless
entry system> in good condition?
YES :
Go to Step 21.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 22.

AC202002

6 5 4

1

2

7

3
8

41

43

51

42

50

44

52

46 45

53

49

47

30

48

56

55

D-27 (B)

D-10

JUNCTION
BLOCK (REAR)

CONNECTORS: D-10, D-27

AB

D-27 COMPONENT  SIDE

D-10 COMPONENT SIDE

21

22

23

24

25

26

27

28

DOOR

TSB Revision

BODY

42-78

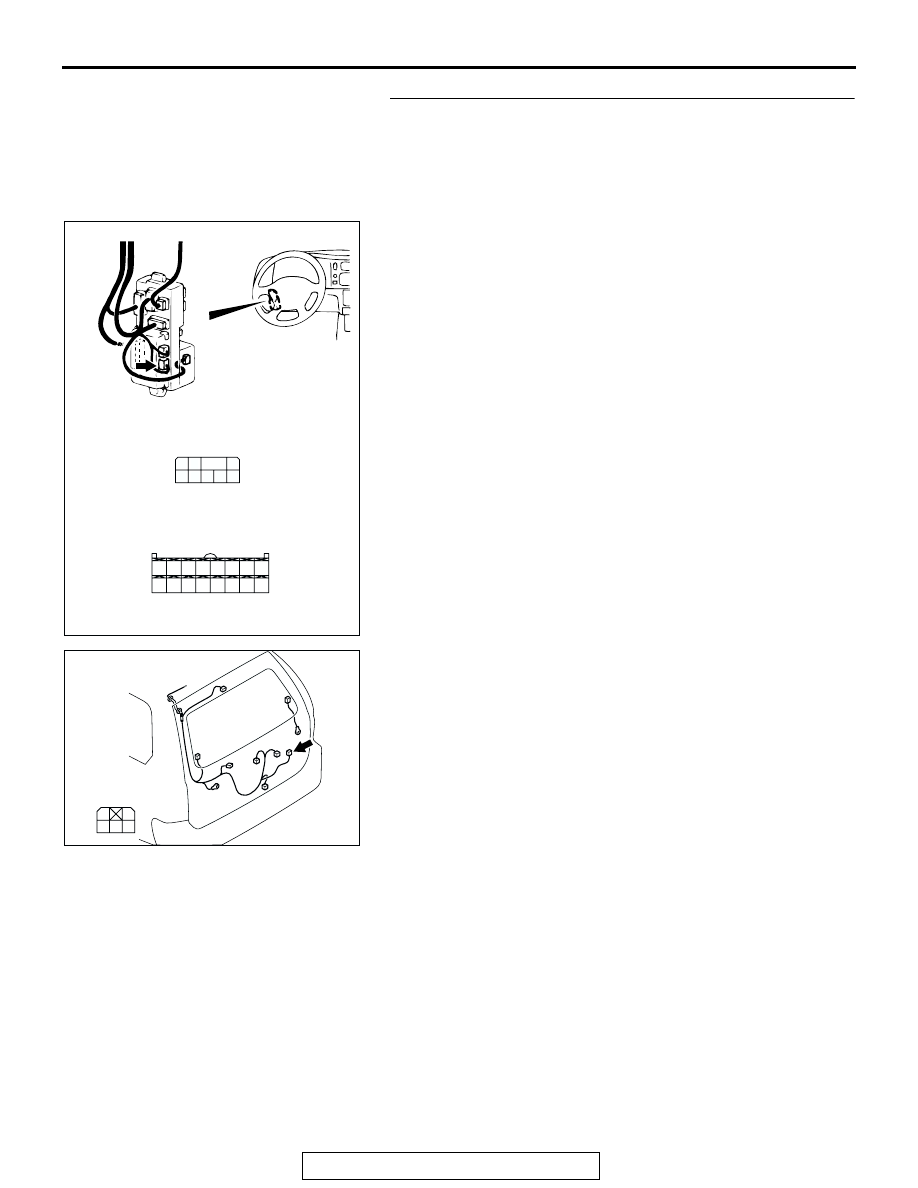

STEP 21. Check the harness wire between ETACS-ECU
connectors D-10 (terminals No.21 and No.24) <Vehicles
without keyless entry system> or D-27 (terminals No.41
and No.42) <Vehicles with keyless entry system> and door
lock actuator (liftgate) connector G-04 (terminals No.1 and
No.2).

AC202002

6 5 4

1

2

7

3
8

41

43

51

42

50

44

52

46 45

53

49

47

30

48

56

55

D-27 (B)

D-10

JUNCTION
BLOCK (REAR)

CONNECTORS: D-10, D-27

AB

D-27 COMPONENT  SIDE

D-10 COMPONENT SIDE

21

22

23

24

25

26

27

28

AC202036

1

4 3

2
5

CONNECTOR: G-04

AB

G-04

COMPONENT
SIDE
