TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-43

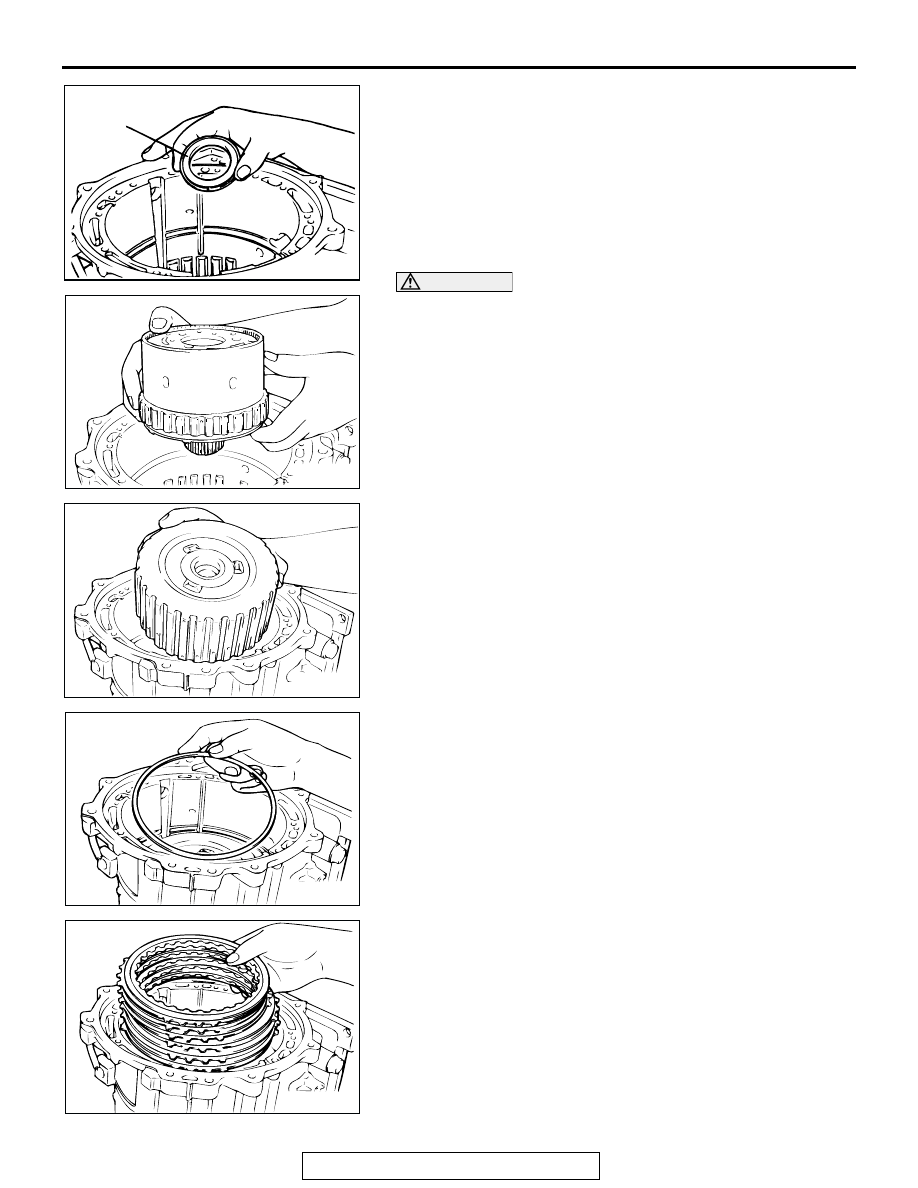

CAUTION

Make sure that thrust bearing number 7 attached to the
rear side of the low/reverse annulus gear does not fall off.
21.Install the low/reverse annulus gear.

22.Install the reverse sun gear.

23.Install the wave spring to the low/reverse brake piston.

24.Install the pressure plate, six brake disc and five brake plate

selected in step 19 (12).

AKX00088

THRUST
BEARING NO.7

AB

AKX00046

AKX00089

AKX00090

AKX00091

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-44

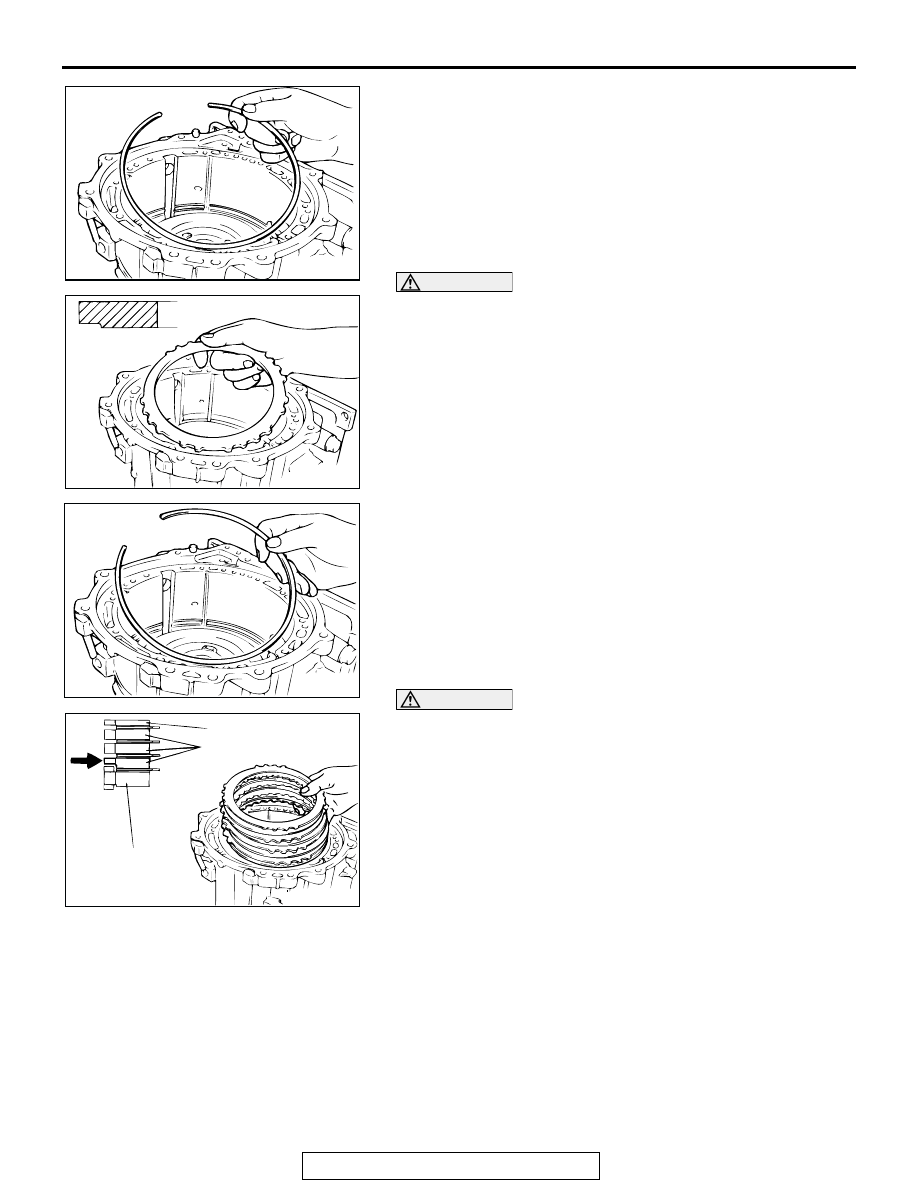

25.Install the snap ring.

CAUTION

Make sure the reaction plate in the proper direction.
26.Install the reaction plate.

27.Install the snap ring selected in step 19 (5).

CAUTION

Make sure the brake plate (reaction plate side) is installed
in the proper direction.
28.Install the brake disc, brake plate and pressure plate

selected in step 19 (9).

AKX00092

AKX00093

AKX00094

AKX00095

PRESSURE PLATE

BRAKE PLATE

REACTION
PLATE

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-45

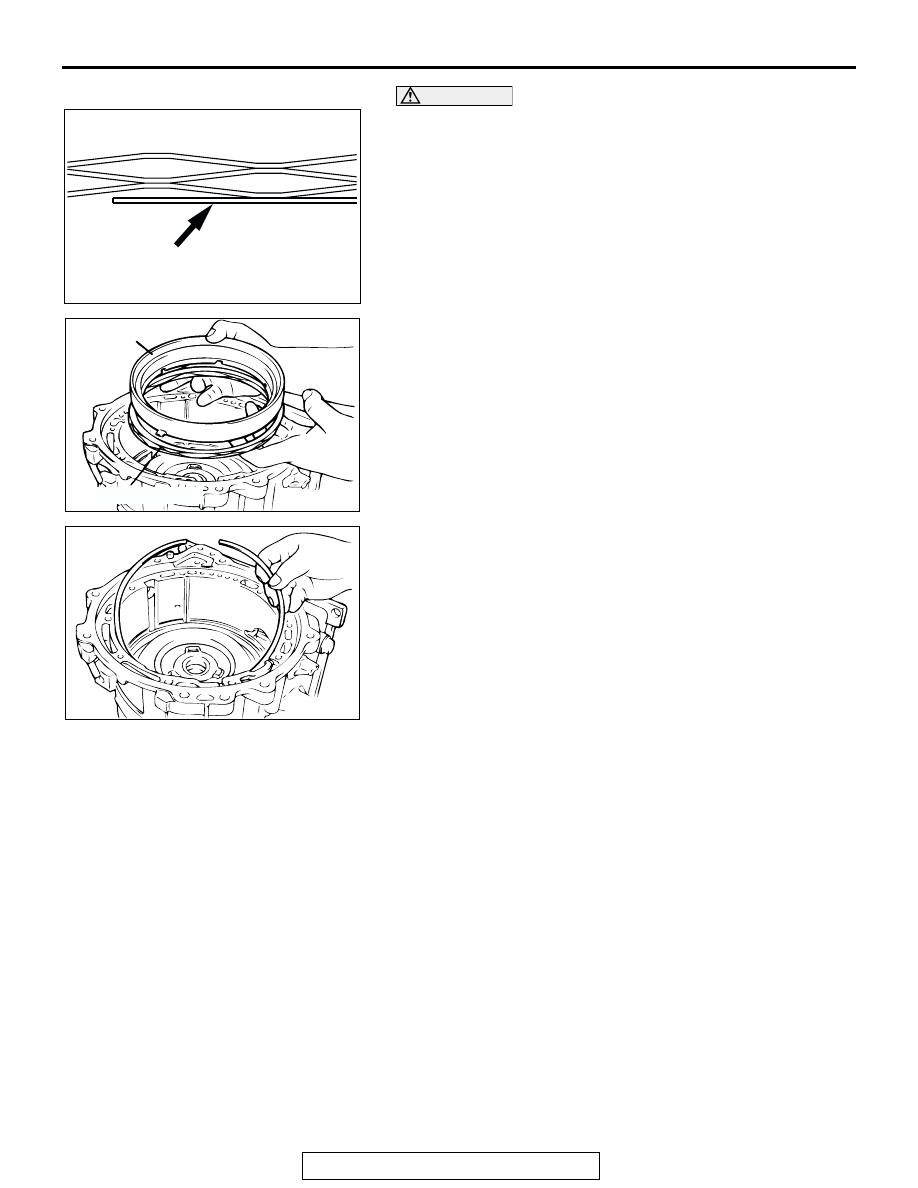

CAUTION

Install the return spring end coil side so that it faces the
back of the transmission. (Only for one side end coil type)

29.Install the return spring and second brake.

30.Install the snap ring.

AKX00096

END COIL

AB

AKX00097

SECOND BRAKE

RETURN SPRING

AB

AKX00098

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-46

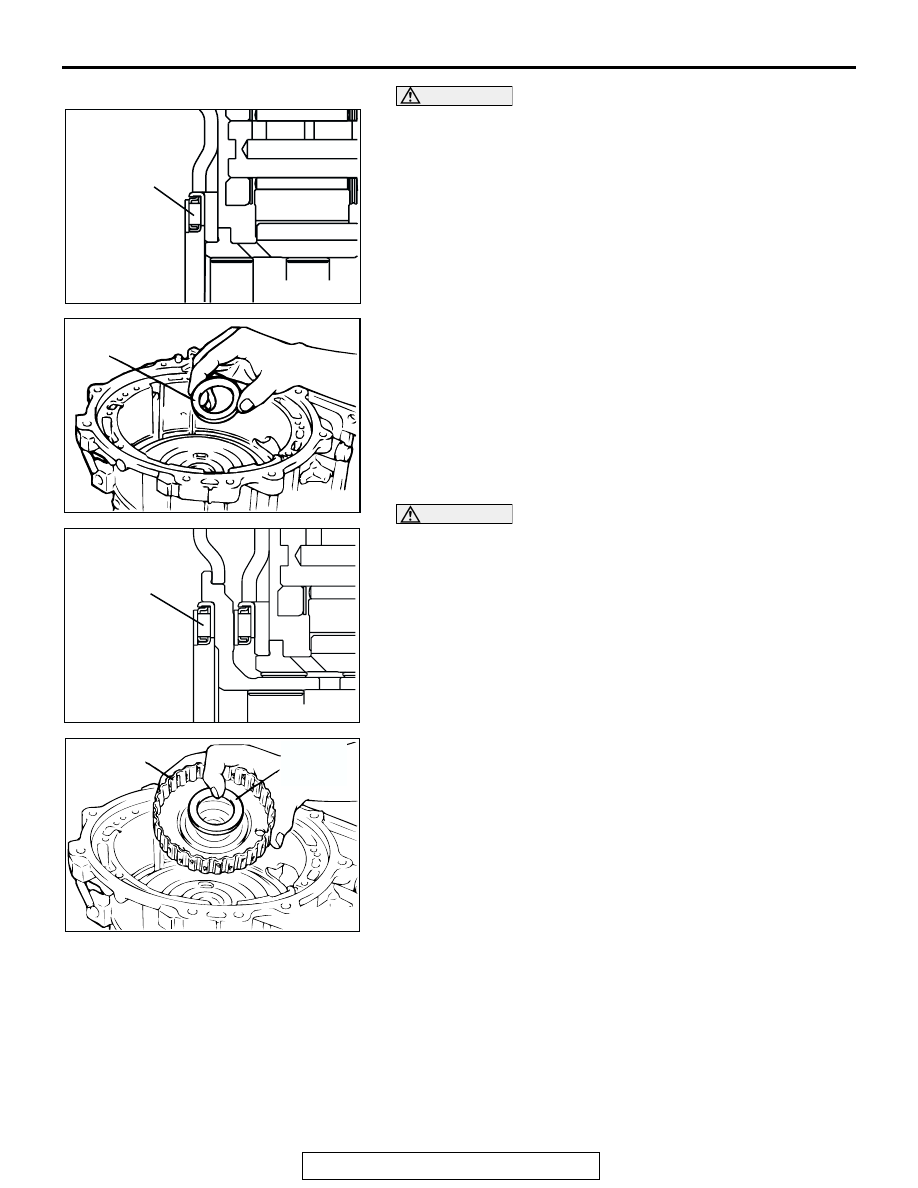

CAUTION

Make sure thrust bearing number 4 is installed in the
proper direction.

31.Apply Vaseline or petroleum jelly on the thrust bearing

number 4, and then install on the reverse sun gear.

CAUTION

Make sure thrust bearing number 3 is mounted in the cor-
rect direction.

32.Apply Vaseline or petroleum jelly on the thrust bearing

number 3, and then install on the overdrive clutch hub.

33.Install the overdrive clutch hub.

AKX00099

THRUST
BEARING
NO.4

AB

AKX00100

THRUST
BEARING NO.4

AB

AKX00101

THRUST
BEARING
NO.3

AB

AKX00102

THRUST
BEARING
NO.3

OVERDRIVE
CLUTCH
HUB

AB
