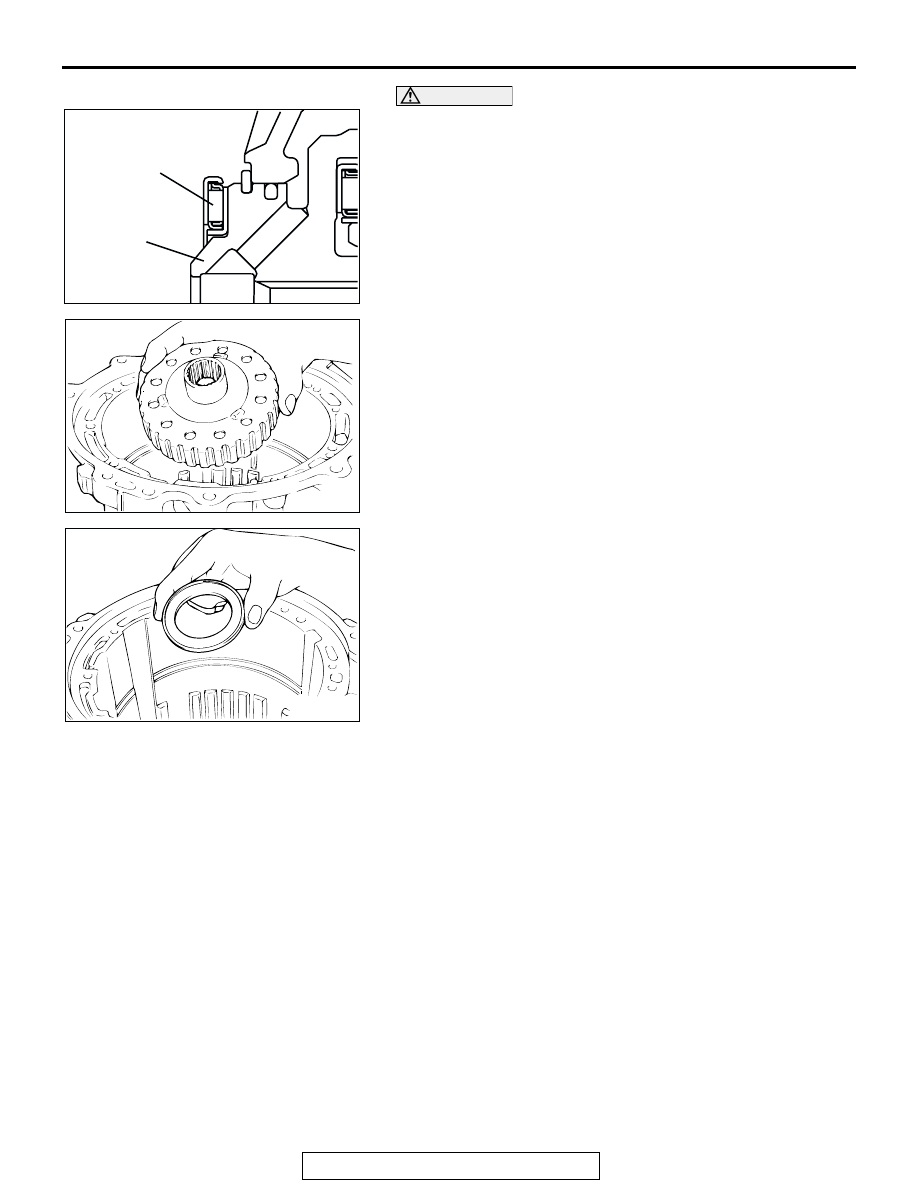

AUTOMATIC TRANSMISSION OVERHAUL

23B-35

CAUTION

Make sure thrust bearing number 12 is mounted in the cor-
rect direction.

6. Apply Vaseline or petroleum jelly on the thrust bearing

number 12, and then install on the front end of the output
shaft.

7. Install the underdrive clutch.

8. Apply Vaseline or petroleum jelly on the thrust bearing

number 11, and then install on the front end of the
underdrive clutch retainer.

AKX00063

THRUST BEARING NO.12

OUTPUT
SHAFT

AD

AKX00064

AKX00065

AKX00067

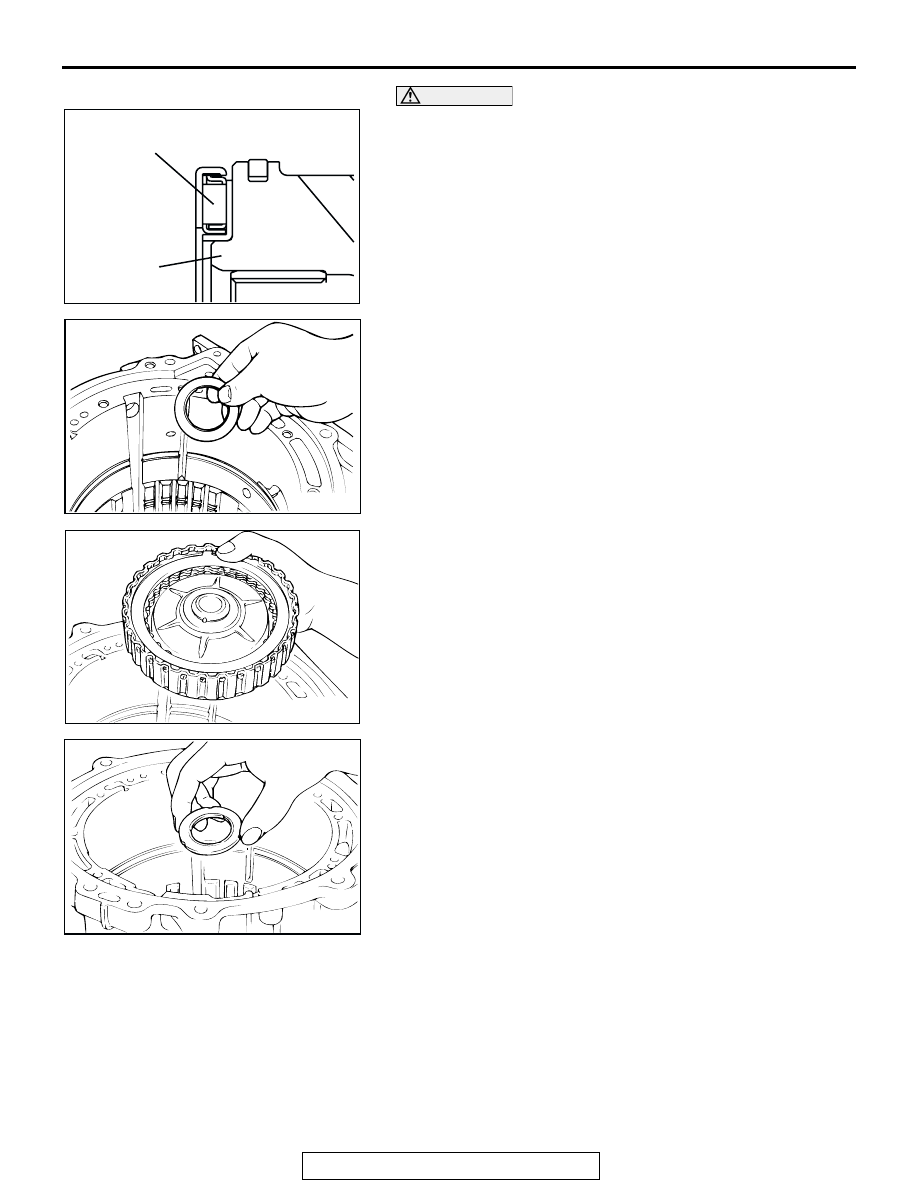

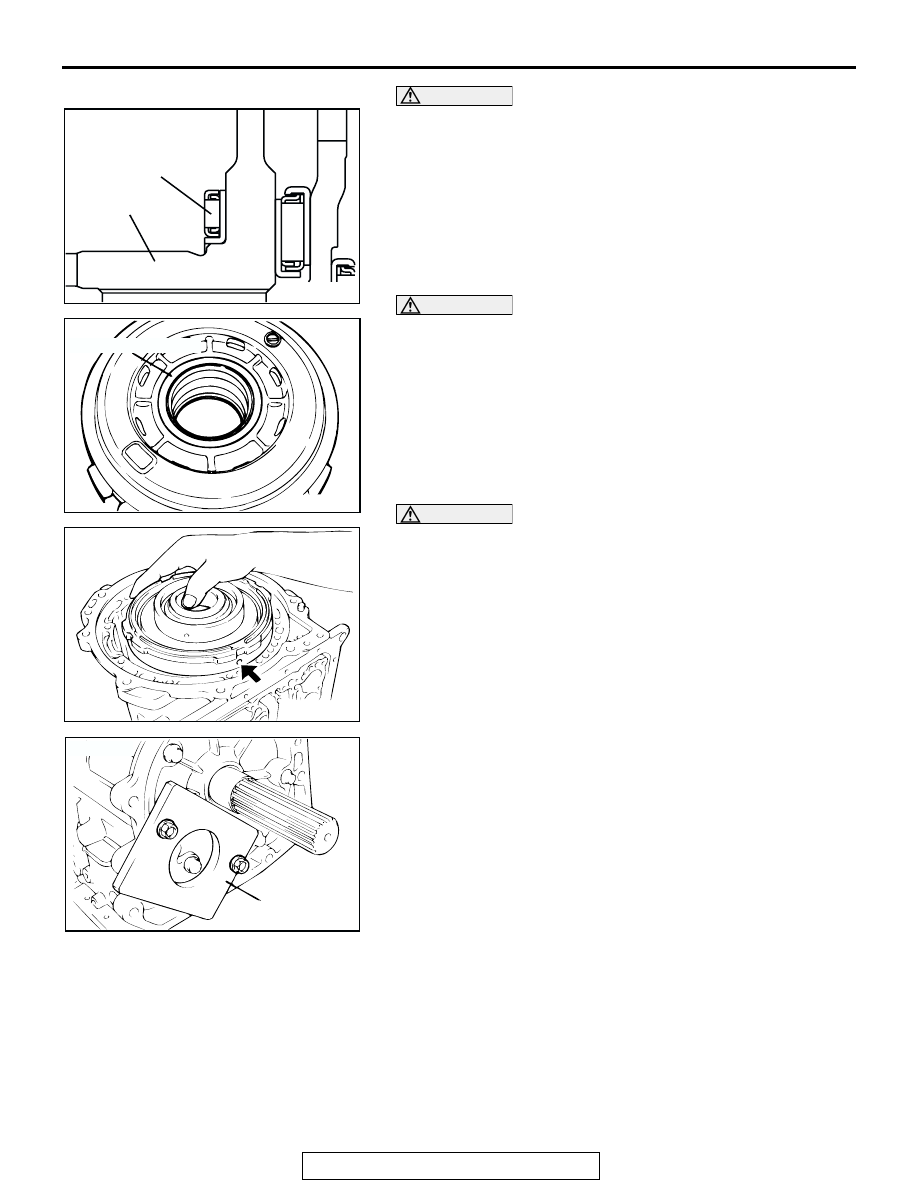

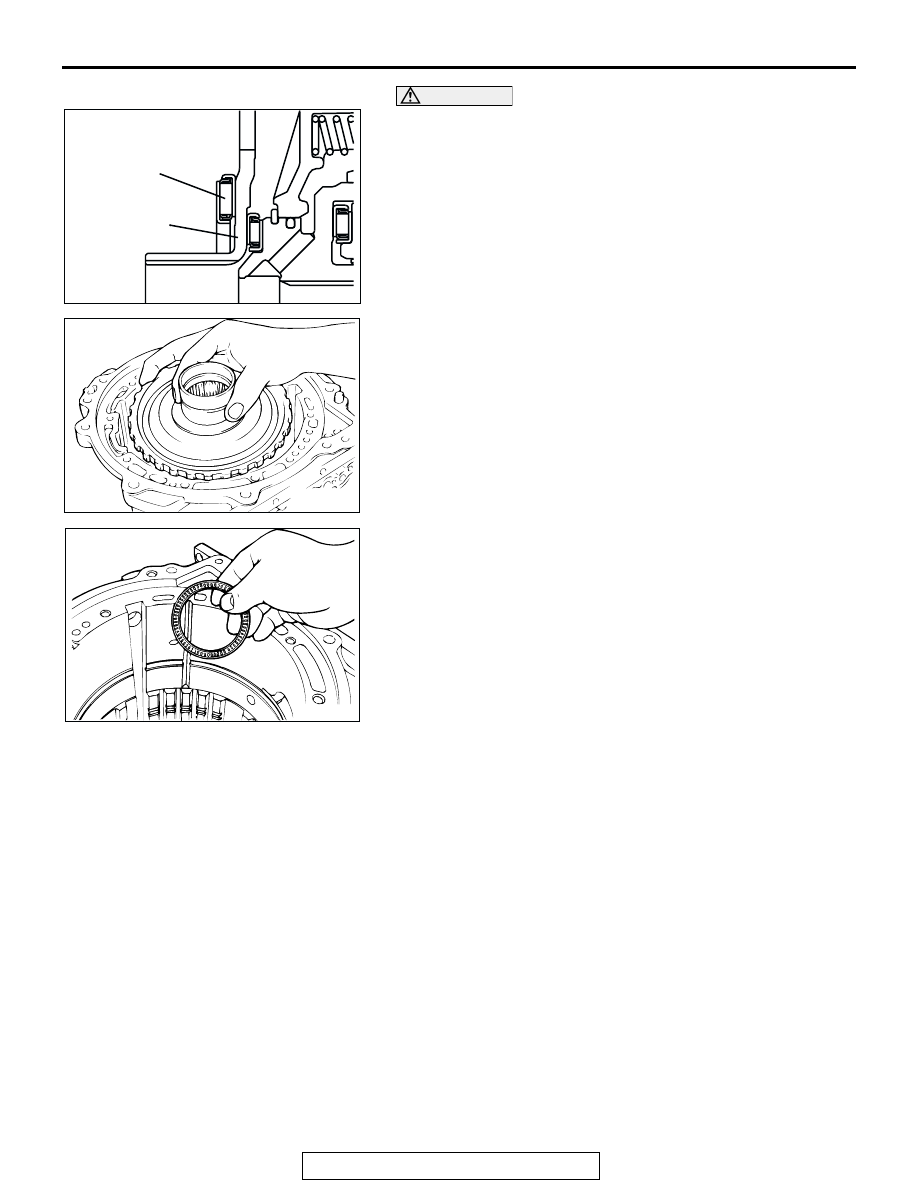

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-36

CAUTION

Make sure thrust bearing number 11 is mounted in the cor-
rect direction.

9. Install the underdrive clutch hub.

10.Apply Vaseline or petroleum jelly on the thrust bearing

number 10, and then install it on the underdrive clutch hub.

AKX00066

THRUST
BEARING NO.11

UNDERDRIVE
CLUTCH
RETAINER

AC

AKX00068

AKX00070

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-37

CAUTION

Make sure thrust bearing number 10 is mounted in the cor-
rect direction.

11.Install the output flange.

12.Apply Vaseline or petroleum jelly on the thrust bearing

number 9, and then install on the output flange.

AKX00069

THRUST
BEARING NO.10

UNDERDRIVE
CLUTCH HUB

AC

AKX00071

AKX00073

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-38

CAUTION

Make sure thrust bearing number 9 is mounted in the cor-
rect direction.

CAUTION

Measure and record the thickness of the thrust race num-
ber 8 to be assembled.
13.Apply Vaseline or blue petroleum jelly on the thrust race

number 8 being used, and then install it on the rear side of
the center support.

CAUTION

• Install the center support so that the oil holes shown in

the illustration face the lower side of the transmission
case.

• Make sure that the thrust race number 8 attached to the

rear side of the center support does not fall off.

14.Install the center support.

15.Remove the two output shaft support mounting bolts.
16.Using the two removed bolts, install special tool MB991603

to the specified torque.

Specified torque: 23

± 3 N⋅m (17 ± 2 ft-lb)

AKX00072

THRUST
BEARING NO.9

OUTPUT FLANGE

AC

AKX00074

THRUST RACE NO.8

AB

AKX00075

AKX00076

MB991603

AC
