MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-97

DTC P0112: Intake air temperature Circuit Low Input

AK301863

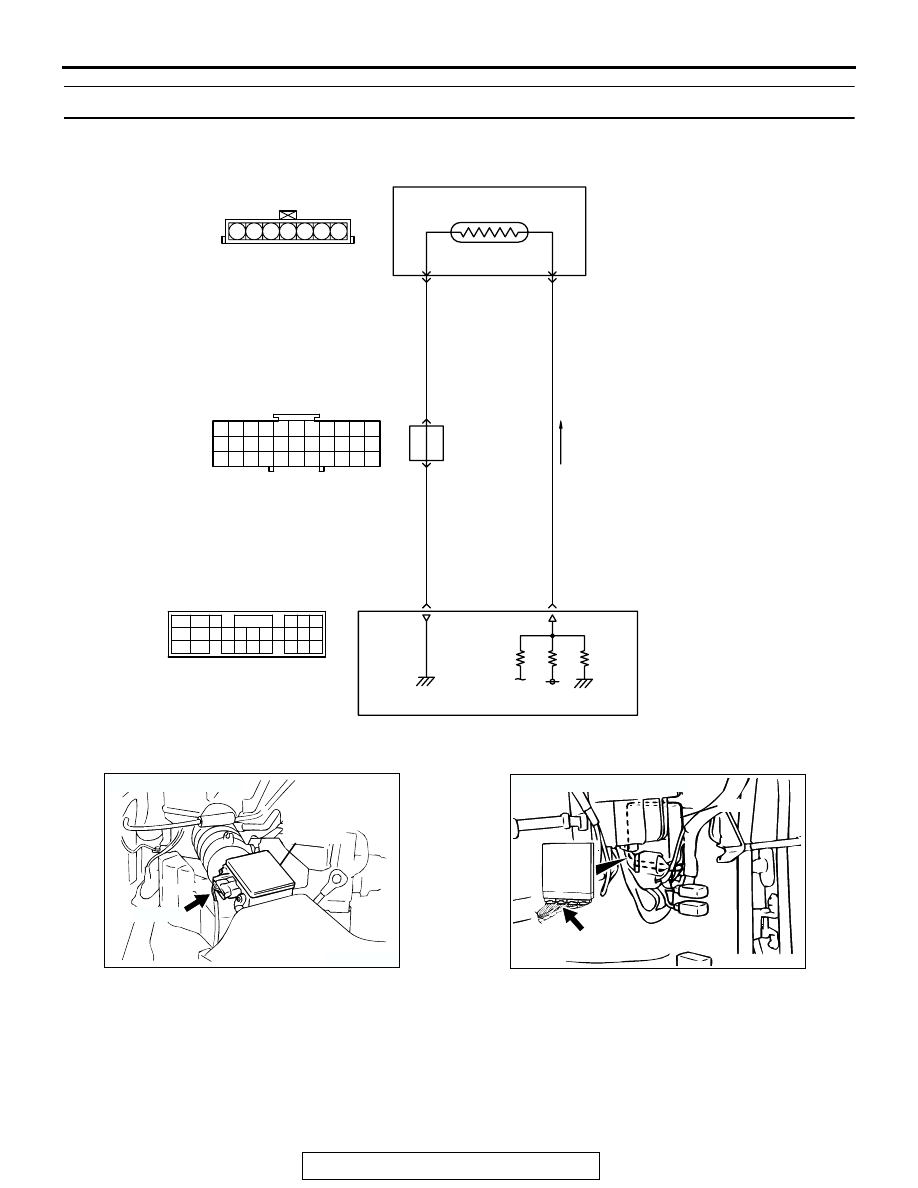

Intake Air Temperature Sensor Circuit

RED

-BL

UE

BL

ACK

BL

ACK

57

5

5V

POWERTRAIN CONTROL MODULE (PCM)

INTAKE AIR TEMPERATURE SENSOR
(INCORPORATED IN VOLUME
AIRFLOW SENSOR)

12

6

64

15

1 2 3 4 5 6 7

A-01

1

10

2 3 4 5 6 7 8 9

11

12 13 14 15 16 17 18 19 20 21 22

23 24 25 26 27 28 29 30 31 32 33

C-71

47

41

42 43

48 49 50 51 52 53 54 55 56 57

46

45

44

58

59

60 61 62 63

64 65 66

C-90
(MU803781)

JOINT
CONNEC-
TOR (4)

AK103908

CONNECTOR: A-01

INTAKE AIR
TEMPERATURE
SENSOR

A-01(B)

AD

AK103738AC

CONNECTOR: C-90

PCM

C-90(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-98

.

CIRCUIT OPERATION

• Approximately 5 volts are applied to the intake air

temperature sensor output terminal (terminal No.
6) from the PCM (terminal No. 64) via the resistor
in the PCM. The ground terminal (terminal No. 5)
is grounded with PCM (terminal No. 57).

• The intake air temperature sensor is a negative

temperature coefficient type of resistor. When the
intake air temperature rises, the resistance
decreases.

• The intake air temperature sensor output voltage

increases when the resistance increases and
decreases when the resistance decreases.

.

TECHNICAL DESCRIPTION

• The intake air temperature sensor converts the

intake air temperature to a voltage.

• The PCM checks whether this voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Intake air temperature sensor output voltage is out of

specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

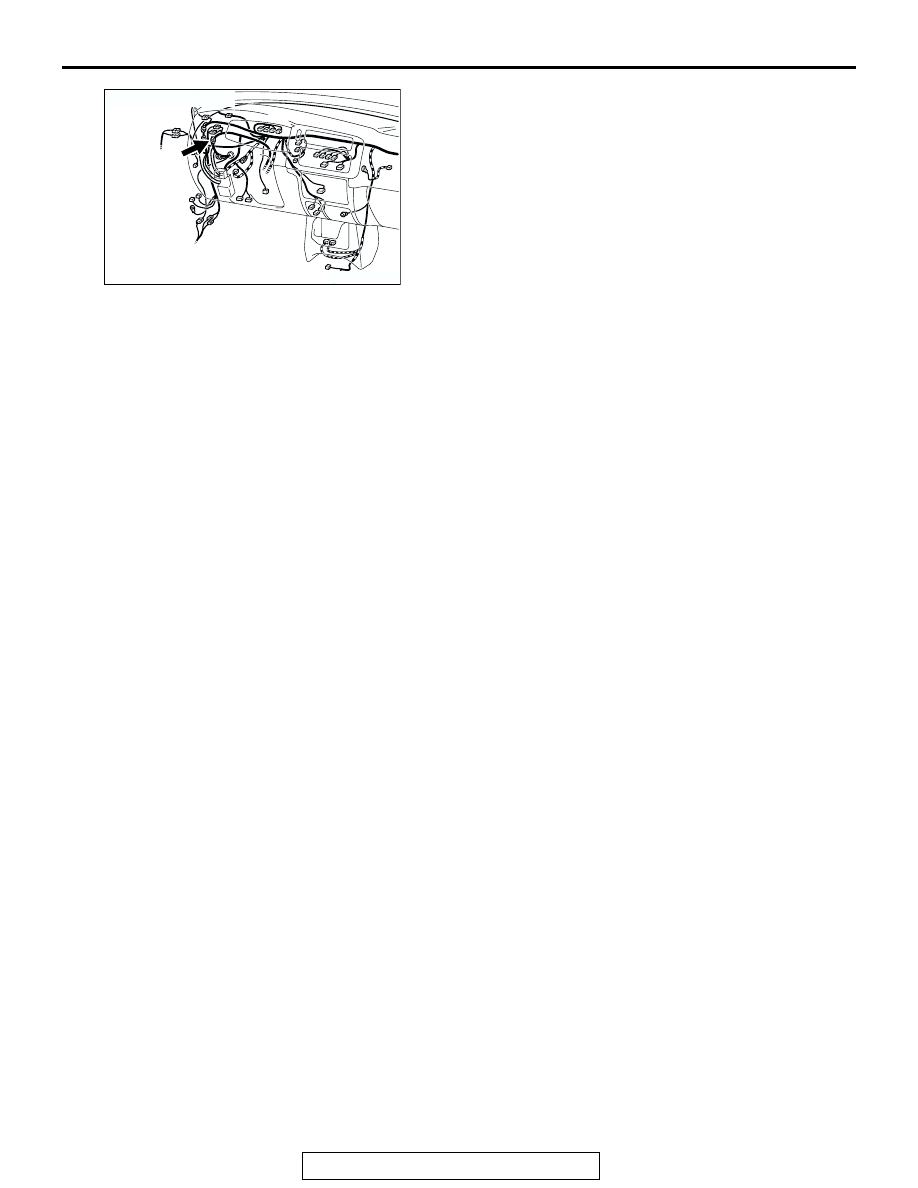

AK103912AB

CONNECTOR: C-71

C-71

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-99

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the start-

ing sequence was completed.

Judgement Criteria

• Intake air temperature sensor output voltage has

continued to be0.2 volt or lower [corresponding to
an air intake temperature of 115

°C (239°F) or

higher] for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Intake air temperature sensor failed.

• Shorted intake air temperature sensor circuit, or

connector damage.

• PCM failed.

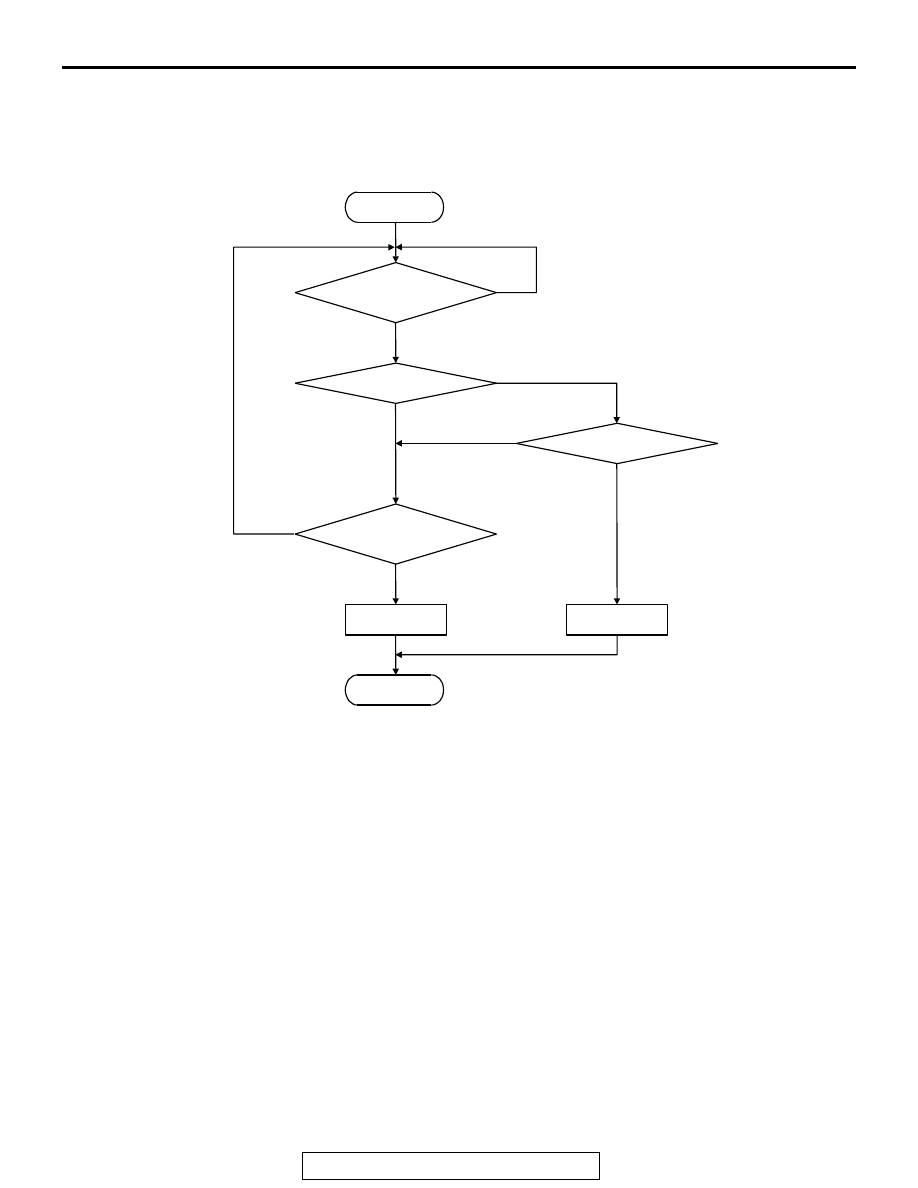

START

OUTPUT VOLTAGE < 0.2V

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 2secs

OUTPUT VOLTAGE > 4.6V

MONITORING

CONDITIONS

NO

YES

AK301424

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-100

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I

• MB991827: USB Cable

• MB991911: Main Harness B

STEP 1. Using scan tool MB991958, check data list item 13:
Intake Air Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

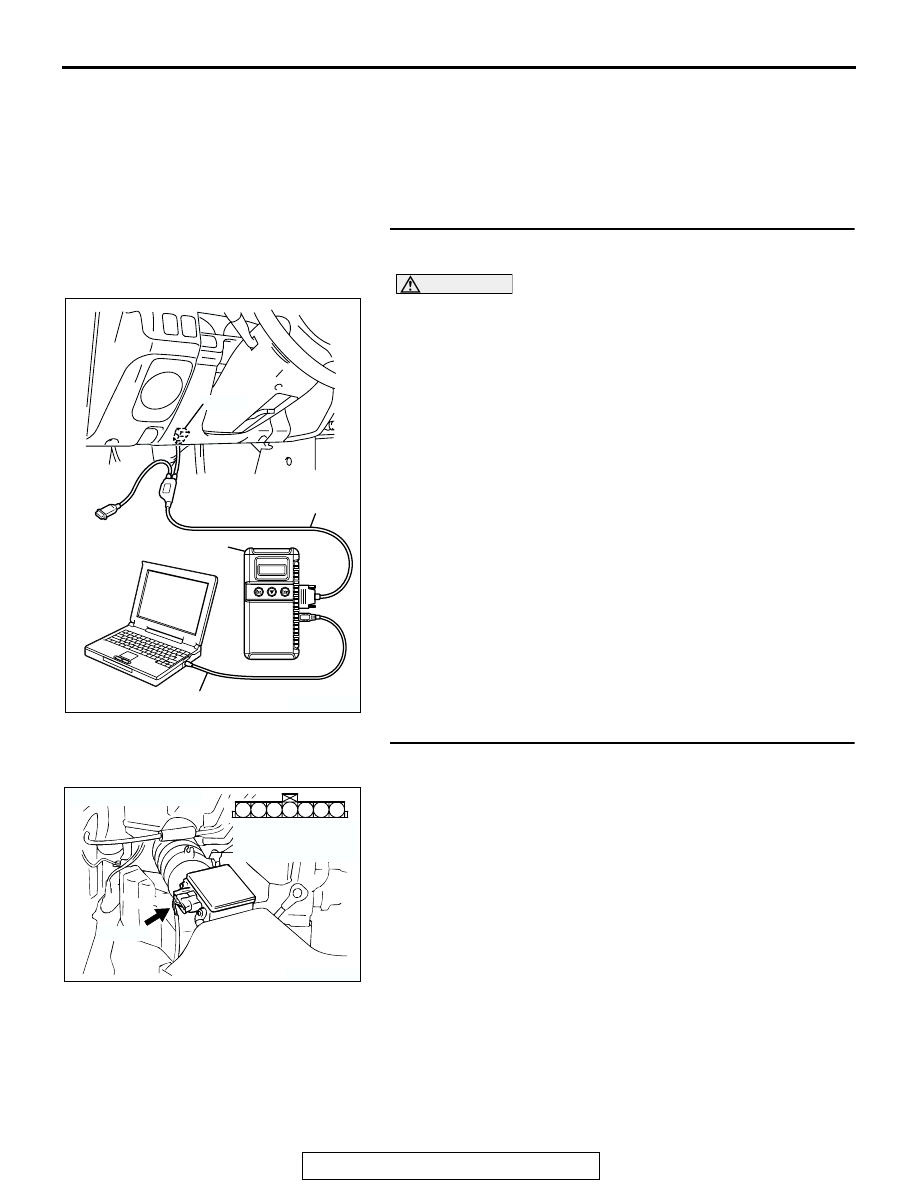

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

13, Intake Air Temperature Sensor.

• The intake air temperature and temperature shown with

the scan tool should approximately match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-7

.

NO :  Go to Step 2.

STEP 2. Check connector A-01 at the intake air
temperature sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AK103913

3

4

5

1

2

6

7

CONNECTOR: A-01

A-01(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE
