Mitsubishi Montero Sport (2004+). Manual - part 141





OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL

11B-39

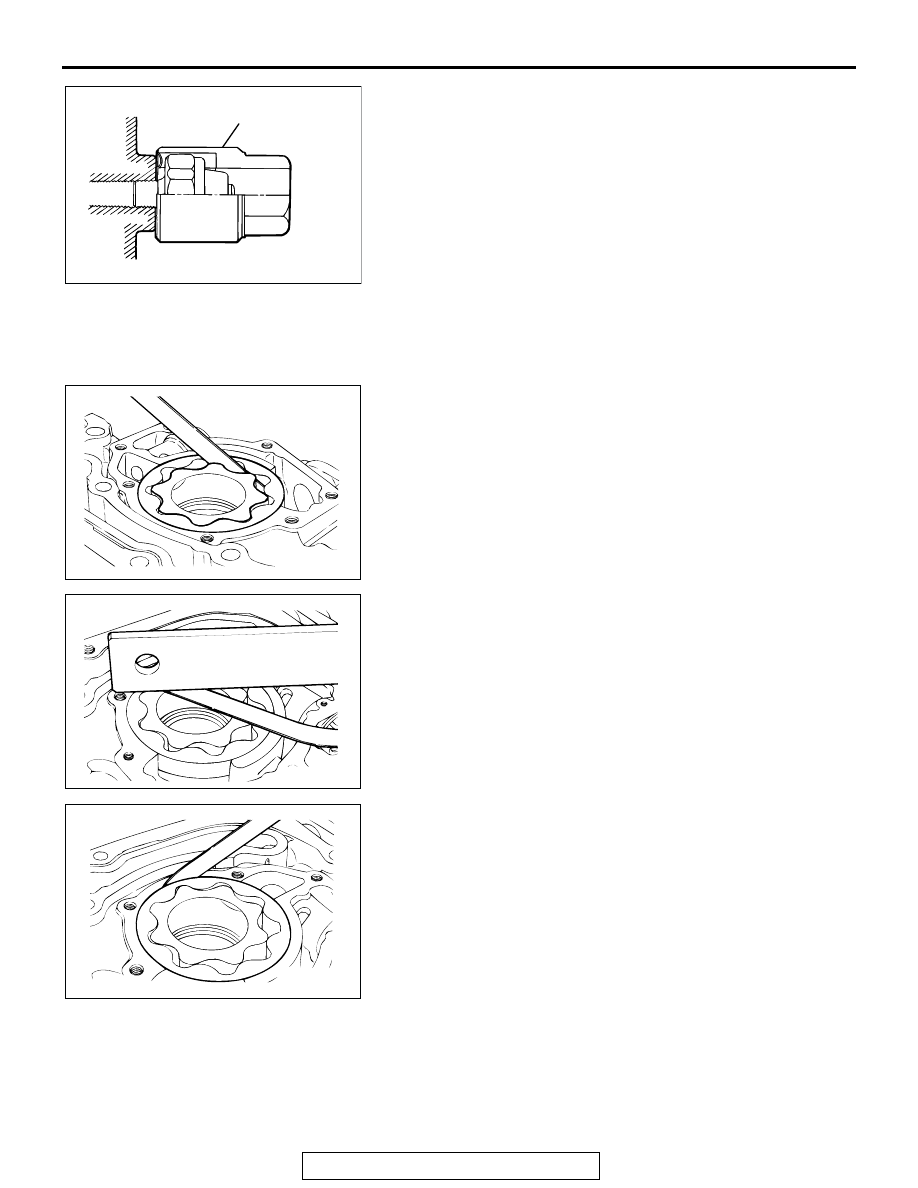

2. Tighten the oil pressure switch together with the oil filter

bracket to the specified torque, using special tool
MD998054.

Tightening torque: 10

± 2 Nm (89 ± 18 in-lb)

INSPECTION

M1113008200063

.

OIL PUMP
1. Check the tip clearance.

Standard value: 0.06

 0.18 mm (0.003  0.007 inch)

2. Check the side clearance.

Standard value: 0.04

 0.10 mm (0.002  0.004 inch)

3. Check the body clearance.

Standard value: 0.10

 0.18 mm (0.004  0.007 inch)

Limit: 0.35 mm (0.013 inch)

AK204037AB

MD998054

AKX00743

AKX00744

AKX00745

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL

11B-40

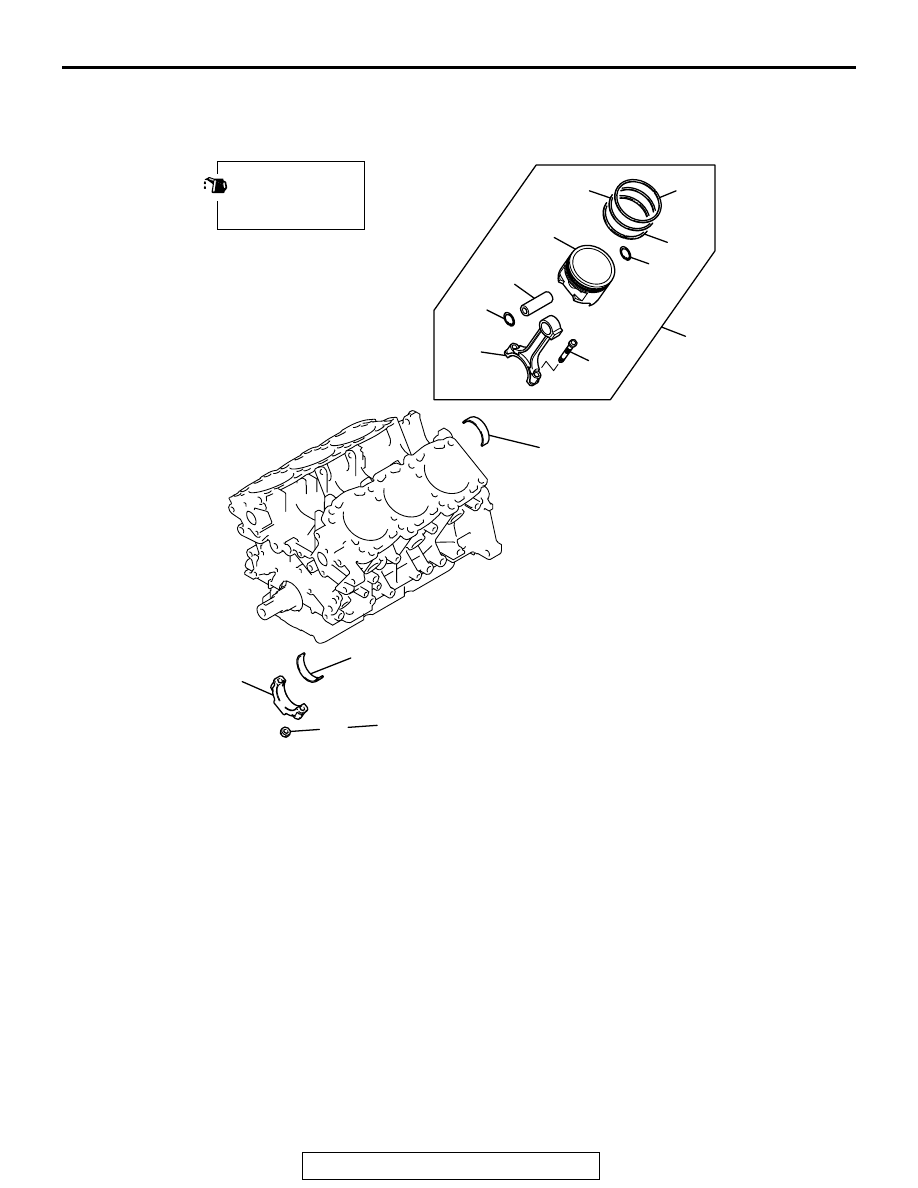

PISTON AND CONNECTING ROD

REMOVAL AND INSTALLATION

M1113008400625

AK200450

1

2

3

4

5

6

7

8

9

10

11

12

13

14

27 ± 2 N·m
20 ± 1 ft-lb

   + 90˚ to 94˚

AB

APPLY ENGINE OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

REMOVAL STEPS

>>G<<

1. CONNECTING ROD CAP NUT

<<A>> >>F<<

2. CONNECTING ROD CAP

>>D<<

3. CONNECTING ROD BEARING,

LOWER

>>E<<

4. PISTON AND CONNECTING ROD

ASSEMBLY

>>D<<

5. CONNECTING ROD BEARING,

UPPER

>>C<<

6. PISTON RING NO.1

>>C<<

7. PISTON RING NO.2

>>B<<

8. OIL RING
9. SNAP RING

<<B>> >>A<<

10. PISTON PIN
11. SNAP RING
12. PISTON
13. CONNECTING ROD
14. BOLT

REMOVAL STEPS (Continued)

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL

11B-41

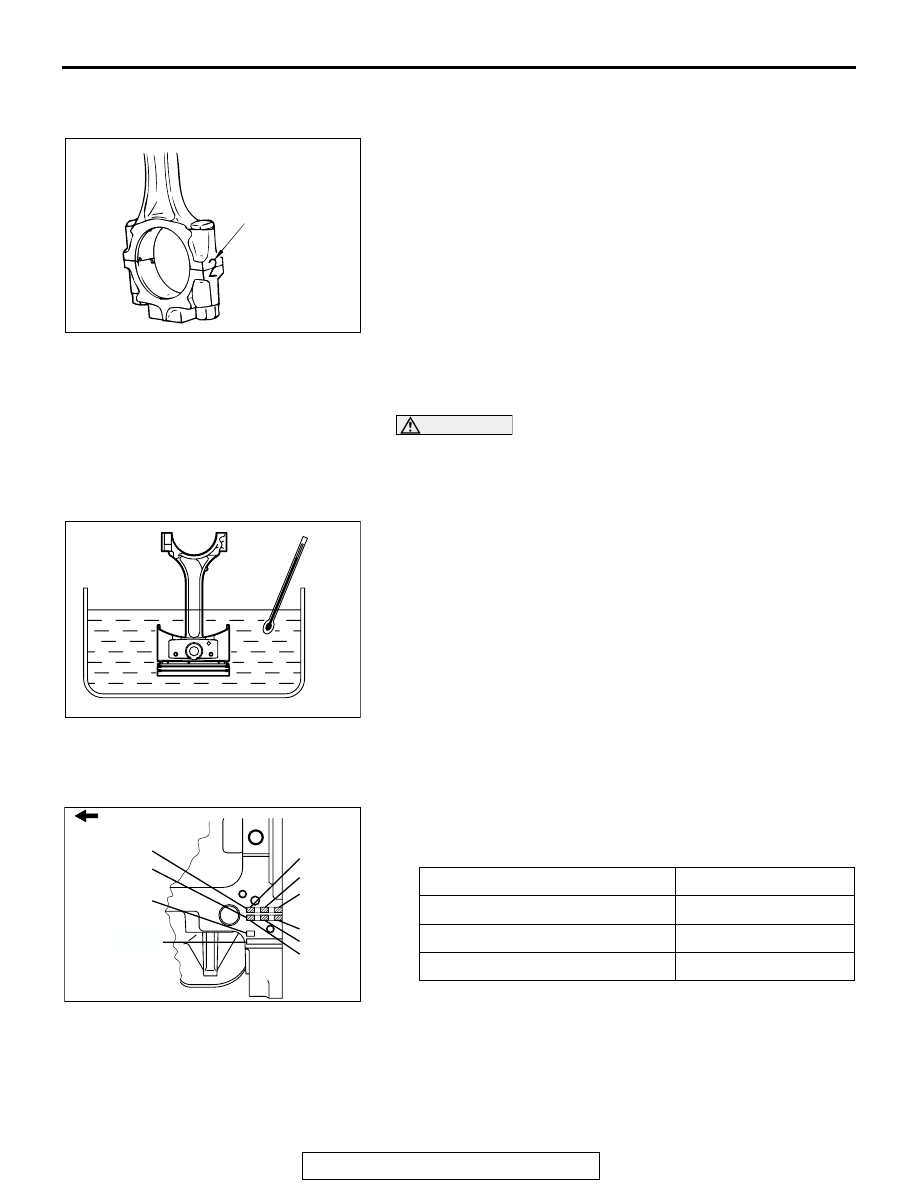

REMOVAL SERVICE POINTS

.

<<A>> CONNECTING ROD CAP REMOVAL
1. Mark the cylinder number on the side of the connecting rod

big end for correct reassembly.

2. Keep the removed connecting rods, caps, and bearings in

order according to the cylinder number.

.

<<B>> PISTON PIN REMOVAL
1. Remove the snap rings.

CAUTION

The clearance between the piston and the piston pin is a
tight fit at room temperature. Therefore, be sure to heat the
piston before pulling out the piston pin. Use care since the
piston is hot after heating.
2. Heat the piston approximately 70

°C (158°F) and pull out the

piston pin.

INSTALLATION SERVICE POINTS

.

>>A<< PISTON PIN INSTALLATION
1. When replacing the piston, note cylinder bore size mark on

the cylinder block as illustrated, and select a piston
according to the flowing table.

NOTE: The piston size mark shows on the top of the piston.

2. Set the snap ring into one side of the piston pin hole.

AKX00734

CYLINDER
NUMBER

AB

AKX01397

70˚C

(158˚F)

AB

CYLINDER BORE SIZE MARK

PISTON SIZE MARK

I

A

II

None

III

C

AK200850

TIMING BELT SIDE

CHECK DIGIT

No.4

No.1

No.2

No.3

AC

LEFT BANK

RIGHT BANK

No.6

No.5

CRANKSHAFT
BORE SIZE
MARK

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL

11B-42

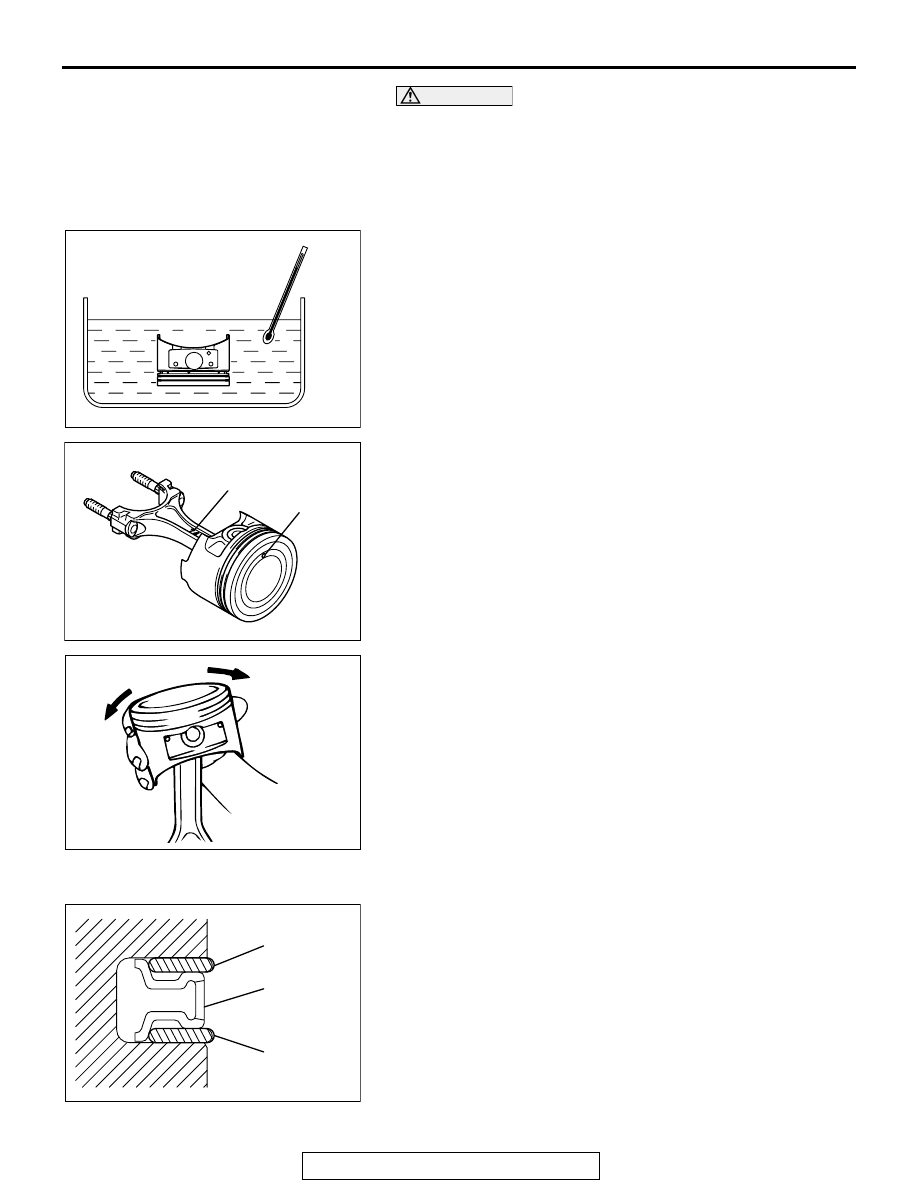

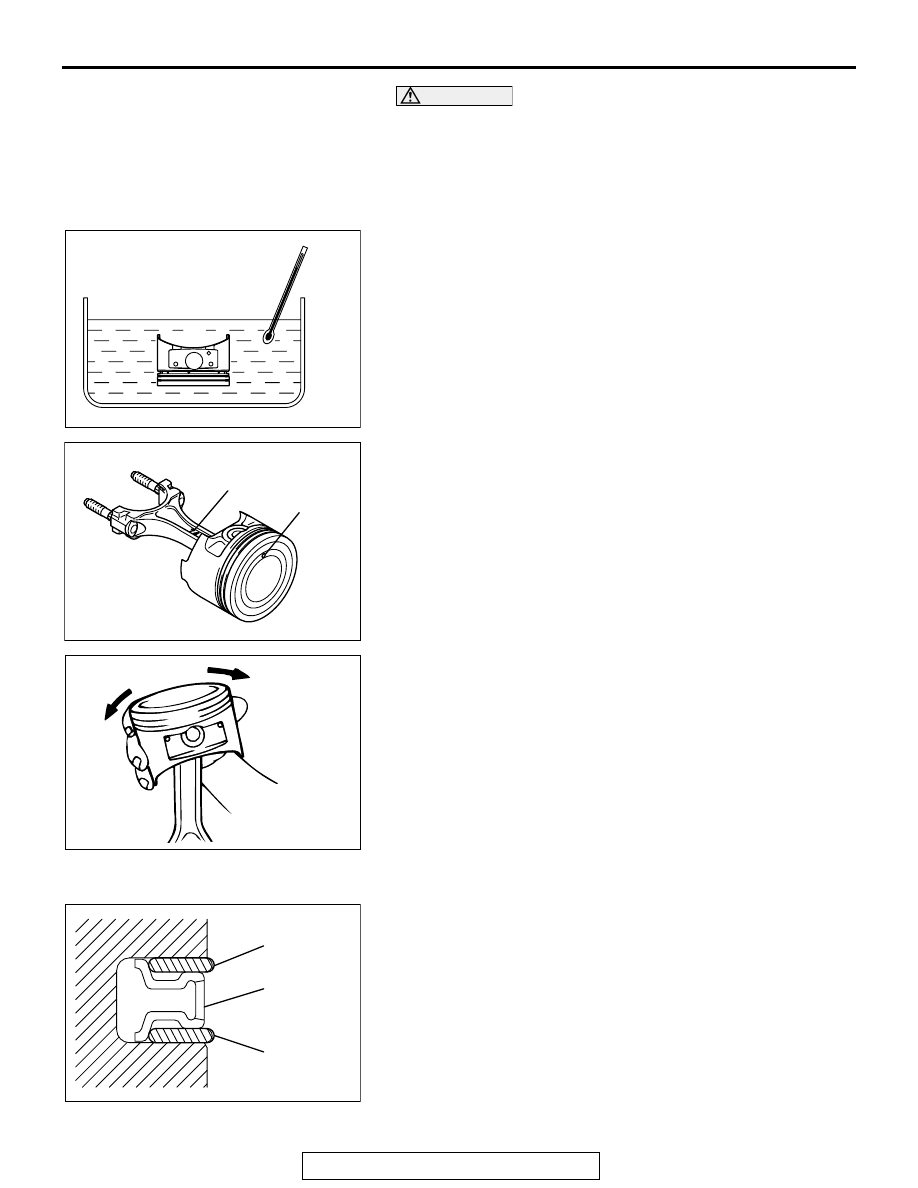

CAUTION

Apply ample coat of engine oil to the periphery of the pis-
ton pin and the hole of the connecting rod small end. The
clearance between the piston and the piston pin is a tight
fit at room temperature. Therefore, be sure to heat the pis-
ton before inserting the piston pin. Use care since the pis-
ton is hot after heating.
3. Heat the piston to approximately 70

°C (158°F).

4. With the front mark of the connecting rod and that of the

piston located on the same side, insert the piston pin.

5. Set the snap ring into the other side of the piston pin hole.

6. Check that the piston moves smoothly.

.

>>B<< OIL RING INSTALLATION
1. Fit the oil ring spacer into the piston ring groove.

NOTE: The side rails and spacer may be installed in either
direction.

AKX01398

70˚C

(158˚F)

AB

AK200448

FRONT MARK 74

FRONT MARK

AB

AKX00716

AK000196AB

SIDE RAIL

SIDE RAIL

SPACER
