OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL

11B-35

Required Special Tool:

• MD998717: Crankshaft Front Oil Seal Installer

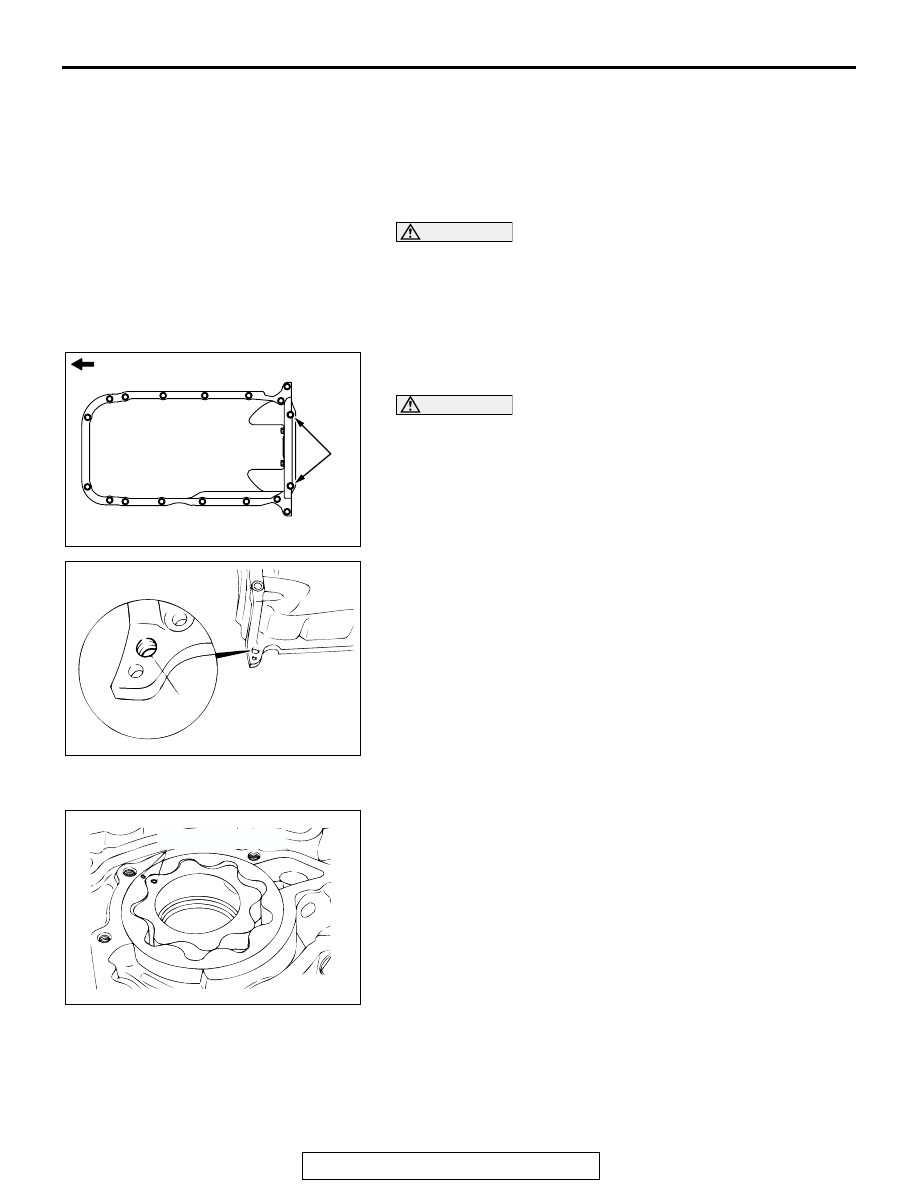

REMOVAL SERVICE POINTS

.

<<A>> LOWER OIL PAN REMOVAL
1. Remove the lower oil pan mounting bolts.

CAUTION

Do not use a scraper or special tool to remove the oil pan
2. Remove the lower oil pan by tapping on its side wall a plastic

hammer (mallet) through a wood block held against it.

.

<<B>> UPPER OIL PAN REMOVAL
1. Remove the bolts A shown in the illustration first.
2. Remove all other bolts.

CAUTION

Do not use a scraper or special tool to remove the oil pan.
3. Remove the oil pan.

4. Thread the bolt into the illustrated bolt hole B to remove the

oil pan.

.

<<C>> OUTER ROTOR/INNER ROTOR REMOVAL
Make alignment dots on the outer and inner rotors for assem-
bly.

AK302606AB

A

TIMING BELT SIDE

AK000439AB

B

AKX00742AB

ALIGNMENT DOTS

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL

11B-36

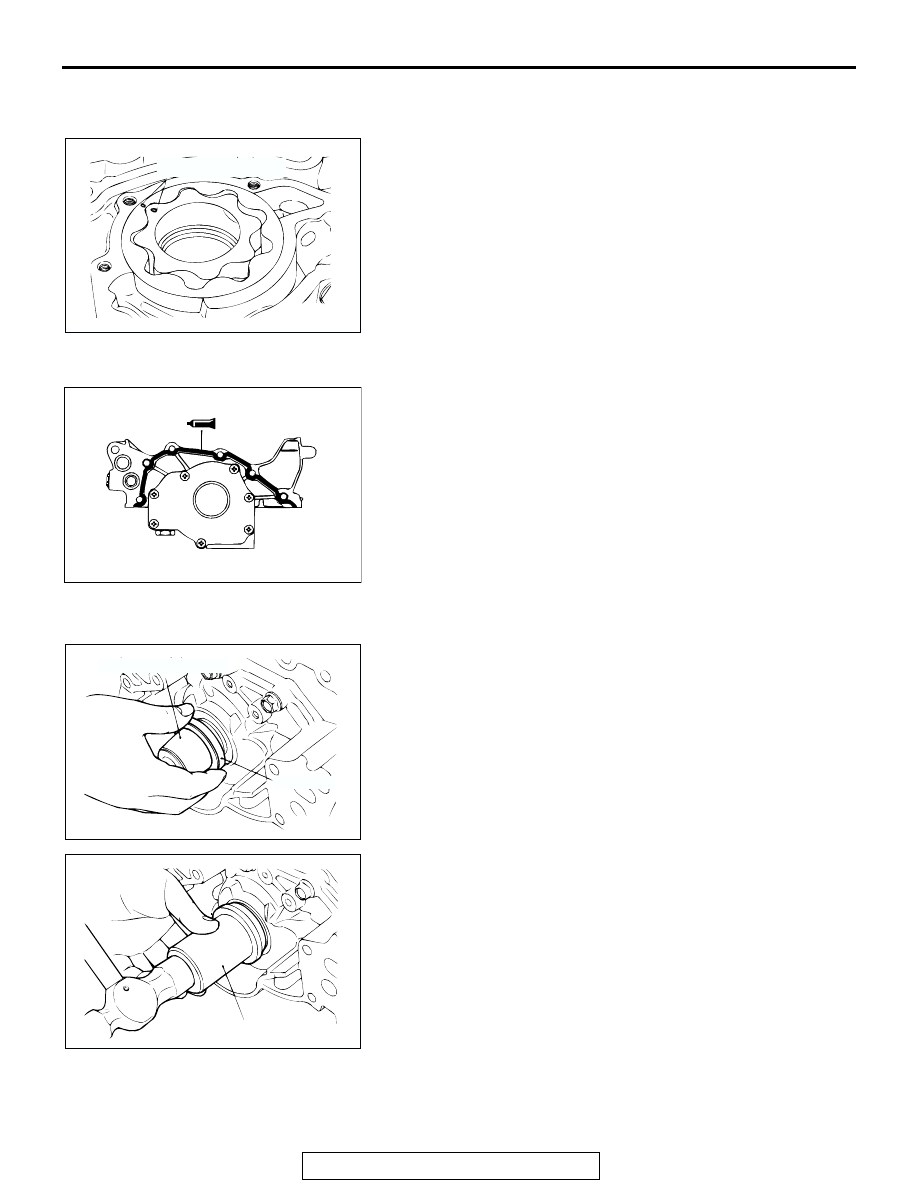

INSTALLATION SERVICE POINTS

.

>>A<< INNER ROTOR/OUTER ROTOR INSTALLATION
Apply engine oil to the rotors. Then, install the rotors ensuring
that the alignment dots made at disassembly are properly
aligned.

.

>>B<< OIL PUMP CASE INSTALLATION
1. Clean the gasket surfaces of oil pump case and cylinder

block.

2. Apply a 3mm (0.12 inch) diameter bead of sealant

Mitsubishi Genuine Parts number MD970389, or equivalent
to the oil pump case. Be sure to install the oil pump case
quickly while the sealant is wet (within 15 minutes).

3. Tighten the oil pump case bolts to specified torque.

Tightening torque: 14

± 1 N⋅m (129 ± 9 in-lb)

4. After installation, keep the sealed area away from the oil for

approximately one hour.

.

>>C<< CRANKSHAFT OIL SEAL INSTALLATION
1. Install the guide of special tool MD998717 to the front end of

the crankshaft.

2. Apply engine oil to the lip area of a new oil seal and push it

in until it contacts the oil pump case.

3. Using special tool MD998717, press-fit the oil seal into the

oil pump case.

.

AKX00742AB

ALIGNMENT DOTS

AK000440

AKX00659 AB

MD998717 (GUIDE)

OIL SEAL

AKX00660

MD998717

AB

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL

11B-37

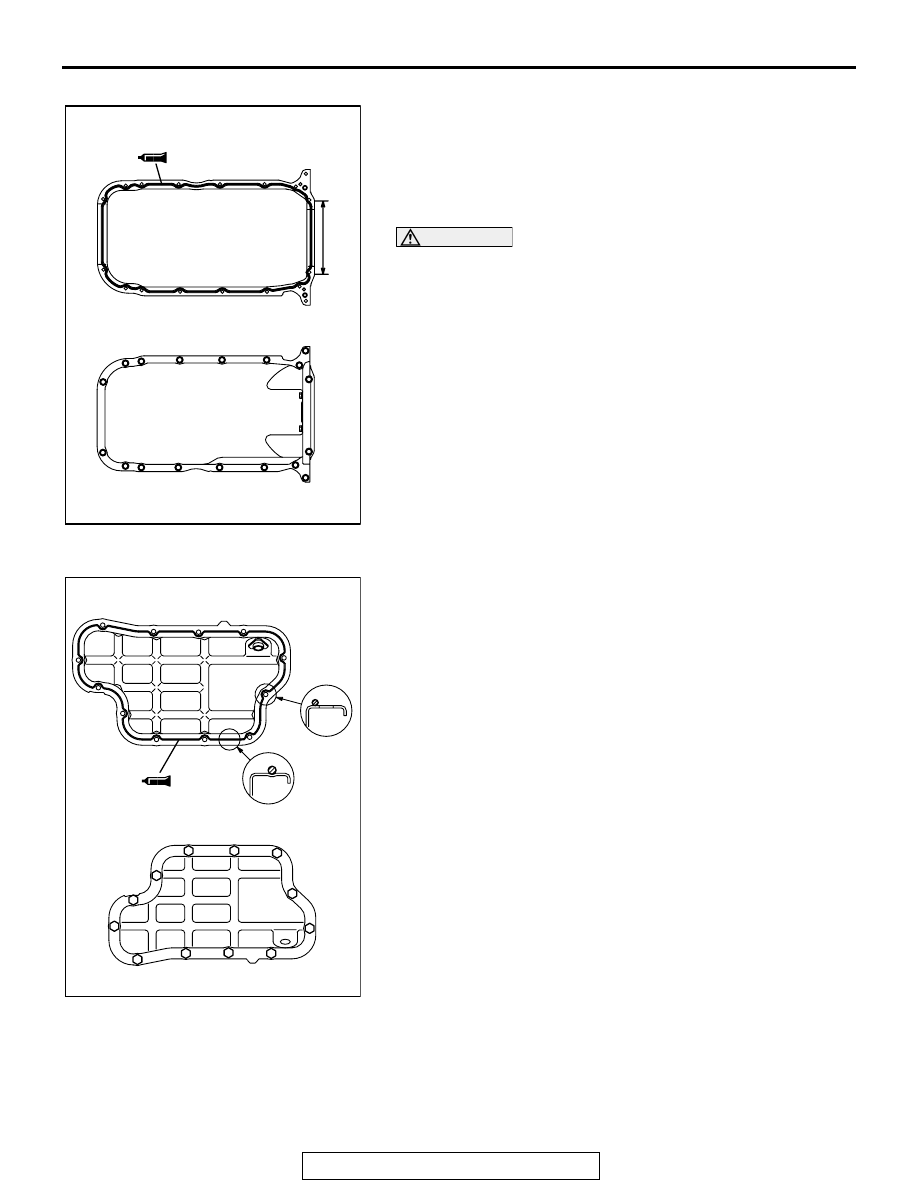

>>D<< UPPER OIL PAN INSTALLATION
1. Clean the gasket surfaces of the cylinder block and upper oil

pan.

2. Apply a 4 mm (0.2 inch) diameter bead of sealant Mitsubishi

Genuine Parts number MD970389, or equivalent to the
upper oil pan. Be sure to install the upper oil pan quickly
while the sealant is wet (within 15 minutes).

CAUTION

When installing the upper oil pan, be sure not to expel the
sealant from the upper oil pan flange at portion A in the
illustration.
3. Tighten the upper oil pan bolts in the sequence shown.

Tightening torque: 9.0

± 3.0 N⋅m (80 ± 27 in-lb)

4. After installation, keep the sealed area away from the oil for

approximately one hour.

.

>>E<< LOWER OIL PAN INSTALLATION
1. Clean the gasket surfaces of the upper and lower oil pan.
2. Apply a 4 mm (0.2 inch) diameter bead of sealant Mitsubishi

Genuine Parts number MD970389, or equivalent to the
lower oil pan. Be sure to install the lower oil pan quickly
while the sealant is wet (within 15 minutes).

3. Tighten the lower oil pan bolts in the sequence shown.

Tightening torque: 11

± 1 N⋅m (97 ± 9 in-lb)

4. After installation, keep the sealed area away from the oil for

approximately one hour.

.

AK000441AB

LIQUID GASKET APPLICATION AREA

(TOP VIEW)

A

1

5

11

14

15

10

6

2

3

7

12

16

13

8

4

FLANGE BOLT TIGHTENING

SEQUECE (BOTTOM VIEW)

18

17

9

AK00042AB

1

5

11

10

6

2

3

7

12

8

4

9

LIQUID GASKET APPLICATION AREA
(TOP VIEW)

BOLT TIGHTENING SEQUENCE
(BOTTOM VIEW)

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL

11B-38

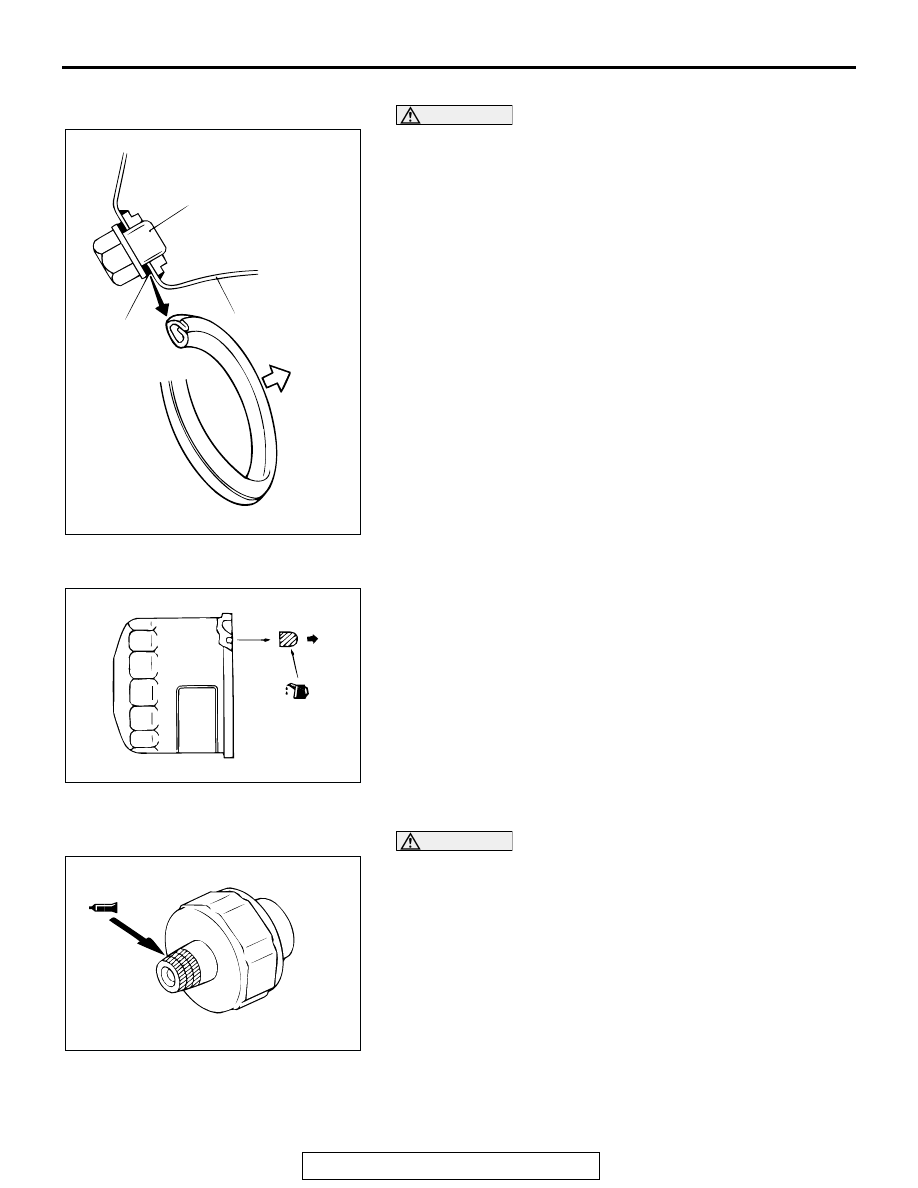

>>F<< DRAIN PLUG GASKET INSTALLATION

CAUTION

If the gasket is installed in the wrong direction, oil leaks
will occur.
Install the drain plug gasket as illustrated.

.

>>G<< OIL FILTER INSTALLATION
1. Clean the installation surface of the oil filter bracket.
2. Apply engine oil to the O-ring of the oil filter.
3. Screw the oil filter on until the O-ring contacts the bracket

Then tighten 3/4 turn [14

± 2 N⋅m (124 ± 17 in-lb)].

.

>>H<< SEALANT APPLICATION TO OIL PRESSURE
GAUGE UNIT

CAUTION

Keep the end of threaded portion clear of sealant. Avoid an
overtightening.
1. Apply 3M

 AAD Part number 8672 or equivalent to the oil

pressure switch.

AKX00726

DRAIN PLUG

OIL PAN
SIDE

GASKET

OIL PAN

AB

AKX00692

BRACKET
SIDE

AB

AKX00688
